 Science 8

When a musician plays, sounds spread outwards from their instrument. Anyone nearby can hear the sounds. This shows that sound can travel through air.

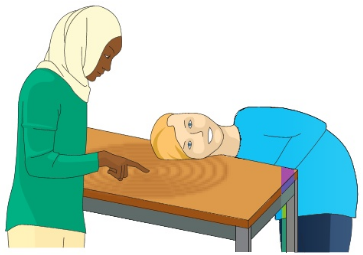

Sound can also travel through solids and liquids. For example, place your car against a table. Ask someone to tap the table - you will hear the tapping sound very clearly.

The sounds made by tapping the table travel through the wood

Question



$A+I$: 1) How could you show that sound travels through water?

Sound and a vacuum

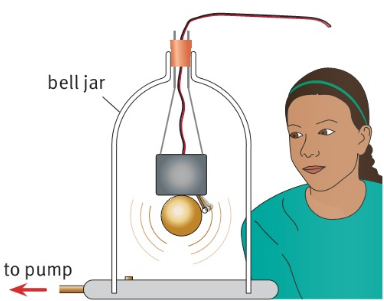

The picture shows an experiment to find out whether sound can travel through a vacuum (an empty space, with no air in it). An electric bell is hanging in a glass bell-jar. At first, the girl can hear it ringing.
Then the air is pumped out of the jar, so there is a vacuum in the jar. Now the girl cannot hear the bell. She can see that it is still ringing.
Sound needs a material to travel through. The material can be solid, liquid or gas. Sound cannot travel through a vacuum.

belljar/ to pump
?Can sound travel through a vacuum

Questions

2) Explain how this experiment shows that light can travel through a vacuum.

$A+I$: 3) We can see the Sun but we cannot hear it Explain these two observations.

Sound travelling

You should remember that air is made up of tiny particles called molecules. By thinking about these particles, we can explain how sound travels.

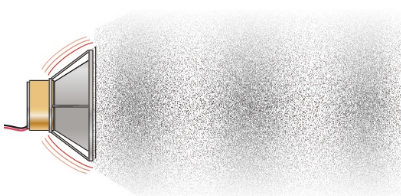

Vibrations of the loudspeaker create a sound wave in air

When a loudspeaker makes a sound, its cone vibrates back and forth. This pushes the air molecules next to the cone so that they move back and forth with the same frequency. These molecules then push on the next layer of molecules so that they also start to vibrate.
These molecules push on the next ones, and so on. The molecules only vibrate from side to side, but the vibration travels outwards through the air. We call this a sound wave.
Take care! Molecules of the air do not travel all the way from the loudspeaker to your ear. You hear the sound because the vibrations are passed along from one molecule to the next.

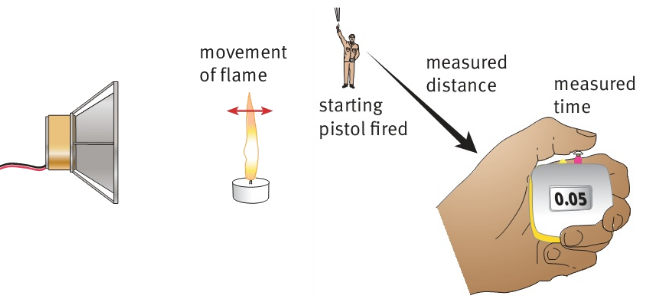

Activity 11.3 (Sound waves)



Try out some simple experiments which show how sound waves travel.
• Watch a candle flame moving in front of a loudspeaker.
• Use a long spring to show how a vibration can move.
• Test whether sound waves can be reflected by a hard surface.
• Measure the time taken for sound to reach you.
For each experiment, write one sentence to describe what you saw. Write a second sentence to explain what you saw.

movement of flame starting pistol fired measured distance measured time
