Before we go on to study electricity we need to introduce the concept of circuit diagrams. It is impossible to draw anything but the simplest circuits as a detailed drawing. To make it possible to draw complex circuits, a shorthand method using standard circuit symbols is used. You will have seen many circuit components and their symbols in your previous studies. Some are shown in Table 8.1 and Figure 8.4.
The symbols in Table 8.1 are a small part of a set of internationally agreed conventional symbols for electrical components. It is essential that scientists, engineers, manufacturers and others around the world use the same symbol for a particular component. In addition, many circuits are now designed by computers and these need a universal language in which to work and to present their results.
The International Electrotechnical Commission (IEC) is the body that establishes agreements on such things as electrical symbols, as well as safety standards, working practices and so on. The circuit symbols used here form part of an international standard known as IEC 60617. Because this is a shared ‘language’, there is less chance that misunderstandings will arise between people working in different organisations and different countries.

Table 8.1: Electrical components and their circuit symbols.

Symbol Component name

connecting lead

cell

battery of cells

fixed resistor

power supply

junction of conductors

crossing conductors (no connection)

filament lamp

voltmeter

ammeter

switch

variable resistor

microphone

loudspeaker

fuse

earth

alternating signal

capacitor

thermistor

light-dependent resistor (LDR)

semiconductor diode

light-emitting diode (LED)

What’s in a word?

Electricity is a rather tricky word. In everyday life, its meaning may be rather vague – sometimes we use it to mean electric current; at other times, it may mean electrical energy or electrical power. In this chapter and the ones that follow, we will avoid using the word electricity and try to develop the correct usage of these more precise scientific terms.

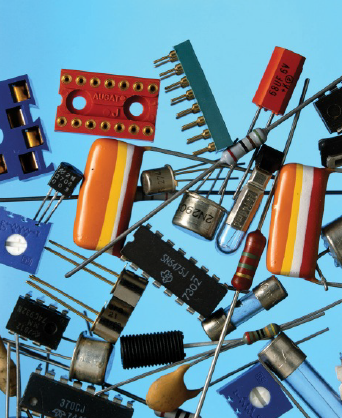

Figure 8.4: A selection of electrical components, including resistors, fuses, capacitors and microchips
