Nuclear Stability: The Quest to Stay Together
The Forces at Play Inside the Nucleus

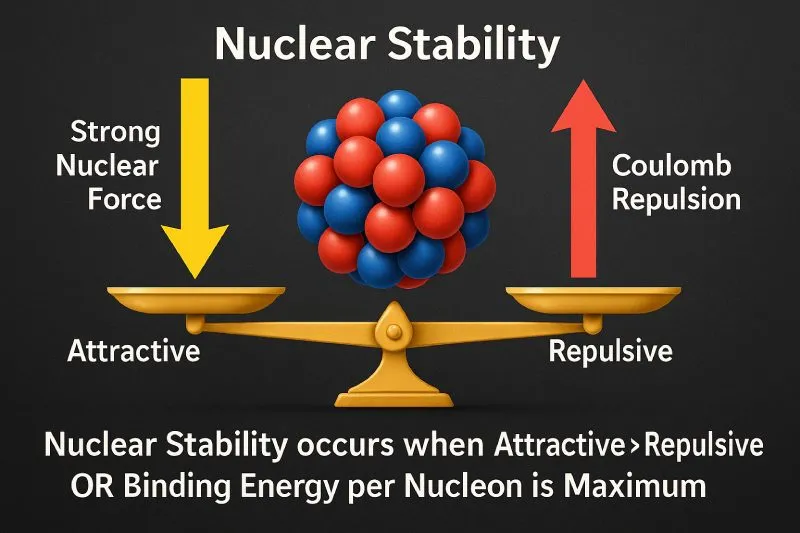

Imagine the nucleus of an atom as a tiny, incredibly dense ball. This ball is made of protons and neutrons, collectively called nucleons. Protons have a positive electric charge, and as you might know, like charges repel each other. So, why don't all the protons in a nucleus just push each other away violently? The answer lies in a powerful, but short-range, force called the strong nuclear force.
The strong force is the ultimate nuclear glue. It acts between all nucleons—proton-proton, neutron-neutron, and proton-neutron—and it is strong enough to overcome the repulsive electromagnetic force between the positively charged protons. However, this force has a very short range; it only works effectively when the nucleons are extremely close together, about the diameter of a typical nucleus.
Neutrons play a critical role in this balance. They contribute to the strong force without adding any repulsive electromagnetic force. Think of them as the peacekeepers inside the nucleus. They help "dilute" the concentration of protons, allowing the strong force to bind the nucleus more effectively. This is why for lighter elements, a 1:1 ratio of protons to neutrons is stable, but as nuclei get larger, more and more neutrons are needed to maintain stability.
The Neutron-Proton Ratio and the Valley of Stability
Not all combinations of protons and neutrons are stable. The stability of a nucleus depends heavily on its neutron-to-proton ratio (N/Z ratio). For the lightest, most stable elements (like Carbon-12 or Oxygen-16), this ratio is close to 1. This means they have roughly equal numbers of protons and neutrons.
As the number of protons increases, the repulsive force between them grows stronger. To compensate, a greater number of neutrons is required to provide enough strong force to hold the nucleus together. For heavier stable elements, like Bismuth-209, the N/Z ratio increases to about 1.5.
If we plot all known nuclides on a graph with the number of protons (Z) on one axis and the number of neutrons (N) on the other, the stable nuclides form a narrow band known as the valley of stability. Nuclei that lie off this band are unstable and will undergo radioactive decay to transform themselves into a nucleus that is closer to the valley.
| Element & Isotope | Protons (Z) | Neutrons (N) | N/Z Ratio | Stability |
|---|---|---|---|---|
| Helium-4 ($^{4}_{2}\text{He}$) | 2 | 2 | 1.0 | Stable |
| Carbon-12 ($^{12}_{6}\text{C}$) | 6 | 6 | 1.0 | Stable |
| Iron-56 ($^{56}_{26}\text{Fe}$) | 26 | 30 | ~1.15 | Stable (Most tightly bound) |
| Lead-208 ($^{208}_{82}\text{Pb}$) | 82 | 126 | ~1.54 | Stable (Heaviest stable isotope) |
| Carbon-14 ($^{14}_{6}\text{C}$) | 6 | 8 | ~1.33 | Unstable (Too many neutrons) |
Binding Energy: The Measure of Stability
How do we quantitatively measure how stable a nucleus is? The answer lies in its binding energy. According to Einstein's famous equation, $E=mc^2$, mass and energy are equivalent. When protons and neutrons come together to form a nucleus, the total mass of the nucleus is less than the sum of the masses of its individual protons and neutrons. This "missing mass," known as the mass defect, has been converted into the energy that binds the nucleus together. This energy is the binding energy.
The greater the binding energy, the more stable the nucleus. However, to compare nuclei of different sizes, we look at the binding energy per nucleon. This is calculated by dividing the total binding energy by the number of protons and neutrons (the mass number, A).
If you plot the binding energy per nucleon against the mass number, you get a famous curve that rises steeply for light elements, peaks around iron-56 and nickel-62, and then gradually decreases for heavier elements. This curve explains many nuclear phenomena:
- Iron-56 has the highest binding energy per nucleon, making it the most tightly bound and stable nucleus. It is the "end of the line" for energy production.
- Nuclear Fusion: Light elements (like hydrogen) can fuse to form heavier elements up to iron, releasing enormous energy because the products are more stable (higher binding energy per nucleon). This is the power source of the sun.
- Nuclear Fission: Very heavy elements (like uranium) can split into middle-weight nuclei, also releasing energy because the fragments are more stable (closer to the peak of the curve) than the original nucleus.
Predicting Decay: The Rules of the Game
Unstable nuclei, or radionuclides, seek stability through radioactive decay. The type of decay they undergo depends on their specific imbalance, primarily their N/Z ratio.
If a nucleus has too many neutrons (a high N/Z ratio, above the valley of stability), it will undergo beta-minus ($\beta^-$) decay. In this process, a neutron is transformed into a proton, an electron (the beta particle), and an antineutrino. This increases the atomic number (Z) by 1, moving the nucleus one step to the right and one step down on the chart of nuclides, closer to the valley of stability. Carbon-14 decaying to Nitrogen-14 is a classic example.
If a nucleus has too many protons (a low N/Z ratio, below the valley of stability), it will undergo beta-plus ($\beta^+$) decay or electron capture. In beta-plus decay, a proton is transformed into a neutron, a positron (a positive electron), and a neutrino. This decreases the atomic number (Z) by 1, moving the nucleus one step to the left and one step up on the chart. A proton-rich isotope like Fluorine-18 (used in PET scans) decays this way to become Oxygen-18.
For very heavy nuclei (with Z > 83), the repulsive force between the large number of protons is so great that no number of neutrons can stabilize them. These elements, like Radium and Uranium, often undergo alpha decay, where the nucleus emits a cluster of 2 protons and 2 neutrons (an alpha particle, which is a Helium-4 nucleus). This reduces both the mass number and atomic number significantly, moving the nucleus closer to the region of stability in a bigger jump.
Nuclear Stability in Action: From Medicine to Archaeology
The principles of nuclear stability are not just theoretical; they have powerful real-world applications. In nuclear medicine, doctors use radioactive isotopes, or radiotracers, to diagnose and treat diseases. For instance, Technetium-99m is a metastable isotope that emits gamma rays. It has a short half-life, meaning it decays quickly and doesn't remain radioactive in the body for long. It is used in imaging to locate tumors or monitor organ function. Its instability is its greatest asset.
In archaeology, the predictable decay of unstable isotopes is used for radiometric dating. As mentioned, Carbon-14 is unstable. It is constantly produced in the atmosphere and incorporated into living organisms. When an organism dies, it stops taking in Carbon-14. The existing Carbon-14 decays with a half-life of about 5,730 years. By measuring the remaining amount of Carbon-14 in an ancient sample, scientists can calculate how long ago the organism died, allowing them to date artifacts and fossils up to around 50,000 years old.
Similarly, the decay of Uranium-238 to Lead-206, which has a half-life of 4.5 billion years, is used to date the oldest rocks on Earth and even meteorites, helping us understand the age of our solar system.
Common Mistakes and Important Questions
A: Yes, this is a general rule. All isotopes of every element with an atomic number greater than 83 (Bismuth) are radioactive. Even the isotope Bismuth-209, long thought to be stable, is now known to undergo alpha decay with an extremely long half-life.
A: This is a great question. While neutrons provide the strong force, they also exist in energy levels or "shells" within the nucleus, similar to electrons in an atom. Adding too many neutrons fills these shells and places extra neutrons at higher, less stable energy levels. Furthermore, the nuclear force has limits. Beyond a certain point, the added neutrons cannot overcome the long-range repulsion of the protons, and the nucleus becomes unstable again, often decaying by emitting a neutron or undergoing beta decay.
A: Just as atoms with 2, 10, 18, 36, etc., electrons (noble gases) are particularly stable, nuclei with certain "magic numbers" of protons or neutrons are exceptionally stable. These numbers are 2, 8, 20, 28, 50, 82, and 126. Nuclei with a magic number of both protons and neutrons (called "double magic") are extremely stable. For example, Helium-4 (2p, 2n), Oxygen-16 (8p, 8n), and Lead-208 (82p, 126n) are all double magic and notably stable.
Footnote
1 Nucleon: A collective term for a proton or a neutron, the particles that make up an atomic nucleus.
2 Strong Nuclear Force: The fundamental force that binds protons and neutrons together in the nucleus. It is the strongest of the four fundamental forces but acts only over very short distances.
3 Neutron-to-Proton Ratio (N/Z): The ratio of the number of neutrons (N) to the number of protons (Z) in a nucleus. It is a key factor in determining nuclear stability.
4 Valley of Stability: The region on a chart of nuclides where stable nuclei are found. Unstable nuclei decay in a way that moves them toward this valley.
5 Binding Energy: The energy that would be required to disassemble a nucleus into its individual protons and neutrons. It is equivalent to the mass defect of the nucleus.
6 Mass Defect: The difference between the mass of a nucleus and the sum of the masses of its individual nucleons. This "lost" mass is converted into binding energy.
7 Radionuclide: An unstable isotope of an element that undergoes radioactive decay.
8 Half-life: The time required for half of the radioactive atoms in a sample to decay.
