The Ultrasound Transducer: An Energy Conversion Marvel
What is a Transducer? The Universal Translator of Energy

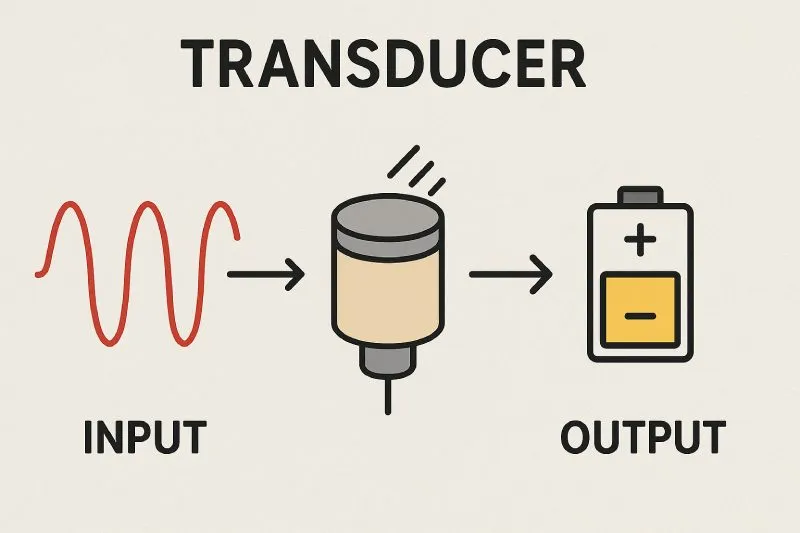

At its simplest, a transducer is a device that converts one form of energy into another. Think of it as a universal translator for energy. You encounter transducers every day without even realizing it. A microphone is a transducer; it converts the mechanical energy of sound waves into electrical signals that can be recorded or amplified. A speaker does the exact opposite, converting electrical signals back into sound waves. A solar panel is a transducer that turns light energy from the sun into electrical energy.
In the world of ultrasound imaging, the transducer is the magic wand that the doctor or technician places on your skin. It performs two key energy conversions, acting as both a speaker and a microphone for sound we cannot hear.
The Core Components: What's Inside the Magic Wand?
To understand how it works, let's look inside a typical ultrasound transducer. It's not just a single piece; it's a carefully engineered assembly of parts working in harmony.
| Component | Function | Simple Analogy |
|---|---|---|
| Piezoelectric Crystal | The active element that converts electrical energy into ultrasound waves and vice versa. | The heart of a speaker and a microphone combined. |
| Electrodes | Thin metal plates on either side of the crystal that deliver the electrical pulse. | The electrical wires that plug into a speaker. |
| Matching Layer | A special coating that helps transfer the sound energy efficiently from the crystal into the body. | An anti-reflection coating on eyeglasses that lets more light through. |
| Acoustic Insulator & Housing | Prevents unwanted vibrations and protects the internal components. It's the plastic case you hold. | The outer casing of a microphone that keeps it from picking up handling noise. |
| Backing Material (Damping Block) | Absorbs the sound waves traveling backward from the crystal to create a cleaner, shorter pulse. | Soundproofing foam in a recording studio that stops echoes. |
| Acoustic Lens | Focuses the beam of ultrasound waves to a specific depth, much like an optical lens focuses light. | A magnifying glass focusing sunlight into a small, bright spot. |
The Two-Step Dance: Transmit, Listen, Repeat
The process of creating an ultrasound image is a rapid, repeating cycle of two main steps: transmission and reception.
Step 1: The Transmit Cycle (Electrical to Sound)
The ultrasound machine sends a very short, high-voltage electrical pulse to the piezoelectric crystal via the electrodes. This electrical pulse causes the crystal to rapidly change shape (vibrate). This vibration happens at an incredibly high frequency, between 2 and 18 million times per second (2-18 MHz). These vibrations generate a pulse of high-frequency sound waves—ultrasound—that travel into the body. Since human hearing tops out at around 20,000 Hz (20 kHz), we cannot hear these sounds.
Step 2: The Receive Cycle (Sound to Electrical)
After sending the pulse, the transducer immediately switches to "listening" mode. The same piezoelectric crystal now works in reverse. The ultrasound waves that bounce back (echoes) from tissues inside the body hit the crystal, causing it to vibrate. These mechanical vibrations are then converted by the crystal into tiny electrical signals. These signals are sent back to the ultrasound machine, which amplifies and processes them.
This cycle of transmitting a pulse and then receiving echoes happens thousands of times per second. By measuring the time it takes for each echo to return and its strength, the computer in the ultrasound machine can build a detailed, real-time image on the screen.
Echoes and Image Formation: Painting with Sound
How do these echoes create a picture? Different tissues in the body have different densities and acoustic properties. When a sound wave hits a boundary between two different types of tissue (e.g., between fluid and a soft organ, or between muscle and bone), some of the sound energy is reflected back as an echo, while the rest continues deeper.
- Strong Echoes come from boundaries between very different tissues, like fluid and bone. These appear bright white on the ultrasound image.
- Weak Echoes come from boundaries between similar tissues, like between two muscles. These appear as shades of gray.
- No Echo (Anechoic) means the sound waves passed through without any reflection, like in a fluid-filled cyst. These areas appear black.
The time delay for the echo to return tells the machine how deep the reflecting structure is. An echo that returns quickly came from a shallow structure, while a later echo came from a deeper one. This is similar to how bats use echolocation to navigate and find insects in the dark. The formula for this is simple:
$Distance = (Speed of Sound in Tissue \times Time) / 2$
The time is divided by 2 because the sound wave travels to the object and back. The machine does this calculation millions of times per second to map out the entire internal landscape.
A Journey Through the Body: Practical Applications
Ultrasound transducers are used in countless medical scenarios. The type of transducer and the frequency of sound it uses are chosen based on what part of the body needs to be examined.
| Application | Transducer Type / Frequency | What It Shows |
|---|---|---|
| Pregnancy (Obstetrics) | Curved array, 3-5 MHz | Fetal development, heartbeat, and anatomy. It's safe because it uses sound waves, not radiation. |
| Abdominal Scan | Curved array, 2-5 MHz | Liver, gallbladder, kidneys, pancreas, and spleen. |
| Cardiac (Echocardiogram) | Phased array, 1-5 MHz | Heart valves, chambers, blood flow, and pumping function. |
| Musculoskeletal | Linear array, 7-15 MHz | Muscles, tendons, and ligaments in shoulders, knees, etc. |
The relationship between frequency and penetration is a key trade-off. Lower frequency waves (e.g., 2 MHz) travel deeper into the body but produce lower-resolution images. Higher frequency waves (e.g., 10 MHz) cannot penetrate as deeply but provide much sharper, high-resolution images of superficial structures. This is why a deep organ like the heart uses a lower frequency, while a tendon near the skin uses a high frequency.
Common Mistakes and Important Questions
Q: Is ultrasound the same as an X-ray?
No, this is a common misconception. X-rays are a form of ionizing electromagnetic radiation, while ultrasound uses mechanical sound waves. Ultrasound is generally considered safer, especially for developing fetuses, because it does not involve radiation.
Q: Why is a gel used during an ultrasound scan?
The gel is called an acoustic couplant. Its main job is to eliminate air between the transducer and the skin. Air is a very poor conductor of ultrasound waves and would cause almost all the sound to be reflected back, preventing it from entering the body. The gel, which has similar acoustic properties to body tissue, creates a seamless path for the sound waves to travel.
Q: Can ultrasound see through bone or gas?
This is a major limitation. Ultrasound does not image well through bone because the dense mineral content reflects almost all the sound waves. It also struggles with gas-filled structures like the lungs or intestines because the gas scatters the sound waves. This is why ultrasound is great for solid organs and fluid-filled spaces but not for looking at the brain in adults (the skull gets in the way) or the lungs.
Footnote
1 MHz: Megahertz. A unit of frequency equal to one million cycles per second. It describes how many times the piezoelectric crystal vibrates each second.
2 Piezoelectric Effect: The ability of certain materials to generate an electric charge in response to applied mechanical stress (and vice versa).
3 Echo: A reflected sound wave. In ultrasound, it is the sound wave that bounces back from a tissue boundary inside the body.
4 Anechoic: Literally "without echo." Describes a region in an ultrasound image that appears black because it does not reflect sound waves, typically because it is filled with fluid.
