Electron Shells: The Organized Neighborhoods of Atoms
The Basics: What is an Electron Shell?

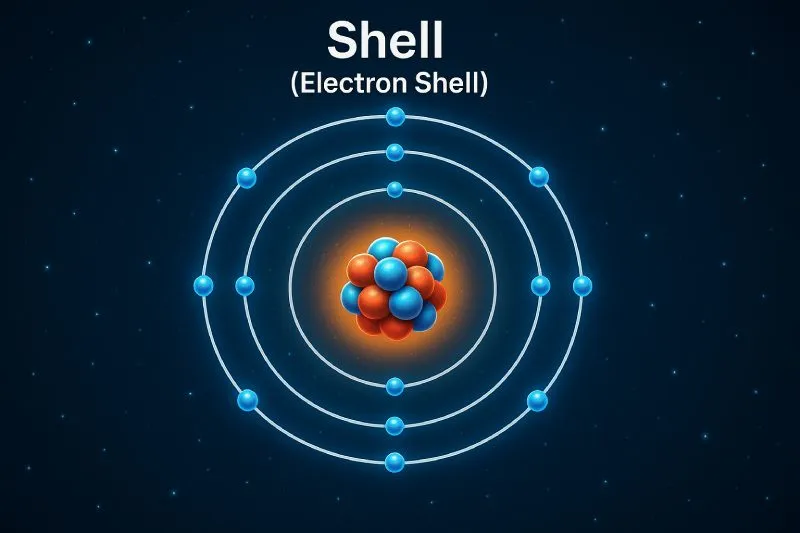

Imagine an atom as a tiny solar system. At the center is the sun, the nucleus, made of protons and neutrons. Orbiting this sun are the planets, the electrons. But these electrons don't move in random paths; they are organized into specific regions or "neighborhoods" called electron shells.
An electron shell is defined as a collection of orbitals that share the same principal quantum number, represented by the letter $ n $. This number $ n $ is always a positive integer: 1, 2, 3, and so on. The value of $ n $ tells us two main things:
- Energy: The higher the $ n $ value, the higher the energy of the electrons in that shell. Electrons in the $ n=1 $ shell are closest to the nucleus and have the lowest energy.
- Distance: The higher the $ n $ value, the farther the shell is, on average, from the nucleus.
Each shell can hold a maximum number of electrons. The formula to calculate this is $ 2n^2 $. For the first shell ($ n=1 $), it can hold $ 2(1)^2 = 2 $ electrons. The second shell ($ n=2 $) can hold $ 2(2)^2 = 8 $ electrons.
| Principal Quantum Number (n) | Shell Name | Maximum Electrons ($ 2n^2 $) |
|---|---|---|
| 1 | K | 2 |
| 2 | L | 8 |
| 3 | M | 18 |
| 4 | N | 32 |
Subshells and Orbitals: The Apartments within the Neighborhood
Each electron shell (neighborhood) is further divided into "subshells" (streets), which are made up of "orbitals" (individual apartments). The principal quantum number $ n $ determines how many subshells are in a shell.
For a given shell $ n $, there are $ n $ types of subshells. These are labeled as s, p, d, f.
- s subshell: Contains 1 orbital, can hold 2 electrons.
- p subshell: Contains 3 orbitals, can hold 6 electrons.
- d subshell: Contains 5 orbitals, can hold 10 electrons.
- f subshell: Contains 7 orbitals, can hold 14 electrons.
So, for the first shell ($ n=1 $), there is only one type of subshell: s. For the second shell ($ n=2 $), there are two types: s and p. For the third shell ($ n=3 $), there are three types: s, p, and d.
Electron Configuration: The Address of Every Electron
The electron configuration is a map that shows exactly how the electrons are distributed among the orbitals in an atom. It uses the shell number, the subshell letter, and a superscript number to indicate the number of electrons in that subshell.
Let's look at some examples:
- Hydrogen (H, atomic number 1): Has 1 electron. Its configuration is $ 1s^1 $. The single electron resides in the 1s orbital.
- Carbon (C, atomic number 6): Has 6 electrons. Its configuration is $ 1s^2 2s^2 2p^2 $. The first two electrons fill the 1s orbital. The next two fill the 2s orbital. The final two electrons go into the 2p subshell.
- Sodium (Na, atomic number 11): Has 11 electrons. Its configuration is $ 1s^2 2s^2 2p^6 3s^1 $. Notice that the first and second shells are completely full (2 + 8 = 10 electrons). The 11th electron is alone in the 3s orbital. This single electron in the outermost shell is what makes sodium so highly reactive.
Shells and the Periodic Table: The Ultimate Organizational Chart
The structure of the periodic table is a direct reflection of electron shells and their configurations. The table is organized into periods (rows) and groups (columns).
- Periods (Rows): The period number corresponds to the highest principal quantum number $ n $ of an element's electrons in its ground state. Hydrogen and Helium (Period 1) have their outermost electrons in the $ n=1 $ shell. Lithium to Neon (Period 2) have their outermost electrons in the $ n=2 $ shell, and so on.
- Groups (Columns): Elements in the same group have the same number of electrons in their outermost shell (valence electrons), which is why they have similar chemical properties. For example, all elements in Group 1 (the alkali metals) have one valence electron in an s orbital ($ ns^1 $).
| Block | Subshell Being Filled | Location on Table | Example Elements |
|---|---|---|---|
| s-block | s | Groups 1 & 2 | Li, Na, Ca |
| p-block | p | Groups 13-18 | C, O, Cl |
| d-block | d | Groups 3-12 (Transition Metals) | Fe, Cu, Ag |
| f-block | f | Lanthanides & Actinides | U, Nd, Th |
Practical Applications: From Table Salt to Smartphone Screens
The concept of electron shells is not just theoretical; it explains countless phenomena in our daily lives.
Example 1: The Formation of Table Salt (Sodium Chloride). Sodium (Na) has one electron in its outer shell ($ 3s^1 $). Chlorine (Cl) has seven electrons in its outer shell ($ 3s^2 3p^5 $). Atoms are most stable when their outer shell is full. Sodium can achieve a full outer shell by losing one electron, becoming a positive ion (Na+). Chlorine can achieve a full outer shell by gaining one electron, becoming a negative ion (Cl-). The powerful attraction between these oppositely charged ions forms an ionic bond, creating the crystal structure of sodium chloride, NaCl, which we know as table salt.
Example 2: The Glow of Neon Signs. When an electric current passes through neon gas, it energizes the electrons in the neon atoms, causing them to jump to higher energy shells. When these electrons "fall" back down to their original, lower-energy shells, they release the extra energy in the form of light. The specific color of the light (red for neon) depends on the difference in energy between the shells. Different gases have different shell structures and thus produce different colors.
Example 3: The Operation of Lasers. Lasers rely on a process called "stimulated emission," which is fundamentally about electrons moving between specific energy shells. By "pumping" energy into a material, electrons are moved to a higher, unstable shell. When they all fall back in a coordinated way, they emit a powerful, focused beam of light of a single color.
Common Mistakes and Important Questions
Q: Are electron shells like planetary orbits?
A: This is a common but incorrect analogy. Planetary orbits are flat and well-defined paths. Electron shells are three-dimensional regions of space where an electron is most likely to be found. We can't know the exact path of an electron, only the probability of finding it in a certain area (the orbital).
Q: Why does the third shell hold 18 electrons, but the elements in the third period only have 8 electrons in their outer shell?
A: This is a crucial point of confusion. While the third shell ($ n=3 $) has the capacity for 18 electrons (3s, 3p, and 3d orbitals), the order of filling follows the Aufbau principle. After the 3p orbital is filled at Argon (which has 8 electrons in its $ n=3 $ shell), the next electron goes into the 4s orbital, not the 3d. This is because the 4s orbital is slightly lower in energy than the 3d orbitals. So, for elements in the third period, only the 3s and 3p subshells are being filled in their valence shell.
Q: What is the difference between a shell and a subshell?
A: Think of it as a hierarchy. The shell (defined by $ n $) is the main energy level. Within each shell, there are subshells (s, p, d, f) which define the shape of the electron's probability cloud. And within each subshell, there are specific orbitals, which are the individual regions that can hold a maximum of two electrons.
The concept of the electron shell is a cornerstone of modern chemistry and physics. By organizing electrons into shells, subshells, and orbitals based on the principal quantum number $ n $, we can predict and explain the behavior of the elements with remarkable accuracy. From the explosive reaction of potassium with water to the inert nature of helium, from the conductivity of metals to the vibrant colors of fireworks, the properties of matter are a direct consequence of the arrangement of electrons in their atomic homes. Understanding this elegant organization is the first step to understanding the material world.
Footnote
1 Orbital: A mathematical function that describes the wave-like behavior of an electron or a pair of electrons in an atom. It defines a region in space where there is a high probability of finding an electron.
2 Nucleus: The small, dense, positively charged center of an atom, containing protons and neutrons.
3 Aufbau Principle: A German word meaning "building-up." It is the principle that protons and electrons are added to an atom in a step-by-step process, filling the lowest energy orbitals first.
4 Valence Electrons: The electrons in the outermost shell of an atom. These electrons are primarily responsible for the chemical properties of the element and its bonding behavior.
