Electronic Structure & Energetics
The Building Blocks: Atoms and Electrons
Everything you see, touch, and are made of is composed of atoms. At the center of each atom is a nucleus containing protons and neutrons, while tiny, negatively charged particles called electrons whiz around this center. The term electronic structure refers to the specific way these electrons are arranged around the nucleus. This arrangement is not random; it is governed by rules of energy, which we call energetics. Think of it like a solar system: the sun is the nucleus, and the planets are the electrons, but with very specific rules about which orbits they can occupy.

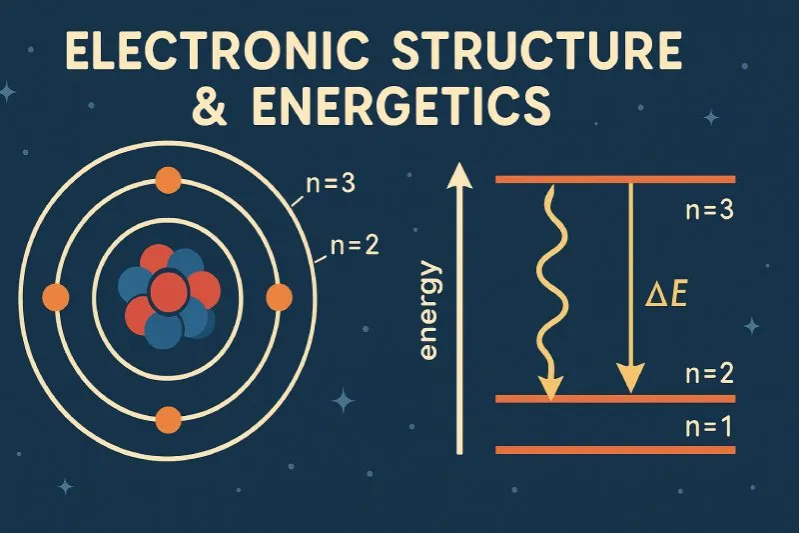

Electrons are found in regions of space called shells or energy levels. These levels are like the rungs of a ladder. A electron on a lower rung (closer to the nucleus) has less energy than an electron on a higher rung (further away). To move from a lower rung to a higher one, an electron must gain a specific amount of energy. Conversely, when it falls from a higher rung to a lower one, it releases energy, often in the form of light. This is the basic principle behind the colorful light from fireworks or neon signs!
When an electron falls to a lower energy level, it emits a particle of light called a photon. The energy of this photon is given by: $ E = h \nu $ where $ E $ is the energy, $ h $ is Planck's constant[1], and $ \nu $ (the Greek letter nu) is the frequency of the light. Higher frequency light (like blue light) has more energy than lower frequency light (like red light).
From Simple Orbits to Quantum Clouds
The first successful model of the atom was proposed by Niels Bohr. He suggested that electrons orbit the nucleus in fixed, circular paths, much like planets around the sun. While this model is a great starting point, it's too simple. We now know that electrons don't follow neat, predictable paths. Instead, they exist in orbitals, which are three-dimensional regions where there is a high probability of finding an electron. Imagine a blurry cloud of negative charge—this cloud represents an orbital.
These orbitals have different shapes and are organized within the main energy levels (shells). The first shell has one type of orbital, called an s orbital (spherical shape). The second shell has s orbitals and p orbitals (dumbbell shape). This more accurate model is known as the quantum mechanical model of the atom.
| Orbital Type | Shape | Number of Orbitals | Maximum Electrons |
|---|---|---|---|
| s | Spherical | 1 | 2 |
| p | Dumbbell | 3 | 6 |
| d | Cloverleaf (complex) | 5 | 10 |
| f | Complex | 7 | 14 |
The Address of an Electron: Electron Configuration
How do we write down the electronic structure of an atom? We use a system called electron configuration. It's like giving the precise address for every electron in an atom. We follow three main rules:
- Aufbau Principle[2]: Electrons fill the lowest energy orbitals first. "Aufbau" is German for "building up." You must build from the ground floor up, not start on the roof!
- Pauli Exclusion Principle: No two electrons in the same atom can have the same set of quantum numbers. In simpler terms, an orbital can hold a maximum of two electrons, and they must have opposite "spins."
- Hund's Rule: When filling orbitals of equal energy (like the three p orbitals), electrons will fill each orbital singly before pairing up. Imagine three seats on a bus; people will sit alone in each seat before doubling up.
Let's take Oxygen, which has 8 electrons. Its electron configuration is $ 1s^2 2s^2 2p^4 $.
- The "1" and "2" indicate the energy level (shell).
- The "s" and "p" indicate the type of orbital.
- The superscript numbers ($ 2 $, $ 2 $, $ 4 $) indicate the number of electrons in those orbitals.
This configuration tells us that oxygen has two electrons in the 1s orbital, two in the 2s orbital, and four in the 2p orbitals. Following Hund's rule, two of the three 2p orbitals have one electron each, and one 2p orbital has a pair.
Why It Matters: Chemical Bonding and Reactivity
The electron configuration, especially of the outermost electrons (called valence electrons), determines almost everything about how an element behaves chemically. Atoms are generally most stable when their outermost shell is full. This drive for a full outer shell is the engine of chemistry.
For example, the noble gases like Neon and Argon are famously unreactive. Why? Because they already have full outer electron shells. Other elements will gain, lose, or share electrons to achieve this stable configuration.
Ionic Bonding: This happens when one atom donates electrons to another. A classic example is Sodium Chloride (table salt). Sodium (Na, configuration $ [Ne] 3s^1 $) has one extra electron it wants to lose. Chlorine (Cl, configuration $ [Ne] 3s^2 3p^5 $) needs one electron to fill its outer shell. Sodium gives its extra electron to chlorine, forming positively charged $ Na^+ $ and negatively charged $ Cl^- $ ions that are strongly attracted to each other.
Covalent Bonding: This happens when atoms share electrons. In a water molecule ($ H_2O $), the oxygen atom shares one electron with each of the two hydrogen atoms, and the hydrogen atoms each share their single electron with oxygen. This sharing allows all atoms to feel like they have a full outer shell.
Light Shows and Lasers: A Practical Application
The principles of electronic structure and energetics are not just abstract ideas; they are the reason we have many modern technologies. One of the most direct applications is in the creation of light.
As mentioned earlier, when an electron falls from a higher energy level to a lower one, it releases a photon of light. The color of that light depends exactly on the difference in energy between the two levels ($ \Delta E $). In a neon sign, electricity is used to give energy to the neon atoms, bumping their electrons to higher levels. When the electrons fall back down, they release that energy as the characteristic bright red-orange light. Different gases produce different colors because their electronic structures—and thus their energy level differences—are unique.
This same principle is used in lasers (Light Amplification by Stimulated Emission of Radiation). Lasers work by first "pumping" energy into a material to get many of its electrons into a high-energy, excited state. Then, a specific trigger causes all these electrons to fall back down in a synchronized way, releasing a powerful, focused beam of light that is all one color (wavelength). This precise control over electronic transitions is only possible because we understand the quantized energy levels of electrons.
Common Mistakes and Important Questions
Q: Do electrons really orbit the nucleus like planets?
Q: Why can't an orbital hold more than two electrons?
Q: Is energy level the same as an orbital?
The study of electronic structure and energetics provides the foundation for all of chemistry and much of modern physics. From the simple idea that electrons reside in specific energy levels to the complex shapes of orbitals governed by quantum mechanics, these concepts explain why elements have different properties and how they interact to form the vast diversity of matter we see in the universe. By understanding the rules that electrons follow—the Aufbau principle, Hund's rule, and the Pauli exclusion principle—we can predict an element's chemical behavior and its role in forming bonds. This knowledge is not just theoretical; it powers the technologies around us, from the lights in our homes to the lasers in medical devices and communication tools.
Footnote
[1] Planck's constant (h): A fundamental constant in physics that relates the energy of a photon to the frequency of its associated electromagnetic wave. Its value is approximately 6.626 x 10-34 Joule-seconds.
[2] Aufbau Principle: A German word meaning "building-up." It is the principle that protons and electrons are added to an atom to build the elements of the periodic table, with electrons occupying the lowest energy orbitals available first.
