Hybridisation: Reshaping Atomic Orbitals for Molecular Architecture
Why Do Atoms Need to Hybridise?
Imagine you have a set of specialized tools, but a new job requires a tool with a combined function. What do you do? You might combine features from your existing tools to create a new, more suitable one. Atoms do something very similar. An atom like Carbon (C) has an electron configuration of $1s^2 2s^2 2p_x^1 2p_y^1$. This suggests it has two unpaired electrons ready for bonding, one in the 2s orbital and one in a 2p orbital. However, we know that carbon consistently forms four bonds in molecules like methane ($CH_4$). How does it manage this?
The answer is hybridisation. It is the process of mixing atomic orbitals within the same atom to form new, identical hybrid orbitals that are better suited for the geometric requirements of covalent bonds. This process explains molecular shapes that the simple overlap of pure s and p orbitals cannot.

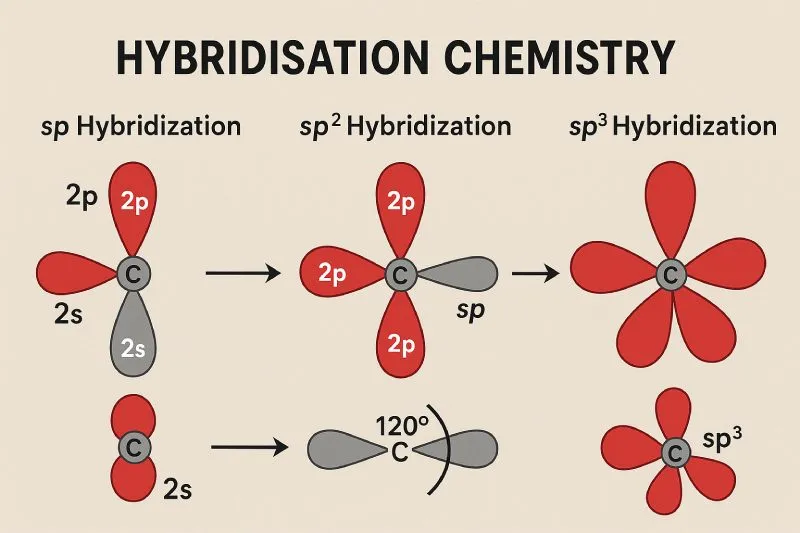

The Common Types of Hybridisation
The type of hybridisation is determined by the number of atomic orbitals that mix. The most common types involve the s and p orbitals from the same energy level.
| Hybridisation Type | Orbitals Mixed | Number of Hybrid Orbitals | Molecular Geometry | Example | Bond Angle |
|---|---|---|---|---|---|
| sp | 1 s + 1 p | 2 | Linear | $BeCl_2$, $C_2H_2$ (Acetylene) | $180°$ |
| sp2 | 1 s + 2 p | 3 | Trigonal Planar | $BF_3$, $C_2H_4$ (Ethene) | $120°$ |
| sp3 | 1 s + 3 p | 4 | Tetrahedral | $CH_4$ (Methane), $NH_3$ (Ammonia) | $109.5°$ |
Let's break down the most famous example: sp3 Hybridisation in Methane ($CH_4$).
1. A carbon atom promotes one of its 2s electrons to the empty 2pz orbital. Now it has four unpaired electrons: one in the 2s and three in the 2p orbitals.
2. The one 2s orbital and the three 2p orbitals then mix, or hybridise, to form four new, equivalent orbitals. Each of these new orbitals is called an sp3 hybrid orbital.
3. These four sp3 orbitals arrange themselves as far apart as possible in 3D space, which results in a tetrahedral geometry with bond angles of $109.5°$.
4. Each sp3 orbital then overlaps with the 1s orbital of a hydrogen atom to form a strong sigma ($\sigma$) bond[2].
Hybridisation in Action: From Water to Plastics
Hybridisation is not just a theoretical idea; it has real-world implications that explain the properties of countless substances.
Case Study 1: The Bent Shape of Water
Oxygen ($1s^2 2s^2 2p^4$) has two unpaired electrons in its 2p orbitals. It undergoes sp3 hybridisation, resulting in four sp3 orbitals. Two of these contain a bonding pair of electrons (to bond with H), and the other two contain lone pairs[3]. The repulsion from the lone pairs is stronger than from bonding pairs, which squishes the H-O-H bond angle from the ideal tetrahedral $109.5°$ down to approximately $104.5°$. This gives water its characteristic bent shape, which is crucial for its unique properties like high surface tension and its role as a universal solvent.
Case Study 2: The Double Bond in Ethene
Ethene ($C_2H_4$), a key molecule in producing plastics, contains a carbon-carbon double bond. Each carbon atom undergoes sp2 hybridisation. This means one s and two p orbitals mix to form three sp2 orbitals arranged in a trigonal plane with $120°$ angles. These form sigma bonds with two H atoms and the other C atom. The remaining pure p orbital on each carbon atom overlaps sideways with its partner, forming a pi ($\pi$) bond[4]. The combination of one sigma and one pi bond creates the carbon-carbon double bond. This rigid double bond is why ethene is a planar molecule.
Common Mistakes and Important Questions
Q: Is hybridisation a real physical process that we can observe?
A: No, hybridisation is a mathematical model used to explain and predict molecular geometries and bonding patterns that cannot be accounted for by pure atomic orbitals. It is a conceptual tool that works remarkably well, but the mixing of orbitals is a theoretical construct, not a physical event we can watch happen.
Q: Do lone pairs on an atom participate in hybridisation?
A: Yes! The type of hybridisation is determined by the number of electron domains (regions of electron density) around the central atom, which includes both bonding pairs and lone pairs. For example, in ammonia ($NH_3$), nitrogen has three bonding pairs and one lone pair, making a total of four electron domains. This dictates sp3 hybridisation, even though one hybrid orbital holds a lone pair instead of forming a bond.
Q: Can d orbitals participate in hybridisation?
A: For atoms in period 3 or higher (like Phosphorus or Sulfur), yes. They can use their d orbitals to form hybrid orbitals like sp3d (trigonal bipyramidal geometry, e.g., in $PCl_5$) or sp3d2 (octahedral geometry, e.g., in $SF_6$). This is beyond the scope of basic hybridisation but is a logical extension of the concept.
Hybridisation is a powerful and elegant concept that bridges the gap between the abstract world of atomic orbitals and the tangible, three-dimensional shapes of molecules. By understanding how s, p, and sometimes d orbitals mix to form new hybrid orbitals, we can accurately predict and explain the geometries of a vast array of compounds. From the tetrahedral structure of diamond to the planar ring of benzene, hybridisation provides the foundational logic for molecular architecture, making it an indispensable tool in the study of chemistry.
Footnote
[1] VSEPR (Valence Shell Electron Pair Repulsion): A model used in chemistry to predict the geometry of individual molecules based on the premise that electron pairs around a central atom will arrange themselves to be as far apart as possible to minimize repulsion.
[2] Sigma ($\sigma$) bond: A covalent bond formed by the direct, end-to-end overlap of atomic orbitals, symmetrical around the axis connecting the two nuclei. It is the first bond formed between any two atoms.
[3] Lone pair: A pair of valence electrons that are not shared with another atom in a covalent bond. They are also known as non-bonding electrons.
[4] Pi ($\pi$) bond: A covalent bond formed by the sideways overlap of p orbitals, with electron density concentrated above and below the plane of the nuclei of the bonding atoms. It is present in double and triple bonds alongside a sigma bond.
