Lone Pairs: The Invisible Players in Chemistry
What Exactly is a Lone Pair?
At its core, a lone pair (also called a non-bonding pair) is a set of two electrons that belong exclusively to one atom. These electrons reside in the outermost shell, known as the valence shell, but unlike bonding electrons, they are not used to form a chemical bond with another atom. Think of them as an atom's private reserve of electrons.

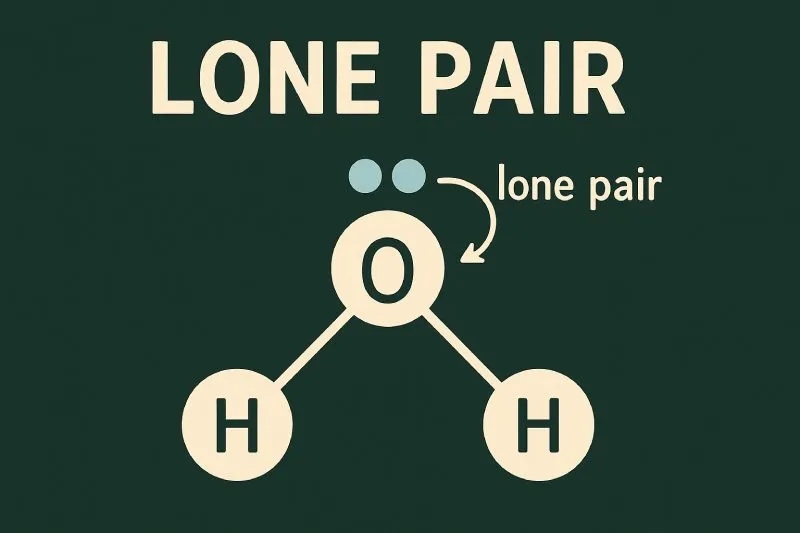

To visualize this, we use Lewis dot structures, a simple diagram where valence electrons are represented as dots around the chemical symbol of an atom. For example, an oxygen atom has 6 valence electrons. In a water molecule ($H_2O$), it shares two of these electrons (one with each hydrogen atom) to form two covalent bonds. The remaining four electrons form two lone pairs.
Finding and Counting Lone Pairs
Let's break down the process of identifying lone pairs using Lewis structures for some common molecules.
| Molecule & Formula | Lewis Structure Description | Total Lone Pairs |
|---|---|---|
| Ammonia, $NH_3$ | Nitrogen (N) has 5 valence electrons. It forms three single bonds with three hydrogen (H) atoms, using 6 electrons. The remaining 2 electrons form one lone pair. | 1 |
| Water, $H_2O$ | Oxygen (O) has 6 valence electrons. It forms two single bonds with two hydrogen atoms, using 4 electrons. The remaining 4 electrons form two lone pairs. | 2 |
| Carbon Dioxide, $CO_2$ | Carbon (C) has 4 valence electrons and oxygen (O) has 6. Carbon forms two double bonds ($C=O$), using all 4 of its electrons. Each oxygen uses 4 electrons for bonding, leaving 4 electrons (two lone pairs) on each oxygen. | 4 (two on each O) |
| Methane, $CH_4$ | Carbon (C) has 4 valence electrons. It forms four single bonds with four hydrogen atoms, using all 8 of its electrons. There are no leftover electrons. | 0 |
The Power of a Lone Pair: Shaping Molecules
Lone pairs are not just passive spectators; they actively influence the shape of a molecule. The VSEPR1 theory helps us predict molecular geometry by stating that electron groups (both bonding pairs and lone pairs) around a central atom repel each other and arrange themselves as far apart as possible.
However, lone pairs exert a stronger repulsive force than bonding pairs. This is because a lone pair is held by only one nucleus and occupies more space around the central atom. A bonding pair is shared between two nuclei and is pulled tighter, taking up less space.
Let's compare $CH_4$, $NH_3$, and $H_2O$. All have four electron groups around the central atom.
- Methane ($CH_4$): Four bonding pairs, zero lone pairs. The electron groups maximize their distance in a tetrahedral shape with bond angles of 109.5°.
- Ammonia ($NH_3$): Three bonding pairs, one lone pair. The lone pair pushes the three N-H bonds closer together. The shape is a trigonal pyramid. The bond angle is about 107°, less than the ideal 109.5° due to the strong lone pair repulsion.
- Water ($H_2O$): Two bonding pairs, two lone pairs. The two lone pairs repel each other and the two O-H bonds even more strongly. This results in a bent or angular shape. The bond angle is about 104.5°.
This simple idea explains why water is not a linear molecule, which has profound implications for its properties as the universal solvent.
Lone Pairs in Chemical Reactions
Lone pairs are the key players in many chemical reactions, particularly those involving acids and bases.
According to the Lewis acid-base theory, a base is a substance that can donate a lone pair of electrons, while an acid is a substance that can accept a lone pair.
Consider the reaction between ammonia ($NH_3$) and hydrochloric acid ($HCl$) to form ammonium chloride ($NH_4Cl$).
- Ammonia has a lone pair on its nitrogen atom, making it a Lewis base.
- Hydrogen chloride molecule has a polar bond. When it dissolves, the hydrogen ion ($H^+$) is released. A hydrogen ion has no electrons; it is just a proton seeking electrons.
- The nitrogen atom in ammonia donates its lone pair to the electron-deficient $H^+$ ion, forming a new covalent bond and creating the ammonium ion ($NH_4^+$).
The chemical equation is: $NH_3 + HCl \rightarrow NH_4Cl$
At the heart of this reaction is the donation of a lone pair. This principle applies to countless other reactions, from the simple fizzing of an antacid tablet in water to complex biological processes in your body.
Common Mistakes and Important Questions
Q: Do lone pairs count as electron domains in VSEPR theory?
Yes, absolutely. In VSEPR theory, both bonding pairs and lone pairs are considered "electron domains" or "electron groups." They all repel each other and determine the overall electron geometry. The molecular geometry (the shape defined by the atom positions) is then derived by ignoring the lone pairs.
Q: Can an atom have more than two lone pairs?
Yes. For example, a chloride ion ($Cl^-$) has four lone pairs. A neutral chlorine atom has 7 valence electrons. When it gains one electron to form $Cl^-$, it has 8 valence electrons. Since it isn't bonded to any other atom, all eight electrons are non-bonding, forming four lone pairs.
Q: Why do lone pairs repel more than bonding pairs?
A lone pair is located closer to the central atom's nucleus because it is attracted by only one nucleus. A bonding pair is shared between two atoms and is therefore more spread out, spending some time around the other atom. Because the lone pair is closer and occupies more space near the central atom, it exerts a greater repulsive force on the other electron pairs.
Conclusion
Lone pairs, though "lone" and non-bonding, are far from insignificant. They are powerful forces that dictate the three-dimensional architecture of molecules, explaining why water is bent and ammonia is pyramidal. They are the chemical currency of Lewis bases, driving essential reactions in laboratories and living organisms. From the geometry predicted by VSEPR theory to the behavior of acids and bases, a deep understanding of these invisible electron pairs unlocks a clearer and more predictive view of the molecular world.
Footnote
1 VSEPR: Valence Shell Electron Pair Repulsion. A model used in chemistry to predict the geometry of individual molecules based on the number of electron pairs surrounding their central atoms.
