Exploring Sub-shells: The s, p, d, and f Orbitals

The Building Blocks: Shells and Sub-shells

Imagine an atom as a tiny solar system. The nucleus is the sun at the center, and electrons are the planets orbiting around it. However, electrons don't orbit randomly; they are organized into specific energy levels called shells (also known as principal energy levels). These shells are labeled with numbers: n = 1, 2, 3, 4, and so on. The higher the number, the farther the shell is from the nucleus and the higher its energy.

Now, think of each shell as an apartment building. The shell number (n) tells you which floor the apartment is on. But each floor has different types of apartments—studios, one-bedrooms, etc. In atomic terms, these "apartment types" are the sub-shells. They are divisions within a shell and are designated by the letters s, p, d, and f.

The number of sub-shells in a shell is equal to the shell number. For example:

• Shell n = 1 has 1 sub-shell: s.
• Shell n = 2 has 2 sub-shells: s and p.
• Shell n = 3 has 3 sub-shells: s, p, and d.
• Shell n = 4 has 4 sub-shells: s, p, d, and f.

A Closer Look at Orbitals and Their Shapes

Each sub-shell is made up of orbitals. An orbital is a region of space around the nucleus where there is a high probability (about 90%) of finding an electron. According to the Pauli Exclusion Principle^[1], each orbital can hold a maximum of 2 electrons. This is why the maximum number of electrons in a sub-shell is always twice the number of orbitals.

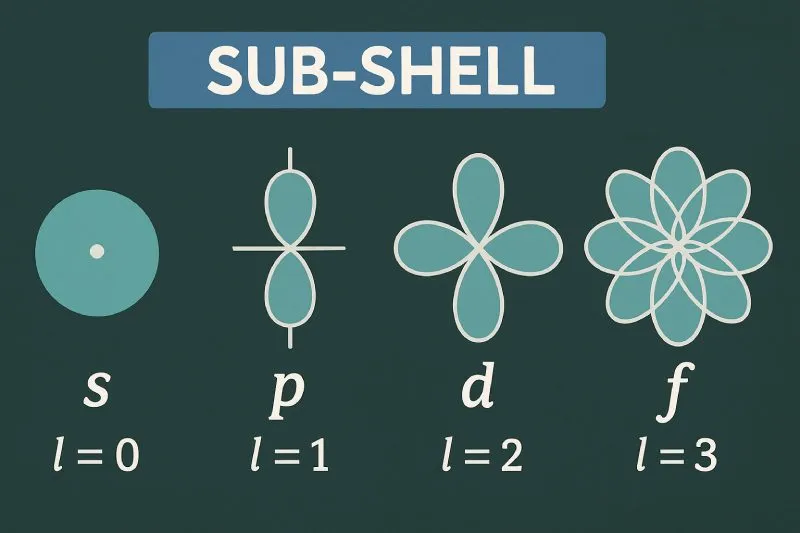

Let's explore the unique shapes of each sub-shell:

• s Orbitals: These are the simplest. Every s sub-shell, regardless of which shell it's in (1s, 2s, 3s, etc.), has a spherical shape. Think of it as a hollow ball surrounding the nucleus. As the shell number increases, the s orbital gets larger, but its shape remains the same.
• p Orbitals: The p sub-shell has three orbitals, each oriented along a different axis in three-dimensional space: $p_x$, $p_y$, and $p_z$. Each p orbital looks like a dumbbell or a figure-8. The three orbitals are perpendicular to each other.
• d Orbitals: The d sub-shell has five orbitals with more complex, cloverleaf shapes. Most of them have four lobes. The different d orbitals ($d_{xy}$, $d_{xz}$, $d_{yz}$, $d_{x^2-y^2}$, $d_{z^2}$) are oriented in different planes.
• f Orbitals: These are the most complex, with seven orbitals and even more intricate, multi-lobed shapes. They are important for the chemistry of the lanthanide and actinide elements^[2].

The Order of Filling: The Aufbau Principle

Electrons don't just fill the shells and sub-shells in a simple 1, 2, 3 order. They follow a specific sequence known as the Aufbau principle^[4], which is German for "building-up." This principle states that electrons occupy the orbitals of lowest energy first.

The order of increasing energy for sub-shells is: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, ...

A common mnemonic to remember this order is: 1s 2s 2p 3s 3p 4s 3d 4p 5s 4d 5p 6s 4f 5d 6p 7s 5f 6d 7p. Notice that after the 3p sub-shell, the 4s fills before the 3d. This is because the 4s orbital has a slightly lower energy than the 3d orbitals at this point.

Let's build the electron configuration for Potassium (K), which has 19 electrons:

1. The first 2 electrons go into 1s.
2. The next 2 go into 2s.
3. The next 6 go into 2p.
4. The next 2 go into 3s.
5. The next 6 go into 3p.
6. We have placed 18 electrons so far. The 19th electron goes into the next available orbital, which is 4s.

So, the electron configuration for Potassium is $1s^2 2s^2 2p^6 3s^2 3p^6 4s^1$.

How Sub-shells Explain the Periodic Table

The structure of the modern periodic table is a direct map of how sub-shells are filled with electrons. The table is divided into blocks named after the last sub-shell that is being filled.

• s-block: This includes Groups 1 and 2 (the alkali metals and alkaline earth metals). These elements have their outermost electrons in an s sub-shell. For example, Lithium is $1s^2 2s^1$ and Calcium is $1s^2 2s^2 2p^6 3s^2 3p^6 4s^2$.
• p-block: This includes Groups 13 to 18. These elements are filling their p sub-shells. This block contains all the non-metals (except Hydrogen), metalloids, and some post-transition metals. Oxygen ($1s^2 2s^2 2p^4$) is a classic example.
• d-block: These are the transition metals, found in the center of the periodic table (Groups 3 to 12). They are characterized by the filling of the d sub-shell. For instance, Iron (Fe) has the configuration $[Ar] 4s^2 3d^6$.
• f-block: These are the lanthanides and actinides, placed separately at the bottom of the table. They are characterized by the filling of the f sub-shell. Europium (Eu) is an example of a lanthanide.

This block structure perfectly explains the periodicity of elements. Elements in the same group (vertical column) have the same number of electrons in their outermost sub-shell, which is why they have similar chemical properties. For example, all noble gases (Group 18) have a fully filled p sub-shell ($...np^6$), making them exceptionally stable and unreactive.

Practical Examples: From Sodium to Chlorine

Let's look at a series of elements to see how the filling of sub-shells dictates their behavior. We'll examine elements 11 through 17, all in the third period.

Sodium (Na, Z=11): Configuration: $1s^2 2s^2 2p^6 3s^1$. Sodium has one electron in its outermost 3s orbital. This single electron is easily lost, forming the $Na^+$ ion. This is why sodium is a highly reactive metal.

Magnesium (Mg, Z=12): Configuration: $1s^2 2s^2 2p^6 3s^2$. Its 3s sub-shell is full. It tends to lose these two electrons to form $Mg^{2+}$.

Aluminum (Al, Z=13): Configuration: $1s^2 2s^2 2p^6 3s^2 3p^1$. Now we start filling the 3p sub-shell. Aluminum loses three electrons ($3s^2 3p^1$) to form $Al^{3+}$.

Silicon (Si, Z=14): Configuration: $...3s^2 3p^2$. Silicon has four valence electrons and forms covalent bonds, making it a semiconductor.

Phosphorus (P, Z=15): Configuration: $...3s^2 3p^3$. It needs three more electrons to fill its p sub-shell. It often gains them by forming covalent bonds, as in the molecule $P_4$.

Sulfur (S, Z=16): Configuration: $...3s^2 3p^4$. It needs two more electrons to complete its p sub-shell. It can gain two electrons to form the sulfide ion ($S^{2-}$) or form two covalent bonds.

Chlorine (Cl, Z=17): Configuration: $...3s^2 3p^5$. It is just one electron short of a full p sub-shell. It has a very strong tendency to gain one electron, forming the chloride ion ($Cl^-$). This makes chlorine a very reactive non-metal.

This progression from sodium to chlorine shows a clear trend: from metals that lose electrons to non-metals that gain electrons, all governed by how close their p sub-shell is to being full.

Common Mistakes and Important Questions

Footnote

^[1] Pauli Exclusion Principle: A quantum mechanical principle which states that no two electrons in an atom can have the same set of four quantum numbers. In simple terms, an orbital can hold at most two electrons, and they must have opposite spins.

^[2] Lanthanide and Actinide: Two series of elements, often placed below the main periodic table. The lanthanides (atomic numbers 58-71) and actinides (atomic numbers 90-103) are characterized by the filling of their 4f and 5f sub-shells, respectively.

^[3] Azimuthal Quantum Number (l): Also known as the angular momentum quantum number. It defines the shape of the orbital and the sub-shell. Its values are 0 (s), 1 (p), 2 (d), and 3 (f).

^[4] Aufbau Principle: From the German word "Aufbau" meaning "building up." It is a key principle used to determine the electron configuration of an atom, stating that electrons occupy the lowest energy orbitals available first.
