The Limiting Reagent: The Manager of Chemical Reactions
What is a Limiting Reagent?
Imagine you are making cheese sandwiches. You have 10 slices of bread but only 4 slices of cheese. How many complete sandwiches can you make? The answer is 2, because after using 4 slices of bread and 4 slices of cheese, you run out of cheese. The cheese is the limiting ingredient. The bread is in excess.

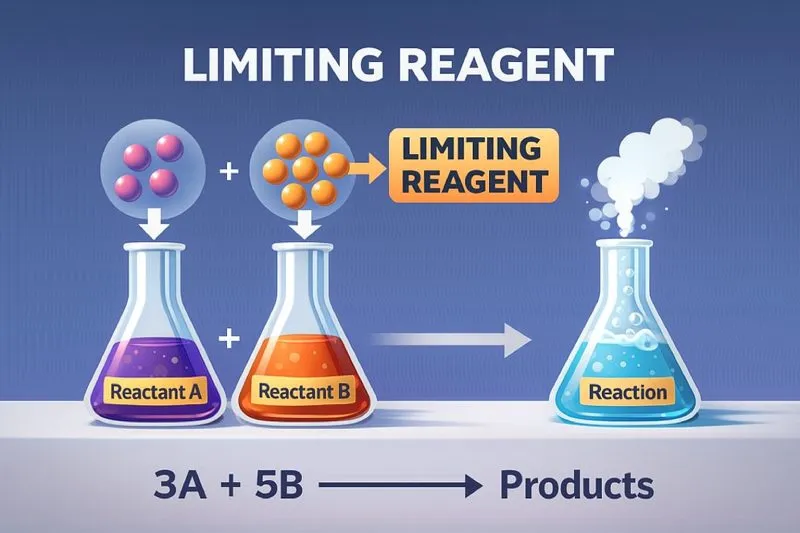

A chemical reaction works in the exact same way. The reactants are like the ingredients, and the products are like the final dish. The limiting reagent (or limiting reactant) is the substance that is entirely consumed first, stopping the reaction from proceeding further and thus dictating the quantity of the final product. The other reactants that are not completely used up are called excess reagents.
The Analogy of a Bicycle Factory
Let's think of a factory that makes bicycles. Each bicycle requires 1 frame and 2 wheels. The chemical equation for this "reaction" would be:
Now, if the factory has 10 frames and 16 wheels, how many bicycles can be built?
- With 10 frames, you could make 10 bicycles, but that would require 20 wheels.
- With 16 wheels, you could make 8 bicycles, which requires 8 frames.
Since we run out of wheels after making only 8 bicycles, the wheels are the limiting reagent. The frames are the excess reagent, and 2 frames will be left over.
How to Find the Limiting Reagent in a Chemical Reaction
Finding the limiting reagent in a chemistry problem involves a few clear steps. Let's use a real chemical reaction as our example: the combustion of methane.
This balanced equation tells us that 1 molecule of methane $(CH_4)$ reacts with 2 molecules of oxygen $(O_2)$ to produce 1 molecule of carbon dioxide $(CO_2)$ and 2 molecules of water $(H_2O)$.
Problem: If we start with 5 moles of $CH_4$ and 8 moles of $O_2$, which is the limiting reagent?
Step 1: Write the Balanced Chemical Equation. (Already done above).
Step 2: Calculate the Mole Ratio. This is the ratio of moles from the balanced equation. For $CH_4$ to $O_2$, the ratio is 1:2.
Step 3: Calculate the Required Moles. Ask: "How many moles of $O_2$ are needed to react with all 5 moles of $CH_4$?"
Using the ratio: $5 \text{ moles } CH_4 \times \frac{2 \text{ moles } O_2}{1 \text{ mole } CH_4} = 10 \text{ moles } O_2$ needed.
Step 4: Compare with Available Moles. We need 10 moles of $O_2$, but we only have 8 moles available. Since we do not have enough $O_2$ to react with all the $CH_4$, Oxygen $(O_2)$ is the limiting reagent.
You can also do the calculation the other way around. Calculate how many moles of $CH_4$ are needed to react with all 8 moles of $O_2$:
$8 \text{ moles } O_2 \times \frac{1 \text{ mole } CH_4}{2 \text{ moles } O_2} = 4 \text{ moles } CH_4$ needed.
We have 5 moles of $CH_4$, which is more than enough. This confirms that $O_2$ is limiting and $CH_4$ is in excess.
A Practical Example: Making Water
Let's work through another classic example: the formation of water from hydrogen and oxygen gas.
Scenario: A chemist mixes 6 moles of $H_2$ and 4 moles of $O_2$. What is the limiting reagent and how many moles of water can be produced?
Step 1: Balanced equation is $2H_2 + O_2 \rightarrow 2H_2O$.
Step 2: Mole ratio of $H_2$ to $O_2$ is 2:1.
Step 3: Moles of $O_2$ needed for all $H_2$: $6 \text{ moles } H_2 \times \frac{1 \text{ mole } O_2}{2 \text{ moles } H_2} = 3 \text{ moles } O_2$ needed.
We have 4 moles of $O_2$, which is more than 3 moles. So, $H_2$ might be limiting. Let's check the other way.
Step 4: Moles of $H_2$ needed for all $O_2$: $4 \text{ moles } O_2 \times \frac{2 \text{ moles } H_2}{1 \text{ mole } O_2} = 8 \text{ moles } H_2$ needed.
We only have 6 moles of $H_2$, which is less than 8 moles. This confirms that Hydrogen $(H_2)$ is the limiting reagent.
Step 5: Calculate the Product. Use the limiting reagent to find the moles of water produced. The mole ratio of $H_2$ to $H_2O$ is 2:2, or 1:1.
$6 \text{ moles } H_2 \times \frac{2 \text{ moles } H_2O}{2 \text{ moles } H_2} = 6 \text{ moles } H_2O$.
Therefore, 6 moles of water can be produced.
Comparison of Reactants in a Table
Using a table can help organize your work and make the comparison clear. Let's use the same water formation reaction with different starting amounts.
| Reactant | Available Moles | Moles Needed for Other Reactant | Comparison | Conclusion |
|---|---|---|---|---|
| $H_2$ | 6 moles | 8 moles needed to react with all $O_2$ | 6 < 8 (Not enough) | Limiting Reagent |
| $O_2$ | 4 moles | 3 moles needed to react with all $H_2$ | 4 > 3 (More than enough) | Excess Reagent |
Common Mistakes and Important Questions
Q1: Can there be more than one limiting reagent?
No. In a given reaction with specific starting amounts, there is only one limiting reagent. It is the reactant that produces the least amount of product. If you calculate the amount of product each reactant can produce, the one that gives the smallest amount is the limiting reagent. If two reactants give the same smallest amount, they would both be limiting, but this is a very specific and rare scenario in practice.
Q2: What is the difference between a limiting reagent and an excess reagent?
The limiting reagent is completely used up in the reaction and determines when the reaction stops. The excess reagent is not fully consumed; some of it is left over after the reaction is complete. The amount of excess reagent left can be calculated once you know how much was consumed by the limiting reagent.
Q3: Why is the concept of a limiting reagent so important in real life?
It is crucial for cost-efficiency and safety. In industry, using the correct ratio of reactants minimizes waste of expensive materials. In pharmaceuticals, it ensures the correct dosage is produced. In baking, it determines how many cakes you can make! It also prevents dangerous situations where unreacted, potentially hazardous chemicals are left over.
Conclusion
Footnote
[1] Stoichiometry: The calculation of relative quantities of reactants and products in chemical reactions. It is based on the law of conservation of mass.
[2] Theoretical Yield: The maximum amount of product that can be produced from a given amount of limiting reagent, as calculated from the balanced chemical equation.
[3] Mole: The standard scientific unit for measuring large quantities of very small entities such as atoms, molecules, or other specified particles. One mole contains exactly $6.022 \times 10^{23}$ particles (Avogadro's number).
