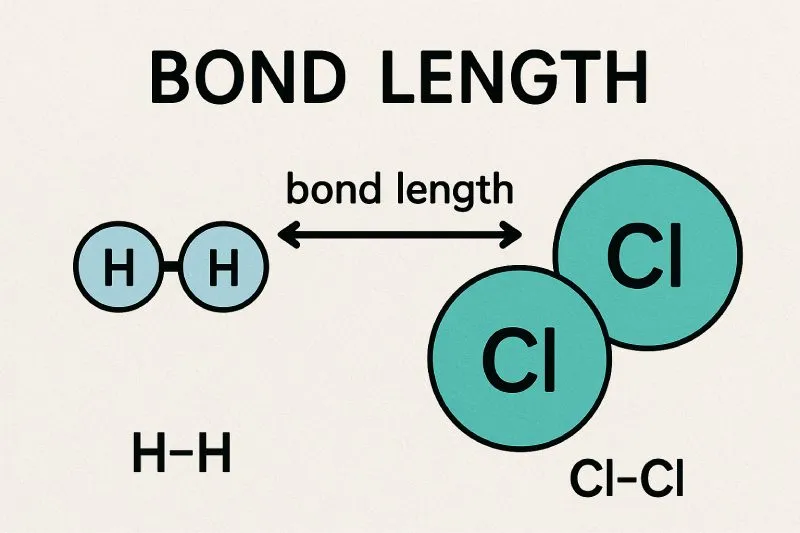

Bond Length: The Distance Between Atoms
The Forces That Determine Bond Length
Imagine two atoms are like powerful magnets. They are pulled towards each other but also have a force that pushes them apart if they get too close. A chemical bond is a similar, but more complex, tug-of-war. The bond length is the distance where these opposing forces are perfectly balanced.
The primary attractive force is between the positively charged nucleus of one atom and the negatively charged electrons of the other. The main repulsive force occurs when the two atoms get so close that their positively charged nuclei start to repel each other strongly, and their electron clouds also begin to repel each other.
This balance is dynamic. Atoms in a bond are constantly vibrating, so the bond length is an average distance. Think of it like two people holding hands while walking; the distance between them changes slightly with each step, but there's an average arm's length they maintain.
Key Factors Influencing Bond Length
Several factors determine the exact distance at which this balance is achieved for different atom pairs.
1. Atomic Size
Larger atoms have more electron shells, which means their outer electrons are farther from the nucleus. When a large atom forms a bond, the center of its bonding electron cloud is naturally farther from its own nucleus, leading to a longer bond.
Example: Look at the hydrogen halides. The bond length in HF is about 92 pm (picometers), while in HI it is about 161 pm. Iodine (I) is much larger than fluorine (F), so the H-I bond is longer.
2. Bond Order
Bond order refers to the number of chemical bonds between two atoms. A single bond has a bond order of 1, a double bond has 2, and a triple bond has 3.
Higher bond order means a shorter, stronger bond. This is because more shared electrons create a stronger attractive "glue" that pulls the two nuclei closer together.
Example: In carbon-carbon bonds:
- A single bond (C-C) is about 154 pm long.
- A double bond (C=C) is about 134 pm long.
- A triple bond (C≡C) is about 120 pm long.
3. Hybridization
Hybridization describes how atomic orbitals mix to form new hybrid orbitals for bonding. The type of hybridization affects the size and shape of the orbital holding the bonding electrons.
Orbitals with more s-character are closer to the nucleus. Therefore, bonds formed from orbitals with higher s-character are shorter.
- sp3 hybridization (25% s) is found in single bonds, like in ethane (C2H6).
- sp2 hybridization (33% s) is found in double bonds, like in ethene (C2H4).
- sp hybridization (50% s) is found in triple bonds, like in ethyne (C2H2).
This increasing s-character is another reason why bond length decreases from single to triple bonds.
| Bond Type | Example Molecule | Average Bond Length (pm) |
|---|---|---|
| H-H | H2 | 74 |
| C-C | C2H6 | 154 |
| C=C | C2H4 | 134 |
| C≡C | C2H2 | 120 |
| C-O | CH3OH | 143 |
| C=O | H2CO | 122 |
Bond Length in Action: From Simple Molecules to Complex Materials
Bond length is not just a number in a textbook; it has real-world consequences for the properties of substances.
Example 1: The Strength of Diamond. Diamond is one of the hardest natural materials known. It is composed of a giant network of carbon atoms, each bonded to four others in a tetrahedral shape. The carbon-carbon single bonds in diamond are all identical and relatively short (~154 pm). This uniform, short, and strong network of bonds is what makes diamond so incredibly hard and resistant to scratching.
Example 2: The Flexibility of Plastic. Compare diamond to a plastic like polyethylene. Polyethylene is a long chain of carbon atoms with single bonds. While the C-C bonds themselves are strong, the molecules can twist and rotate around these single bonds. This ability to rotate, combined with the longer length of single bonds compared to double or triple bonds, gives the material flexibility.
Example 3: Oxygen Carrying in Blood. The difference between the oxygen we breathe (O2) and the poisonous gas carbon monoxide (CO) comes down to bond length and strength. The bond in CO is shorter and much stronger than one of the bonds in O2. This strong bond allows CO to bind to hemoglobin in our blood about 240 times more tightly than O2, preventing oxygen from being delivered to our body's tissues.
Common Mistakes and Important Questions
Q: Is bond length a fixed, unchanging number?
No. The bond length given in tables is an average value. Atoms in a molecule are constantly vibrating due to thermal energy, which causes the distance between them to constantly increase and decrease slightly around this average. A more accurate term is the equilibrium bond length, which is the distance at the bottom of the energy "well" where the molecule is most stable.
Q: How is bond length actually measured?
Scientists use advanced techniques like X-ray crystallography[1] for solids and microwave spectroscopy[2] for gases. X-ray crystallography involves shining X-rays on a crystal and analyzing the pattern they make after bouncing off the atoms. Microwave spectroscopy measures the absorption of microwave radiation by molecules as they rotate, which directly relates to the distances between atoms.
Q: What is the relationship between bond length and bond energy?
There is a general inverse relationship. Shorter bonds are typically stronger bonds. This is because the shared electrons in a shorter bond are closer to both nuclei, resulting in a stronger attractive force. Therefore, more energy is required to break a shorter bond. For example, a C≡C triple bond is both shorter and requires more energy to break than a C-C single bond.
Footnote
[1] X-ray Crystallography: An experimental technique that uses the diffraction pattern of X-rays passing through a crystal to determine the precise arrangement of atoms within that crystal, including their bond lengths.
[2] Microwave Spectroscopy: A method used to study the rotation of gas molecules. By measuring the frequencies of microwave radiation absorbed as molecules rotate, scientists can calculate the moments of inertia and, from there, the distances between atoms (bond lengths).
