Displayed Formula: The Blueprint of a Molecule
From Simple Symbols to Detailed Diagrams
Before we can understand displayed formulas, we need to know the simpler types of chemical formulas. Think of it like building with blocks: first you count the blocks, then you describe what kind they are, and finally, you show exactly how they snap together.
| Formula Type | What It Shows | Example (Ethanol) |
|---|---|---|
| Empirical Formula | The simplest whole-number ratio of atoms of each element. | $ C_2H_6O $ |
| Molecular Formula | The actual number of atoms of each element in a molecule. | $ C_2H_6O $ |
| Structural Formula | Shows how atoms are connected, but may group some atoms together. | $ CH_3CH_2OH $ |
| Displayed Formula | Shows every atom and every bond individually. | $ H-C-C-O-H $ (with H atoms connected to C and O) $ | | | $ $ H H H $ |
The displayed formula is the most detailed of the common formula types. It leaves nothing to the imagination, drawing out the entire skeleton of the molecule. For ethanol, the molecular formula $ C_2H_6O $ tells us what atoms are present, but the displayed formula shows us that one oxygen is in the middle of the molecule, connected to a hydrogen and a carbon, which is itself connected to another carbon and three hydrogens. This level of detail is what makes displayed formulas so powerful.
Decoding the Lines: Single, Double, and Triple Bonds
In a displayed formula, bonds are not just lines; they are a code for the number of electrons being shared between atoms. A single bond, represented by a single line (-), means two atoms are sharing one pair of electrons. A double bond (=) means they share two pairs, and a triple bond (≡) means they share three pairs. The more bonds between two atoms, the stronger and shorter the connection.
Let's look at some common molecules:

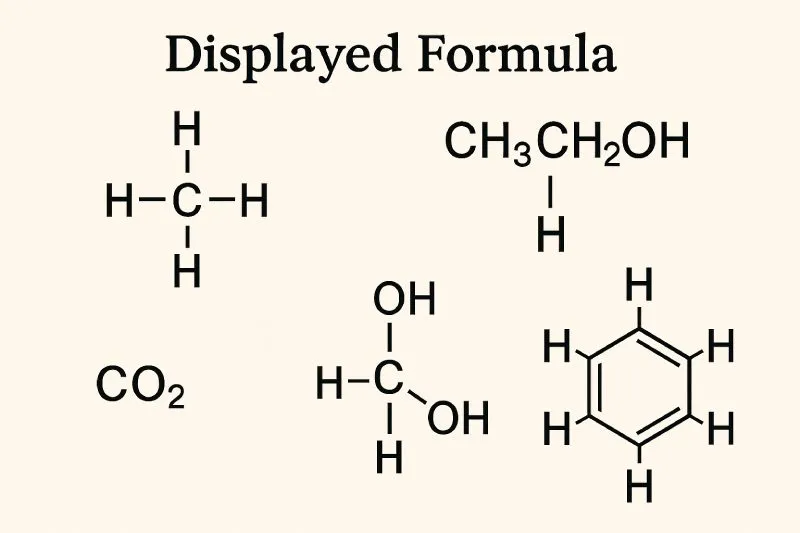

- Methane ($ CH_4 $): Its displayed formula shows a carbon atom in the center with four single bonds, each connecting to a hydrogen atom. This forms a tetrahedral shape in 3D, but in 2D we often draw it as a cross.
- Ethene ($ C_2H_4 $): This molecule has a double bond between the two carbon atoms. The displayed formula clearly shows this as a double line ($ C=C $), with each carbon also bonded to two hydrogen atoms.
- Water ($ H_2O $): A simple but crucial molecule. Its displayed formula is $ H-O-H $, showing the oxygen atom in the center with two single bonds to hydrogen atoms. The angle between these bonds is approximately 104.5°.
The Power of Display: Solving the Isomer Puzzle
One of the most important applications of displayed formulas is in identifying and explaining isomers. Isomers are compounds that have the same molecular formula but different arrangements of atoms. Displayed formulas make these differences obvious.
Consider the molecular formula $ C_2H_6O $. This formula could represent two completely different substances with different properties:
- Dimethyl Ether: A gas used in aerosols. Its displayed formula shows an oxygen atom connected to two carbon atoms: $ H_3C-O-CH_3 $.
- Ethanol (Alcohol): A liquid found in alcoholic drinks. Its displayed formula shows an oxygen atom connected to a carbon and a hydrogen: $ CH_3-CH_2-OH $.
Both have the same number of carbon, hydrogen, and oxygen atoms, but their displayed formulas reveal they are structural isomers[1] because the atoms are connected in a different order. Without the detailed view provided by the displayed formula, this critical distinction would be invisible.
Drawing Your First Displayed Formulas: A Step-by-Step Guide
Drawing displayed formulas is like following a recipe. With practice, it becomes easy. Let's build the displayed formula for propane, $ C_3H_8 $.
- Identify the Carbon Skeleton: Propane has three carbon atoms. Draw them in a row, connected by single bonds: $ C-C-C $.
- Add Hydrogen Atoms: Carbon atoms need four bonds each.
- The left carbon ($ C $) has one bond (to the middle carbon). It needs three more, so add three hydrogen atoms: $ H_3C- $.
- The middle carbon ($ C $) has two bonds (one to each side carbon). It needs two more, so add two hydrogen atoms: $ -CH_2- $.
- The right carbon ($ C $) has one bond (to the middle carbon). It needs three more, so add three hydrogen atoms: $ -CH_3 $.
- Assemble the Molecule: Put it all together. The displayed formula for propane is $ H_3C-CH_2-CH_3 $, which shows every single carbon-hydrogen and carbon-carbon bond.
Common Mistakes and Important Questions
Q: Is a displayed formula the same as a 3D model?
A: No, and this is a common point of confusion. A displayed formula is a two-dimensional drawing. It shows the connectivity of atoms but does not accurately represent the three-dimensional shape of the molecule. For example, in methane ($ CH_4 $), the displayed formula is often drawn flat, but the actual molecule has a tetrahedral shape where all the bond angles are 109.5°. A 3D model would show this depth and angles.
Q: Why do we sometimes see carbon and hydrogen atoms written in a group (like $ CH_3 $) instead of fully displayed?
A: This is done for convenience and is called a structural or condensed formula. For very large molecules like proteins or DNA, drawing a full displayed formula with every atom and bond would be incredibly messy and time-consuming. Chemists use condensed formulas or other shorthand notations to save space and time while still conveying the essential structure. The displayed formula is used when the precise connectivity needs to be emphasized.
Q: What is the biggest mistake students make when drawing displayed formulas?
A: The most frequent error is forgetting that atoms have specific numbers of bonds they can form. For example, hydrogen can only form one bond, oxygen forms two, nitrogen forms three, and carbon forms four. If you draw an oxygen atom with three lines coming out of it, the formula is immediately wrong. Always do a “bond check” to make sure each atom has the correct number of bonds.
Putting It All Together: The Story of Aspirin
Let's see how displayed formulas help us understand a real-world molecule: Aspirin. Its molecular formula is $ C_9H_8O_4 $. This tells us what's in it, but not how it's built. The displayed formula, however, tells a detailed story:
- It reveals a six-membered carbon ring (a benzene ring[2]), which is a very stable structure.
- Attached to this ring, we see a carboxylic acid group ($ -COOH $), which makes aspirin an acid.
- We also see an ester group ($ -COO- $), which is important for how the drug is absorbed and functions in the body.
By looking at the displayed formula, a chemist can predict that aspirin will be somewhat acidic and can also guess how it might react with other chemicals in the body. This is the true power of the displayed formula—it turns a list of ingredients into a functional blueprint.
The displayed formula is more than just a drawing; it is the fundamental language of molecular structure. It bridges the gap between a simple count of atoms and a deep understanding of a substance's identity and behavior. From distinguishing between isomers to predicting chemical reactivity, mastering the interpretation and drawing of displayed formulas is an essential skill for any student of chemistry. It unlocks the ability to “see” the invisible world of molecules, providing a clear and complete picture of the atomic arrangements that define the matter all around us.
Footnote
[1] Structural Isomers: Molecules that have the same molecular formula but differ in the order in which their atoms are bonded together.
[2] Benzene Ring: A stable ring of six carbon atoms, with alternating single and double bonds, represented by a hexagon with a circle inside in some notations. Its formula is $ C_6H_6 $.
