Combining Half-Cells: The Spark of Electricity
The Two Halves of the Puzzle: What is a Half-Cell?
Think of a battery. It has a positive end and a negative end. Inside, these two ends are connected to two separate containers where different chemical events happen. Each of these containers, with its specific metal and solution, is called a half-cell. A half-cell is not a complete battery; it's only one side of the story. By itself, it cannot produce a sustained flow of electricity because the chemical reaction would quickly stop.
A half-cell consists of two essential parts:
| Component | Description | Example |
|---|---|---|
| Electrode | A solid conductor (usually a metal or graphite) where the electron transfer occurs. It is the physical connection to the external wire. | A strip of zinc $(Zn)$ metal or a copper $(Cu)$ rod. |
| Electrolyte | A solution containing ions that can react with the electrode. It completes the internal circuit. | Zinc sulfate $(ZnSO_4)$ solution or copper sulfate $(CuSO_4)$ solution. |
| Half-Reaction | The chemical equation showing either oxidation (loss of electrons) or reduction (gain of electrons) happening at the electrode. | $Zn (s) \rightarrow Zn^{2+} (aq) + 2e^-$ (Oxidation) $Cu^{2+} (aq) + 2e^- \rightarrow Cu (s)$ (Reduction) |
So, one half-cell might be a zinc strip in a zinc sulfate solution, where zinc atoms tend to lose electrons. The other half-cell could be a copper rod in a copper sulfate solution, where copper ions tend to gain electrons. Each half-cell has its own "desire" to either give up or take in electrons. This "desire" is scientifically called the electrode potential.
Creating the Complete Circuit: The Vital Connections

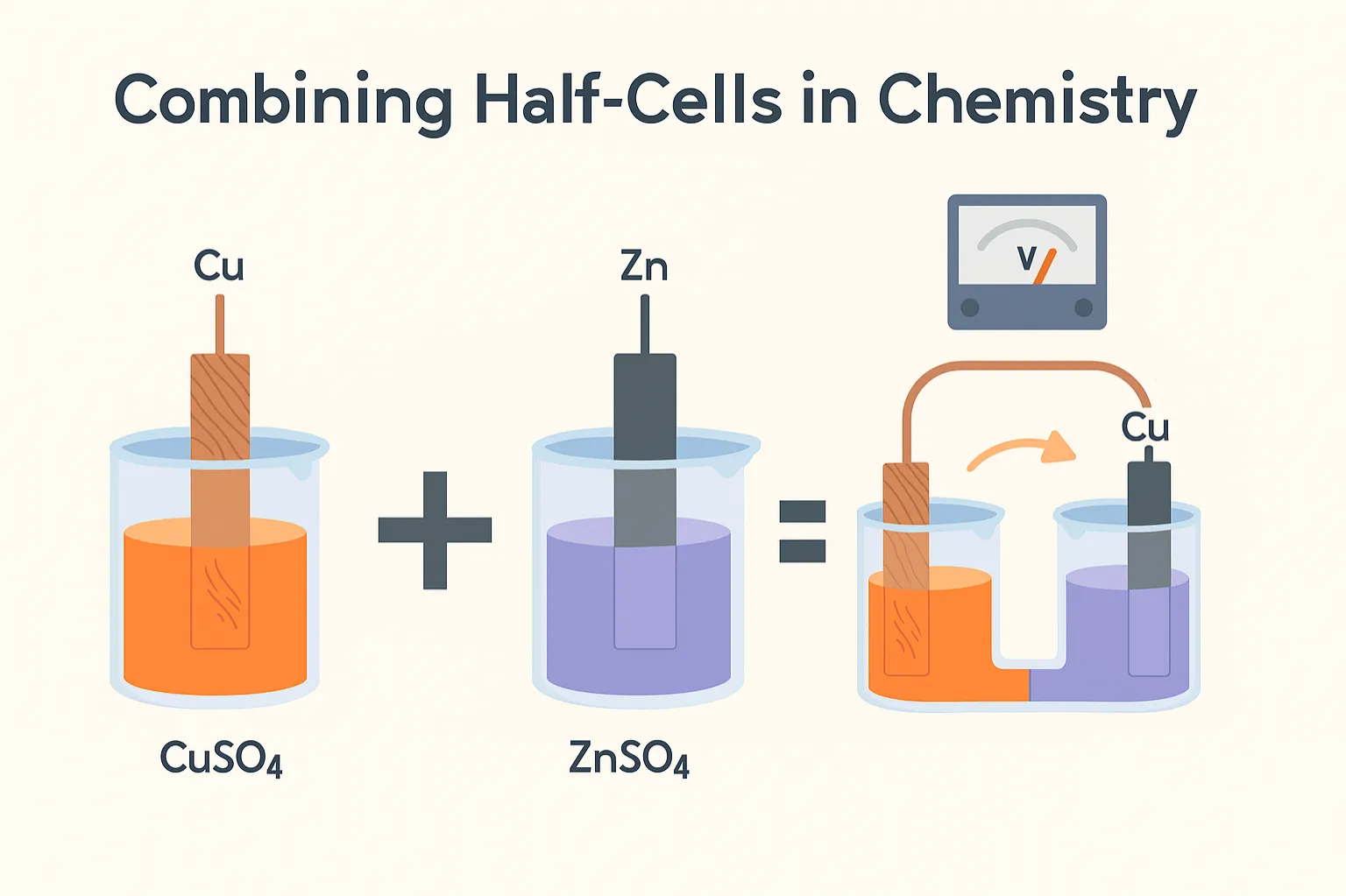

Simply having two half-cells sitting next to each other does nothing. For electrons to flow and do useful work, like lighting a bulb, we must connect them in a specific way. Two critical connections are needed: one for electrons and one for ions.
1. The Metallic Wire (Path for Electrons): We connect the two electrodes with a wire. This provides a highway for electrons to travel from one half-cell to the other. The wire will be attached to our device (like a light bulb or a voltmeter). Electrons always flow from the half-cell where oxidation occurs (the anode) to the half-cell where reduction occurs (the cathode).
2. The Salt Bridge (Path for Ions): If electrons flow out of one beaker and into another, the solutions would become electrically unbalanced. The anode solution would become positively charged (from $Zn^{2+}$ ions piling up), and the cathode solution would become negatively charged (as $Cu^{2+}$ ions are removed). This charge buildup would quickly stop the electron flow. The salt bridge solves this. It is a U-shaped tube filled with a salt (like $KNO_3$ or $KCl$) in a gel, or a porous material soaked in a salt solution. It allows ions to move between the two half-cells, neutralizing the charge and keeping the reaction going.
With both connections in place—the wire for electrons and the salt bridge for ions—we have a complete, functioning electrochemical cell. Chemical energy from the spontaneous redox reaction is converted into electrical energy.
Measuring the Push: What is Cell Potential (Voltage)?
Why do electrons want to flow from zinc to copper, and not the other way around? It's because zinc has a stronger tendency to lose electrons than copper does. The difference in these tendencies creates an electrical "push" or potential difference, measured in volts $(V)$. This is called the cell potential or electromotive force (EMF).
Cell potential is calculated by finding the difference between the reduction potentials of the two half-reactions. Scientists use a standard reference point called the Standard Hydrogen Electrode (SHE), which is assigned a potential of 0.00 V. All other half-cells are measured against it. Values are given as standard reduction potentials ($E^0$).
The overall cell potential for a standard condition is:
$E^{0}_{cell} = E^{0}_{cathode} - E^{0}_{anode}$
Where $E^{0}_{cathode}$ is the reduction potential of the half-reaction happening at the cathode, and $E^{0}_{anode}$ is the reduction potential of the half-reaction at the anode.
For our zinc-copper cell:
- Cathode (Reduction): $Cu^{2+} + 2e^- \rightarrow Cu$, $E^{0} = +0.34 V$
- Anode (Oxidation): $Zn^{2+} + 2e^- \leftarrow Zn$ (We reverse the reaction), $E^{0} = -0.76 V$
So, $E^{0}_{cell} = (0.34) - (-0.76) = +1.10 V$. The positive value confirms that the reaction is spontaneous and will produce a voltage of about 1.10 volts under standard conditions. The larger the difference in potential, the greater the "push" on the electrons, and the higher the voltage of the cell.
From Lemons to Lithium: A Practical Look at Electrochemical Cells
The principle of combining half-cells is not just a lab experiment; it's the foundation of every battery you use. Let's explore two concrete examples.
The Classic Lemon Battery: This simple device perfectly illustrates the concept. You need a lemon (the acidic electrolyte), a zinc-coated nail (the zinc electrode/anode), and a copper coin or wire (the copper electrode/cathode). Stick both metals into the lemon, but do not let them touch. You have created two half-cells in a single lemon! The zinc oxidizes: $Zn \rightarrow Zn^{2+} + 2e^-$. The electrons travel through a wire connected to a small LED or voltmeter to the copper. At the copper, hydrogen ions from the lemon juice are reduced: $2H^+ + 2e^- \rightarrow H_2(g)$. The lemon itself acts as both the electrolyte and the salt bridge, allowing ions to move. While the voltage is low (about 0.9 V), it proves the concept.
A Modern AA Alkaline Battery: Inside the familiar cylinder, carefully engineered half-cells are combined. The anode is a zinc powder gel (oxidation: $Zn + 2OH^- \rightarrow ZnO + H_2O + 2e^-$). The cathode is made of manganese dioxide $(MnO_2)$ mixed with carbon (reduction: $2MnO_2 + H_2O + 2e^- \rightarrow Mn_2O_3 + 2OH^-$). The electrolyte is a concentrated potassium hydroxide $(KOH)$ solution. A porous separator between the half-cells prevents them from mixing but allows ion flow, functioning like a built-in salt bridge. The steel casing and central carbon rod complete the circuit. This combination provides a steady 1.5 V.
Even complex lithium-ion batteries operate on the same core principle: a lithium-based anode half-cell and a lithium-metal-oxide cathode half-cell, separated by a lithium-ion conducting electrolyte/separator. The combination is what makes them work.
Important Questions
Q1: Can you combine two identical half-cells to make a battery?
No. If both half-cells are identical (e.g., two zinc strips in zinc sulfate solutions), their electrode potentials are exactly the same. There is no difference to "push" the electrons. The cell potential would be zero: $E_{cell} = E_{cathode} - E_{anode} = 0$. Without a potential difference, no net electron flow occurs, and the cell cannot produce electricity. You need two different materials with different tendencies to lose or gain electrons.
Q2: What happens if you remove the salt bridge?
The cell will stop working almost immediately. As electrons flow from the anode to the cathode, positive ions accumulate in the anode solution and negative charge builds up in the cathode solution. This creates an opposing electrical force that prevents further electron release from the anode. The reaction might produce a tiny, brief current but then halts. The salt bridge is essential to complete the internal circuit by allowing ions to migrate and maintain electrical neutrality in both half-cells.
Q3: How does the concentration of the electrolyte affect the voltage?
The voltage, or cell potential, changes with concentration. A higher concentration of ions at the cathode makes it easier for reduction to happen, slightly increasing the cathode's potential. Conversely, a higher concentration of the product ions at the anode (like $Zn^{2+}$) makes oxidation harder, slightly decreasing the anode's potential. This relationship is described by the Nernst equation. In simple terms, as a battery discharges and the reactant concentrations decrease, its voltage gradually drops. This is why your remote control batteries get weaker over time.
Conclusion
The magic of generating electricity from chemicals lies in the clever combination of two different half-cells. By isolating the oxidation and reduction reactions and then connecting them strategically—with a wire for an electron pathway and a salt bridge for an ion pathway—we force electrons to take a journey through our circuits. This journey, driven by the difference in the half-cells' inherent potentials, is the electric current that powers countless aspects of modern life. From the simplest school experiment to the most advanced electric vehicle battery, the fundamental principle remains the same: connect the halves, complete the circuit, and harness the flow of electrons.
Footnote
1. Electrochemical Cell: A device that converts chemical energy into electrical energy (or vice versa) through spontaneous redox reactions.
2. Half-Reaction: Either the oxidation part or the reduction part of a redox (reduction-oxidation) reaction, explicitly showing the loss or gain of electrons.
3. EMF (Electromotive Force): The maximum potential difference between the terminals of a cell when no current is flowing. It is essentially the cell's voltage.
4. Standard Hydrogen Electrode (SHE): A reference half-cell with a platinum electrode in contact with 1 M $H^+$ ions and bathed by hydrogen gas at 1 atm pressure. Its reduction potential is defined as 0.000 V.
5. Redox Reaction: A chemical reaction involving the transfer of electrons from one species to another. It consists of two complementary processes: reduction (gain of electrons) and oxidation (loss of electrons).
