Bidentate Ligands: The Two-Armed Chemical Partner
The Handshake Analogy: From Monodentate to Bidentate

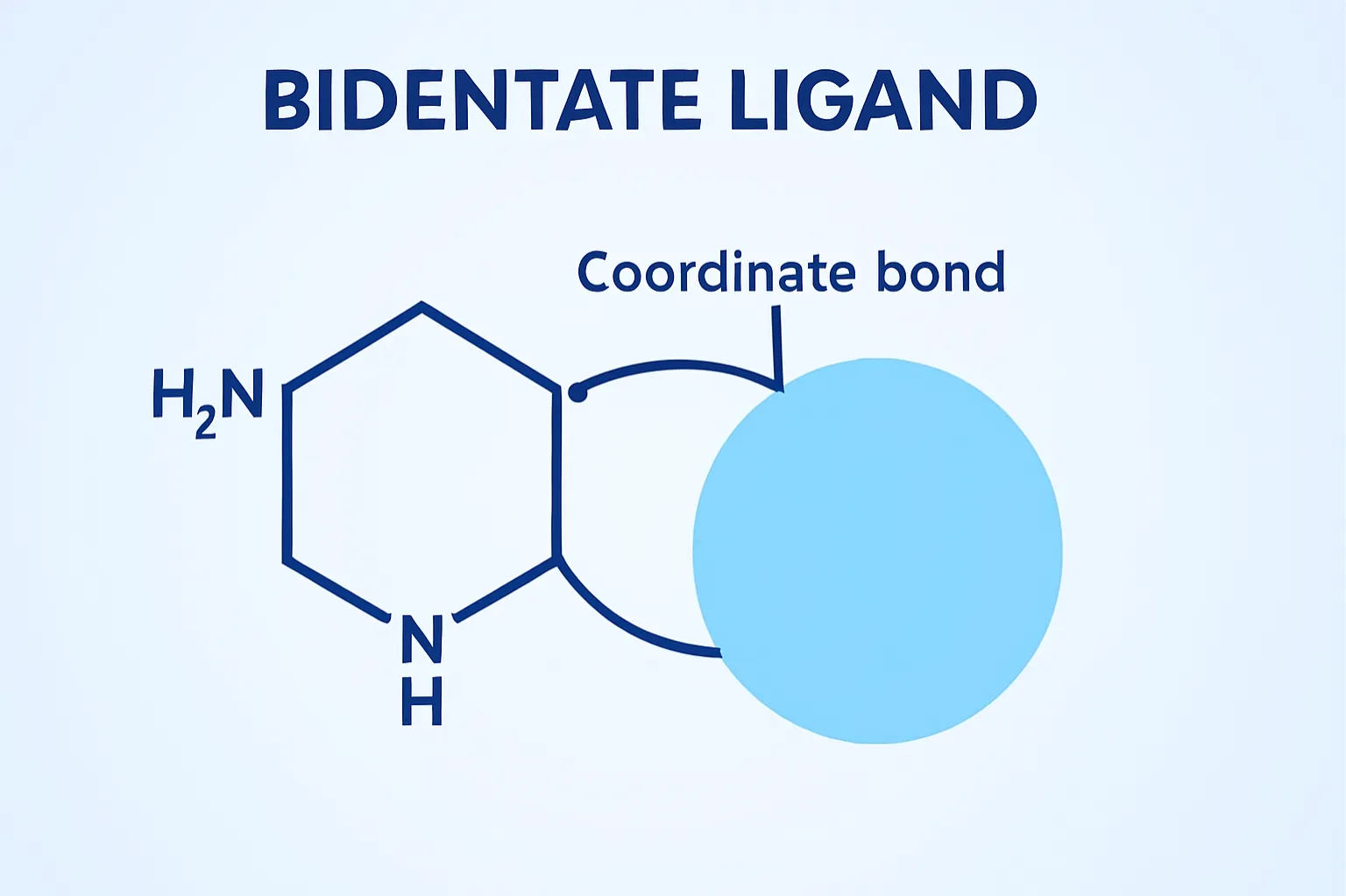

Imagine a metal ion is a person who wants to hold hands. A simple ligand, like a water molecule ($H_2O$), has one "hand" to offer—its oxygen atom with a lone pair of electrons. This is a monodentate ligand ("one-toothed"). The handshake is a single coordinate bond. Now, imagine another molecule that has two hands free, like 1,2-diaminoethane. Each nitrogen atom has a lone pair. This molecule can use both hands to hold onto the same metal ion, creating a much firmer, two-handed handshake. This is the essence of a bidentate ligand.
The key consequence of this double bond is the formation of a five- or six-membered ring including the metal ion. This ring structure is called a chelate (from the Greek "chelos," meaning claw). The increased stability of chelate complexes compared to those with monodentate ligands is known as the chelate effect2. It's like using a two-strap backpack versus a one-strap satchel; the two-strap design is more secure and stable.
Common Examples and How They Bind
Let's look at some classic bidentate ligands and visualize their bonding. The donor atoms (the ones providing the lone pairs) are usually nitrogen ($N$), oxygen ($O$), or sulfur ($S$).
| Ligand Name | Formula / Structure | Donor Atoms | Key Feature |
|---|---|---|---|
| 1,2-Diaminoethane (Ethylenediamine, en) | $NH_2CH_2CH_2NH_2$ | Two Nitrogen ($N$) | The classic example. Forms a stable 5-membered ring with many metal ions. |
| Oxalate Ion | $C_2O_4^{2-}$ (often written as $-OOC-COO-$) | Two Oxygen ($O$) | A common ligand in minerals and metal extraction. Forms a 5-membered ring. |
| 2,2'-Bipyridine (bipy) | Two pyridine rings linked | Two Nitrogen ($N$) | Used in catalysis and solar cells. The rigid structure influences the metal's properties. |
| Acetylacetonate Ion (acac) | $CH_3COCHCOCH_3^-$ | Two Oxygen ($O$) | Forms a stable 6-membered ring. Its complexes are often neutral and volatile. |
| Glycinate Ion (from the amino acid glycine) | $H_2NCH_2COO^-$ | One $N$ and one $O$ | A mixed-donor ligand. Shows how biological molecules bind metals. |
Beyond Two: Polydentate Ligands and Chelation
The concept doesn't stop at two "teeth." Ligands can have three, four, five, or even six donor atoms, known as polydentate ligands. A famous example is EDTA (ethylenediaminetetraacetic acid), which has six donor atoms (four oxygen and two nitrogen). It can wrap around a metal ion like an octopus, forming an incredibly stable complex. This powerful chelation is why EDTA is used in medicine to treat heavy metal poisoning—it grabs onto toxic metals like lead or mercury in the bloodstream and allows the body to safely remove them.
The stability of a chelate complex depends on several factors:
- Ring Size: Five- and six-membered rings are generally the most stable.
- Number of Rings: The more chelate rings a ligand forms, the more stable the complex (this is part of the chelate effect).
- Donor Atom Type: Different metal ions have preferences for certain donor atoms (e.g., "soft" metals prefer sulfur, "hard" metals prefer oxygen or nitrogen).
Bidentate Ligands in Action: Colors, Life, and Medicine
Bidentate ligands are not just laboratory curiosities; they are all around us and inside us.
1. The Colors of Gems and Pigments: The vibrant green of emerald is due to chromium ions ($Cr^{3+}$) trapped in a mineral called beryl. The beryl structure provides oxygen atoms that act as bidentate and other ligands, creating a crystal field3 that absorbs specific wavelengths of light, giving us the green color we see. Similarly, many artistic pigments and dyes are metal complexes with organic bidentate ligands.
2. Oxygen Transport in Blood: The heme group in hemoglobin, which carries oxygen in our red blood cells, features an iron ion ($Fe^{2+}$) at its center. This iron is bound within a large ring system called a porphyrin, which acts as a tetradentate ligand through four nitrogen atoms. Attached to the iron is also a histidine amino acid from the protein (a monodentate ligand) and, crucially, the $O_2$ molecule itself, which binds in a bidentate-like fashion. This precise coordination chemistry is essential for life.
3. Catalysis and Industry: Many industrial catalysts, used to make plastics, fuels, and pharmaceuticals, rely on metal complexes with bidentate ligands like phosphines or bipyridine. These ligands control the metal's reactivity, making the chemical process faster, more selective, and more efficient. For instance, a rhodium complex with a bidentate phosphine ligand is central to a process for making an anti-inflammatory drug.
4. Environmental Chemistry: Bidentate ligands play a role in the natural cycling of metals in the environment. Small organic molecules from decaying plants (like citric acid, which can act as a bidentate ligand) can dissolve metal ions from rocks and soil, making them available for plants or transporting them in water.
Important Questions
What is the main difference between a bidentate ligand and two monodentate ligands?
Can a bidentate ligand bind to two different metal ions?
How does the chelate effect make a complex more stable?
Bidentate ligands are fundamental players in the world of coordination chemistry. By donating two lone pairs to a central metal ion, they form robust chelate complexes that are more stable than their single-bonded counterparts. From the simple example of ethylenediamine to the complex porphyrin ring in heme, these "two-armed" molecules are crucial for understanding color in materials, essential biological processes like oxygen transport, and advanced applications in medicine and industry. Their study beautifully illustrates how molecular geometry and bonding can have profound and visible effects on the world around us.
Footnote
1 Coordination Chemistry: The branch of chemistry that studies compounds formed between metal ions and surrounding molecules or ions (called ligands) that donate electrons to the metal.
2 Chelate Effect: The enhanced stability of a metal complex with chelating ligands compared to complexes with similar non-chelating (monodentate) ligands. It is largely due to a favorable entropy change.
3 Crystal Field: The electric field produced by ligands surrounding a central metal ion. This field splits the energy levels of the metal's d-orbitals, which affects its magnetic properties and the colors it absorbs/transmits.
