Optical Isomerism: The World of Mirror-Image Molecules
The Foundations of Chirality and Symmetry
To understand optical isomerism, we must first explore the concept of chirality. A molecule (or any object) is chiral if it cannot be superimposed on its mirror image. The most common source of chirality in organic chemistry is a carbon atom bonded to four different groups. This carbon is called a chiral center or stereocenter.

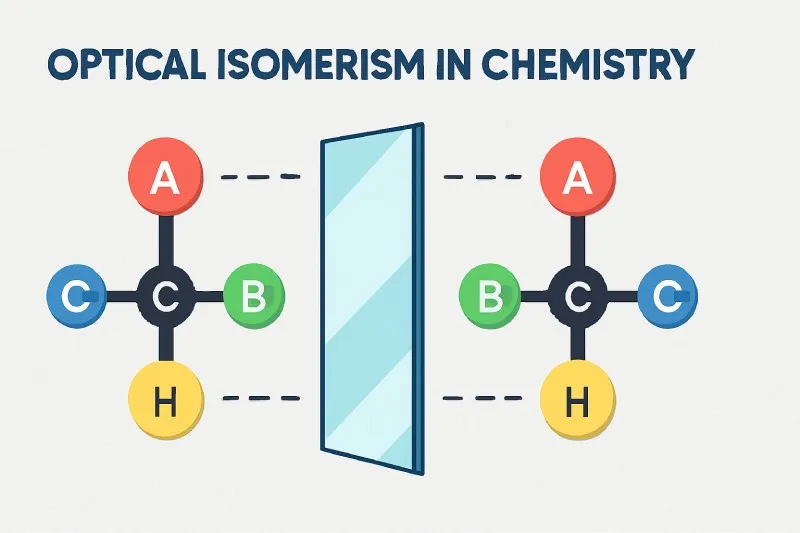

Imagine a carbon atom at the center of a tetrahedron, with four different colored balls attached to its four bonds: red, blue, green, and yellow. Now, create its mirror image. You will find that no matter how you rotate these two tetrahedrons, you cannot make all the colors match up simultaneously. They are mirror images but are not identical. Your own hands are the perfect everyday example of chirality: they are mirror images, but you cannot fit a left glove perfectly onto your right hand.
In contrast, an achiral molecule is one that is superimposable on its mirror image. Achiral molecules often have a plane of symmetry5—an imaginary plane that cuts the molecule into two identical halves. A molecule with a plane of symmetry will not have an optical isomer. For example, consider a carbon atom with two identical groups, like in $CH_2Cl_2$. Its mirror image is superimposable; you can rotate it to match exactly.
Visualizing Enantiomers and the Role of Light
Enantiomers are pairs of molecules that are perfect mirror images. They share almost all identical physical properties: same boiling point, melting point, density, and solubility. Their chemical behavior is also identical when reacting with achiral reagents. The only physical property that differentiates them is their interaction with plane-polarized light.
Ordinary light vibrates in all directions perpendicular to its path. When it passes through a special filter called a polarizer, it emerges vibrating in only one plane—this is plane-polarized light. If this polarized light then passes through a solution containing one enantiomer, the plane of vibration rotates. An instrument called a polarimeter is used to measure this angle of rotation, denoted by $\alpha$.
- A compound that rotates plane-polarized light to the right (clockwise) is labeled (+) or d- (for dextrorotatory).
- A compound that rotates light to the left (counter-clockwise) is labeled (-) or l- (for levorotatory).
A 50:50 mixture of the two enantiomers is called a racemic mixture or racemate. This mixture does not rotate plane-polarized light at all because the rotations caused by each enantiomer cancel each other out. The specific rotation $[\alpha]$ of a compound is a standardized measure that depends on the temperature, wavelength of light used (often the D-line of sodium, 589 nm), concentration, and solvent.
| Molecule Name | Chiral Center | Example Enantiomer & Rotation | Real-World Context |
|---|---|---|---|
| Lactic Acid | The central carbon atom | (+)-Lactic acid (muscles), (-)-Lactic acid (yogurt) | Sore muscles vs. food fermentation |
| Carvone | Carbon in the ring structure | (-)-Carvone smells like spearmint, (+)-Carvone smells like caraway | Different scents from identical molecular formulas |
| Alanine (Amino Acid) | The $\alpha$-carbon6 | L-alanine (biological), D-alanine (some bacterial cell walls) | Fundamental building blocks of life |
| Thalidomide | One carbon atom in its structure | (R)-form: intended sedative, (S)-form: caused birth defects | Historic example of the vital importance of chirality in medicine |
Drawing and Naming: Fischer Projections and R/S System
Drawing three-dimensional molecules on a flat page requires a simple system. Fischer projections are a common method. Imagine the chiral carbon at the center. Horizontal lines represent bonds coming out of the plane (towards you), and vertical lines represent bonds going back into the plane (away from you).
For example, the Fischer projection for one enantiomer of glyceraldehyde (a simple sugar) is drawn with the aldehyde group ($-CHO$) at the top and the $-CH_2OH$ group at the bottom. The $-H$ and $-OH$ groups are on the sides.
To unambiguously name each enantiomer, we use the Cahn-Ingold-Prelog (CIP) priority rules, which give us the R and S designations. Here's a simplified step-by-step guide for a chiral carbon $C(abcd)$, where $a, b, c, d$ are four different groups:
- Assign priority from 1 (highest) to 4 (lowest) to the four atoms directly attached to the chiral carbon based on atomic number (higher atomic number = higher priority).
- Orient the molecule so that the lowest priority group (4) is pointing directly away from you.
- Look at the sequence of priorities 1 → 2 → 3 of the remaining three groups.
- If this sequence is clockwise, the configuration is R (from the Latin rectus, meaning right).
- If this sequence is counter-clockwise, the configuration is S (from the Latin sinister, meaning left).
It is crucial to remember that R/S describes the structural configuration, while (+)/(-) describes the observed optical activity. An R enantiomer can be dextrorotatory or levorotatory; there is no direct link between the two naming systems.
Life is Chiral: The Biological Significance of Optical Isomers
Perhaps the most profound implication of optical isomerism is its role in biology. The machinery of life is inherently chiral. Most biological molecules—amino acids, sugars, enzymes, and DNA—exist in only one predominant enantiomeric form. For example, almost all naturally occurring amino acids are in the L- configuration, while sugars in DNA and RNA are in the D- configuration.
This homochirality7 means that our bodies can distinguish between enantiomers. They interact with our chiral biological receptors (like a lock and key) in completely different ways. One enantiomer might fit perfectly into a receptor site and produce a therapeutic effect, while its mirror image might not fit at all, or worse, fit into a different receptor and cause a harmful side effect.
This is dramatically illustrated by the drug thalidomide, prescribed in the late 1950s. One enantiomer was an effective sedative, but the other caused severe birth defects. Unfortunately, the body can sometimes convert one enantiomer into the other, making separation ineffective. This tragedy revolutionized the pharmaceutical industry, leading to strict regulations requiring the testing of individual enantiomers of new drugs.
In nature, this specificity is everywhere. The smell of spearmint versus caraway comes from different enantiomers of carvone. The sweet taste of aspartame, an artificial sweetener, depends on its specific chiral configuration; the other enantiomer is tasteless.
From the Lab to Your Life: Practical Applications
Optical isomerism is not just textbook theory; it has direct applications in industries that touch our lives daily. The separation of enantiomers, called chiral resolution, is a major field in chemistry. Techniques include using chiral chromatography columns or selectively crystallizing enantiomers with a chiral agent.
In the pharmaceutical industry, the production of single-enantiomer drugs (often called "chiral switches") is now standard. These "cleaner" drugs can be more potent, have fewer side effects, and require lower doses. Examples include the anti-inflammatory drug Naproxen (only the S-enantiomer is active) and the antidepressant Escitalopram (the S-enantiomer of Citalopram).
In agriculture, many pesticides and herbicides are chiral. Often, only one enantiomer is biologically active against the target pest, while the other may be inert or harmful to beneficial insects or the environment. Producing and using only the active enantiomer reduces the amount of chemical released into the ecosystem.
In the food and fragrance industry, chirality defines flavor and aroma. Limonene has one enantiomer that smells like oranges (D-limonene) and another that smells like lemons (L-limonene). Manufacturers carefully control the chiral composition of these compounds to achieve the desired sensory profile.
Important Questions
A: Yes. A molecule with more than one chiral center can have multiple optical isomers. For example, a molecule with two different chiral centers can have up to four stereoisomers (two pairs of enantiomers). These are called diastereomers—stereoisomers that are not mirror images. For instance, the sugar glucose has four chiral centers and exists as one of many possible diastereomers.
A: Their physical properties in an achiral environment (like boiling point) are identical. However, smell and taste are biological processes that involve interaction with chiral receptor proteins in our nose and on our tongue. Since these receptors are chiral, they interact differently with each enantiomer, leading to different signals being sent to the brain. This is a chemical-biological property, not a simple physical one.
A: A meso compound is a molecule that contains chiral centers but is overall achiral because it has an internal plane of symmetry. Even though it has chiral carbons, the mirror images are superimposable. Crucially, a meso compound is optically inactive—it does not rotate plane-polarized light. A classic example is meso-tartaric acid. It has two chiral carbons, but the internal symmetry causes the optical rotation of one half to be canceled by the opposite rotation of the other half.
Footnote
- Isomerism: A phenomenon where two or more compounds have the same molecular formula but different arrangements of atoms. Stereoisomerism is a subtype where the connectivity is the same but spatial arrangement differs.
- Dextrorotatory (d- or (+)): An optically active substance that rotates the plane of plane-polarized light to the right (clockwise) from the perspective of an observer looking towards the light source.
- Levorotatory (l- or (-)): An optically active substance that rotates the plane of plane-polarized light to the left (counter-clockwise).
- Chirality: From the Greek word for "hand," it is the geometric property of a molecule (or any object) that is not superimposable on its mirror image.
- Plane of symmetry: An imaginary plane that divides a molecule into two halves that are mirror images of each other. A molecule with a plane of symmetry is achiral and optically inactive.
- $\alpha$-carbon: In amino acids, it is the central carbon atom to which an amino group ($-NH_2$), a carboxyl group ($-COOH$), a hydrogen atom, and a variable side chain (R-group) are attached. It is the chiral center in most natural amino acids.
- Homochirality: The uniformity of chirality, or "handedness," of molecules in biological systems. For example, the nearly exclusive use of L-amino acids and D-sugars in living organisms.
