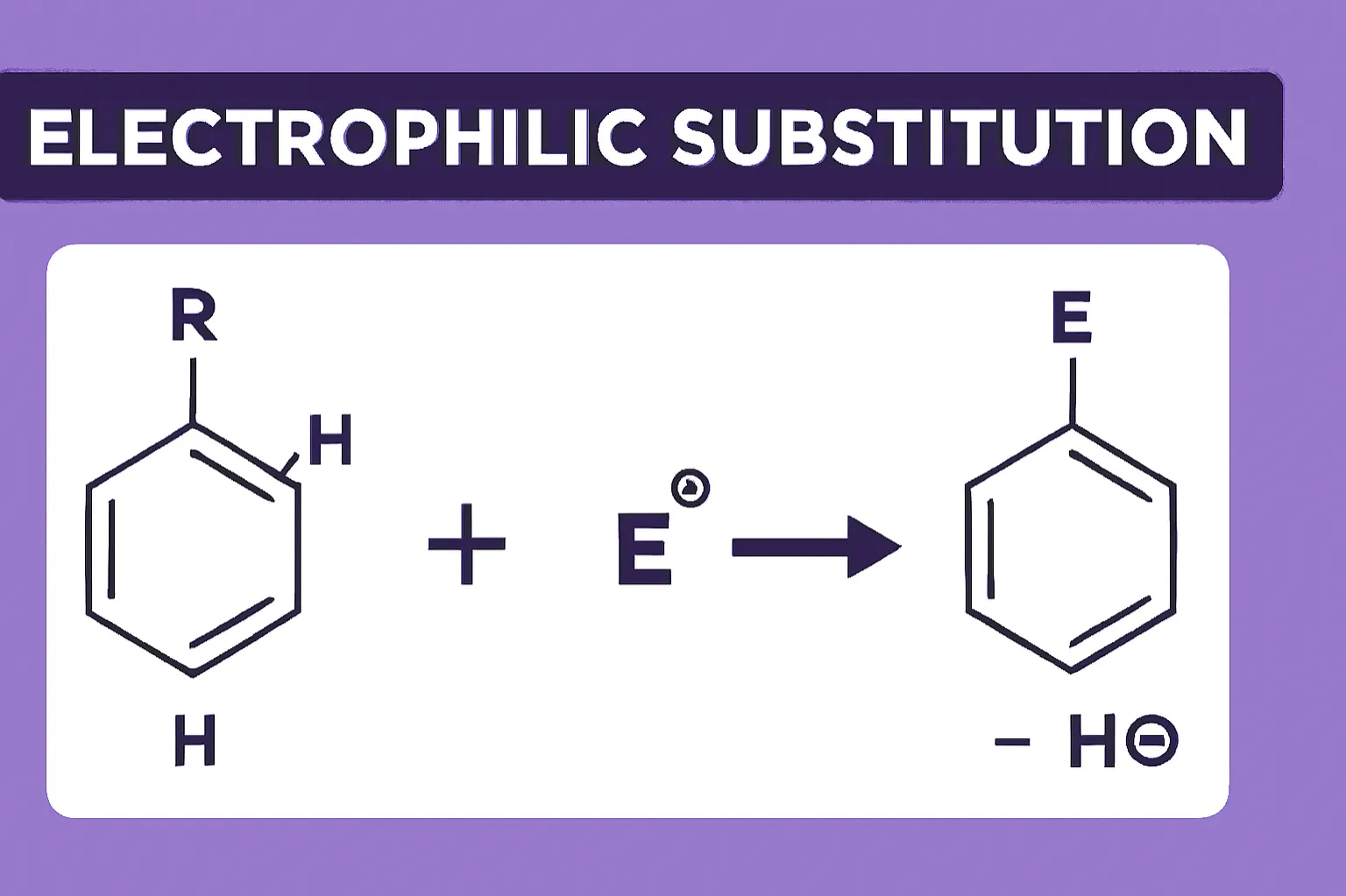

Electrophilic Substitution: The Heart of Aromatic Chemistry
What Makes Benzene So Special?
Benzene, with the molecular formula $C_6H_6$, is not like other simple hydrocarbons. Its unique structure is the key to its special behavior. Imagine six carbon atoms connected in a perfect hexagon, like a ring. Each carbon is bonded to one hydrogen atom and, crucially, to two neighboring carbons. But this leaves one electron from each carbon "free."
Instead of staying put, these six electrons are delocalized. This means they are shared equally among all six carbon atoms in the ring, forming a "cloud" of electrons above and below the plane of the ring. This electron cloud is a region of high electron density. You can picture the benzene ring as a doughnut-shaped cloud of negative charge. This special, stable arrangement is called aromaticity[1]. It makes benzene very stable, but also very attractive to things that are positively charged or electron-deficient.
The Two Key Players: Electrophile and Nucleophile
To understand the reaction, we must first understand the two types of chemical species involved:
- Electrophile (E+): An "electron-loving" species. It is electron-deficient, often carrying a full or partial positive charge ($NO_2^+$, $Br^+$, $R^+$). It seeks electrons to form a bond.
- Nucleophile (Nu-): A "nucleus-loving" species. It is electron-rich, often carrying a negative charge or having lone pairs of electrons ($OH^-$, $NH_3$, $CN^-$). It seeks positive centers to attack.
The benzene ring, with its delocalized electron cloud, is nucleophilic. It is a source of electrons. Therefore, it reacts with electrophiles. The reaction is called a substitution because one atom (hydrogen) is swapped out for another (the electrophile). The ring itself remains intact—its precious aromatic stability is reformed at the end.
The Universal Mechanism: A Step-by-Step Journey
All electrophilic aromatic substitution reactions follow the same general three-step mechanism. Let's use the nitration of benzene as our guiding example, where a nitro group ($-NO_2$) replaces a hydrogen.
Step 1: Generation of a Strong Electrophile. Benzene is a weak nucleophile. It needs a very strong, positively charged electrophile to react. For nitration, we mix nitric acid ($HNO_3$) with sulfuric acid ($H_2SO_4$). The sulfuric acid acts as a catalyst, helping to create the powerful nitronium ion, $NO_2^+$.
$HNO_3 + 2H_2SO_4 \rightarrow NO_2^+ + H_3O^+ + 2HSO_4^-$
Step 2: The Electrophilic Attack and Formation of an Intermediate. The electron-rich benzene ring donates a pair of electrons from its $\pi$ cloud to form a new bond with the attacking $NO_2^+$ electrophile. This breaks the aromatic ring's continuous electron cloud.
The product of this step is a positively charged, unstable intermediate called a sigma complex or arenium ion. The positive charge is not on one carbon but is delocalized over three carbons in the ring (at the site of attack and its two neighbors). This intermediate is not aromatic, which makes it higher in energy and unstable.
Step 3: Loss of a Proton to Restore Aromaticity. To regain its prized aromatic stability, the sigma complex quickly loses a proton ($H^+$) from the carbon where the new group attached. The pair of electrons from the C-H bond moves back into the ring, re-establishing the delocalized $\pi$ cloud. A base (often the $HSO_4^-$ ion from step 1) assists in removing this proton.
The final product is nitrobenzene ($C_6H_5NO_2$), and the aromatic ring is once again stable. The catalyst ($H_2SO_4$) is regenerated.
| Reaction Name | Electrophile Generated | Reagents Used | Product Formed |
|---|---|---|---|
| Nitration | $NO_2^+$ (nitronium ion) | Conc. $HNO_3$ / Conc. $H_2SO_4$ | Nitrobenzene |
| Halogenation | $X^+$ (e.g., $Br^+$, $Cl^+$) | $X_2$ (e.g., $Br_2$, $Cl_2$) / $FeX_3$ catalyst | Halobenzene (e.g., Bromobenzene) |
| Friedel-Crafts Alkylation | Carbocation ($R^+$) | $R-Cl$ / $AlCl_3$ catalyst | Alkylbenzene (e.g., Ethylbenzene) |
| Friedel-Crafts Acylation | Acylium ion ($RCO^+$) | $RCOCl$ / $AlCl_3$ catalyst | Aryl Ketone (e.g., Acetophenone) |
| Sulfonation | $SO_3$ or $^+SO_3H$ | Fuming $H_2SO_4$ (conc. $H_2SO_4$ with $SO_3$) | Benzenesulfonic acid |
Beyond Benzene: The World of Substituted Arenes
What happens when the benzene ring already has a group attached, like a methyl ($-CH_3$) group in toluene? This existing group dictates where the new electrophile will attach and how fast the reaction will be. This is governed by two effects:
- Inductive Effect: The pull or push of electron density through sigma bonds. An electron-donating group (like $-CH_3$) pushes electrons toward the ring, making it more nucleophilic and reactive. An electron-withdrawing group (like $-NO_2$) pulls electrons away, making the ring less reactive.
- Resonance Effect: The delocalization of electrons through $\pi$ bonds. Some groups (like $-OH$ or $-NH_2$) can donate a lone pair of electrons into the ring via resonance, strongly activating it. Others (like $-C=O$ groups) can withdraw electron density from the ring via resonance, deactivating it.
These effects combine to make certain positions on the ring (ortho[2], meta[3], para[4]) more favorable for attack.
Activating Groups (e.g., $-OH$, $-NH_2$, $-CH_3$) are ortho/para directors. They make the ring more reactive than benzene itself.
Deactivating Groups (e.g., $-NO_2$, $-CN$, $-SO_3H$) are meta directors. They make the ring less reactive than benzene. The halogens ($-Br$, $-Cl$) are a special case: they are deactivating but still ortho/para directors.
From Lab to Life: Applications All Around Us
Electrophilic substitution is not just a textbook reaction; it is a workhorse of industrial and pharmaceutical chemistry. Let's trace a simple example: making aspirin.
The starting point is phenol ($C_6H_5OH$), which is benzene with an $-OH$ group. The $-OH$ group is a strong activating, ortho/para director. In a Friedel-Crafts acylation, we can attach an acyl group precisely to the para position (or ortho) to form 4-hydroxyacetophenone. While the actual synthesis of aspirin from salicylic acid uses a different reaction (esterification), salicylic acid itself is produced from phenol via Kolbe-Schmitt reaction, which also relies on the directing power of the $-OH$ group. This principle of using directed substitution to build complex molecules is foundational.
Other vital applications include:
- Dyes: The first synthetic dye, mauveine, was discovered by William Perkin while attempting to make quinine via an electrophilic substitution reaction. Today, azo dyes, used in textiles and food, are made using diazonium salt coupling, a related reaction.
- Pharmaceuticals: The sulfa drugs (antibiotics) contain a benzene ring substituted with both an amino ($-NH_2$) group and a sulfonamide ($-SO_2NHR$) group, strategically placed using these reactions.
- Explosives: Trinitrotoluene (TNT) is produced by the nitration of toluene. The methyl group directs incoming nitro groups to specific positions, ultimately yielding the highly explosive compound.
- Plastics and Detergents: Alkylbenzenes from Friedel-Crafts reactions are used to make alkylbenzene sulfonates, a key component in many detergents. Polymers like polystyrene start from ethylbenzene, made via alkylation.
Important Questions
Q1: Why doesn't benzene undergo addition reactions like alkenes, even though it has double bonds?
Benzene's exceptional stability due to aromaticity means that addition reactions, which would destroy the delocalized $\pi$ cloud, are energetically unfavorable. The product of an addition reaction would lose about 150 kJ/mol of stabilization energy. Substitution is preferred because it allows the ring to regain its aromatic stability in the final product, making the overall process more energetically favorable.
Q2: In the halogenation of benzene, why is a Lewis acid catalyst like $FeBr_3$ needed?
Pure bromine ($Br_2$) is not a strong enough electrophile to polarize the stable benzene ring. The $FeBr_3$ catalyst interacts with $Br_2$, polarizing the Br-Br bond and making one bromine atom much more positively charged, effectively generating the $Br^+$ electrophile required for the reaction: $Br_2 + FeBr_3 \rightarrow Br^+ + FeBr_4^-$.
Q3: What is the major product when toluene ($C_6H_5CH_3$) undergoes nitration?
The methyl ($-CH_3$) group is an activating, ortho/para director. Therefore, the nitronium ion ($NO_2^+$) will attack primarily at the ortho and para positions relative to the methyl group. While a mixture is formed, the para product is often favored slightly because the ortho positions can experience some steric hindrance from the methyl group. The major products are ortho-nitrotoluene and para-nitrotoluene.
Electrophilic aromatic substitution is a cornerstone of organic chemistry, elegantly explaining the reactivity of benzene and its derivatives. It begins with the unique, stable structure of the aromatic ring and follows a logical, multi-step mechanism where the preservation of aromaticity is the driving force. Mastering the concepts of electrophile generation, the sigma complex intermediate, and the directing effects of substituents provides a powerful toolkit. This toolkit not only allows us to predict the outcomes of chemical reactions but also to appreciate the synthetic pathways that create the materials, medicines, and molecules that shape our modern world. From the simplicity of benzene to the complexity of life-saving drugs, this reaction is a fundamental bridge.
Footnote
[1] Aromaticity: A property of cyclic, planar structures with a ring of resonance bonds that exhibit increased stability compared to other geometric or connective arrangements with the same set of atoms. The most common rule for aromaticity is Huckel's rule (4n+2 $\pi$ electrons).
[2] Ortho (o-): A prefix used in organic chemistry to designate two substituents on a benzene ring that are on adjacent carbon atoms (positions 1 and 2).
[3] Meta (m-): A prefix used to designate two substituents on a benzene ring that are separated by one carbon atom (positions 1 and 3).
[4] Para (p-): A prefix used to designate two substituents on a benzene ring that are on opposite sides of the ring (positions 1 and 4).
Electrophile (E+): A chemical species that is electron-deficient and attracted to regions of high electron density, seeking to accept an electron pair to form a new bond.
Arenes: A class of hydrocarbons that contain at least one aromatic ring (like benzene, toluene, naphthalene).
