Enantiomers: Mirror Image Molecules
The Handy World of Chirality

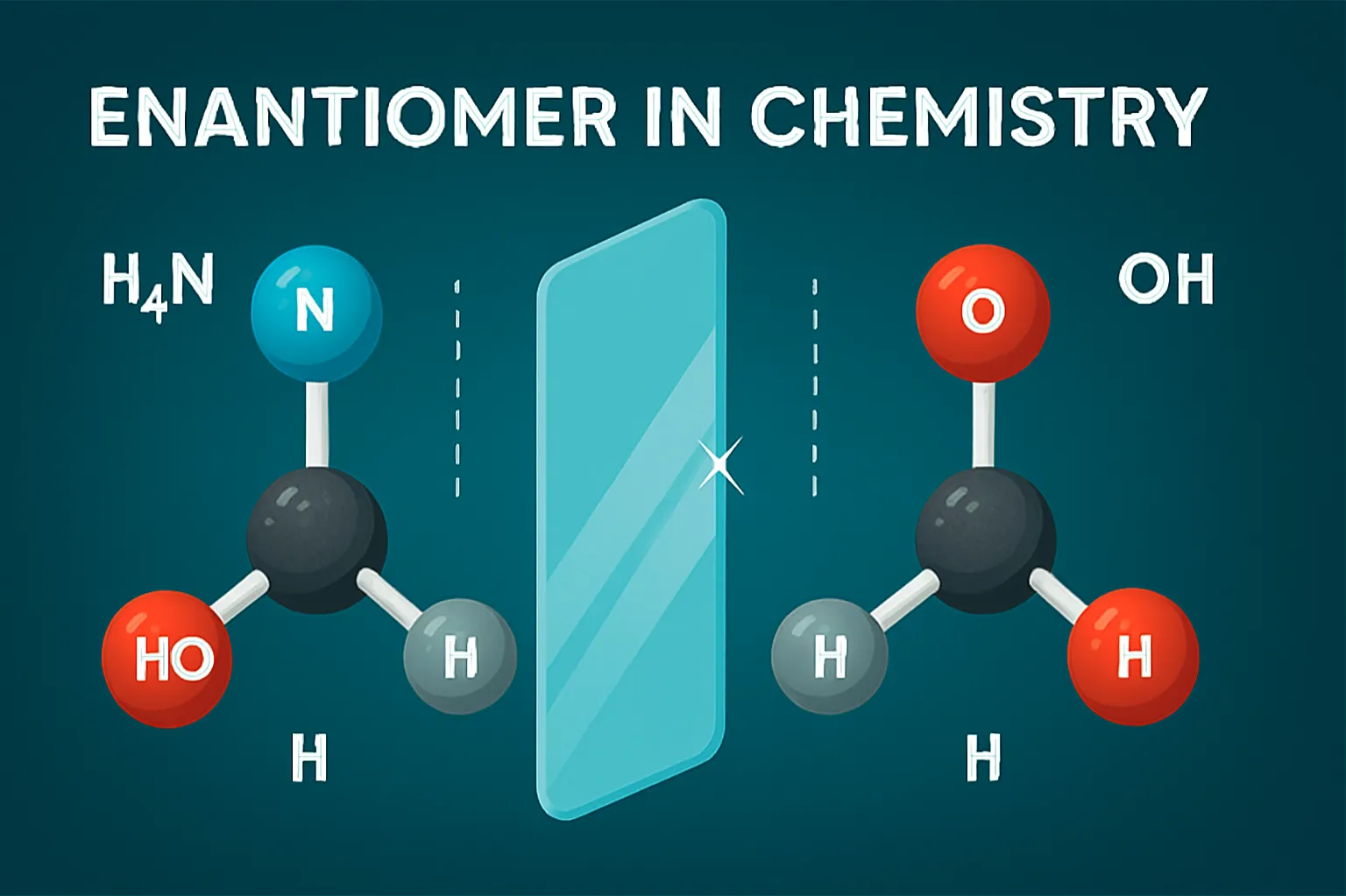

To understand enantiomers, we must first understand chirality. The word comes from the Greek word cheir, meaning "hand." An object is chiral if it cannot be superimposed on its mirror image. Your hands are the perfect example. Place your left palm on your right palm. They match in shape. Now, try to place your left hand into a right-handed glove. It doesn't fit! The mirror images are not identical because you cannot rotate or flip your left hand to make it look exactly like your right hand.
In chemistry, a molecule is chiral if it lacks an internal plane of symmetry[1]. The most common source of chirality is a carbon atom that is bonded to four different atoms or groups of atoms. This carbon is called a chiral center or stereocenter[2]. Think of it as a carbon at the center of a tetrahedron, with a different "ball" at each corner.
Let's visualize a simple molecule, bromochlorofluoromethane. The central carbon is bonded to a hydrogen (H), a bromine (Br), a chlorine (Cl), and a fluorine (F). Since all four are different, the carbon is a chiral center. This molecule exists as two enantiomers. In one, the groups are arranged in a certain 3D order; in the other, the mirror-image arrangement.
Properties: Identical Yet Opposites
Enantiomer pairs share many identical physical properties. They have the same melting point, boiling point, density, and color. They also behave identically in most common chemical reactions. However, they differ in two key ways: their interaction with plane-polarized light and with other chiral molecules.
First, they rotate plane-polarized light. Normal light vibrates in all directions. When passed through a special filter (a polarizer), it becomes plane-polarized, vibrating in only one direction. If this polarized light passes through a solution of one enantiomer, the plane of vibration will rotate. One enantiomer will rotate it to the right (clockwise, or dextrorotatory, labeled (+) or d), and its mirror image will rotate it to the left (counter-clockwise, or levorotatory, labeled (-) or l). This is called optical activity[3].
The second and most crucial difference is in biological activity. The molecules in our bodies—like proteins, enzymes, and DNA—are chiral. Just as a left hand fits only into a left-handed glove, a chiral biological receptor typically "fits" with only one enantiomer of a molecule. The other enantiomer might not fit at all, fit poorly, or even fit in a wrong and dangerous way.
Naming the Mirror Twins: The R/S System
Since enantiomers have the same name based on their chemical structure, we need a way to specify which mirror image we are talking about. Scientists use the Cahn-Ingold-Prelog (CIP) priority rules to assign an absolute configuration labeled as R (from the Latin rectus, meaning right) or S (from the Latin sinister, meaning left).
Here is a simplified, step-by-step guide to determine R or S for a chiral carbon:
- Identify the four different groups attached to the chiral carbon.
- Assign a priority number (1 to 4) to each group based on the atomic number of the atom directly attached to the carbon. Higher atomic number = higher priority.
- Orient the molecule so the lowest priority group (4) is pointing away from you.
- Look at the remaining three groups in priority order (1 → 2 → 3). If the sequence goes clockwise, the configuration is R. If it goes counterclockwise, it is S.
It is vital to remember that the R/S label (the molecule's fixed 3D structure) is separate from the (+)/(-) label (its observed effect on light). An R enantiomer could be (+) or (-), depending on the molecule.
| Property | Identical for Both Enantiomers | Different for Each Enantiomer |
|---|---|---|
| Melting Point & Boiling Point | Yes | No |
| Density & Solubility (in achiral solvents) | Yes | No |
| Reaction with Non-Chiral Reagents | Yes | No |
| Direction of Light Rotation | No | Yes (opposite directions) |
| Biological Activity | No | Yes (can be drastically different) |
| Smell or Taste | Often No | Yes (olfactory receptors are chiral) |
Life and Death in the Mirror: Pharmaceutical Examples
The most compelling examples of enantiomer differences come from medicine. For decades, many drugs were sold as racemic mixtures[4]—a 50/50 mix of both enantiomers. However, as science advanced, it became clear that often only one enantiomer was responsible for the desired therapeutic effect.
Thalidomide: This is the most famous and tragic case. In the late 1950s, thalidomide was prescribed as a sedative and to combat morning sickness in pregnant women. One enantiomer provided the intended calming effect. Unfortunately, the other enantiomer caused severe birth defects. In the body, the enantiomers can interconvert, so even giving just the "safe" one was not a solution. This disaster led to much stricter drug testing and regulation worldwide.
Naproxen: This common pain reliever (sold as Aleve®) is a success story. Only the S-enantiomer is an effective anti-inflammatory drug. The R-enantiomer is inactive and can even cause liver damage. Modern naproxen is sold as the single, active S-enantiomer, making it safer and more effective.
Albuterol (Salbutamol): Used in inhalers to treat asthma, the R-enantiomer is the one that relaxes airway muscles. The S-enantiomer not only doesn't help but may actually cause inflammation and side effects. Many modern inhalers now contain only the R-enantiomer (called levalbuterol).
These examples show why "chiral switching"—developing and selling a drug as a single enantiomer instead of a mixture—is a major goal in modern pharmacology.
Taste and Scent: Enantiomers in Your Kitchen
Chirality isn't just about medicine; it's in your food and perfume too. Our taste and smell receptors are made of chiral proteins, so they can distinguish between enantiomers.
Limonene: This molecule gives citrus fruits their smell. (R)-limonene smells like oranges. Its mirror image, (S)-limonene, smells like lemons. Your nose can tell the difference!
Carvone: This is an even clearer example. (R)-carvone is the main component of spearmint oil and smells minty. (S)-carvone smells like caraway seeds, the flavor in rye bread. Two very different scents from mirror-image molecules.
Aspartame: This artificial sweetener has a chiral center. Only one specific enantiomer tastes sweet. The other enantiomers are tasteless. This precision in manufacturing ensures the product is effective.
Creating Single Enantiomers: The Challenge of Synthesis
In a standard laboratory beaker, when you synthesize a chiral molecule from non-chiral starting materials, you almost always get a racemic mixture. This is because the chances of forming the R and S configurations are exactly equal, like flipping a coin.
So how do chemists make just one? This is a field called asymmetric synthesis. Some key methods include:
- Using Chiral Starters (Chiral Pool Synthesis): Starting with a naturally occurring chiral molecule, like an amino acid or sugar, and building the desired molecule from it. Nature has already done the work of making it chiral.
- Using Chiral Catalysts or Enzymes: A catalyst is a substance that speeds up a reaction without being used up. A chiral catalyst can guide a reaction to produce mostly one enantiomer. Enzymes in living cells are nature's perfect chiral catalysts and are often used in industry.
- Separating the Mixture (Resolution): This involves taking a racemic mixture and physically separating the two enantiomers. One clever way is to react the mixture with another pure chiral compound. The two products become diastereomers[5] (non-mirror-image stereoisomers), which have different physical properties and can be separated by crystallization or chromatography.
Important Questions
Q: Can enantiomers ever be identical?
A: No, by definition enantiomers are non-superimposable mirror images. If they were identical (superimposable), they would be the same molecule, not a pair of enantiomers. Think of it this way: you can't turn a left-handed glove into a right-handed glove by rotating or flipping it; they are fundamentally different in 3D space.
Q: If I have a molecule with two chiral centers, how many enantiomers does it have?
A: This gets more complex! A molecule with two different chiral centers can have up to four stereoisomers (2n, where n is the number of chiral centers). These four form two pairs of enantiomers. For example, the simple sugar erythrose has two chiral centers. It has four stereoisomers: D-erythrose and L-erythrose are one enantiomer pair, and D-threose and L-threose are the other pair. D-erythrose and D-threose are not mirror images; they are diastereomers.
Q: Why are biological molecules like amino acids usually only one enantiomer?
A: This is one of the great mysteries of the origin of life. In nature, almost all amino acids that make up proteins are the "L" form (levorotatory), and the sugars in DNA and RNA are the "D" form (dextrorotatory). This uniformity, called homochirality, is essential for life as we know it because it allows for precise molecular recognition and assembly. Scientists believe it may have started by chance from a racemic prebiotic world, perhaps influenced by something like circularly polarized light from space or chiral mineral surfaces, and then this uniformity was "locked in" by evolution.
Footnote
- Plane of symmetry: An imaginary plane that cuts a molecule into two halves that are mirror images of each other. A molecule with a plane of symmetry is achiral (not chiral) and does not have enantiomers.
- Stereocenter: An atom, usually carbon, whose bonding results in different spatial arrangements of atoms (stereoisomers). A chiral center is a specific type of stereocenter.
- Optical activity: The ability of a chiral substance to rotate the plane of plane-polarized light. It is measured with an instrument called a polarimeter.
- Racemic mixture (or racemate): A 50:50 mixture of two enantiomers of a chiral molecule. It is optically inactive because the rotations caused by the two enantiomers cancel each other out.
- Diastereomers: Stereoisomers that are not mirror images of each other. They have different physical properties (melting point, solubility, etc.) unlike enantiomers.
