Gas-Liquid Chromatography: Separating Mixtures on a Molecular Journey
The Core Principles: A Race with Sticky Checkpoints
Imagine a marathon where the runners are different types of molecules. The race track is a very long, coiled tube (the column). Instead of air, the track is filled with a constant, non-stop wind of an inert gas like helium or nitrogen (the mobile phase). This wind carries the runners from the start line to the finish.
The key twist is that the inside walls of the track are coated with a thick, sticky oil (the stationary phase). As the molecules are blown down the track, they don't just run freely. They repeatedly stop and stick to this oily coating for short moments before the wind pulls them free again.
This "interaction" is based on the physical properties of the molecules. Two of the most important are:
- Volatility: How easily a liquid turns into a vapor. More volatile molecules (like alcohols) tend to spend more time in the gas phase and travel faster.
- Solubility/Affinity: How much a molecule "likes" the sticky liquid phase. Molecules that are chemically similar to the liquid coating will dissolve into it more readily and be delayed.
The balance between these forces determines the retention time—the exact time it takes for a specific molecule to travel from the injection point to the detector at the end of the column. This time is a unique identifier, much like a runner's bib number.

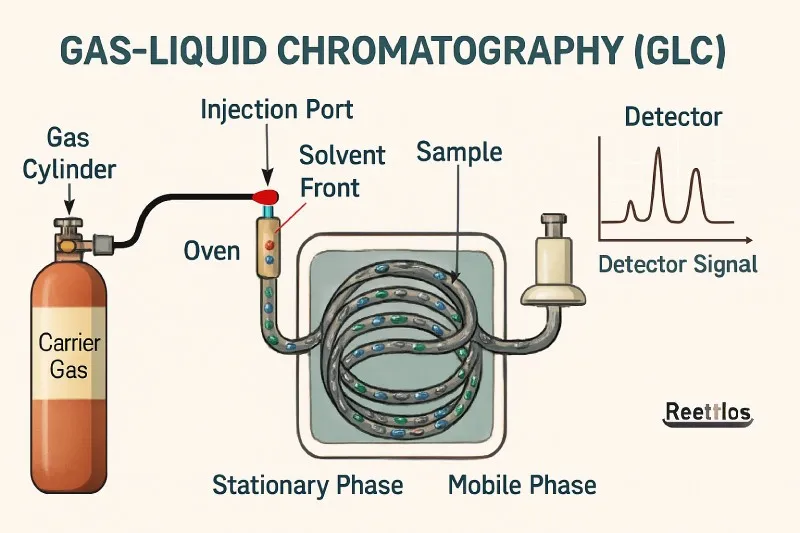

Anatomy of a Gas Chromatograph: The Key Components
A Gas Chromatograph[2] is the instrument that performs GLC. It is a sophisticated system of connected parts, each with a critical role.
| Component | Function | Simple Analogy |
|---|---|---|
| Carrier Gas Supply | Provides a steady, high-purity flow of inert gas (e.g., He, N2, H2). This is the mobile phase that transports the sample. | The constant wind or conveyor belt that moves everything along. |
| Sample Injector | A heated port where a tiny, precise amount of liquid sample is introduced and instantly vaporized into the gas stream. | The starting gate where all runners are lined up and released simultaneously. |
| Chromatography Column | The heart of the system. A long, thin tube (coiled to fit in an oven) containing the stationary liquid phase coated on a solid support or on the inner wall. | The marathon track itself, with its sticky obstacles that slow runners down differently. |
| Thermostatted Oven | Precisely heats the column. Temperature control is crucial, as raising it speeds up all molecules' travel time. | Controls the "weather" on the track. A hotter day makes runners (molecules) more energetic and faster. |
| Detector | Senses molecules as they exit the column and produces an electrical signal proportional to their amount. Common types are FID[3] and TCD[4]. | The finish line camera that records the exact time each runner finishes and how important they are (their size). |
| Data System (Computer) | Records and processes the detector's signal, plotting it as a chromatogram—a graph of signal intensity vs. time. | The scoreboard and video replay system that displays the race results clearly. |
Interpreting the Chromatogram: The Story in a Graph
The final output of a GLC analysis is a chromatogram. This graph tells the complete story of the separation.
- The horizontal axis (x-axis) represents retention time, usually in minutes.
- The vertical axis (y-axis) represents the response or signal from the detector.
When no component is reaching the detector, the line is flat (the baseline). When a component exits the column, the detector signal rises and falls, creating a peak. Each peak ideally corresponds to one component in the mixture.
Key Information from Peaks:
- Identity: The retention time of a peak is compared to known standards to identify the component. If substance X always comes out at 4.2 minutes under identical conditions, a peak at 4.2 minutes suggests X is present.
- Quantity: The area under the peak (or sometimes the peak height) is proportional to the amount of that component. A larger peak area means more of that substance was in the sample.
We can calculate the percentage of a component in a mixture using a simple relationship. For example, if we are analyzing a three-component mixture (A, B, C):
$ \%A = ( \frac{Area_A}{Area_A + Area_B + Area_C} ) \times 100 $
This allows scientists to not only know what is in a sample, but exactly how much of each thing is there.
Real-World Investigations: GLC in Action
GLC isn't just for labs in textbooks; it solves real problems we hear about every day.
Example 1: The Case of the Contaminated River
Environmental scientists suspect a factory is illegally dumping chemicals into a river. They take water samples from upstream (clean) and downstream (near the factory). Using GLC, they analyze both. The upstream sample shows small peaks for natural compounds. The downstream sample shows several large, additional peaks. By matching the retention times and peak patterns to a library of known pollutants, they identify the new peaks as specific industrial solvents like trichloroethylene. The peak areas are huge compared to the natural background, proving a large amount was dumped. This chromatogram becomes key evidence.
Example 2: Creating the Perfect Fruit Juice Flavor
A food company wants to make a strawberry-flavored drink that tastes like real strawberries, not candy. Chemists use GLC to analyze the "headspace" aroma of real, crushed strawberries. The chromatogram might show 50 different peaks! Each peak is a volatile organic compound that contributes to the smell: ethyl butyrate (fruity), linalool (floral), furaneol (caramel-sweet). Flavor chemists then blend pure versions of these compounds in the proportions suggested by the peak areas in the natural chromatogram. They then run GLC on their artificial blend and compare its chromatogram to the natural one. If the peak patterns and relative sizes match, the flavor will be authentic.
Example 3: Checking Fuel Quality
Gasoline is not a single chemical; it's a complex mixture of hundreds of hydrocarbons like octane. The performance of gasoline depends on its precise composition. Refineries use GLC constantly to monitor their product. A chromatogram of high-quality gasoline will have a specific pattern of peaks in specific regions. If an unexpected peak appears, it indicates contamination or a problem in the refining process. The amount of branched-chain alkanes (which resist "knocking" in engines) versus straight-chain alkanes can also be measured from the chromatogram to ensure the octane rating is correct.
Important Questions
A: The carrier gas must be inert, meaning it doesn't react chemically with the sample or the stationary phase. Its only job is to transport the sample vapor down the column. If it reacted, it would destroy the sample or change its properties, ruining the analysis. Common inert gases include helium, nitrogen, and hydrogen.
A: No. A major limitation is that the sample must be thermally stable and volatile enough to be vaporized at the injector temperature (typically up to 400°C) without decomposing. This means very large molecules (like proteins, DNA, or polymers) and ionic compounds (like table salt, NaCl) cannot be analyzed by standard GLC. For these, other techniques like Liquid Chromatography are used.
A: Both separate mixtures, but in fundamentally different ways. Distillation relies on differences in boiling points by applying heat and condensing vapor. GLC separates based on both volatility and solubility in the stationary phase, at a much finer scale. It can separate compounds with boiling points just a few degrees apart, and it provides both identification and precise quantitative data, which distillation does not.
Footnote
[1] GLC (Gas-Liquid Chromatography): Also commonly called simply Gas Chromatography (GC). The full name specifies that the stationary phase is a liquid, distinguishing it from Gas-Solid Chromatography (GSC), which uses a solid stationary phase and is less common.
[2] Gas Chromatograph: The physical instrument used to perform gas chromatography.
[3] FID (Flame Ionization Detector): A very common detector in GLC. It burns the organic compounds in a hydrogen flame, creating ions. The electrical current from these ions is measured, providing a signal that is proportional to the number of carbon atoms in the molecule (except for carbonyl and some other carbons). It is highly sensitive to most organic compounds.
[4] TCD (Thermal Conductivity Detector): A universal detector that measures changes in the thermal conductivity of the gas stream. When a compound elutes from the column, the thermal conductivity of the gas mixture changes, and this change is measured. It is less sensitive than FID but can detect both organic and inorganic compounds.
