The Chemical Shift: NMR's Molecular Fingerprint
What is NMR Spectroscopy?
Imagine you are trying to identify a mysterious object hidden inside a wrapped box without opening it. You might shake it, listen to the sound it makes, or weigh it. NMR spectroscopy is a similar, but far more advanced, technique used by chemists, biologists, and doctors to "see" inside molecules. The "box" is the molecule, and the hidden objects are the atoms, like hydrogen ($^1$H) and carbon ($^{13}$C), that make it up. Instead of shaking, NMR uses powerful magnets and radio waves to probe the atoms.
At the heart of NMR is a simple principle: many atomic nuclei, like tiny spinning tops, have a property called spin. When placed in a strong magnetic field, these spinning nuclei can absorb energy from a radio wave pulse at a specific frequency and then release it. This release of energy creates a signal that is detected and recorded. The frequency at which a nucleus absorbs energy depends on the strength of the magnetic field it feels. This is where the chemical shift comes in.
The Need for a Reference Point: Why ppm?
A major problem in early NMR was that the resonant frequency of a nucleus depends directly on the strength of the magnet used. A hydrogen nucleus in a 300 MHz magnet would give a different absolute frequency than in a 600 MHz magnet. This made comparing results between different labs impossible. Scientists needed a way to report data that was independent of the magnet's strength.
The solution was brilliant and simple: measure the frequency relative to a standard substance, and report it as a tiny fraction (in parts per million) of the operating frequency of the spectrometer. This relative measurement is the chemical shift ($\delta$). The universal standard for proton ($^1$H) and carbon ($^{13}$C) NMR is a compound called Tetramethylsilane, or TMS, which is assigned a chemical shift of exactly 0.0 ppm.
The chemical shift $\delta$ is calculated using this equation: $ \delta \text{ (in ppm)} = \frac{\nu_{\text{sample}} - \nu_{\text{reference}}}{\nu_{\text{spectrometer}}} \times 10^6 $ Where:
• $\nu_{\text{sample}}$ = Resonant frequency of the nucleus in the sample.
• $\nu_{\text{reference}}$ = Resonant frequency of the nucleus in the reference (TMS).
• $\nu_{\text{spectrometer}}$ = The operating frequency of the NMR spectrometer (e.g., 300 MHz).
Shielding and Deshielding: The Electron Cloud's Role
Why do nuclei in different molecules have different chemical shifts? The answer lies in the electron clouds surrounding the nucleus. Electrons are moving charged particles. When a molecule is placed in a magnetic field, these electrons create their own tiny, opposing magnetic field. This phenomenon is called diamagnetic shielding.

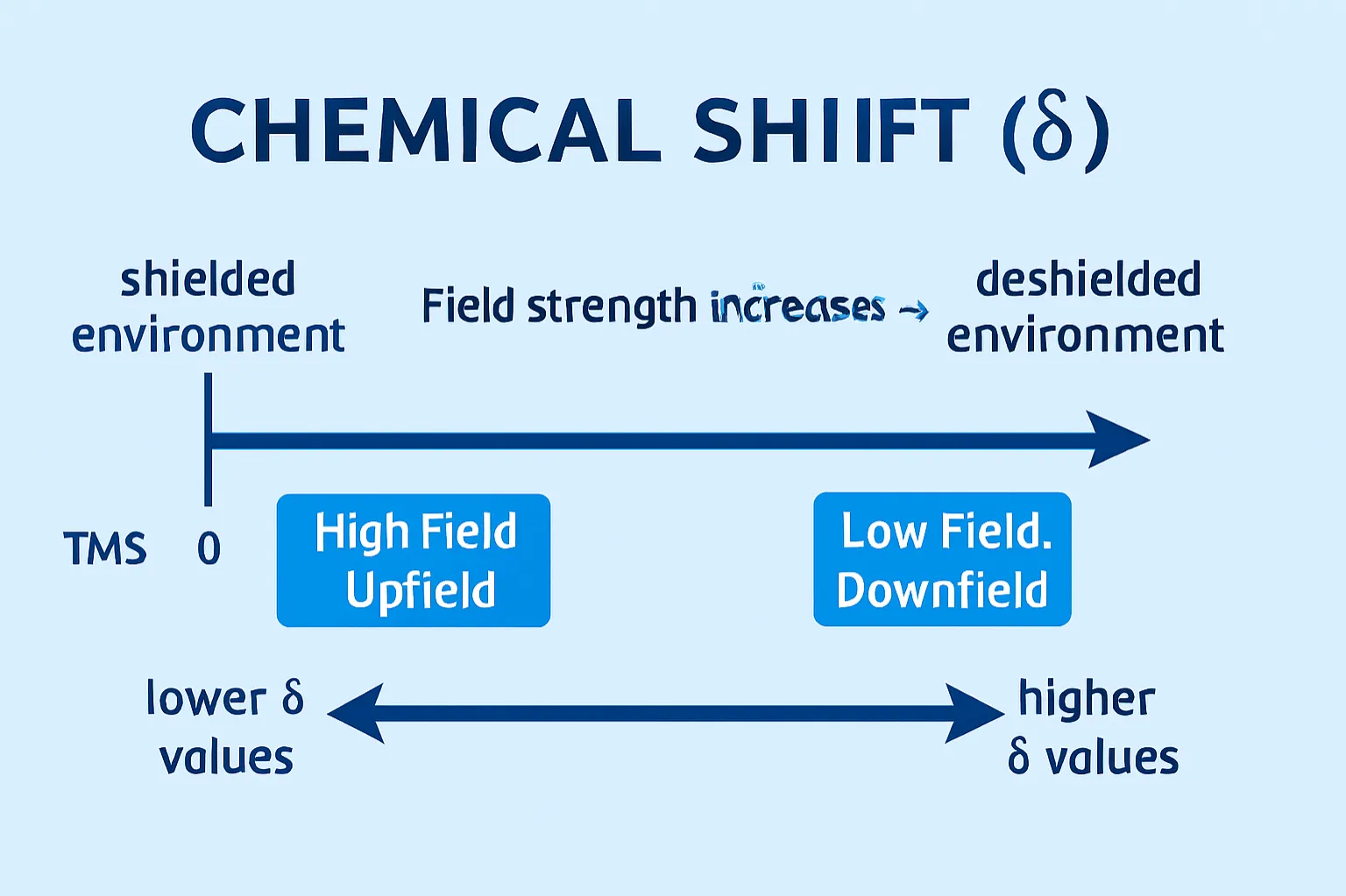

- Shielding: If a nucleus is surrounded by a dense, circulating electron cloud (like in TMS), that cloud "shields" the nucleus from the full strength of the external magnet. The nucleus feels a slightly weaker effective magnetic field. To resonate, it therefore requires a slightly lower frequency. A lower frequency relative to TMS gives a chemical shift value upfield (closer to 0 ppm).
- Deshielding: If the electron density around a nucleus is reduced—for example, if the atom is bonded to an electronegative element like oxygen or chlorine—the shielding effect is weaker. The nucleus feels a stronger effective magnetic field and resonates at a higher frequency. This results in a chemical shift value downfield (further from 0 ppm).
| Type of Hydrogen Atom | Example Compound | Approximate Chemical Shift (ppm) | Reason |
|---|---|---|---|
| In a methyl group (C-CH3) of TMS | (CH3)4Si | 0.0 (reference) | High electron density from silicon, strong shielding. |
| In an alkane (C-C-H) | CH3-CH3 (Ethane) | 0.7 - 1.2 | Good shielding by electron-rich carbon bonds. |
| Next to an alcohol group (C-O-H) | CH3-OH (Methanol) | 3.3 - 4.0 | Oxygen pulls electron density away, causing deshielding. |
| In an alkene (C=C-H) | H2C=CH2 (Ethene) | 4.5 - 6.5 | Electrons in the pi bond create a special magnetic effect that strongly deshields the protons. |
| In an aldehyde (O=C-H) | H-CHO (Methanal) | 9.0 - 10.0 | Extreme deshielding from both the electronegative oxygen and the pi-bond effect. |
Reading an NMR Spectrum: A Practical Example
Let's apply what we've learned to a real-world example. Suppose a chemist is trying to identify a simple liquid. They run a proton NMR experiment and get a spectrum with three signals:
- A triplet (a signal split into 3 peaks) at about 1.1 ppm.
- A quartet (a signal split into 4 peaks) at about 3.6 ppm.
- A singlet (a single peak) at about 2.2 ppm.
First, they look at the chemical shifts. From the table, a signal near 1.1 ppm suggests hydrogens on a carbon next to other carbons (an alkyl group). The signal at 3.6 ppm is in the region for hydrogens on a carbon attached to an electronegative atom like oxygen. The singlet at 2.2 ppm is less obvious but could be hydrogens on a carbon next to a carbonyl group (C=O).
Next, they consider the splitting patterns. The "triplet" and "quartet" are a classic signature of an ethyl group (-CH2-CH3). The -CH3 hydrogens are split by the two hydrogens on the neighboring -CH2- into three peaks (a triplet). The -CH2- hydrogens are split by the three hydrogens on the neighboring -CH3 into four peaks (a quartet).
Putting it together: The chemist has an ethyl group (-CH2-CH3) where the CH2 is attached to an oxygen (hence the 3.6 ppm shift). This points to an ethoxy group (-O-CH2-CH3). The remaining singlet at 2.2 ppm could be from a methyl group (-CH3) attached to a carbonyl. A logical molecule that fits this data is methyl acetate, which has the structure CH3-C(=O)-O-CH2-CH3. The chemical shifts and splitting patterns match perfectly.
Beyond Protons: Carbon-13 and Other Nuclei
While proton ($^1$H) NMR is the most common, the chemical shift concept applies to any NMR-active nucleus. Carbon-13 ($^{13}$C) NMR is extremely important because it directly reveals the skeleton of a carbon-based molecule. The chemical shift range for $^{13}$C is much wider (about 0 to 220 ppm) than for protons, making it easier to distinguish different types of carbon atoms.
- A carbon in a simple alkane might appear around 10-50 ppm.
- A carbon in a carbon-carbon double bond (alkene) appears around 100-150 ppm.
- A carbon in a carbonyl group (C=O) is highly deshielded and appears far downfield, around 160-220 ppm.
Other nuclei like phosphorus ($^{31}$P) or fluorine ($^{19}$F) also have their own characteristic chemical shift ranges. In each case, TMS (or an appropriate alternative) is used as the 0 ppm reference, and the same principles of shielding and deshielding apply.
Important Questions
The unit ppm (parts per million) makes the chemical shift value independent of the strength of the NMR magnet. A hydrogen nucleus in a specific chemical environment will always have a chemical shift of, say, 7.0 ppm, whether the experiment is run on a 100 MHz machine or a 1000 MHz machine. If we used Hz, the same hydrogen would resonate at 700 Hz on the 100 MHz machine and 7000 Hz on the 1000 MHz machine, creating confusion. PPM provides a universal, standardized scale.
Yes, it is possible, though not extremely common. This is called coincidental equivalence. For example, in a complex molecule, a hydrogen on one part of the molecule might, by chance, experience the same electronic environment as a completely different hydrogen on another part. However, chemists use other pieces of information—like the integration (signal height, which tells the number of hydrogens) and coupling patterns (splitting)—to tell them apart. If two signals do overlap, techniques like using a higher magnetic field strength or a different solvent can sometimes resolve them.
Magnetic Resonance Imaging (MRI) is a direct application of NMR principles, primarily of the hydrogen nuclei in the water molecules in our bodies. Different tissues (like fat, muscle, or tumor) have different water content and environments. This causes the hydrogen nuclei in these tissues to have slightly different relaxation properties (how quickly they release energy after being excited), which is related to their chemical environment. While chemical shift is less directly used for imaging in standard MRI, specialized "chemical shift imaging" can actually distinguish between fat and water signals in tissues, which is very useful for diagnosis.
