Rf Value: The Chromatography Fingerprint
The Core Formula: Measuring the Journey

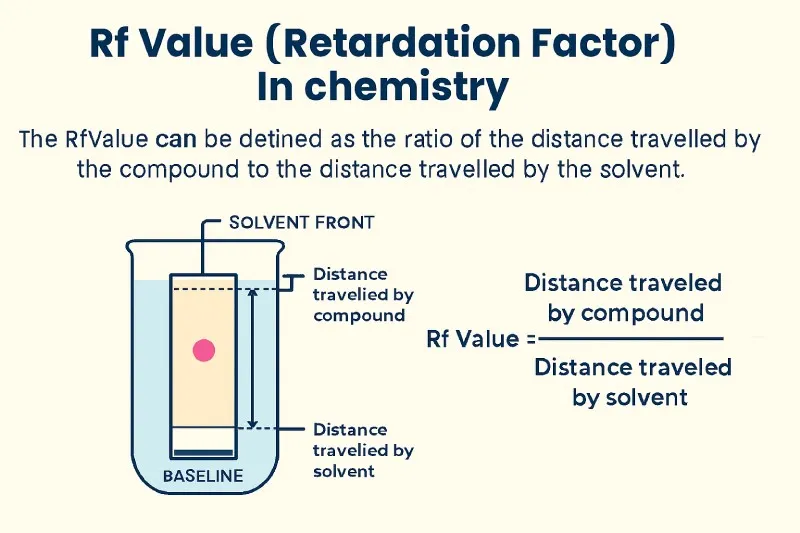

The heart of the Rf value is a straightforward mathematical relationship. It is defined as the distance traveled by the center of a chemical spot divided by the distance traveled by the solvent (the mobile phase) from the same starting point.
$ R_f = \frac{\text{Distance traveled by the compound}}{\text{Distance traveled by the solvent front}} $
Let's break this down with a simple example. Imagine you are performing a paper chromatography experiment to separate the dyes in a black ink pen. You place a small dot of ink near the bottom of a piece of chromatography paper and dip the bottom edge of the paper into a solvent, like rubbing alcohol. As the solvent moves up the paper (this is called capillary action), it carries the ink components with it at different speeds.
After the experiment, you measure and find that the solvent front has moved 10.0 cm from the original starting line. One of the separated blue dye spots has moved 6.5 cm. The Rf value for this blue dye is calculated as:
$ R_f = \frac{6.5 \text{ cm}}{10.0 \text{ cm}} = 0.65 $
This number, 0.65, has no units because it is a ratio of two distances. It will always be a number between 0 and 1. An Rf of 0 means the compound did not move at all (it stayed on the starting line). An Rf of 1 (or very close to it) means the compound traveled with the solvent front, indicating it has very little attraction to the stationary phase.
Why the Rf Value is a Powerful Tool
The true power of the Rf value lies in its use as a tool for identification and comparison. Under a perfectly controlled set of conditions—using the exact same type of paper (stationary phase), the exact same solvent mixture (mobile phase), temperature, and setup—a pure chemical compound will always have the same Rf value. This consistency makes it a reliable characteristic property.
In a school lab, a student might be given an unknown powder suspected to be aspirin, caffeine, or ibuprofen. They could dissolve a tiny amount and spot it on a chromatography plate alongside standard samples of the three known compounds. After running the experiment and calculating the Rf values, they would compare the Rf of the unknown spot to the Rf values of the known standards. If it matches the caffeine standard, for instance, they have strong evidence for the identity of the unknown.
It is crucial to remember that an Rf value alone is not absolute proof of identity, because two different compounds could theoretically have the same Rf in one solvent system. Therefore, scientists often run the same sample in two or three different solvent systems to confirm a match across multiple conditions, creating a more definitive "fingerprint."
Factors That Influence the Rf Value
The Rf value of a compound is not an intrinsic property like its melting point; it is entirely dependent on the experimental conditions. Understanding what changes the Rf value is key to performing reproducible and meaningful chromatography. The main factors can be grouped into two categories: the properties of the compound itself, and the conditions of the experiment.
| Factor | Effect on Rf Value | Simple Explanation |
|---|---|---|
| Polarity of the Compound | Directly determines its attraction to the stationary vs. mobile phase. | A polar compound (e.g., sugar) will "stick" more to polar paper, resulting in a lower Rf. A nonpolar compound (e.g., oil) will travel faster in a nonpolar solvent, resulting in a higher Rf. |
| Polarity of the Solvent (Mobile Phase) | Increasing solvent polarity increases Rf for polar compounds. | A polar solvent (like water) competes better with polar paper to "grab" and carry polar compounds along, making them move farther. |
| Nature of the Stationary Phase | A more absorbent or polar stationary phase generally lowers Rf values. | Switching from plain paper to silica gel (very polar) increases "stickiness" for polar compounds, slowing them down. |
| Temperature and Humidity | Can affect solvent evaporation and interaction speeds, causing variability. | On a hot day, the solvent might evaporate faster, altering the distance it travels and thus changing the calculated Rf. |
| Solvent Saturation (in the chamber) | Ensures a consistent solvent front for accurate Rf measurement. | If the air in the jar isn't saturated with solvent vapor, the solvent will evaporate from the plate unevenly, leading to a distorted, wavy solvent front and unreliable Rf values. |
A Practical Example: Solving a Mystery with Leaf Pigments
Let's follow a detailed, real-world application to see how Rf values are used in practice. A biology class is studying photosynthesis and wants to identify the pigments present in spinach leaves. They use a technique called thin-layer chromatography (TLC)1, which works on the same principle as paper chromatography but uses a glass or plastic plate coated with a thin layer of silica gel as the stationary phase.
Step 1: Preparation. They grind spinach leaves with acetone to extract the pigments, getting a dark green solution. Using a capillary tube, they place a tiny spot of this extract on a TLC plate, about 1 cm from the bottom. They prepare a development chamber (a tall jar) by adding a mixture of nonpolar and polar solvents—say, 9 parts petroleum ether to 1 part acetone. They ensure the jar is lined with filter paper to saturate the air with solvent vapor.
Step 2: Running the Plate. They place the TLC plate in the jar so the spot is above the solvent level. The solvent begins to move up the plate by capillary action. As it passes the spot, it dissolves the pigments and carries them upward. Different pigments have different polarities: chlorophyll b is more polar than chlorophyll a, and carotenoids (like beta-carotene) are very nonpolar.
Step 3: Analysis and Calculation. After the solvent has moved most of the way up the plate, they remove it and immediately mark the solvent front with a pencil before it evaporates. They see several colored bands: a yellow band near the top, a blue-green band lower, and a yellow-green band even lower. They measure the distances:
- Solvent front: 8.0 cm
- Yellow band (Carotene): 7.6 cm
- Blue-green band (Chlorophyll a): 5.2 cm
- Yellow-green band (Chlorophyll b): 3.8 cm
They calculate the Rf values:
- Carotene: $ R_f = \frac{7.6}{8.0} = 0.95 $
- Chlorophyll a: $ R_f = \frac{5.2}{8.0} = 0.65 $
- Chlorophyll b: $ R_f = \frac{3.8}{8.0} = 0.475 $
Step 4: Interpretation. The high Rf for carotene (0.95) confirms it is very nonpolar and had little attraction to the polar silica gel, so it traveled almost with the solvent front. Chlorophyll b, with the lowest Rf (0.475), is the most polar of the three and was retained more strongly by the stationary phase. By comparing these calculated values to a standard reference table for plant pigments in this specific solvent system, the class can confidently identify each separated component.
Important Questions
Q1: Can the Rf value ever be greater than 1? What would that mean?
A: In standard chromatography, a calculated Rf value should never be greater than 1. The solvent front is, by definition, the farthest point the mobile phase has reached. If you calculate an Rf > 1, it usually means an error was made: perhaps the solvent front was marked incorrectly (too low), or the distance for the compound was measured to a point beyond the actual solvent front. In some advanced techniques, compounds can be forced beyond the original solvent front by continuous development, but the Rf concept is then modified or not used.
Q2: Why is it important to use a pencil, not a pen, to mark the starting line and solvent front?
A: Pencil marks are made of graphite (carbon), which is insoluble in the organic solvents typically used in chromatography. If you use an ink pen, the solvents will dissolve and carry the ink dyes up the plate, contaminating your sample and creating confusing extra spots or streaks. The pencil line will remain exactly where you drew it, providing a permanent and non-interfering reference for your measurements.
Q3: How can two compounds with the same Rf value be distinguished?
A: If two compounds have the same Rf in one solvent system, they can often be separated and distinguished by changing the conditions. Scientists might:
- Change the solvent: Switch to a more polar or nonpolar mobile phase. The relative affinities of the compounds will change, likely resulting in different Rf values.
- Use a different stationary phase: Switch from silica gel to a reverse-phase plate (which is nonpolar).
- Use a visualizing agent: Spray the plate with a chemical that reacts with only one of the compounds to produce a color.
- Run a co-spot: Spot a mixture of the unknown and a known standard in the same spot. If it is the same compound, you will see only one spot. If they are different, you may see two spots or a elongated, stretched spot.
The Rf value is a deceptively simple yet profoundly useful concept in the world of chromatography. It transforms the visual pattern of separated spots on a plate into a quantitative, reproducible number that serves as a chemical identifier. From elementary school experiments with colored markers to high school and university research isolating complex biological molecules, mastering the calculation and interpretation of Rf values is a foundational skill. By understanding the formula $ R_f = \frac{\text{distance by compound}}{\text{distance by solvent}} $ and the factors that influence it—polarity, solvent choice, and experimental setup—students unlock the ability to analyze mixtures, identify components, and appreciate the elegant interplay of forces that makes separation science possible.
Footnote
1 TLC (Thin-Layer Chromatography): A chromatography method where the stationary phase is a thin layer of an adsorbent substance (like silica gel or alumina) coated on a glass, plastic, or aluminum plate. It operates on the same principles as paper chromatography but often provides better separation and is more versatile.
2 Mobile Phase: The solvent or mixture of solvents that moves through the stationary phase, carrying the components of the mixture with it.
3 Stationary Phase: The solid or liquid phase that remains fixed in place (e.g., the chromatography paper or the silica gel on a TLC plate). It interacts with the components of the mixture to separate them.
4 Capillary Action: The ability of a liquid to flow in narrow spaces without the assistance of, or even in opposition to, external forces like gravity. It is the force that draws the solvent up the chromatography paper or TLC plate.
