The Infinite Approach: A Complete Guide to Asymptotes
The Three Main Types of Asymptotes

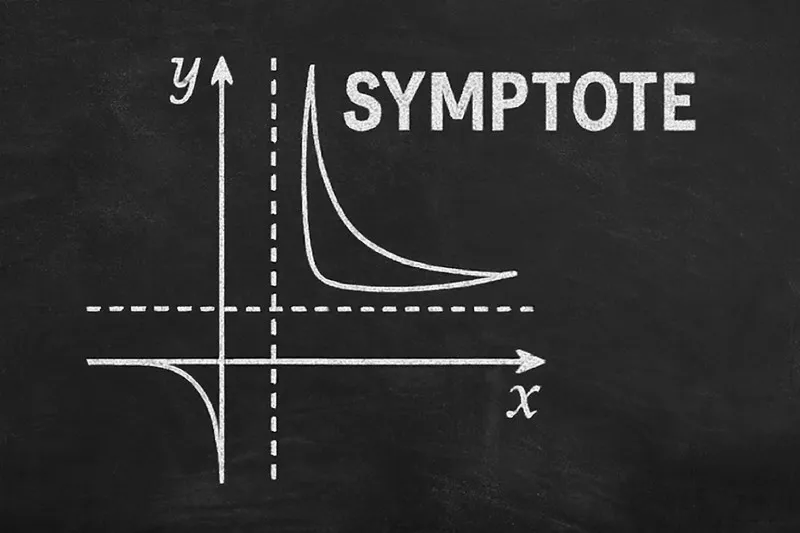

Asymptotes are classified based on their orientation. The three primary types are vertical, horizontal, and oblique (or slant). Each type reveals different information about how a function behaves as its input ($x$) or output ($y$) becomes extremely large or small.
| Type | General Form | How to Find It | What It Means |
|---|---|---|---|
| Vertical | $x = a$ | Find where the denominator of a rational function is zero (and the numerator is not zero at the same point). | As $x$ approaches $a$, the function's value ($y$) shoots off to positive or negative infinity. |
| Horizontal | $y = L$ | Evaluate the limit of the function as $x$ approaches positive or negative infinity ($\lim_{x\to\pm\infty} f(x)$). | As $x$ gets extremely large or extremely small, the function's output levels off and approaches a constant value $L$. |
| Oblique / Slant | $y = mx + b$ | Occurs in rational functions where the degree of the numerator is exactly one greater than the degree of the denominator. Perform polynomial long division. | As $x$ approaches positive or negative infinity, the function behaves more and more like the line $y = mx + b$. |
Finding and Graphing Asymptotes Step-by-Step
Let's explore each type with clear, step-by-step examples. We'll start with the simplest and move to more complex cases.
Example 1: Vertical and Horizontal Asymptotes
Consider the function $f(x) = \frac{1}{x-2}$.
- Vertical Asymptote: The denominator is zero when $x - 2 = 0$, so $x = 2$. As $x$ gets closer to 2 from the right, $f(x)$ becomes very large positive. From the left, it becomes very large negative. The graph never touches the line $x = 2$.
- Horizontal Asymptote: As $x$ goes to infinity ($x \to +\infty$) or negative infinity ($x \to -\infty$), the value of $\frac{1}{x-2}$ gets closer and closer to 0. So, the horizontal asymptote is $y = 0$ (the x-axis).
Example 2: A Function with Two Horizontal Asymptotes
The function $f(x) = \frac{2x}{\sqrt{x^2 + 1}}$ is interesting. We check the limits as $x \to +\infty$ and $x \to -\infty$ separately.
- As $x \to +\infty$, $\sqrt{x^2+1} \approx x$, so $f(x) \approx \frac{2x}{x} = 2$. The horizontal asymptote is $y = 2$.
- As $x \to -\infty$, $\sqrt{x^2+1} \approx -x$ (because the square root is always positive), so $f(x) \approx \frac{2x}{-x} = -2$. The horizontal asymptote is $y = -2$.
This shows a function can have two different horizontal asymptotes, one for each "end" of the graph.
Example 3: Finding an Oblique Asymptote
Let $f(x) = \frac{x^2 - 3x + 2}{x - 1}$. The degree of the numerator (2) is exactly one more than the degree of the denominator (1), so an oblique asymptote exists. We use polynomial long division: $(x^2 - 3x + 2) \div (x - 1) = x - 2$ with a remainder of 0. Wait, a remainder of zero? That means $(x-1)$ is a factor, and the function simplifies to $f(x) = x - 2$ for $x \neq 1$. There is a "hole"1 at $x=1$, not a vertical asymptote. The graph is a line with a missing point. In this unique case, the line $y = x - 2$ is the function itself, not just an asymptote.
A better example is $g(x) = \frac{x^2 + 1}{x}$. Performing division: $\frac{x^2+1}{x} = x + \frac{1}{x}$. As $|x| \to \infty$, the term $\frac{1}{x}$ approaches 0. Therefore, the function behaves more and more like the line $y = x$. So, $y = x$ is the oblique asymptote.
Asymptotes in the Real World: Science and Economics
Asymptotes aren't just abstract math; they model real situations where a value approaches a limit but never quite reaches it.
1. Cooling Coffee (Exponential Decay): If you leave a cup of hot coffee on a table, its temperature decreases over time. Newton's Law of Cooling says the temperature $T(t)$ approaches room temperature $T_{room}$. A model could be $T(t) = T_{room} + (T_{initial} - T_{room})e^{-kt}$. As time $t$ goes to infinity, the exponential term $e^{-kt}$ goes to 0, so $T(t)$ approaches $T_{room}$. The horizontal line $T = T_{room}$ is a horizontal asymptote. The coffee gets very close to room temperature but never exactly reaches it (unless in an idealized model).
2. Chemical Saturation (Hyperbolic Functions): When you dissolve salt in water, the concentration increases. There's a maximum solubility limit. A function modeling concentration vs. amount of salt added might have a horizontal asymptote at $y = S_{max}$, the maximum solubility. You can add more and more salt, but the concentration in solution will approach $S_{max}$ and never exceed it (the extra salt just sits at the bottom).
3. Economic Diminishing Returns (Rational Functions): Imagine a factory. Investing more money ($x$) initially greatly increases output ($y$). But after a point, each additional dollar yields less and less extra output. The output might approach a theoretical maximum capacity, modeled by a horizontal asymptote. The factory can get very close to 100% capacity, but due to physical and logistical limits, it can never quite reach a perfect 100%.
Important Questions
Q: Can a graph ever cross its asymptote?
Q: How are asymptotes related to limits?
Q: Do all functions have asymptotes?
Footnote
- Hole (or Removable Discontinuity): A point on the graph of a rational function that is undefined due to a common factor in the numerator and denominator, but where the limit of the function exists. The graph appears to have a tiny "hole" at that coordinate.
- Limit: The value that a function ($f(x)$) approaches as the input ($x$) approaches some value. Denoted as $\lim_{x\to a} f(x) = L$.
- Rational Function: A function that can be written as the ratio of two polynomial functions, e.g., $f(x) = \frac{P(x)}{Q(x)}$.
