Histograms: The Visual Storytellers of Data
Building Blocks of a Histogram
To understand a histogram, you must first understand its building blocks. Imagine you have the heights of 50 students in your school. Listing all 50 numbers is messy. A histogram groups these heights into intervals and shows how many students fall into each interval.
• Class (or Bin): An interval of values, e.g., heights from 150 cm to 155 cm.
• Class Width: The size of the interval. For 150-155, the width is 5.
• Frequency: The number of data points that fall into a specific class.
• Frequency Density: Used when class widths are unequal. It is calculated as $Frequency \div Class\ Width$.

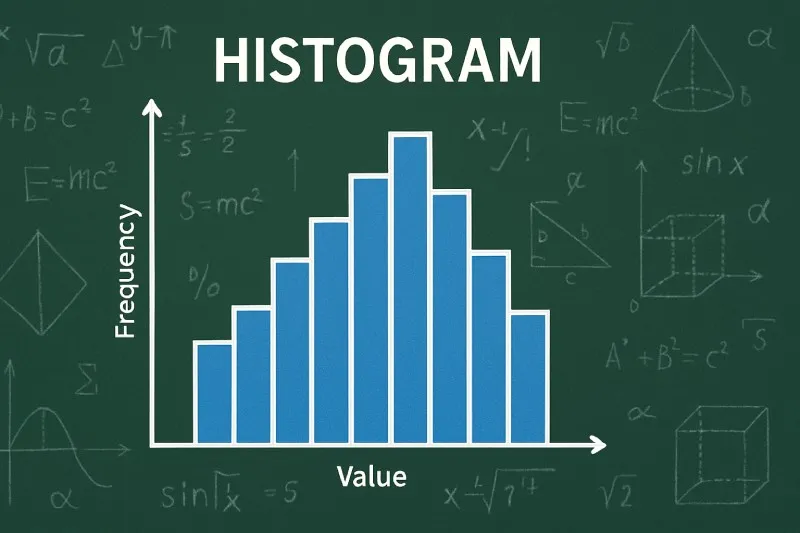

The horizontal axis (x-axis) shows the continuous scale (like height in cm). The vertical axis (y-axis) shows the frequency (count) or sometimes the frequency density. The bars are drawn adjacent to each other, without gaps, emphasizing that the data is continuous.
Histogram vs. Bar Chart: Spot the Difference
It's easy to confuse histograms with bar charts, but they serve different purposes. The table below highlights the key differences.
| Feature | Histogram | Bar Chart |
|---|---|---|
| Type of Data | Grouped continuous data (e.g., time, weight, temperature). | Categorical data (e.g., favorite color, city names, types of pets). |
| Order of Bars | Bars follow the numerical order of the intervals on the x-axis. | Bars can often be rearranged without changing the chart's meaning. |
| Spacing Between Bars | No gaps (or very thin gaps), showing data is continuous. | Consistent, visible gaps between bars. |
| Width of Bars | Can vary if class intervals are of different sizes. | Typically all the same width. |
| What the Area Represents | The area of a bar is proportional to the frequency (especially important for unequal class widths). | Only the height of the bar represents the frequency or value. |
For example, a bar chart could show the number of students who prefer pizza, burgers, or salads. A histogram would show how many students weigh between 40-45 kg, 45-50 kg, and so on.
Reading the Shape of Data
One of the most powerful features of a histogram is its ability to show the overall shape or distribution of the data at a glance. Scientists and statisticians have names for common shapes.
| Shape | Description | Real-World Example |
|---|---|---|
| Symmetric (Bell-Shaped) | A peak in the center with tails tapering off roughly equally on both sides. Often seen in natural measurements. | Heights of all adult women in a country. |
| Skewed Right (Positively Skewed) | A long tail extends to the right. The majority of data is clustered on the left. | Personal income in a population (many people with moderate income, a few with very high income). |
| Skewed Left (Negatively Skewed) | A long tail extends to the left. The majority of data is clustered on the right. | Age at retirement (most people retire around a common age, a few retire very young). |
| Uniform | All bars are approximately the same height. Frequency is evenly spread. | Results of rolling a fair die many times. |
| Bimodal | Has two distinct peaks. This often suggests two different groups are combined in the data. | Heights of a mixed group of adult men and women (one peak for women's average height, one for men's). |
From Raw Data to Finished Histogram: A Step-by-Step Example
Let's walk through creating a histogram from start to finish. A teacher records the time (in minutes) it took 30 students to complete a math quiz. The raw data is:
22, 25, 28, 30, 31, 31, 32, 33, 33, 34,
35, 35, 36, 36, 37, 38, 38, 39, 40, 40,
41, 42, 43, 44, 45, 46, 48, 50, 52, 55
Step 1: Find the Range. The smallest value (minimum) is 22 and the largest (maximum) is 55. The range is $55 - 22 = 33$ minutes.
Step 2: Choose the Number of Classes and Class Width. A common rule of thumb is to have between 5 and 15 classes. Let's choose 7 classes. To find a suitable class width, divide the range by the number of classes: $33 \div 7 \approx 4.71$. We round this up to a convenient number, like 5.
Step 3: Define the Classes. Start the first class at the minimum value (22). Since our width is 5, the first class is 22-27 (including times from 22 up to, but not including, 27). We continue this pattern.
Step 4: Tally and Count Frequencies. We go through the data and count how many times fall into each interval.
| Time Interval (Minutes) | Tally Marks | Frequency (Count) |
|---|---|---|
| 22 – 27 | II | 2 |
| 27 – 32 | III | 3 |
| 32 – 37 | IIII III | 8 |
| 37 – 42 | IIII IIII | 9 |
| 42 – 47 | IIII | 5 |
| 47 – 52 | II | 2 |
| 52 – 57 | I | 1 |
| Total | 30 |
Step 5: Draw the Histogram. On graph paper or using software, you would draw the x-axis with the time intervals (22-27, 27-32, ...) and the y-axis with frequency from 0 to 9. For each class, draw a bar with a height equal to its frequency. The bars touch each other. From this histogram, the teacher can quickly see that most students finished between 32 and 42 minutes, and the distribution is slightly skewed right (a tail going toward longer times).
Histograms in Action: Science and Society
Histograms are not just for math class. They are vital tools in many fields. In meteorology, histograms of daily rainfall amounts over a year show if a climate is consistently damp or has extreme downpours. In manufacturing, a histogram of the lengths of nails produced by a machine can reveal if the machine is calibrated correctly or if there is too much variation. In sports, coaches might use a histogram of players' sprint times to evaluate team performance. Even in your daily life, the battery usage chart on your phone is a form of histogram, showing how much battery was used in each hour of the day.
If you encounter a histogram with bars of different widths, remember that the area of the bar (width $\times$ height) represents the frequency, not just the height. In such cases, the vertical axis is Frequency Density. To find the frequency for a bar, calculate: $Frequency = Class\ Width \times Frequency\ Density$.
Important Questions
Q1: Can a histogram have a gap between its bars?
Typically, no. The absence of gaps is a key feature that distinguishes a histogram from a bar chart and visually communicates that the data is continuous. In some software, you might see very thin gaps for clarity, but the bars are still considered adjacent.
Q2: How do I decide the best number of classes (bins) for my data?
There is no single perfect answer. Too few classes will oversimplify the data, hiding details. Too many classes will make the graph jagged and hard to interpret. Start with rules of thumb like Sturges' Rule ($k = 1 + 3.322 \log_{10} N$, where $N$ is the number of data points) or the square root rule ($k \approx \sqrt{N}$), then adjust based on what makes the shape of the data clearest. For school projects, 5 to 10 classes is usually a good starting point.
Q3: What is the difference between a histogram and a frequency polygon?
A frequency polygon is a line graph created by plotting the frequency at the midpoint of each histogram class and connecting the points with straight lines. It shows the same distribution as a histogram but can be useful for comparing two or more distributions on the same graph without the bars overlapping.
Footnote
1 Frequency Distribution: A summary table or graph that shows the number of observations (frequency) that fall into each of several specified intervals or categories.
2 Continuous Data: Data that can take on any value within a given range. It is measured, not counted. Examples include height, time, and temperature.
3 Sturges' Rule: A formula for estimating the optimal number of bins in a histogram: $k = 1 + \log_2(N)$, often approximated as $k = 1 + 3.322 \log_{10}(N)$.
4 Frequency Density: The frequency per unit of the class interval. It is calculated as $Frequency \div Class\ Width$ and is used on the vertical axis when histogram class widths are unequal.
