Understanding the Equilibrium Constant Kp
What is a Reversible Reaction and Chemical Equilibrium?
Many chemical reactions can go in both the forward and reverse directions. These are called reversible reactions. Imagine a busy playground seesaw where two children are constantly getting on and off. Sometimes one side is down, sometimes the other, but overall, the up-and-down motion balances out. In chemistry, when the rate of the forward reaction (reactants turning into products) equals the rate of the reverse reaction (products turning back into reactants), the system has reached a state of chemical equilibrium[1].
It is crucial to understand that at equilibrium, the concentrations (or amounts) of the reactants and products are constant, not that they are equal. The reaction hasn't stopped; it's dynamic, with both forward and reverse processes happening simultaneously at the same rate.
Introducing the Equilibrium Constant Kp
For reactions involving gases, the Equilibrium Constant Kp is a number that relates the partial pressures[2] of the gases in a mixture at equilibrium. It provides a quantitative measure of the equilibrium position.

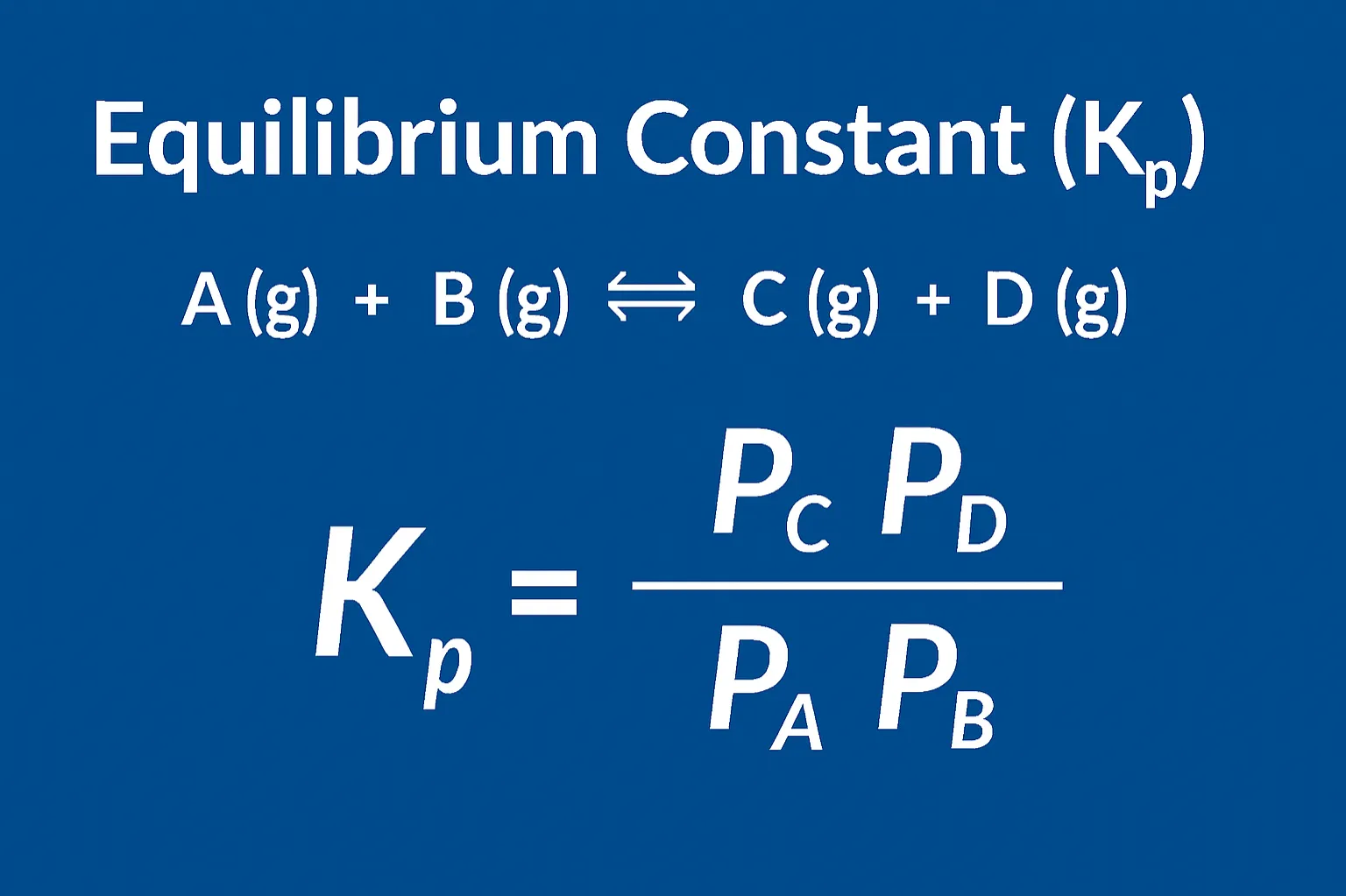

The Kp expression is written as: $Kp = \frac{(P_C)^c (P_D)^d}{(P_A)^a (P_B)^b}$
Where $P_A$, $P_B$, etc., are the partial pressures of the gases at equilibrium, and $a$, $b$, $c$, $d$ are the coefficients from the balanced chemical equation.
The value of Kp is constant only at a constant temperature. If you change the temperature, the value of Kp changes. However, changing the concentration, pressure, or adding a catalyst does not change the value of Kp; it only changes how quickly equilibrium is reached or the relative amounts at equilibrium.
How to Interpret the Value of Kp
The numerical value of Kp gives us immediate insight into the composition of the equilibrium mixture.
| Kp Value | What It Means | Equilibrium Position |
|---|---|---|
| Kp > 1 | The numerator (products) is larger than the denominator (reactants). | Favors the products. At equilibrium, the mixture is rich in products. |
| Kp ≈ 1 | The partial pressures of products and reactants are roughly equal. | Neither reactants nor products are strongly favored. |
| Kp < 1 | The denominator (reactants) is larger than the numerator (products). | Favors the reactants. At equilibrium, the mixture is rich in reactants. |
Kp vs. Kc: What's the Difference?
You might have also heard of Kc, the equilibrium constant expressed using concentrations (molarity). Kp and Kc are related but used for different contexts.
| Feature | Kp | Kc |
|---|---|---|
| What it uses | Partial Pressures | Concentrations (Molarity) |
| Best for | Reactions involving gases | Reactions in aqueous solution |
| Relationship | $Kp = Kc(RT)^{\Delta n}$ where R is the gas constant, T is temperature in Kelvin, and $\Delta n$ is the change in moles of gas (moles products - moles reactants). | |
Kp in Action: The Haber Process
A classic real-world application of Kp is the Haber process, which is used to produce ammonia ($NH_3$) from nitrogen and hydrogen gases. This ammonia is essential for fertilizers that help grow the food we eat.
The balanced chemical equation is:
$N_{2(g)} + 3H_{2(g)} \rightleftharpoons 2NH_{3(g)}$
Following the rules for writing Kp expressions, we get:
$Kp = \frac{(P_{NH_3})^2}{(P_{N_2})^1 (P_{H_2})^3}$
The value of Kp for this reaction is relatively small at room temperature, meaning the equilibrium favors the reactants (very little ammonia is produced). To get a usable amount of ammonia, chemists run the reaction at a high temperature (around 400-500°C) and very high pressure (around 200 atm). While high temperature actually makes Kp even smaller (because the reaction is exothermic), it speeds up the reaction significantly. The high pressure favors the formation of ammonia because there are fewer moles of gas on the product side (2 moles) than on the reactant side (4 moles). This is a practical demonstration of Le Chatelier's Principle[3] in action, where the reaction shifts to counteract the applied stress (increased pressure) by producing more of the substance with fewer gas moles.
A Step-by-Step Calculation Example
Let's work through a simple problem to see how Kp is calculated.
Problem: For the reaction $2NO_{2(g)} \rightleftharpoons N_2O_{4(g)}$, the equilibrium partial pressures are found to be $P_{NO_2} = 0.64$ atm and $P_{N_2O_4} = 1.40$ atm. Calculate the value of Kp.
Step 1: Write the balanced chemical equation.
$2NO_{2(g)} \rightleftharpoons N_2O_{4(g)}$
Step 2: Write the general Kp expression.
$Kp = \frac{(P_{N_2O_4})^1}{(P_{NO_2})^2}$
Step 3: Substitute the given equilibrium partial pressures into the expression.
$Kp = \frac{(1.40)}{(0.64)^2}$
Step 4: Perform the calculation.
$Kp = \frac{1.40}{0.4096} \approx 3.42$
Step 5: Interpret the result. Since Kp > 1, the equilibrium position favors the product, $N_2O_4$.
Important Questions
Kp is defined based on the equilibrium partial pressures, which adjust when the total pressure changes. If you compress the system (increase pressure), the partial pressures of all gases initially increase. The system then responds by shifting the equilibrium to the side with fewer gas molecules to reduce the pressure. After this shift, the new ratio of partial pressures (the new Kp) is the same as the old one, as long as the temperature is constant. Temperature, however, changes the inherent energy distribution of the molecules, directly altering the relative rates of the forward and reverse reactions, and thus the value of the equilibrium constant itself.
No, they do not. The Kp constant is defined specifically in terms of the partial pressures of gases. Since solids and pure liquids have constant effective "concentrations" (their activity is 1), they are omitted from the equilibrium constant expression. For example, in the reaction $CaCO_{3(s)} \rightleftharpoons CaO_{(s)} + CO_{2(g)}$, the Kp expression is simply $Kp = P_{CO_2}$.
A very large Kp value indicates that at equilibrium, the partial pressures of the products are astronomically larger than the partial pressures of the reactants. This means the reaction proceeds almost entirely to completion, and the reverse reaction is negligible. Essentially, it's a "one-way" reaction for all practical purposes.
Footnote
[1] Chemical Equilibrium: The state in a reversible chemical reaction where the rates of the forward and reverse reactions are equal, resulting in no net change in the amounts of reactants and products.
[2] Partial Pressure: The pressure that a single gas in a mixture would exert if it occupied the entire volume alone. It is a measure of the concentration of that gas.
[3] Le Chatelier's Principle: A principle stating that if a dynamic equilibrium is disturbed by changing the conditions, the system adjusts to counteract the change and restore a new equilibrium.
