The Subtended Angle: Where Lines Meet
Defining the Basics: Lines, Rays, and Vertices
Before diving into the subtended angle, let's clarify the building blocks. A linerayline segmentangle.

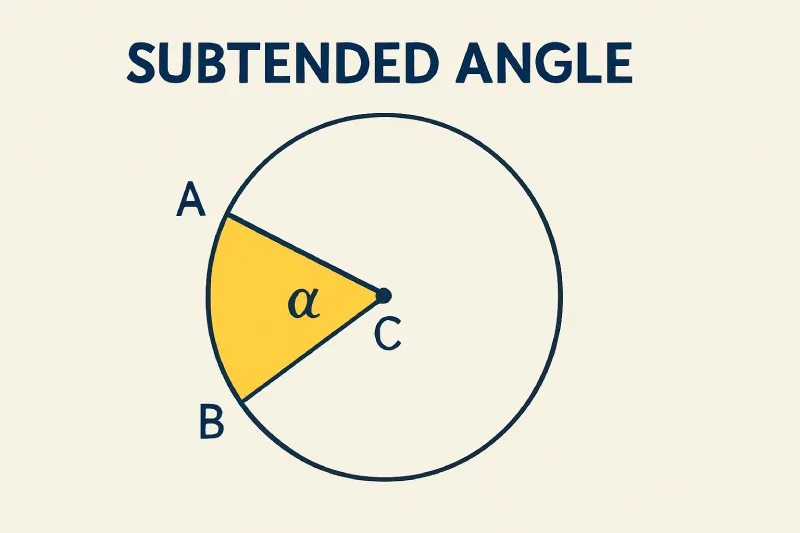

The subtended anglevertex. The two lines are called the arms or sides of the angle. We often use a letter, like point $A$, to mark the vertex, and name the angle $\angle A$ or using three points, like $\angle BAC$, where $A$ is the vertex and $B$ and $C$ are points on each arm.
Types of Angles Formed by Intersecting Lines
When two straight lines intersect, they create four angles around the vertex. The properties of these angles are foundational in geometry. Based on their measure, subtended angles are classified into several types, which are summarized in the table below.
| Angle Type | Measure (Degrees) | Description & Example |
|---|---|---|
| Acute Angle | $0^\circ < \theta < 90^\circ$ | A sharp, narrow angle. Example: The angle between the hour and minute hand at 2:00. |
| Right Angle | $\theta = 90^\circ$ | A perfect "L" shape. Example: The corner of a piece of paper or a book. |
| Obtuse Angle | $90^\circ < \theta < 180^\circ$ | A wide, blunt angle. Example: The angle between the minute and hour hand at 4:00. |
| Straight Angle | $\theta = 180^\circ$ | A straight line. Example: The angle formed by a line from 3 to 9 on a clock face. |
| Reflex Angle | $180^\circ < \theta < 360^\circ$ | An angle larger than a straight angle. Example: The exterior angle of a slice of pie. |
When two lines intersect, the angles opposite each other (called vertical angles or vertically opposite angles) are always equal. For instance, if two lines intersect and one angle is $40^\circ$, the angle directly opposite it is also $40^\circ$. Adjacent angles on a straight line add up to $180^\circ$.
The Powerful Inscribed Angle Theorem
The concept of a subtended angle becomes especially powerful in the context of circles. An inscribed angle is an angle whose vertex is on the circle and whose arms are chords of the circle. The Inscribed Angle Theorem states that an inscribed angle is always half the measure of its subtended arc (the arc that lies in the interior of the angle and between its arms).
More importantly, if two inscribed angles subtend the same arc, they are equal. For example, in the diagram (imagined), if $\angle ACB$ and $\angle ADB$ both have their vertex on the circle and both "look at" the same arc $AB$, then $\angle ACB = \angle ADB$.
A special case is the angle subtended by a diameter. Any angle inscribed in a semicircle is a right angle ($90^\circ$). This is a direct application of the theorem, as the subtended arc is $180^\circ$ (half the circle), so the inscribed angle is $\frac{1}{2} \times 180^\circ = 90^\circ$.
Solution: By the Inscribed Angle Theorem, $\angle ACB = \frac{1}{2} \times 110^\circ = 55^\circ$.
From Geometry to Trigonometry: Angles in Triangles
Every polygon is built from subtended angles. In a triangle, the three interior angles are each subtended by two sides meeting at a vertex. The fundamental rule here is the Angle Sum Property: the sum of the interior angles of any triangle is always $180^\circ$.
Trigonometry[1] is the branch of mathematics that studies relationships between side lengths and angles of triangles. The basic trigonometric ratios—sine (sin), cosine (cos), and tangent (tan)—are defined specifically for an acute angle subtended within a right-angled triangle. For angle $\theta$ in a right triangle:
- $\sin(\theta) = \frac{\text{Length of side opposite } \theta}{\text{Length of hypotenuse}}$
- $\cos(\theta) = \frac{\text{Length of side adjacent to } \theta}{\text{Length of hypotenuse}}$
- $\tan(\theta) = \frac{\text{Length of side opposite } \theta}{\text{Length of side adjacent to } \theta}$
These ratios allow us to calculate unknown angles or side lengths, forming the basis for surveying, navigation, and physics.
Angles in the Real World: Surveying and Astronomy
The subtended angle is not just a theoretical concept; it is a practical tool for measurement. Surveyors use an instrument called a theodolite to measure horizontal and vertical angles between points. By measuring the angles subtended by distant landmarks from two known points (a process called triangulation), they can calculate precise distances and map large areas of land.
In astronomy, the angular diameter of a celestial object is the angle subtended by its diameter at the observer's eye. The moon, for example, subtends an angle of about $0.5^\circ$ from Earth. This concept explains why the sun and moon appear to be the same size in our sky—their angular diameters are very similar, even though their actual sizes are vastly different. Parallax, the apparent shift in an object's position when viewed from two different lines of sight, is also measured as an angle and is used to find distances to nearby stars.
Important Questions
Q1: Is the subtended angle always less than 180 degrees?
No, not always. While the interior angle where two lines meet is typically considered to be between $0^\circ$ and $180^\circ$, the concept can extend to reflex angles (between $180^\circ$ and $360^\circ$). For example, the major arc of a circle subtends a reflex angle at the center. In most basic geometric problems, however, we refer to the smaller angle formed unless specified otherwise.
Q2: How is an angle subtended by a line different from an angle subtended by an arc?
The terminology changes based on what is "creating" the angle.
- Angle subtended by a line/segment: The vertex of the angle is at a point not on the line, and the arms of the angle go to the endpoints of the line segment. For instance, from a point $P$ looking at a segment $AB$, the angle $\angle APB$ is subtended by segment $AB$ at point $P$.
- Angle subtended by an arc: The vertex is at the center of the circle (central angle) or on the circle's circumference (inscribed angle), and the arms intersect the endpoints of the arc. The arc "creates" the angle.
Both ideas are closely related, especially in circle geometry.
Q3: Why is understanding subtended angles important for learning trigonometry?
Trigonometry is fundamentally the study of angles and their relationships to side lengths in triangles. The trigonometric functions (sin, cos, tan) are defined for a specific acute angle subtended inside a right-angled triangle. Without a clear grasp of what an angle is (how it's formed and measured), defining these ratios and applying them to solve real-world problems involving heights, distances, and waves would be impossible. The subtended angle is the input for every trigonometric function.
Footnote
[1] Trigonometry: From the Greek words "trigonon" (triangle) and "metron" (measure). It is the branch of mathematics that deals with the relationships between the angles and sides of triangles.
[2] Vertex: The common endpoint where two or more lines, rays, or segments meet to form an angle. Plural: vertices.
[3] Triangulation: A process in surveying and navigation where the location of a point is determined by measuring angles to it from two known fixed points, forming a triangle.
