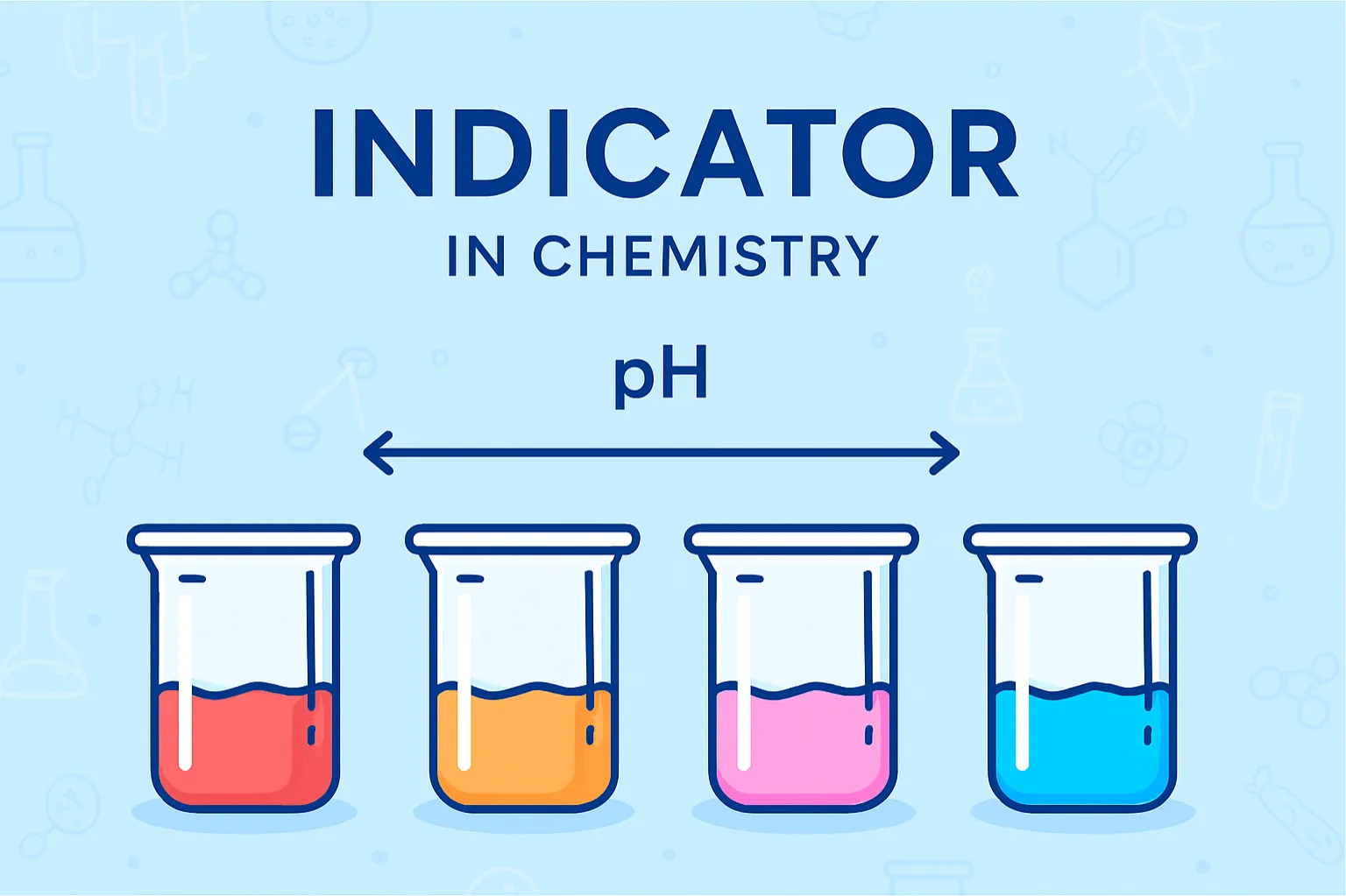

Acid-Base Indicators: The Colorful Guides to Titration
The Science Behind the Color Change
At its heart, an acid-base indicator is a clever application of chemical equilibrium. Most indicators are weak acids, which means they only partially dissociate in water. We can represent a generic indicator, HIn, with a simple equilibrium equation:
$ HIn \text{ (Acid Color)} \rightleftharpoons H^+ + In^- \text{ (Base Color)} $
The molecule HIn has one specific color, while the ion $ In^- $ has a distinctly different color. In an acidic solution, there is an abundance of $ H^+ $ ions. According to Le Chatelier's Principle[1], this excess pushes the equilibrium to the left, favoring the formation of HIn. As a result, we see the "acid color". Conversely, in a basic solution, the low concentration of $ H^+ $ ions causes the equilibrium to shift to the right, favoring $ In^- $ and revealing the "base color". The color change is not instantaneous at a single pH value but occurs over a transition range, which is unique to each indicator.
Understanding the pH Range of an Indicator
The pH range is the span of pH values over which the human eye can perceive the color transition from the pure acid color to the pure base color. This range is typically approximately 2 pH units wide and is centered on the indicator's $ pK_a $ value (the pH at which half of the indicator is in its acid form and half is in its base form). For a weak acid indicator, the relationship is given by the Henderson-Hasselbalch equation[2]:
$ pH = pK_a + \log\left(\frac{[In^-]}{[HIn]}\right) $
When $ [HIn] = [In^-] $, the ratio is 1, the log is 0, and $ pH = pK_a $. At this point, the solution often appears as a mix or an intermediate color. The table below shows the crucial properties of some common laboratory indicators.
| Indicator | Color in Acid | Color in Base | pH Range | $ pK_a $ |
|---|---|---|---|---|
| Thymol Blue (First change) | Red | Yellow | 1.2 - 2.8 | 1.5 |
| Methyl Orange | Red | Yellow | 3.1 - 4.4 | 3.4 |
| Bromothymol Blue | Yellow | Blue | 6.0 - 7.6 | 7.0 |
| Phenolphthalein | Colorless | Pink/Fuchsia | 8.3 - 10.0 | 9.3 |
Choosing the Right Indicator for a Titration
Selecting the correct indicator is crucial for an accurate titration. The goal is to choose an indicator whose pH range falls within the steep, nearly vertical part of the titration curve. The equivalence point[3] is the theoretical point where the amount of acid exactly equals the amount of base. The endpoint is the point where the indicator changes color, and we want these two points to be as close as possible.
- Strong Acid vs. Strong Base: The pH changes very rapidly from about 4 to 10 at the equivalence point. Many indicators work well, such as phenolphthalein (colorless to pink) or bromothymol blue (yellow to blue).
- Strong Acid vs. Weak Base: The equivalence point is in acidic pH (below 7). An indicator like methyl orange (red to yellow) is a perfect choice because its range (3.1-4.4) lies within the pH jump.
- Weak Acid vs. Strong Base: The equivalence point is in basic pH (above 7). Phenolphthalein is ideal here, as its color change (8.3-10.0) signals the endpoint accurately.
Using the wrong indicator would cause the color change to happen too early or too late, leading to an incorrect calculation of the unknown concentration.
A Practical Application: Testing Soil pH with Natural Indicators
While synthetic indicators are used in laboratories, nature provides its own acid-base indicators. A classic example is red cabbage juice. The pigment molecules in red cabbage, called anthocyanins, change color depending on the pH. You can make your own indicator at home by boiling chopped red cabbage in water and filtering the colored liquid.
This natural indicator displays a rainbow of colors: red in strongly acidic conditions, purple at neutral pH, and bluish-green/yellow in basic conditions. Gardeners can use this to get a rough idea of their soil's pH. By adding a small amount of soil to the cabbage juice and observing the color change, they can determine if the soil is acidic (good for blueberries) or basic (good for asparagus) and amend it accordingly. This is a perfect, real-world example of how the principle of acid-base indicators is applied outside the lab.
Important Questions
The color change is a gradual process. Our eyes are not sensitive enough to detect the color shift until a significant proportion of the indicator molecules have changed form. When the concentration of the acid form $ [HIn] $ is about 10 times greater than the base form $ [In^-] $, we see only the acid color. When $ [In^-] $ is about 10 times greater than $ [HIn] $, we see only the base color. The transition between these two states, which spans a pH range of about 2 units, is when we see the mixed or intermediate color.
No. A substance must be a weak acid or base itself and must have a significant structural change between its protonated and deprotonated forms that results in a visible color difference. The color change must also be reversible and happen quickly. A dye that permanently changes color when pH changes would not be a useful indicator for a titration.
A universal indicator is a mixture of several different indicators that together produce a continuous color change across a very wide pH range, from strong acid to strong base. Instead of just two colors, it displays a spectrum of colors (red, orange, yellow, green, blue, violet), allowing for a more precise estimation of the actual pH value of a solution, much like a pH strip. A single indicator, like phenolphthalein, is used to identify a specific endpoint in a titration, not to measure the exact pH.
Acid-base indicators are more than just colorful chemicals; they are essential tools that bridge the abstract world of chemical equilibrium with tangible, visual results. From the precise measurements in a research laboratory to the simple pH test of garden soil, these compounds demonstrate a fundamental principle of chemistry in action. By understanding how their color is linked to the concentration of $ H^+ $ ions and their specific pH ranges, we can use them intelligently to determine the endpoint of a titration with remarkable accuracy, unlocking the ability to measure the unknown concentration of substances in a solution.
Footnote
[1] Le Chatelier's Principle: A principle in chemistry stating that if a dynamic equilibrium is disturbed by changing the conditions, the system responds to counteract the change and restore a new equilibrium.
[2] Henderson-Hasselbalch equation: An equation used to calculate the pH of a buffer solution: $ pH = pK_a + \log\left(\frac{[A^-]}{[HA]}\right) $, where $ [A^-] $ is the concentration of the base form and $ [HA] $ is the concentration of the acid form.
[3] Equivalence Point: The point in a titration where the amount of titrant added is exactly enough to neutralize the analyte solution stoichiometrically. It is the theoretical completion of the reaction.
