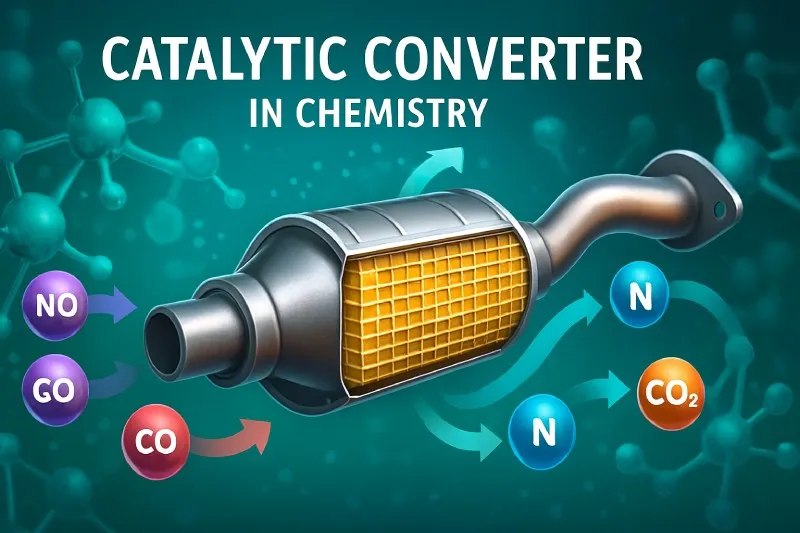

Catalytic Converter: The Pollution-Fighting Powerhouse in Your Car
The Chemistry of Clean Air: What's Happening Inside?
The Three Main Pollutants from a Car Engine
When gasoline or diesel burns in an engine, the combustion is never perfect. Besides powering the car, it produces a mix of dangerous gases that would be released directly into the air without a catalytic converter. Understanding these three main villains is key:
- Carbon Monoxide (CO): A colorless, odorless, and poisonous gas. It forms when fuel doesn't burn completely due to a lack of oxygen. CO can be deadly because it binds to hemoglobin in our blood much more strongly than oxygen, preventing oxygen from reaching our cells.
- Unburned Hydrocarbons (HC): These are essentially tiny particles of unburned gasoline or fuel. They are a major contributor to smog, that hazy, brownish layer often seen over cities. Smog can cause respiratory problems like asthma.
- Nitrogen Oxides (NOx): This term refers to nitric oxide (NO) and nitrogen dioxide ($NO_2$). They form under the high heat and pressure inside an engine cylinder, where nitrogen and oxygen from the air react. NOx gases contribute to acid rain and smog formation.
Core Components and Construction
A catalytic converter isn't just a hollow metal can. It's a sophisticated piece of engineering with three main parts working together:
- The Metal Housing (Shell): This is the durable stainless steel outer shell you see under the car. It protects the delicate inner parts from the elements and physical damage.
- The Ceramic Monolith (Substrate): Inside the shell is a honeycomb-like ceramic block. This structure has hundreds of tiny, parallel channels running through it. The honeycomb design creates a massive surface area—often as large as a football field—inside a container the size of a small loaf of bread! This huge surface is crucial for the next part.
- The Washcoat and Precious Metal Catalysts: The ceramic honeycomb is coated with a rough, porous layer called the "washcoat" (often made of alumina, $Al_2O_3$). This washcoat is impregnated with tiny particles of precious metals. The most common are Platinum (Pt), Palladium (Pd), and Rhodium (Rh). These metals are the true "catalysts"—they speed up the chemical reactions without being consumed in the process.
| Part | Material / Composition | Primary Function |
|---|---|---|
| Housing | Stainless Steel | Protects internal components from physical and environmental damage. |
| Substrate | Ceramic (Cordierite) Honeycomb | Provides a vast surface area for the washcoat and catalysts; channels exhaust flow. |
| Washcoat | Porous Alumina ($Al_2O_3$) | Holds and disperses the precious metal catalyst particles; increases effective surface area. |
| Catalyst | Platinum (Pt), Palladium (Pd), Rhodium (Rh) | Facilitates (speeds up) the chemical reactions that convert pollutants. |
The Magic of Catalysis: Reduction and Oxidation
As hot exhaust gases flow through the tiny channels of the honeycomb, they come into contact with the catalyst-coated walls. Two primary types of reactions occur simultaneously, which is why modern converters are called "three-way catalytic converters"—they handle three pollutants in three ways.
1. Reduction (Fighting NOx): Rhodium is the primary catalyst for reduction. In this reaction, nitrogen oxides (NOx) are stripped of their oxygen atoms, turning them back into harmless nitrogen ($N_2$) and oxygen ($O_2$) gas. A simplified chemical reaction is:
2. Oxidation (Fighting CO and HC): Platinum and Palladium are the main catalysts for oxidation. These reactions add oxygen to carbon monoxide (CO) and unburned hydrocarbons (HC) to convert them into carbon dioxide ($CO_2$) and water vapor ($H_2O$). The oxygen needed often comes from the $O_2$ released in the reduction step or from excess oxygen in the exhaust. Simplified reactions are:
Carbon Monoxide: $ 2 CO + O_2 \rightarrow 2 CO_2 $
Hydrocarbons: $ C_xH_y + (x + \frac{y}{4}) O_2 \rightarrow x CO_2 + \frac{y}{2} H_2O $ (with Pt/Pd catalyst)
These reactions are most efficient when the engine's air-fuel mixture is precisely controlled by the car's computer. This "stoichiometric" point provides just enough oxygen for the oxidation reactions while allowing the reduction reactions to work effectively.
A Real-World Mission: From Invention to Daily Impact
The History and Legal Mandate
The widespread use of catalytic converters is a direct result of environmental legislation. In the 1960s and early 1970s, cities like Los Angeles suffered from severe smog. Scientists identified vehicle exhaust as a major cause. In response, the United States passed the Clean Air Act of 1970 and established the Environmental Protection Agency (EPA)[1]. This law set strict limits on tailpipe emissions. Car manufacturers needed a solution, and the catalytic converter, first developed by engineers like John J. Mooney and Carl D. Keith, became the chosen technology. Starting with 1975 model year cars in the U.S., catalytic converters became mandatory, revolutionizing automotive design and air quality.
How a Modern Car's System Works Together
The catalytic converter doesn't work alone. It's part of an integrated system managed by the car's Engine Control Unit (ECU)[2]. Here's a step-by-step look at the teamwork:
- Oxygen Sensors ($O_2$ Sensors): One sensor is placed before the catalytic converter (upstream) and one after (downstream). They monitor the oxygen content in the exhaust.
- Engine Control Unit (ECU): The car's computer reads the upstream sensor to adjust the fuel injectors, creating the perfect air-fuel mixture for the catalyst.
- The Catalytic Reaction: The hot exhaust (needs to be over $400^{\circ}C$ for the catalyst to "light off" and work) enters the converter, where the chemical magic happens.
- Verification: The downstream sensor checks the exhaust after treatment. If the converter is working perfectly, the oxygen reading will be stable. If not, the ECU triggers the "Check Engine" light.
This closed-loop system ensures the converter operates at peak efficiency for over 100,000 miles.
Diesel Engines and Specialized Converters
Diesel engines operate differently than gasoline engines. They run on a lean air-fuel mixture (more air), which produces less CO and HC but more NOx and soot particles. Therefore, diesel vehicles use a different set of after-treatment devices:
- Diesel Oxidation Catalyst (DOC): Uses platinum/palladium to oxidize CO and HC, and also converts nitric oxide (NO) to nitrogen dioxide ($NO_2$).
- Diesel Particulate Filter (DPF): A physical filter that traps soot particles. The filter periodically burns off the accumulated soot in a process called "regeneration."
- Selective Catalytic Reduction (SCR): This system injects a liquid reductant, like Diesel Exhaust Fluid (DEF)[3] (a urea-water solution), into the exhaust. The DEF decomposes into ammonia ($NH_3$), which then reacts with NOx over a catalyst to form harmless nitrogen and water.
Important Questions About Catalytic Converters
Q1: Why are catalytic converters so expensive and often stolen?
The high cost and theft risk stem from the precious metals inside—platinum, palladium, and rhodium. These metals are rare, expensive to mine, and in high demand globally. Thieves can quickly cut a converter from underneath a car and sell it to unscrupulous recyclers for the value of these metals, often getting hundreds of dollars. Certain vehicles, like hybrids (whose converters are less corroded) and trucks (with high ground clearance for easy access), are targeted more often.
Q2: What can damage or "poison" a catalytic converter?
Several things can ruin a converter:
- Lead Poisoning: Using leaded gasoline coats the catalyst, blocking pollutants from reaching it. This is why leaded gas is banned for road vehicles.
- Engine Misfires: Unburned fuel from a misfiring cylinder can overheat and melt the ceramic honeycomb.
- Oil or Coolant Consumption: If an engine burns oil or leaks coolant into the exhaust, it can coat and foul the catalyst.
- Physical Damage: Impacts from road debris can crack the brittle ceramic substrate.
Q3: Is carbon dioxide ($CO_2$) from a catalytic converter a pollutant?
This is an important distinction. A catalytic converter's job is to turn toxic pollutants (CO, HC, NOx) into less toxic substances. Carbon dioxide ($CO_2$) is non-toxic to breathe in normal concentrations and is a natural part of the air. However, $CO_2$ is a primary greenhouse gas that contributes to climate change. So, while the converter eliminates poisons that harm human health directly, the $CO_2$ it produces is still an environmental concern related to global warming. Reducing $CO_2$ requires different technologies like improved fuel efficiency, hybrid systems, or electric vehicles.
Footnote
[1] EPA (Environmental Protection Agency): A United States federal government agency whose mission is to protect human health and the environment. It creates and enforces regulations based on laws passed by Congress, such as the Clean Air Act.
[2] ECU (Engine Control Unit): Also known as the engine computer or PCM (Powertrain Control Module). This is an embedded system that controls a series of actuators in an internal combustion engine to ensure optimal performance and lowest emissions.
[3] DEF (Diesel Exhaust Fluid): A non-toxic, colorless fluid composed of 32.5% high-purity urea and 67.5% deionized water. It is used in Selective Catalytic Reduction (SCR) systems to break down dangerous NOx emissions from diesel engines into harmless nitrogen and water.
