The Science of Separation: Mastering Fractional Distillation
Understanding the Basics: Evaporation and Condensation
Before diving into fractional distillation, we must understand two simple physical changes: evaporation and condensation.
- Evaporation is when a liquid turns into a gas. This happens when the liquid is heated, and its molecules gain enough energy to escape into the air.
- Condensation is the opposite. It is when a gas cools down and turns back into a liquid. You see this when water droplets form on a cold glass of lemonade on a hot day.
Distillation combines these two processes. You heat a liquid mixture to turn it into vapor (gas), then cool that vapor separately to collect it as a pure liquid. This works great if you want to separate salt from seawater; the water evaporates, leaving the salt behind, and then the water vapor condenses into pure water. But what if your mixture is two or more liquids, like alcohol and water? This is where fractional distillation becomes necessary.
The Heart of the Matter: Boiling Points and Volatility
Every pure liquid has a unique boiling point[1]. This is the specific temperature at which its vapor pressure equals the atmospheric pressure around it, causing it to boil. In a mixture, liquids still tend to boil at their own boiling points, but they influence each other.
The key idea is this: the liquid with the lower boiling point is more volatile[2]. It evaporates more easily and turns into vapor first when the mixture is heated. For example, in a mixture of ethanol (boiling point: 78°C) and water (boiling point: 100°C), ethanol is more volatile. When gently heated, the vapor that forms first will be richer in ethanol than the original liquid mixture.
Simple distillation would collect this vapor directly. However, the first vapor is rarely 100% pure. It often contains some molecules of the higher boiling point liquid as well. To achieve a high-purity separation, we need multiple rounds of evaporation and condensation within a single apparatus. This is done using a fractionating column.
The Fractionating Column: The Hero of the Process
The fractionating column is a vertical tube attached between the boiling flask and the condenser. It is filled with a packing material, like glass beads or steel wool, which provides a large surface area.
Here's the step-by-step magic that happens inside:
- Vapor Rises: The heated vapor from the mixture enters the bottom of the column.
- Partial Condensation: As the hot vapor rises, it encounters cooler temperatures. The less volatile component (higher boiling point) tends to condense first on the packing material and drip back down into the flask.
- Re-evaporation: The condensed liquid, now slightly richer in the less volatile component, drips down and meets incoming hot vapor. This causes it to re-evaporate, but the new vapor is again enriched in the more volatile component.
- Repeated Cycles: This cycle of condensation and re-evaporation happens hundreds or thousands of times as the vapor slowly moves up the column. Each cycle, called a theoretical plate[3], purifies the vapor a little more.
- Pure Vapor Exits: By the time the vapor reaches the top of the column, it is almost pure in the most volatile component. It then goes into the condenser, where it is cooled and collected as a liquid fraction.
The temperature at the top of the column is carefully monitored. When one component has been fully distilled, the temperature rises sharply, indicating the next, higher-boiling point component is now coming over. The receiving flask is then changed to collect this new fraction.
Laboratory Setup and Procedure

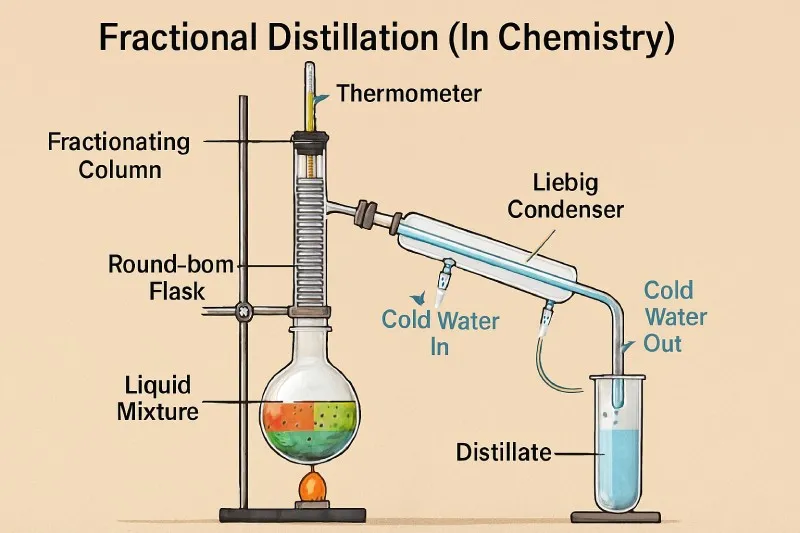

A standard fractional distillation setup in a school lab includes several key parts:
| Component | Purpose |
|---|---|
| Round-Bottom Flask & Heat Source | Holds the liquid mixture. Gentle, even heating is applied (often using a heating mantle). |
| Fractionating Column | Provides surfaces for repeated condensation and re-evaporation to purify vapors. |
| Thermometer | Placed at the top of the column to monitor the vapor temperature, indicating which fraction is distilling. |
| Condenser (Liebig) | A water-cooled tube that turns the purified hot vapor back into a liquid. |
| Receiving Flask(s) | Collects the condensed liquid fractions. Often switched when the temperature changes. |
The procedure requires patience. The mixture is heated slowly. The goal is to see a slow, steady drip of condensed liquid from the condenser, not a rapid stream. This slow pace ensures the fractionating column has enough time to perform its many purification cycles effectively.
From Crude Oil to Useful Products: An Industrial Giant
The most famous and large-scale application of fractional distillation is in an oil refinery, where crude oil is separated into its useful components. Crude oil is a complex mixture of hundreds of hydrocarbons[4] with different chain lengths and boiling points.
In a refinery, the process happens in a massive steel tower called a fractionating tower or distillation column, which can be over 60 meters tall. Heated crude oil (around 400°C) is pumped in near the bottom. As the vapors rise, the temperature gradually decreases up the tower.
- Hydrocarbons with the highest boiling points (like tar and lubricating oils) condense first and are collected at the bottom.
- Those with lower boiling points (like diesel and kerosene) condense on trays higher up.
- The lowest boiling point fractions (like gasoline and petroleum gases) rise to the very top and are collected there.
This single process provides the raw materials for fuels, plastics, asphalt, and chemicals. The approximate boiling ranges and uses of these fractions are shown below:
| Fraction Name | Number of Carbon Atoms | Boiling Point Range (°C) | Common Uses |
|---|---|---|---|
| Refinery Gas | C1 - C4 | Below 40 | Liquefied Petroleum Gas (LPG), camping fuel. |
| Gasoline (Petrol) | C5 - C10 | 40 - 180 | Fuel for cars and motorcycles. |
| Naphtha | C6 - C12 | 70 - 200 | Raw material for making plastics (petrochemicals). |
| Kerosene | C10 - C16 | 170 - 250 | Jet fuel, heating oil, lantern fuel. |
| Diesel Oil / Gas Oil | C14 - C20 | 250 - 350 | Fuel for trucks, trains, and some cars; heating. |
| Residue (Bitumen) | Above C20 | Above 350 | Road surfacing (asphalt), roofing tar. |
Other Real-World Applications and Examples
Fractional distillation touches our lives in many ways beyond fueling our vehicles.
- Production of Alcoholic Beverages: In distilleries, fermented liquids (like wine or beer wort) are fractionally distilled to concentrate the alcohol and separate it from water and flavor compounds. This is how spirits like whiskey, vodka, and rum are made. The distiller carefully selects the “heart” fraction of the distillate for the best flavor and alcohol content.
- Purification of Reagents and Chemicals: Chemical and pharmaceutical companies use fractional distillation on a large scale to produce extremely pure solvents (like acetone, ethanol, or toluene) needed for research, manufacturing, and medicine.
- Air Separation: This is a fascinating application where air itself is fractionally distilled. Air is cooled to very low temperatures (cryogenic distillation) until it becomes a liquid. This liquid air is then warmed up slowly. Nitrogen (boiling point: -196°C) boils off first, leaving behind liquid oxygen (boiling point: -183°C) and other gases like argon. This is how we get pure oxygen for hospitals and nitrogen for industrial uses.
Important Questions Answered
Q: What is the main difference between simple distillation and fractional distillation?
Simple distillation involves a single cycle of evaporation and condensation. It is effective for separating a liquid from a solid (like salt from water) or for separating two liquids with a very large difference in boiling points (greater than 25°C). Fractional distillation uses a fractionating column to allow for many cycles of evaporation and condensation within the apparatus. This makes it capable of separating liquids with much closer boiling points, like the various components of crude oil.
Q: Can fractional distillation separate any mixture of liquids?
No, there is an important limitation. Fractional distillation works best for separating mixtures of liquids that do not form an azeotrope[5]. An azeotrope is a special mixture that boils at a constant temperature and produces a vapor with the same composition as the liquid. For example, a mixture of 95.6% ethanol and 4.4% water forms an azeotrope. Fractional distillation cannot purify ethanol beyond 95.6% because at that point, the mixture behaves like a pure substance.
Q: Why is the fractionating column packed with materials like glass beads?
The packing material (glass beads, steel wool, or specialized shapes) serves two crucial purposes. First, it dramatically increases the surface area inside the column. More surface area means more places for vapor to condense. Second, it creates many small pockets and pathways that force the rising vapor and the falling condensed liquid to come into intimate contact. This maximizes the number of evaporation-condensation cycles (theoretical plates), leading to a much more efficient and complete separation.
Conclusion: A Foundational Technique
Footnote
[1] Boiling Point: The temperature at which the vapor pressure of a liquid equals the pressure surrounding the liquid, causing the liquid to change into a vapor throughout its bulk.
[2] Volatility: A measure of how readily a substance vaporizes. A liquid with a high volatility evaporates easily at low temperatures.
[3] Theoretical Plate: A hypothetical zone or stage in a distillation column where the vapor and liquid reach equilibrium, representing one perfect step in the separation process. The height of a column is often described by its number of theoretical plates (HETP - Height Equivalent to a Theoretical Plate).
[4] Hydrocarbons: Organic compounds consisting entirely of hydrogen and carbon atoms. Examples include methane ($CH_4$), propane ($C_3H_8$), and octane ($C_8H_{18}$).
[5] Azeotrope: A mixture of two or more liquids whose proportions cannot be altered or changed by simple distillation because the vapor has the same composition as the liquid mixture.
