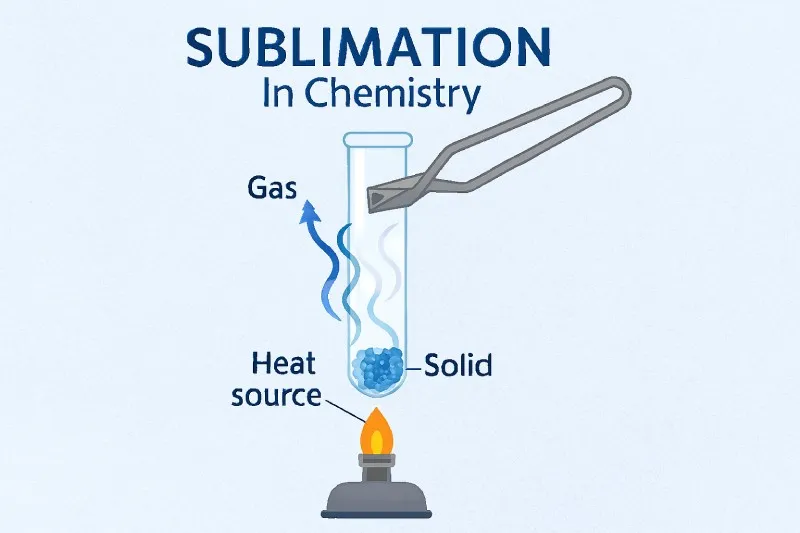

Sublimation: The direct change of state from solid to gas
What Is Sublimation and Why Does It Happen?
We all learn in school that matter exists in three primary states: solid, liquid, and gas. Usually, to go from a solid to a gas, you need to melt the solid into a liquid first (like heating an ice cube into water), and then boil the liquid into a gas (like boiling water into steam). Sublimation throws a curveball at this rule. It is the direct conversion from solid to gas.
At the heart of this process is energy. Adding energy, usually in the form of heat, increases the motion of the molecules in a solid. In most solids, this increased motion first loosens the rigid structure to form a liquid. However, in some solids, the molecules gain enough energy to completely break free from the solid structure and fly off directly as gas particles. This happens when the vapor pressure2 of the solid exceeds the external pressure acting upon it.
To understand this better, we need to look at a special map for substances: the phase diagram.
The Phase Diagram: A Map for State Changes
A phase diagram is a graphical representation that shows the states of a substance at different temperatures and pressures. It's like a weather map, but for matter. The most important point on this map for sublimation is the triple point.
For example, carbon dioxide (CO$_2$) has a triple point at -56.6°C and 5.11 atm. Standard atmospheric pressure is about 1 atm. Since 1 atm is far below the triple point pressure of CO$_2$, solid CO$_2$ (dry ice) will never melt into a liquid at normal air pressure. When you heat it, it sublimes directly to CO$_2$ gas.
Common Examples of Sublimation in Action
Sublimation isn't a rare lab phenomenon; it's happening all around us. Here are some classic and everyday examples:
| Substance (Solid Form) | Common Name / Use | What You Observe |
|---|---|---|
| Carbon Dioxide (CO$_2$) | Dry Ice | The solid "smokes" or fogs as it turns into cold CO$_2$ gas. It disappears over time without leaving a liquid puddle. |
| Iodine (I$_2$) | Disinfectant, Lab Chemical | Heating dark purple iodine crystals produces a beautiful violet vapor, which can re-solidify on a cold surface (deposition). |
| Naphthalene (C$_{10}$H$_8$) | Mothballs | The solid balls slowly shrink and release gas over weeks/months, deterring moths. They have a strong smell. |
| Paradichlorobenzene | Toilet Deodorizer Blocks | The solid block gets smaller over time as it releases deodorizing gas into the air. |
| Water (H$_2$O) | Frost, Snow, Ice | On cold, dry winter days, a thin layer of snow or ice can disappear from a surface without melting. This is called "freeze-drying" in nature. |
Industrial and Scientific Applications of Sublimation
The principles of sublimation are harnessed in various technologies that improve our lives. Two major applications are freeze-drying and purification.
Freeze-Drying (Lyophilization): This is a dehydration process used to preserve perishable materials. First, the material (like food or medicine) is frozen solid. Then, the surrounding pressure is lowered (creating a vacuum), and enough heat is added to cause the frozen water inside the material to sublime directly into vapor. This process removes water while keeping the material's structure mostly intact, making it perfect for instant coffee, astronaut food, and preserving vaccines.
Purification by Sublimation: Some impure solids can be purified through sublimation. The impure solid is heated under conditions where it sublimes. The pure vapor then travels to a cooler surface, where it undergoes deposition (the reverse of sublimation, gas to solid), forming pure, crystalline solid. This leaves the non-subliming impurities behind. Iodine and sulfur are often purified this way.
Important Questions
Why doesn't dry ice melt into a liquid?
Dry ice is solid carbon dioxide (CO$_2$). Under normal atmospheric pressure (about 1 atm), CO$_2$ cannot exist as a stable liquid. Its triple point pressure is 5.11 atm, which is much higher. Therefore, when you add heat to dry ice, it bypasses the liquid phase entirely and goes straight to CO$_2$ gas. To get liquid CO$_2$, you need to increase the pressure significantly.
Is the "smoke" from dry ice actually carbon dioxide gas?
No, the white fog you see is not CO$_2$ gas, which is invisible. The very cold CO$_2$ gas coming off the dry ice chills the surrounding air, causing the water vapor in the air to condense into tiny droplets of liquid water, forming a visible fog. So, the "smoke" is actually water fog, while the actual sublimation product (CO$_2$ gas) is unseen.
Can water undergo sublimation?
Yes, absolutely! Snow and ice can and do sublime, especially under cold, dry, and windy conditions. If the air is very dry (low humidity) and the sun shines on ice, the ice molecules can gain enough energy to jump directly into water vapor. This is why a snowbank can shrink on a sunny day even if the air temperature stays below 0°C (32°F).
Footnote
1 Triple Point: The precise temperature and pressure at which the solid, liquid, and gaseous phases of a pure substance coexist in thermodynamic equilibrium.
2 Vapor Pressure: The pressure exerted by a vapor in thermodynamic equilibrium with its condensed phases (solid or liquid) at a given temperature in a closed system. A high vapor pressure means the substance evaporates (or sublimes) easily.
