Insulators: The Silent Guardians of Energy and Safety
The Atomic Science of Insulation

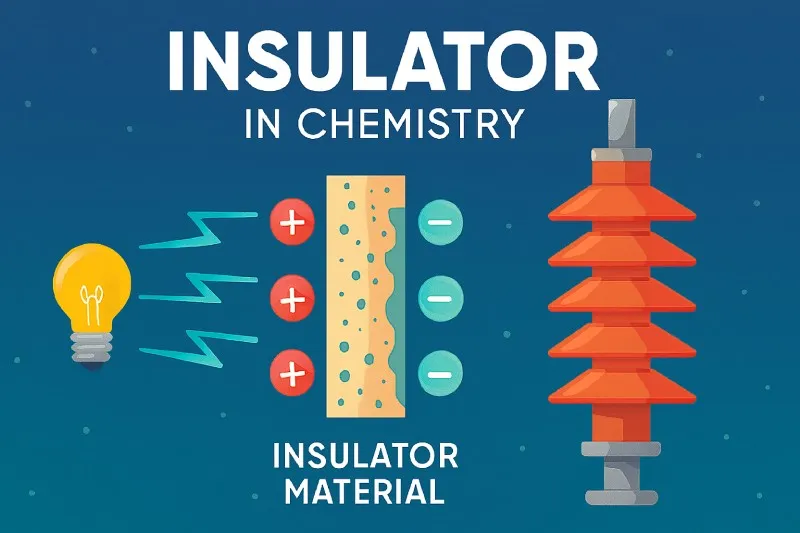

To understand why insulators work, we need to peek into the world of atoms. All matter is made of atoms, which contain a central nucleus (with protons and neutrons) and electrons that orbit around it. The behavior of the outermost electrons determines if a material is a conductor or an insulator.
Electrical Insulation: In conductors like metals, some electrons are "free" and can jump from atom to atom easily. When you apply a voltage (a kind of electrical push), these free electrons flow, creating an electric current. In insulators like rubber, plastic, or glass, the electrons are tightly bound to their atoms. They are not free to move around. This means even a strong voltage cannot make a significant current flow through the material. Think of it like a wide, open highway (a conductor) versus a blocked, muddy path (an insulator) for electrons.
Thermal Insulation: Heat is the vibration and movement of atoms and molecules. In a solid, heat is transferred mainly through vibrations passed from one atom to its neighbor (conduction). In good thermal conductors like metals, these vibrations travel quickly. In thermal insulators, the atomic structure is more disordered or has weak connections between particles, making it hard for vibrations to travel through. Air itself is an excellent thermal insulator, which is why many insulation materials (like foam or fiberglass) are full of tiny air pockets that trap heat.
Common Types of Insulating Materials
Insulators are categorized by what they insulate against and what they are made of. The following table provides an overview of common insulating materials and their primary uses.
| Material Type | Examples | Primary Use | Key Property |
|---|---|---|---|
| Ceramic Insulators | Porcelain, Alumina, Steatite | High-voltage power lines, spark plugs, circuit boards | Excellent electrical insulation, heat resistant, mechanically strong |
| Polymer (Plastic) Insulators | PVC (Polyvinyl Chloride), Rubber, Teflon, Polyethylene | Wire and cable coating, appliance handles, electronic enclosures | Flexible, easy to shape, good electrical and moderate thermal insulation |
| Glass Insulators | Silica glass, Borosilicate (Pyrex) | Old power lines, laboratory equipment, light bulb enclosures | High electrical resistance, transparent, can be made very pure |
| Fibrous & Foam Insulators | Fiberglass, Mineral Wool, Polystyrene foam, Polyurethane foam | Building insulation (walls, attics), thermoses, packaging | Excellent thermal insulation by trapping air, low density |
| Natural Insulators | Wood, Dry Air, Cotton, Wool, Paper (when dry) | Utility poles, clothing, early electrical experiments, construction | Variable properties; often hygroscopic (absorbs moisture which reduces insulation) |
Insulators in Action: From Homes to Outer Space
Insulators are not just laboratory curiosities; they are fundamental to the function and safety of countless devices and systems. Let's explore some concrete applications.
1. Keeping Homes Warm and Cool: The walls and attics of modern homes are filled with thermal insulation like fiberglass batts or spray foam. These materials have millions of tiny air pockets. Since air is a poor conductor of heat, this layer dramatically slows down the transfer of heat from the warm inside to the cold outside in winter, and vice versa in summer. This saves a huge amount of energy used for heating and air conditioning. Double-paned windows work on the same principle, with a sealed layer of dry air or argon gas between the panes acting as the insulator.
2. Electrical Grid and Safety: Look at any utility pole or high-voltage transmission tower. The heavy wires are held away from the metal tower by ceramic or composite polymer insulators. These insulators are designed with a ribbed shape to increase the surface path that electricity would have to travel over if it tried to leak to the ground, preventing short circuits. In your home, the plastic (PVC) coating on electrical cords, the rubber or plastic handles on tools, and the ceramic bases of light sockets are all insulators that prevent you from coming into contact with live wires.
3. Electronics and Computing: Inside every smartphone, computer, or tablet, there is a complex circuit board. The board itself is made from an insulating material like fiberglass-reinforced epoxy (FR-4). This base holds the thin copper conductive pathways in place while ensuring they don't touch each other where they shouldn't. Tiny insulating layers, only a few atoms thick, are also used inside microchips to separate different components.
4. Extreme Environments: The Space Shuttle's tiles are made of a highly porous silica ceramic. This material is an incredible thermal insulator, capable of withstanding temperatures over 1200°C during re-entry into Earth's atmosphere, while keeping the aluminum frame of the shuttle underneath at a safe temperature. Similarly, firefighters' suits use advanced insulating fabrics to protect them from extreme heat.
Important Questions
Yes, but it's rare. A classic example is diamond. It is an excellent electrical insulator due to its large band gap. However, because of its very rigid and ordered crystal lattice, vibrations (heat) travel through it extremely quickly, making it one of the best known thermal conductors. This is why diamond can be used in electronics to draw heat away from sensitive components while still electrically isolating them.
Pure water is actually a poor electrical conductor, but the water we encounter in everyday life is almost never pure. It contains dissolved minerals and salts, which break apart into positive and negative ions (like $Na^+$ and $Cl^-$). These ions are charged particles that can move through the water, making it conductive. When an insulating material like wood or cloth gets wet, these conductive ions penetrate its pores, creating paths for electricity to leak through. This is why it's so dangerous to use electrical devices with wet hands or in damp conditions.
For thermal energy transferred by conduction and convection, yes, a vacuum is a perfect insulator. Since there are no atoms or molecules to vibrate or move, heat cannot travel through a vacuum. This is the principle behind thermos flasks, which have a vacuum layer between their inner and outer walls. For electricity, a vacuum is also an excellent insulator, as it contains no free charges to carry a current. However, under extremely high voltages, a spark can jump across a vacuum gap in a phenomenon called "vacuum arc," but under normal conditions, it is considered an ideal insulator.
Footnote
1. Electronvolt (eV)[1]: A unit of energy commonly used in atomic and solid-state physics. It is defined as the amount of kinetic energy gained by a single electron when it accelerates through an electric potential difference of one volt. $1 \text{ eV} \approx 1.602 \times 10^{-19}$ joules.
2. PVC (Polyvinyl Chloride)[2]: A synthetic polymer made from vinyl chloride monomers. It is widely used as an electrical insulator for wire coating and in construction for pipes and siding due to its durability and resistance to fire and chemicals.
3. FR-4[3]: Flame Retardant 4. A composite material made of woven fiberglass cloth bound with an epoxy resin. It is the most common insulating base material for printed circuit boards (PCBs).
4. Hygroscopic[4]: The property of a material to absorb moisture from the air. For insulators, this is often undesirable as absorbed water can make them electrically conductive.
