The Haber Process: Feeding the World
The Chemistry Behind the Reaction
At its heart, the Haber process is based on a simple, reversible chemical equation:
This equation tells us several crucial things. One molecule of nitrogen gas reacts with three molecules of hydrogen gas to form two molecules of ammonia gas. The reaction also releases heat (it is exothermic). The double arrow ($\rightleftharpoons$) indicates the reaction is reversible. This means that as ammonia is being produced, some of it is also breaking back down into nitrogen and hydrogen. A chemical state of balance, called equilibrium, is eventually reached where the rates of the forward and reverse reactions are equal.
The main challenge Fritz Haber faced was the incredible stability of the nitrogen molecule ($N_2$). Its two nitrogen atoms are held together by a very strong triple bond, which makes nitrogen gas very unreactive or "inert." To break this bond and make nitrogen react with hydrogen, a significant amount of energy is required. This is where the concepts of Le Chatelier's Principle and catalysts come into play to make the process practical.
Optimizing the Conditions: A Balancing Act
Le Chatelier's Principle states that if a change is applied to a system at equilibrium, the system adjusts to counteract that change. Chemical engineers use this principle to "push" the equilibrium toward producing more ammonia. They manipulate three key factors: temperature, pressure, and the use of a catalyst.
| Condition | Favorable Choice | Scientific Reason | Industrial Compromise |
|---|---|---|---|
| Pressure | High Pressure | The reaction converts 4 gas molecules (1 $N_2$ + 3 $H_2$) into 2 gas molecules (2 $NH_3$). Higher pressure favors the side with fewer gas molecules (the product side). | Very high pressure (150-300 atmospheres) is used. It increases yield and reaction speed but requires expensive, strong equipment. |
| Temperature | Low Temperature | The forward reaction is exothermic (releases heat). Lower temperature favors the heat-releasing side (the product side). | A moderately high temperature (400-450$^\circ$C) is used. Lower temps give better yield but make the reaction too slow. Higher speed is needed for profitability. |
| Catalyst | Iron-based Catalyst | A catalyst provides an alternative pathway with a lower activation energy. This allows the reaction to proceed faster at the chosen moderate temperature. | Promoted iron catalyst (with $Al_2O_3$ and $K_2O$) is used. It is not consumed but makes the process economically viable. |
Think of it like trying to get people through a narrow door. High pressure is like having a big crowd (reactants) pushing toward the door (forming ammonia). A low temperature would be like telling everyone to walk slowly and orderly, which is efficient but takes forever. A catalyst is like adding a second, wider door—it doesn't change the destination or who gets in, but it dramatically speeds up the process, allowing you to use a "medium" temperature that is a good compromise.

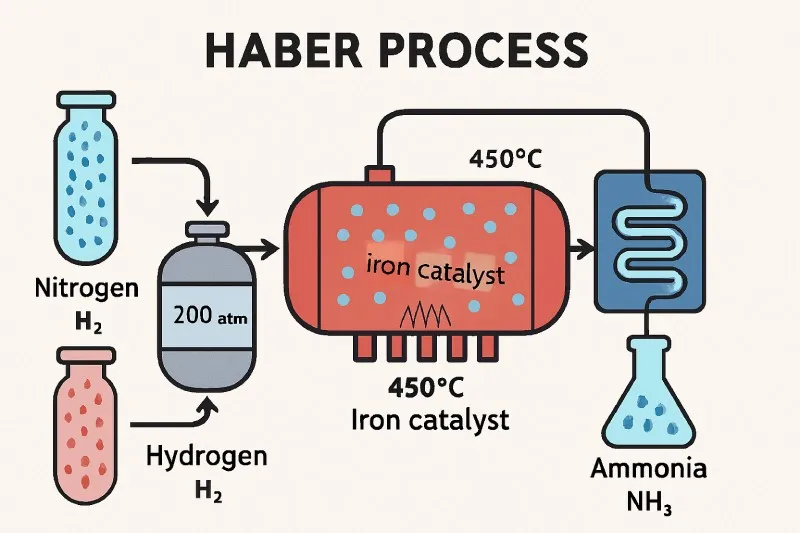

Step-by-Step Inside an Industrial Plant
The Haber process is a continuous industrial operation. Imagine a giant, high-tech kitchen where ingredients are constantly fed in, cooked under precise conditions, and the final product is continuously collected. Here’s a simplified walkthrough:
1. Sourcing the Raw Materials: Nitrogen is obtained easily from the air, which is 78% $N_2$. Hydrogen is typically produced from natural gas ($CH_4$) in a process called steam reforming. Impurities like sulfur compounds, which would "poison" the catalyst, are carefully removed.
2. Compression and Mixing: The purified gases are mixed in a 1:3 ratio of nitrogen to hydrogen. The mixture is then compressed to the extremely high working pressure of 150-300 times normal atmospheric pressure.
3. The Synthesis Loop – The Heart of the Process: The hot, pressurized gas mixture is passed over beds of the iron catalyst inside a reactor vessel. Only about 15\%$ of the gases convert to ammonia in a single pass due to equilibrium limitations.
4. Cooling and Separation: The gas stream leaving the reactor contains ammonia, along with unreacted nitrogen and hydrogen. It is cooled, causing the ammonia to condense into a liquid. Liquid ammonia is separated out by simply letting it drain away.
5. Recycling: The unreacted nitrogen and hydrogen gases are recycled back to the compressor and sent through the reactor again. This recycling is crucial for achieving a high overall yield and makes the process efficient and economical.
Ammonia in Action: From Fertilizers to Cleaners
The ammonia ($NH_3$) produced isn't used directly as a gas. It is either stored as a liquid under pressure or converted into other compounds. Its most vital application is in agriculture.
Feeding Crops: Plants need nitrogen to make proteins and chlorophyll, but they cannot use nitrogen gas from the air. The Haber process "fixes" atmospheric nitrogen into a form plants can absorb—ammonia. Most ammonia is converted into solid fertilizers like ammonium nitrate ($NH_4NO_3$) or urea ($(NH_2)_2CO$). A simple example: A farmer growing corn applies ammonium nitrate to the soil. The corn plants take up the ammonium ($NH_4^+$) and nitrate ($NO_3^-$) ions, using the nitrogen to grow taller and produce more kernels.
Beyond the Farm: Ammonia is a versatile industrial chemical. It is a key ingredient in household cleaning products because it's excellent at cutting through grease and grime. It is used to make explosives (like for mining), certain plastics (nylon), synthetic fibers, and pharmaceuticals. It is also used as a refrigerant in large industrial cooling systems.
Important Questions
Why is the Haber process considered one of the most important inventions ever?
Before the Haber process, the main source of nitrogen for fertilizers was limited natural deposits like bird droppings (guano) or mineral mines. These sources couldn't support large-scale farming for a growing global population. The Haber-Bosch process provided an unlimited way to create nitrogen fertilizer from air. This dramatically increased food production, allowing farmers to grow much more food on the same amount of land. Experts estimate that nearly half of the nitrogen in our bodies today comes from fertilizer produced by the Haber process, meaning it directly supports billions of lives.
What are the environmental impacts of the Haber process?
The process has a dual environmental legacy. On the positive side, it prevented the conversion of vast areas of wilderness into farmland by increasing crop yields. However, significant challenges exist. The production of hydrogen from natural gas releases carbon dioxide ($CO_2$), a greenhouse gas. Furthermore, not all fertilizer applied to fields is used by plants. Excess nitrate can run off into waterways, causing pollution and algal blooms that create "dead zones" in lakes and oceans. Scientists are actively working on making the process "greener" by using hydrogen from water electrolysis powered by renewable energy and developing more precise farming techniques to reduce fertilizer waste.
Can the Haber process run without a catalyst?
Technically, yes, but it would be completely impractical for industry. Without a catalyst, the activation energy for breaking the strong nitrogen triple bond is so high that an impractically high temperature (likely over 1000^\circ$C) would be needed to get a reasonable reaction speed. At that temperature, according to Le Chatelier's principle, the equilibrium would shift heavily away from ammonia formation because the reaction is exothermic. The yield would be extremely poor, and the energy costs would be enormous. The catalyst is what allows the reaction to proceed at a moderate, compromise temperature with a useful speed.
Conclusion
Footnote
1 Haber-Bosch Process: The full name honoring both Fritz Haber, who discovered the catalytic synthesis, and Carl Bosch, who scaled it to industrial production.
2 Activation Energy: The minimum amount of energy required for a chemical reaction to occur.
3 Le Chatelier's Principle: A principle stating that if a dynamic equilibrium is disturbed by changing the conditions, the position of equilibrium moves to counteract the change.
4 Catalyst Poisoning: The process where a catalyst is rendered inactive by impurities that bind strongly to its surface.
5 Steam Reforming: An industrial process to produce hydrogen from hydrocarbons (like methane) and steam.
