Sacrificial Protection: The Heroic Chemistry of Metals
The Chemistry Behind the Sacrifice: Redox Reactions and Electrochemistry
To understand sacrificial protection, we first need to explore why metals corrode in the first place. Corrosion, most commonly seen as rust on iron, is an electrochemical process. This means it involves the movement of electrons and chemical reactions, much like a simple battery.
Core Concept: Redox Reactions
Corrosion is a redox (reduction-oxidation) reaction. In a redox reaction:
- Oxidation is the loss of electrons. The metal that loses electrons gets corroded. (A helpful mnemonic: OIL RIG – Oxidation Is Loss, Reduction Is Gain).
- Reduction is the gain of electrons. Usually, oxygen or water in the environment gains these electrons.
For iron rusting, the simplified reaction is:
$ 4Fe_{(s)} + 3O_{2(g)} + 6H_2O_{(l)} \rightarrow 4Fe(OH)_{3(s)} $ (which further forms rust).
When two different metals are in electrical contact and exposed to a conductive solution like water (an electrolyte), they form a galvanic cell. One metal acts as the anode (where oxidation happens) and the other as the cathode (where reduction happens). The key rule is: the more reactive metal in the electrochemical series will become the anode and corrode.
| Metal | Symbol | Reactivity (Tendency to Lose Electrons) | Common Use in Sacrificial Protection |
|---|---|---|---|
| Magnesium | Mg | Most Reactive (Best anode) | Protecting underground steel tanks, water heaters. |
| Zinc | Zn | Very Reactive | Galvanizing[4] steel, ship hulls (zinc anodes). |
| Iron | Fe | Moderately Reactive | The metal we commonly need to protect. |
| Tin | Sn | Less Reactive than Iron | Tin cans (coats iron). If scratched, iron corrodes faster. |
| Copper | Cu | Much Less Reactive | Not used for protection. Contact with iron will accelerate iron's rusting. |

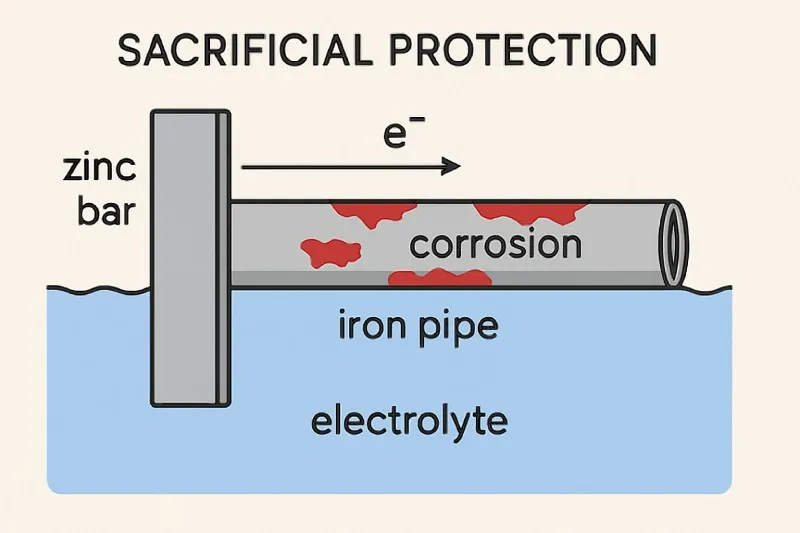

In sacrificial protection, we deliberately choose a metal higher on this list (like Zn or Mg) and connect it to iron. Zinc, being more reactive, becomes the anode. It oxidizes: $ Zn_{(s)} \rightarrow Zn^{2+}_{(aq)} + 2e^- $. The released electrons flow to the iron, which becomes the cathode. At the cathode, reduction occurs (e.g., oxygen and water gain electrons: $ O_{2(g)} + 2H_2O_{(l)} + 4e^- \rightarrow 4OH^-_{(aq)} $). The iron, now receiving a steady stream of electrons, is stabilized and cannot oxidize itself. It remains intact as long as the sacrificial metal is present.
Everyday and Industrial Guardians: Where Sacrificial Protection Works
This principle isn't just a laboratory trick; it's a silent guardian in many objects and structures we rely on daily. Let's look at some concrete examples.
1. Galvanized Steel: Perhaps the most common example. Steel (an iron alloy) is coated with a thin layer of zinc, a process called galvanization. The zinc acts as a physical barrier. More importantly, if the coating is scratched, exposing the steel, the zinc sacrificially corrodes to protect the exposed iron. This is why galvanized steel is used for fences, car bodies, construction beams, and streetlight poles.
2. Ship Hulls and Offshore Platforms: Seawater is an excellent electrolyte, making corrosion a major enemy of ships. Large blocks of zinc (or sometimes magnesium or aluminum alloys) are bolted onto the ship's steel hull and propeller. These are called "sacrificial anodes." They corrode away over time and must be replaced during dry-docking, but the hull remains protected. The same is done for offshore oil rigs and pipelines.
3. Water Heaters and Underground Tanks: Inside your home's water heater, a magnesium or aluminum anode rod is inserted into the tank. The minerals in water can corrode the steel tank. The anode rod sacrificially corrodes, dramatically extending the tank's life. Similarly, magnesium anodes are connected to underground fuel storage tanks and pipelines to protect them from soil moisture.
4. The Leaky Battery Experiment: A simple school experiment uses a lemon or potato as an electrolyte. Push a zinc-coated nail (galvanized) and a plain iron nail into it, connected by a wire. The zinc nail will corrode, protecting the iron nail. This visually demonstrates the electron flow and the concept of a sacrificial anode.
Important Questions
Q1: Why can't we use a less reactive metal like copper to protect iron?
Q2: How do we know when to replace a sacrificial anode?
Q3: Is sacrificial protection the same as "cathodic protection"?
Sacrificial protection is a brilliant application of fundamental chemistry that turns the problem of corrosion against itself. By understanding the reactivity series and the principles of electrochemistry, engineers can select the right "hero" metal—zinc, magnesium, or aluminum—to sacrifice itself for the greater good. This method is cost-effective, reliable, and requires no external power, making it ideal for countless applications, from the ships crossing our oceans to the water heater in your basement. It is a perfect example of how a simple scientific concept, when applied thoughtfully, safeguards our infrastructure and extends the life of the materials that build our modern world.
Footnote
[1] Corrosion: The gradual destruction of materials (usually metals) by chemical and/or electrochemical reaction with their environment.
[2] Sacrificial Anode: A piece of a more reactive metal attached to a less reactive metal structure; it corrodes (is sacrificed) to protect the structure from corrosion.
[3] Oxidation: A chemical reaction that involves the loss of electrons. In corrosion, it is the metal atoms losing electrons to become positive ions.
[4] Galvanizing: The process of applying a protective zinc coating to steel or iron to prevent rusting, primarily through sacrificial protection.
