Bitmap Image: The Digital Picture Puzzle
The Core Concept: Pixels and the Grid

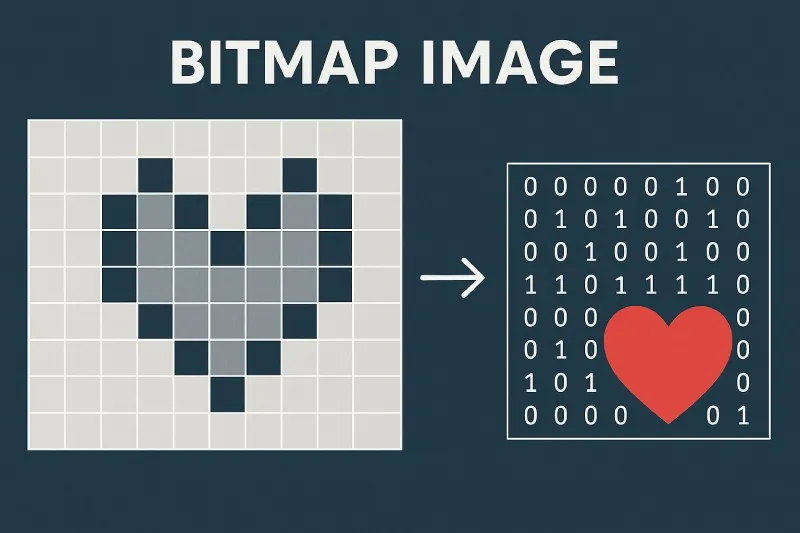

Imagine a massive mosaic made from millions of tiny, colored tiles. From a distance, you see a smooth image, but up close, you can see each individual tile. A bitmap works exactly the same way. The computer creates a map of bits (the smallest unit of digital data) that tells it exactly what color to put in each position on the grid. The resolution of an image describes the dimensions of this grid: its width and height in pixels. For example, an image with a resolution of 1920 x 1080 is a grid that is 1920 pixels wide and 1080 pixels tall, for a total of 2,073,600 pixels.
The quality and detail of a bitmap are directly tied to its resolution. A higher resolution means more pixels are packed into the same physical space, resulting in a sharper, more detailed image. If you enlarge a low-resolution bitmap too much, you will see the individual pixels as blocky squares, an effect called "pixelation."
How Colors Are Made: Bits and Color Models
Each pixel's color is defined by numbers. The number of bits used to store the color information for a single pixel is called the color depth or bit depth. A single bit can be either a 0 or a 1, which is enough for only two colors: typically black ($0$) and white ($1$). This creates a simple monochrome image.
To create full-color images, computers use color models. The most common model for screens is RGB (Red, Green, Blue). In this model, every color is created by mixing different intensities of red, green, and blue light. Each color channel (R, G, and B) is assigned a certain number of bits. A very common standard is 24-bit color, which uses 8 bits for each of the three channels.
With 8 bits per channel, the intensity for each primary color can have a value from 0 (none) to 255 (full intensity). A pixel with values $(255, 0, 0)$ is pure red. $(0, 255, 0)$ is pure green. $(255, 255, 0)$ mixes red and green to make yellow. $(0, 0, 0)$ is black, and $(255, 255, 255)$ is white.
| Color Depth (Bit Depth) | Common Name | Number of Colors | Typical Use |
|---|---|---|---|
| 1-bit | Monochrome | 2 | Simple black and white line art, faxes. |
| 8-bit | Indexed Color | 256 | Early computer graphics, GIF images. |
| 24-bit | True Color | ~16.7 million | Photographs, modern web graphics (JPEG, PNG). |
| 32-bit | True Color + Alpha | ~16.7 million + Transparency | Graphics with transparency/opacity effects. |
Storing the Image: Common Bitmap File Formats
Raw bitmap data (just the grid of pixel colors) can be very large. To manage file sizes, different file formats have been invented. They use various methods of compression to make files smaller, sometimes by losing some information (lossy compression) and sometimes without losing any (lossless compression).
- BMP: The simplest format. It often stores the pixel data with little to no compression, leading to very large file sizes. It's like taking a direct "snapshot" of the pixel grid.
- JPEG (or JPG)[1]: The most common format for photographs. It uses lossy compression, which cleverly reduces file size by discarding color details the human eye is less sensitive to. High compression can cause "artifacts," blurry or blocky areas.
- PNG[2]: Popular for web graphics, logos, and images with text or sharp edges. It uses lossless compression, so no quality is lost. It also supports transparency (an alpha channel).
- GIF[3]: Limited to a palette of only 256 colors. Its key features are support for simple animations and transparency.
From Theory to Screen: Creating a Simple Bitmap
Let's apply these concepts with a hands-on example. Suppose we want to create a tiny bitmap of a red and blue flag. We'll decide on a very low resolution of 6 x 4 pixels. This means our grid has 24 pixels total. We'll use 24-bit color (8 bits each for R, G, B).
We design our flag: the left 3 columns are pure red, and the right 3 columns are pure blue. The computer would store this as a list of 24 color values, row by row. Each pixel's color is three numbers:
- Red Pixel: R=255, G=0, B=0
- Blue Pixel: R=0, G=0, B=255
If you zoom in on this image on a computer screen, you would eventually see these individual colored squares. This simple exercise illustrates the fundamental trade-off in bitmap graphics: higher detail (more pixels) and richer color (higher bit depth) always result in more data for the computer to store and process.
Important Questions About Bitmap Images
What is the main disadvantage of bitmap images compared to vector images?
Why does a photograph become a very large file, while a simple drawing of the same size on screen might be much smaller?
What does "DPI" or "PPI" mean when talking about bitmaps?
Bitmap images form the visual foundation of our digital world. By breaking down a picture into a manageable grid of colored pixels, computers can store, process, and display everything from family photos to video games. Understanding the relationship between pixels, color depth, and resolution empowers us to make informed choices about creating, editing, and using digital images. While they have limitations in scalability, their ability to represent complex, realistic imagery ensures that bitmaps will remain a vital part of digital technology for the foreseeable future.
Footnote
[1] JPEG: Joint Photographic Experts Group. The name of the committee that created this standard.
[2] PNG: Portable Network Graphics. A lossless image format designed as an improved, patent-free replacement for GIF.
[3] GIF: Graphics Interchange Format. A bitmap image format supporting 256 colors and animation.
[4] DPI: Dots Per Inch. Primarily used in printing, referring to the density of ink dots.
[5] PPI: Pixels Per Inch. Used for digital displays and image files, referring to the density of pixels.
