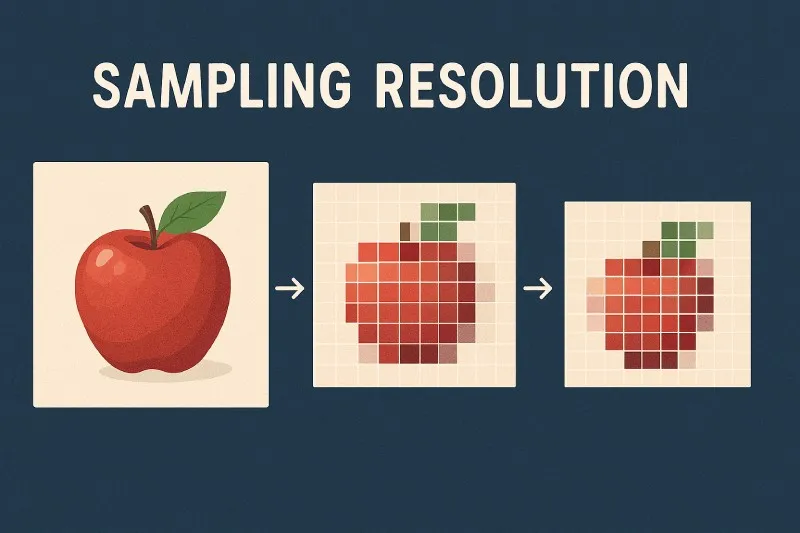

Sampling Resolution: The Detail in Every Sound Sample
How the number of bits used to store each sound sample shapes the quality, accuracy, and clarity of the digital audio we hear every day.
Summary: This article explores the fundamental concept of sampling resolution, also known as bit depth, in digital audio. Imagine trying to describe the exact height of a mountain using only a limited set of numbers. Sampling resolution works in a similar way for sound. It determines how precisely an analog sound wave can be measured and converted into a digital number. A higher bit depth means more possible values for each sample, resulting in greater dynamic range, lower quantization noise, and a more faithful, detailed digital representation of the original audio signal. We will break down this essential, yet often overlooked, pillar of digital sound.
From Waves to Numbers: The Journey of Digitizing Sound
Before diving into bits, we must understand the broader process: Analog-to-Digital Conversion (ADC)1. A microphone captures sound, which is a continuous wave of air pressure changes. This smooth, flowing wave is called an analog signal. To store it on a computer, phone, or CD, we must convert this wave into a series of numbers—a process called digitization.
This process has two main steps, often compared to creating a digital picture:
- Sampling: How often we take a snapshot of the wave. This is the sample rate2, measured in Hertz (Hz). For example, a CD uses a sample rate of 44,100 Hz, meaning it takes 44,100 snapshots every second.
- Quantization: How precisely we measure each snapshot's height (amplitude). This is where sampling resolution (bit depth) comes into play. It's like the ruler we use for measurement. A ruler with more, finer markings gives a more accurate measurement than one with only a few large markings.
Key Concept: Think of creating a digital photo. The sample rate is like the number of pixels (megapixels) – more pixels capture more spatial detail. The bit depth is like the color depth – more bits per pixel allow for more shades of color, preventing "banding" in smooth gradients. In audio, more bits per sample allow for more precise "shades" of loudness.
What is a Bit? The Language of Computers
To understand bit depth, we must first understand a bit. It is the smallest unit of information in computing, a binary digit that can have only one of two values: 0 or 1. It's like a simple light switch: it can only be ON (1) or OFF (0). A group of bits can represent more complex information.
For example:
- 1 bit can represent 21 = 2 possibilities: 0 or 1.
- 2 bits can represent 22 = 4 possibilities: 00, 01, 10, 11.
- 8 bits can represent 28 = 256 possibilities.
In audio, each sample is a measurement of the sound wave's amplitude at a specific instant. The bit depth tells us how many bits we have to store that single measurement. More bits mean we have a larger "menu" of possible numbers to choose from, allowing us to pick a number that is closer to the wave's true, analog amplitude.
| Bit Depth | Possible Values (2bits) | Common Use Case | Theoretical Dynamic Range |
|---|---|---|---|
| 8-bit | 256 | Early computer games, telephone systems (low quality) | ~48 dB |
| 16-bit (CD Audio) | 65,536 | Audio CDs, MP3s, streaming, most consumer media | ~96 dB |
| 24-bit (Studio Standard) | 16,777,216 | Professional music recording, mixing, and mastering | ~144 dB |
| 32-bit (Float) | ~4.29 billion | High-end audio processing, some digital audio workstations | Extremely high, virtually no noise floor |
Understanding the Benefits: Dynamic Range and Noise Floor
Why does having more possible values matter? It directly impacts two critical aspects of audio quality: Dynamic Range and Quantization Noise.
Dynamic Range is the difference between the quietest and the loudest sound that can be accurately represented. It's measured in decibels (dB). The formula for the theoretical maximum dynamic range of a given bit depth is approximately:
Dynamic Range Formula: Dynamic Range (in dB) $\approx$ 6.02 $\times$ Bit Depth
For 16-bit audio: 6.02 $\times$ 16 $\approx$ 96 dB.
For 24-bit audio: 6.02 $\times$ 24 $\approx$ 144 dB.
For 16-bit audio: 6.02 $\times$ 16 $\approx$ 96 dB.
For 24-bit audio: 6.02 $\times$ 24 $\approx$ 144 dB.
This means a 24-bit recording can capture sounds from a pin drop to a jet engine with incredible precision, while a 16-bit recording, though still excellent, has a smaller "window" of volume it can represent.
Quantization Noise is the subtle distortion or error introduced because the digital number must be rounded to the nearest available value in our limited "menu." With a low bit depth (e.g., 8-bit), the rounding error is large relative to the signal, creating a gritty, low-quality sound. With a high bit depth (e.g., 24-bit), the rounding error is incredibly tiny, often far below the level of normal background noise, making it inaudible. This error is also called the noise floor—the level of inherent noise in the digital system.
Hearing the Difference: A Practical Audio Example
Let's imagine you are recording a solo acoustic guitar in a quiet room. The performance has wide dynamics: very soft finger-picking and a sudden, loud strum.
- Recording at 8-bit: The system only has 256 "volume levels" to choose from. The soft finger-picking might be so quiet that it falls between the lowest levels, causing it to be rounded to zero—resulting in complete silence or a sudden, grainy jump in volume when it appears. The loud strum may be captured, but with a "stair-step" approximation of the smooth wave, losing nuance and adding a fuzzy distortion (quantization noise). The final recording sounds harsh and computerized.
- Recording at 16-bit (CD Quality): Now with 65,536 levels, the system can map the soft picking to a specific, non-zero value, preserving its detail. The loud strum is captured with much finer "steps," closely matching the smooth original wave. The quantization noise is so low (~96 dB below the loudest signal) that it's masked by the natural sounds of the room and the guitar itself. The result is a clean, faithful, and high-quality recording suitable for music distribution.
- Recording at 24-bit (Studio Quality): With over 16 million levels, the rounding is so precise that the digital measurement is virtually indistinguishable from the analog original. The noise floor is incredibly low (~144 dB down), providing a massive "safety net" of dynamic range. This allows recording engineers to capture the performance at a lower average level without worrying about noise, then increase the volume in the computer later with no penalty. This preserves every subtle detail, from the breath of the performer to the resonance of the strings, and is crucial for professional editing and mixing.
Bit Depth in the Real World: Music, Phones, and Gaming
Sampling resolution isn't just for studios; it's part of your daily tech life.
- Music Streaming: Services like Spotify and Apple Music typically deliver audio at 16-bit depth (or less, depending on compression). High-resolution streaming services promote 24-bit files for audiophiles seeking the utmost detail, though the perceptible difference from 16-bit in normal listening environments is a topic of debate.
- Voice Calls and Video Conferencing: To save bandwidth, these often use lower bit depths (e.g., 8-bit or compressed 16-bit). This is why a voice call doesn't sound as rich and full as listening to a music recording—the system prioritizes intelligibility over sonic beauty.
- Video Games: Modern games use high-quality, often 24-bit audio assets for music and sound effects to create an immersive atmosphere. However, the final mix processed by the game engine might be rendered at a lower bit depth for performance reasons.
- Digital Audio Workstations (DAWs)3: Professional music software like Logic Pro, Ableton Live, or Pro Tools performs all internal calculations at very high bit depths (32-bit or even 64-bit float) to prevent rounding errors from accumulating when applying multiple effects like reverb, equalization, and compression.
Pro Tip for Listeners: While 24-bit audio offers technical benefits, the most significant quality leap for most people is moving from heavily compressed formats (like low-bitrate MP3s) to 16-bit lossless formats (like CD audio or FLAC). The upgrade from 16-bit to 24-bit is more subtle and often requires high-quality headphones/speakers and a very quiet listening environment to potentially notice.
Important Questions About Sampling Resolution
Q1: Is a higher bit depth always better?
A: From a pure technical capture standpoint, yes. A higher bit depth provides more accuracy and a lower noise floor. However, practical considerations matter. Higher bit depths create larger audio files (24-bit is 50% larger than 16-bit for the same sample rate). For the final listening format, the benefits of 24-bit over 16-bit may be inaudible on most consumer playback systems and in typical listening environments. The "better" choice depends on the use case: recording and production benefit immensely from 24-bit, while final distribution often uses 16-bit.
A: From a pure technical capture standpoint, yes. A higher bit depth provides more accuracy and a lower noise floor. However, practical considerations matter. Higher bit depths create larger audio files (24-bit is 50% larger than 16-bit for the same sample rate). For the final listening format, the benefits of 24-bit over 16-bit may be inaudible on most consumer playback systems and in typical listening environments. The "better" choice depends on the use case: recording and production benefit immensely from 24-bit, while final distribution often uses 16-bit.
Q2: Can you hear the difference between 16-bit and 24-bit audio?
A: This is a common and often debated question. Under ideal conditions—with exceptional playback equipment, in an absolutely silent room, and with a perfectly recorded track that uses the entire dynamic range—some trained listeners might hear a slight difference, particularly in the decay of very quiet sounds or the sense of "air" and space. For the vast majority of people listening on typical headphones, speakers, or in a car, the difference is negligible. The improvement from a low-quality, compressed audio file to a 16-bit CD-quality file is far more noticeable.
A: This is a common and often debated question. Under ideal conditions—with exceptional playback equipment, in an absolutely silent room, and with a perfectly recorded track that uses the entire dynamic range—some trained listeners might hear a slight difference, particularly in the decay of very quiet sounds or the sense of "air" and space. For the vast majority of people listening on typical headphones, speakers, or in a car, the difference is negligible. The improvement from a low-quality, compressed audio file to a 16-bit CD-quality file is far more noticeable.
Q3: How does bit depth relate to "loudness" or volume?
A: Bit depth does not directly control the playback volume you hear from your speakers. Volume is adjusted by amplifying or attenuating the digital signal. Think of bit depth as the precision of the measurements on a ruler, not how long the ruler is. However, a higher bit depth provides more "headroom"—the ability to capture very loud sounds without distortion—and a lower "noise floor," allowing very quiet sounds to be recorded clearly. When you turn up the volume on a 24-bit recording, you can amplify the quiet details more before you start to hear the system's inherent noise compared to a 16-bit recording.
A: Bit depth does not directly control the playback volume you hear from your speakers. Volume is adjusted by amplifying or attenuating the digital signal. Think of bit depth as the precision of the measurements on a ruler, not how long the ruler is. However, a higher bit depth provides more "headroom"—the ability to capture very loud sounds without distortion—and a lower "noise floor," allowing very quiet sounds to be recorded clearly. When you turn up the volume on a 24-bit recording, you can amplify the quiet details more before you start to hear the system's inherent noise compared to a 16-bit recording.
Conclusion
Sampling resolution, or bit depth, is a cornerstone of digital audio that defines the accuracy of each snapshot of sound. It moves beyond the simple question of "how many times per second" we sample (sample rate) to answer "how well" we measure each one. From the gritty sounds of classic video games to the pristine clarity of a studio master, bit depth plays a decisive role. While the jump to ultra-high resolutions like 24-bit offers diminishing audible returns for the average listener, understanding this concept empowers us to make informed choices about recording, editing, and enjoying music. It is the invisible architect of detail, building the dynamic range and clarity that allow digital sound to move us.
Sampling resolution, or bit depth, is a cornerstone of digital audio that defines the accuracy of each snapshot of sound. It moves beyond the simple question of "how many times per second" we sample (sample rate) to answer "how well" we measure each one. From the gritty sounds of classic video games to the pristine clarity of a studio master, bit depth plays a decisive role. While the jump to ultra-high resolutions like 24-bit offers diminishing audible returns for the average listener, understanding this concept empowers us to make informed choices about recording, editing, and enjoying music. It is the invisible architect of detail, building the dynamic range and clarity that allow digital sound to move us.
Footnote: Definitions and Abbreviations
- Analog-to-Digital Converter (ADC): An electronic circuit that converts a continuous analog signal (like voltage from a microphone) into a discrete digital number that a computer can process.
- Sample Rate: The number of samples (measurements) of an analog signal taken per second, measured in Hertz (Hz). It determines the maximum frequency that can be accurately represented (according to the Nyquist-Shannon theorem).
- Digital Audio Workstation (DAW): A software application used for recording, editing, mixing, and producing audio files. Examples include Pro Tools, Logic Pro, Ableton Live, and FL Studio.
- Dynamic Range: In audio, the ratio between the largest and smallest possible values of a sound level, typically measured in decibels (dB). It represents the span from the quietest discernible sound to the loudest before distortion.
- Quantization: The process of mapping a large, continuous set of input values (like the infinite possible amplitudes of a sound wave) to a smaller, finite set of output values (determined by the bit depth). The error introduced by this rounding is called quantization noise.
