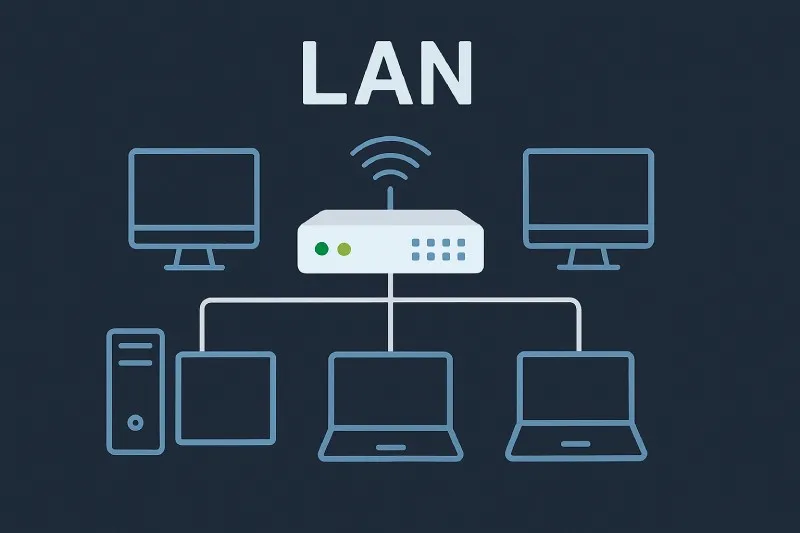

What is a LAN? Your Local Digital Neighborhood
Core Components of a Local Area Network
Every LAN is built using a few essential hardware and software parts. Think of building a LEGO set: you need different types of bricks to create a complete structure. Here are the main "bricks" of a typical LAN:
| Component | Role in the LAN | Real-World Analogy |
|---|---|---|
| Network Interface Card (NIC) | A hardware piece inside each device (computer, printer) that allows it to connect to the network. It has a unique address called a MAC Address. | A car's engine and registration plate. The engine lets it drive on roads (the network), and the plate is its unique, physical ID. |
| Switch | The central traffic director inside the LAN. It receives data from one device and sends it directly to the intended recipient device on the same LAN. | A smart mail sorter in an office building. It takes a letter and delivers it directly to the correct desk within the same building. |
| Router | The gateway between your LAN and other networks (like the Internet). It assigns local IP addresses and routes traffic out to the internet or between different LANs. | The building's main receptionist and security guard. They know who is inside (local traffic) and direct external visitors (internet data) to the right place. |
| Access Point (AP) | A device that allows wireless devices (like laptops and phones) to connect to a wired LAN using Wi-Fi. | A wireless translator. It converts the "wired language" of the Ethernet cables into the "wireless language" (Wi-Fi) that your tablet understands. |
| Transmission Media | The physical "roads" data travels on. This includes Ethernet cables (wired) and radio waves (for Wi-Fi). | The actual streets and highways. Ethernet cables are like paved roads, and Wi-Fi signals are like open-air footpaths. |
How Data Travels: Packets and Protocols
Devices on a LAN don't send information in one big chunk. It's broken down into smaller pieces called data packets. This is like sending a long letter page by page in separate envelopes. Each packet contains part of the data, the sender's address, the receiver's address, and sequence information so it can be reassembled correctly.
For devices to understand each other, they must follow the same set of rules. These rules are called network protocols. The most important protocol family for LANs and the internet is TCP/IP[1]. It has two main jobs:
- Transmission Control Protocol (TCP): Ensures reliable delivery. It's like a guaranteed postal service that makes sure every "page" arrives and in the right order.
- Internet Protocol (IP): Handles addressing and routing. It puts the "to" and "from" addresses on each packet and figures out the best path for it to travel.
The speed of a LAN is often called its bandwidth. Think of bandwidth as the width of a highway. A wider highway (higher bandwidth) can carry more cars (data packets) at the same time, leading to faster downloads and smoother video calls. Bandwidth is measured in bits per second (bps). Common LAN speeds are 1 Gbps (Gigabit per second), which is $1 \times 10^9$ bits per second.
Wired vs. Wireless LANs: Choosing the Right Connection
LANs can be implemented in two primary ways, each with its own advantages and trade-offs.
| Feature | Wired LAN (Ethernet) | Wireless LAN (Wi-Fi) |
|---|---|---|
| Medium | Copper or fiber optic cables. | Radio waves (typically 2.4 GHz or 5 GHz). |
| Speed & Reliability | Generally faster and more stable. Less prone to interference. | Convenient but can be slower and suffer from interference (walls, other devices). |
| Mobility | Very limited. Device must stay connected to the cable. | High. Users can move within the signal range. |
| Security | Physically more secure. An intruder needs physical access to the cable. | Requires strong encryption (like WPA3[2]) to prevent unauthorized access from nearby. |
| Typical Use Case | Gaming PCs, desktop workstations, servers, smart TVs. | Laptops, smartphones, tablets, smart home devices (like lights and speakers). |
LANs in Action: From Home to School
Let's look at two detailed examples to see how LANs function in everyday life.
Example 1: The Home LAN
In your house, you likely have a combination wired and wireless LAN. Your internet service provider connects a cable to your router. This router has a built-in switch and a wireless access point. You connect your smart TV and gaming console directly to the router using Ethernet cables for the fastest, most reliable connection. Your laptop, phone, and family tablet connect wirelessly via Wi-Fi. All these devices get a local IP address from the router (like 192.168.1.10, 192.168.1.11). When you print a document from your laptop to the wireless printer, the data goes from the laptop to the router/switch, then directly to the printer—all inside your home LAN. When you watch a YouTube video, your request goes from your device, through the router (the gateway), out to the internet, and the video data comes back the same way.
Example 2: The School Computer Lab LAN
A school lab is often a classic example of a wired LAN. Each computer in the room has an Ethernet cable plugged into a port in the wall. All these wall ports connect back to a large network switch in a wiring closet. That switch is connected to the school's main router. This setup allows students to log into any computer and access their files from a central school server (another computer on the LAN dedicated to storing files). The teacher can also send a document or a software update to all computers at once through the LAN. The internet connection for the whole lab is shared through the single router, which also provides security by filtering unwanted websites.
Important Questions
A: No. The Internet is a global network of networks, known as a Wide Area Network (WAN)[3]. Your home LAN is a single, small network. The internet connects your LAN to your friend's LAN across town, to your school's LAN, and to billions of other devices worldwide using a massive infrastructure of cables, satellites, and giant routers. Think of your LAN as your house, and the Internet as the entire planet's network of roads, highways, and airports connecting all houses and cities.
A: Yes, absolutely! This is a key feature of a LAN. The internet connection is only needed for communicating with devices outside your local network. You can print to a local printer, share files between two computers, or play a multiplayer game over a local network even if your router is completely disconnected from the internet. The switch handles all that internal traffic.
A: This is typically done automatically by a service called Dynamic Host Configuration Protocol (DHCP)[4]. Your home router usually acts as a DHCP server. When a new device (like a phone) joins your Wi-Fi, it sends out a "DHCP discover" message. The router responds by offering an available IP address from a predefined pool (e.g., 192.168.1.2 to 192.168.1.254). The device accepts it, and the router records which device has which address for the duration of the connection. This process happens in seconds without any user input.
A Local Area Network is the fundamental building block of our connected world, creating efficient, high-speed communication hubs in our homes, schools, and offices. By understanding its components—switches, routers, cables, and protocols—we can better appreciate how our devices share resources and access the vast internet. Whether wired for speed and stability or wireless for convenience and mobility, LANs empower us to collaborate, learn, and play in our own digital neighborhoods. As technology evolves with concepts like the Internet of Things[5] (IoT), where everything from lights to refrigerators joins the LAN, this foundational knowledge becomes ever more crucial.
Footnote
[1] TCP/IP (Transmission Control Protocol/Internet Protocol): The fundamental set of communication protocols used to interconnect network devices on the internet and private networks. It defines how data is packetized, addressed, transmitted, routed, and received.
[2] WPA3 (Wi-Fi Protected Access 3): The latest security protocol and certification program for securing wireless computer networks. It provides more robust encryption and easier setup for devices with limited displays compared to its predecessor, WPA2.
[3] WAN (Wide Area Network): A telecommunications network that extends over a large geographical area, such as across cities, countries, or continents. The internet is the largest WAN.
[4] DHCP (Dynamic Host Configuration Protocol): A network management protocol used to automate the process of configuring devices on IP networks. It dynamically assigns an IP address and other network configuration parameters to each device.
[5] IoT (Internet of Things): The network of physical objects—"things"—that are embedded with sensors, software, and other technologies for the purpose of connecting and exchanging data with other devices and systems over the internet or other networks.
