Star Topology: The Center of the Network Universe
The Core Components of a Star

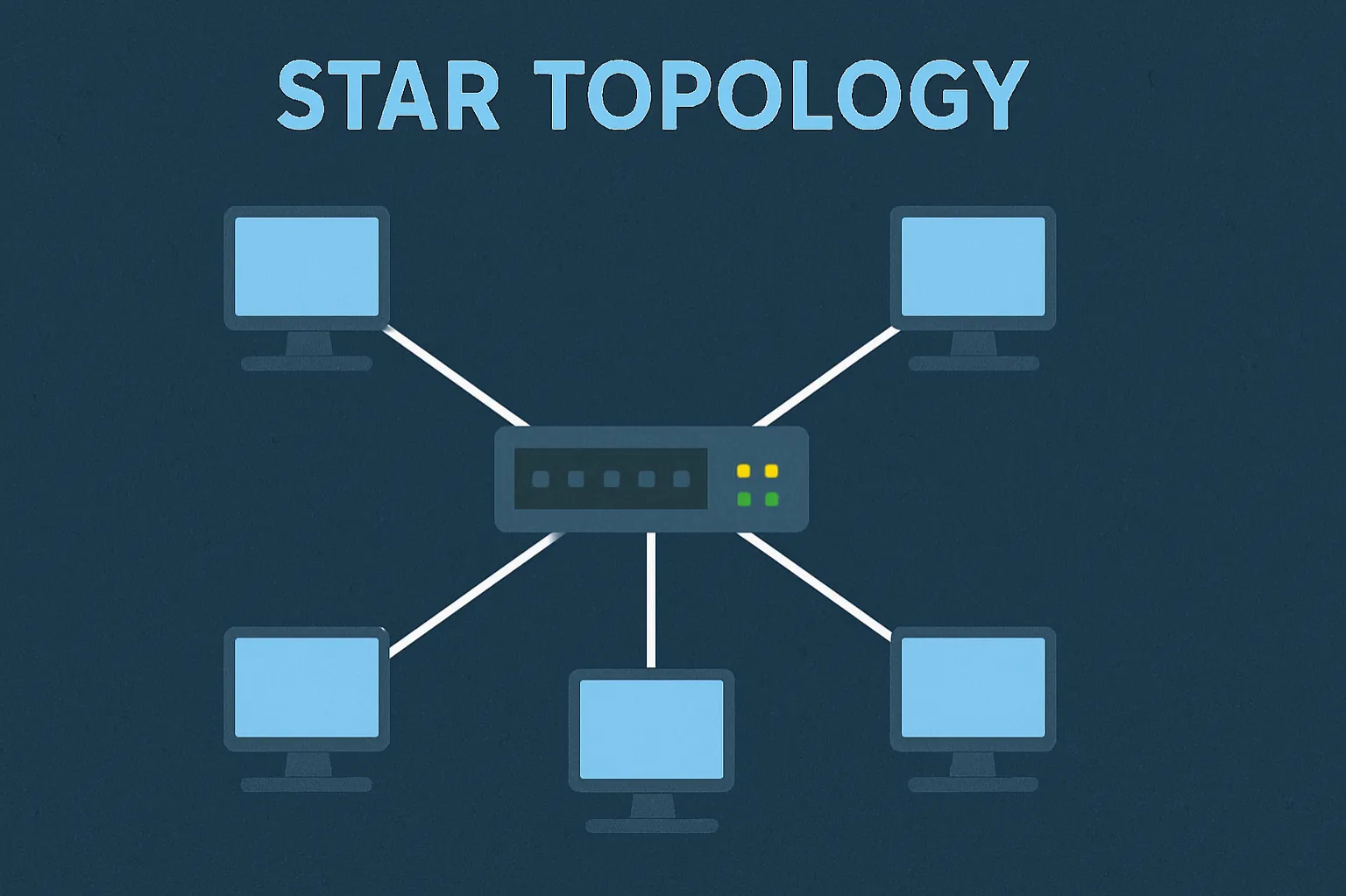

Every star network is built from a few key parts. Think of it like a modern classroom: each student's desk (device) has its own unique path to the teacher's desk (central device), and the teacher manages the flow of questions and answers.
| Component | Role | Real-Life Analogy |
|---|---|---|
| End Devices (Nodes) | Computers, printers, smartphones, servers, etc. These are the devices that send and receive data. | Students in a classroom. |
| Central Device (Switch or Hub)1 | The heart of the network. It receives data from one node and forwards it to the correct destination node. | The teacher or a modern telephone operator. |
| Cabling (or Wireless Link) | The physical (Ethernet cable) or wireless (Wi-Fi) connection between each end device and the central device. | The student's hand raised to ask a question, or a dedicated walkie-talkie channel to the teacher. |
Switch vs. Hub: The Intelligent vs. The Loudspeaker
A crucial distinction in star networks is the type of central device used. While they look similar, their behavior is very different.
A hub is a simple repeater. When it receives data from one device, it blindly broadcasts it out to all other connected devices. It's like a teacher who, when one student asks a question, repeats it to the entire class. Only the intended student (device) listens and responds; the others ignore it. This creates unnecessary traffic, called collisions, which slows the network down as more devices are added. The collision rate can be thought of as proportional to the number of active devices: more active devices means a higher chance of two trying to talk at once.
A switch is intelligent. It learns the unique identifier (MAC address2) of every device connected to each of its ports. When data arrives, the switch reads the destination address and forwards the data only to the specific port where that device is connected. This is like a teacher who privately whispers the answer back only to the student who asked. This targeted delivery makes switches much faster, more secure, and more efficient than hubs, which is why almost all modern networks use switches.
Why Stars Shine: Advantages and Disadvantages
Star topology's popularity stems from clear benefits, but it's not without its drawbacks.
Advantages:
- High Reliability: If one cable or device fails, only that single node is affected. The rest of the network continues to function normally. This is called fault isolation.
- Easy to Manage and Troubleshoot: The central point makes it easy to add, remove, or monitor devices. Problems are easier to locate.
- High Performance: Especially with switches, each device gets dedicated bandwidth to the central point, reducing data collisions.
- Scalable: Adding a new device is as simple as connecting a new cable to an available port on the central device.
Disadvantages:
- Single Point of Failure: If the central switch or hub fails, the entire network goes down. (The solution is to use high-quality, reliable switches).
- Higher Cost: It requires more cable than a bus topology and the central device adds cost.
- Cable Dependency: Each node needs its own cable run to the central location, which can be a wiring challenge in large buildings.
Your Home Network: A Star in Action
The best example of a star topology is likely in your own home. Your Wi-Fi router is the central device in a wireless star topology. Your laptop, phone, tablet, and smart TV all connect wirelessly to the router. The router acts like a switch, directing internet traffic from your modem to the correct device and managing communication between your devices (like printing from a laptop to a wireless printer).
Imagine a family of four. Mom is streaming a movie on the TV (a large data flow), Dad is on a video call on his laptop, and two kids are playing online games on their phones. In a star network with a good router—a smart switch—the router efficiently manages these four separate data streams, trying to give each a fair share of the available bandwidth. If the router were a simple hub, all this data would be shouted to every device, causing confusion, lag, and a very poor experience for everyone.
From Classroom to Data Center: The Extended Star
What happens when a single star isn't big enough? Networks grow using the extended star or hierarchical star topology. This is how schools, offices, and the internet itself are built.
In your school, each classroom might have a switch connecting all the computers in that room. That switch then connects with a single cable to a larger, more powerful switch in the school's server room (the backbone). That main switch connects all the classroom switches, the school servers, and the internet connection. Each classroom is its own small star, and the entire school is a larger star made of smaller stars. This structure keeps local traffic (like students in one lab working together) confined to their classroom switch, only using the backbone for traffic going to another classroom or the internet.
Important Questions
Is a Wi-Fi network really a star topology?
Yes, absolutely. In a standard Wi-Fi network, the wireless access point (or router) is the central device. Every wireless device—laptops, phones, tablets—connects directly to it. The access point manages the connections, authenticates devices, and routes traffic, fulfilling the exact role of a central switch in a wired star. The "cables" are just invisible radio waves.
What happens if the central switch in a star network breaks?
This is the main weakness of the star topology. If the central switch fails completely, all communication between devices stops. Devices cannot talk to each other because there is no central point to route the data. It is a single point of failure. To prevent this, critical networks (like in hospitals or banks) use backup switches or more advanced designs that provide redundant paths.
Can you mix a hub and a switch in one star network?
Technically, yes, but it's not ideal. You could connect a hub to one of the ports on a switch. The switch would treat the hub (and all devices connected to it) as a single, somewhat "noisy" connection. The hub would then broadcast all traffic it receives to every device attached to it, creating a collision domain3 for those devices. This can slow down performance for the whole network segment connected to that hub. It's better to use switches everywhere in a modern network.
Conclusion
The star topology is the quiet champion of the networking world. Its simple principle—connecting everything to a central point—provides an unbeatable combination of reliability, ease of use, and performance. From the Wi-Fi in your home to the vast interconnected switches of a global corporation, the star forms the reliable backbone of our connected world. Understanding the difference between a simple hub and an intelligent switch is key to seeing why modern networks are so powerful. While it has its vulnerabilities, its benefits so clearly outweigh its drawbacks that it has become the default blueprint for building networks of all sizes.
Footnote
1 Hub: A basic network hardware device that connects multiple devices and broadcasts all data to every port. Switch: An intelligent network device that connects multiple devices and forwards data only to the specific port of the intended recipient.
2 MAC Address (Media Access Control Address): A unique identifier assigned to a network interface controller (NIC) for use as a network address in communications. It is a permanent, physical "serial number" for the device's network hardware.
3 Collision Domain: A network segment where data packets can "collide" with one another because devices are sharing the same bandwidth or using a broadcast medium (like a hub). Switches break up collision domains by creating separate domains for each port.
