Coaxial Cable: The Unsung Hero of Invisible Signals

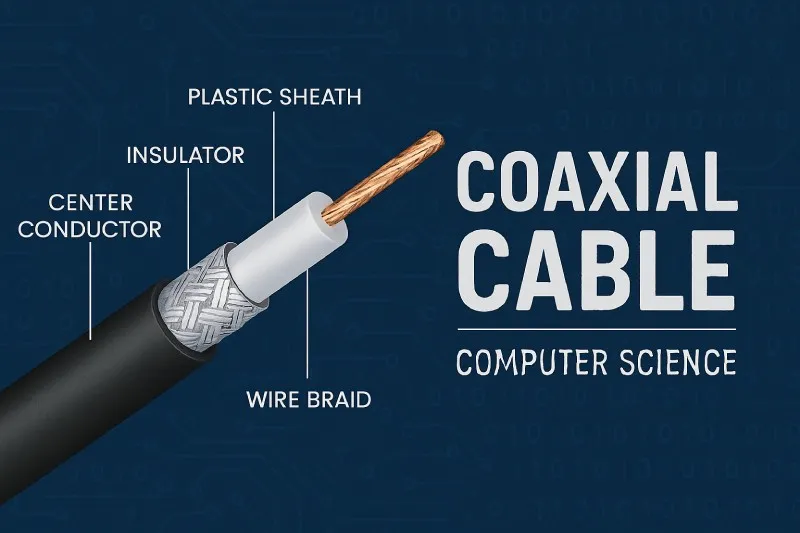

The Anatomy of a Coaxial Cable
At first glance, a coaxial cable might look like a simple, thick wire. However, if you cut it open, you would see a precise, layered structure, much like the rings of a tree or the layers of an onion. Each layer has a critical job to do. The name "coaxial" comes from the fact that all these layers share the same geometric axis; they are all aligned along a common center line.
The Four Essential Layers
Let's dissect a typical coaxial cable from the inside out:
| Layer Number & Name | Material & Function | Analogy |
|---|---|---|
| 1. Inner Conductor | Usually a solid or stranded copper wire. This is the "highway" for the main electrical signal. | The runner on a track lane. |
| 2. Dielectric Insulator | A non-conductive plastic (like polyethylene or foam) that surrounds the inner conductor. It maintains a fixed distance between the center and the shield. | The air or track boundary that keeps the runner in their lane. |
| 3. Outer Shield (Braided or Foil) | A mesh of copper or aluminum braid, sometimes with an additional foil layer. Its main job is to act as a ground and block electromagnetic interference[1]. | A soundproof wall around the track, blocking noise from the outside. |
| 4. Outer Jacket | A tough plastic (like PVC) coating that protects all the inner layers from physical damage, moisture, and sunlight. | The runner's waterproof and durable uniform. |
How It Works: The Science of Signal Containment
The magic of a coaxial cable lies in how it manages the electromagnetic field created by the alternating current[2] (AC) signal flowing through it. When a high-frequency AC signal moves through the inner conductor, it doesn't just travel inside the metal; it creates an electromagnetic field around the wire. In a simple, unshielded wire, this field radiates out into the environment, causing interference with other devices and losing energy.
In a coaxial cable, the outer shield plays a dual role:
- Containment: It acts as the return path for the electrical current, creating a complete circuit. More importantly, it traps the electromagnetic field between the inner conductor and the shield, inside the dielectric insulator. This is like putting a hose around a water stream to direct it precisely.
- Protection: It prevents external electromagnetic "noise" (from power lines, motors, or other radio signals) from entering and distorting the clean signal inside.
Types and Specifications of Coaxial Cables
Not all coaxial cables are the same. They come in different sizes, materials, and specifications, each optimized for specific uses. The most common types are referred to by "RG" numbers (which stands for "Radio Guide," a military specification) or by their series names.
| Cable Type / RG | Impedance | Common Use | Key Feature |
|---|---|---|---|
| RG-6 | 75 $\Omega$ | Cable TV, Satellite TV, Broadband Internet (Cable Modems) | Thicker dielectric, better shielding for higher frequencies (up to 2-3 GHz). |
| RG-59 | 75 $\Omega$ | Older CCTV, Short-run video (less common now) | Thinner, more flexible, but higher signal loss at high frequencies. |
| RG-58 | 50 $\Omega$ | Radio Communications (Ham Radio, Walkie-Talkies), Lab Equipment | Standard for two-way radio, optimized for power transfer. |
| LMR-400 (Modern) | 50 $\Omega$ | Cellular Antennas, High-performance Wi-Fi, Long-distance Radio Links | Very low signal loss, uses foam dielectric, ideal for frequencies up to 6 GHz. |
Understanding Signal Loss and Frequency
All cables cause some signal loss, measured in decibels per meter (dB/m) or decibels per 100 feet (dB/100ft). This loss increases with frequency. Think of it like a water hose: a very long, thin hose has more friction (loss) for water, especially if the water is trying to flow in rapid pulses (high frequency).
Example: An RG-6 cable might have a loss of about 6 dB per 100 feet at a frequency of 1 GHz. This means the signal power is reduced to about one-quarter of its original strength over that distance. For higher quality signals over longer distances, cables with lower loss (like LMR-400) are necessary.
Coaxial Cable in Your Daily Life: Practical Applications
Coaxial cables are everywhere, quietly working behind the scenes. Their ability to carry many channels of high-frequency data simultaneously makes them indispensable in modern communications.
From the Street to Your Screen
Broadband Internet (Cable Modems): When you connect your cable modem to the wall outlet, you are using an RG-6 coaxial cable. Your internet service provider (ISP) sends data to your home by modulating digital data onto radio frequency carriers. A single cable can carry internet data, television channels, and even telephone service using different frequency bands, a technology called frequency-division multiplexing[4]. For instance, internet data might use frequencies between 54 MHz and 1000 MHz.
Television Distribution: Traditional cable TV and satellite dishes (from the dish to the receiver box) rely heavily on coaxial cables. The cable from a satellite dish is specially designed to handle the extremely high-frequency signals (in the 10-12 GHz range) captured from space.
Radio and Antenna Connections: Many home radio antennas, TV antennas, and car radio antennas use coaxial cables to deliver the signal to the tuner. The shielding is critical here to prevent engine noise or other interference from spoiling your music or news broadcast.
Computer Networks (Historical): Before the widespread use of Ethernet cables (like Cat5e) and Wi-Fi, early computer networks, such as "10BASE2" or "Thinnet," used RG-58 coaxial cable to connect computers in a chain. While obsolete for this purpose, it's a key part of computing history.
Connectors: The Vital Link
A cable is only as good as its connection. Coaxial cables use specific connectors to ensure a solid electrical connection while maintaining the cable's shielding. The most common types are:
- F-type: The screw-on connector used for cable TV, satellite, and cable modems. It's inexpensive and common on RG-6 cables.
- BNC: A bayonet-style connector that locks with a quarter-turn. Used in professional video, radio equipment, and old computer networks.
- N-type: A larger, threaded connector designed for higher frequencies and lower loss, used in cellular and Wi-Fi equipment.
Properly installing these connectors is crucial to prevent signal leakage and ingress of noise.
Important Questions
Q: Why can't we use a regular electrical wire (like lamp cord) for TV or internet signals?
A: Regular wires are designed for low-frequency alternating current (AC) like the 50/60 Hz from wall outlets. At high frequencies (MHz/GHz), they act as inefficient antennas, radiating the signal out and picking up interference. This would result in a weak, noisy, and unreliable connection. Coaxial cable's shielded design contains the signal and blocks interference.
Q: Is coaxial cable being replaced by fiber optics?
A: For long-distance backbone networks and new high-speed installations, fiber optic cable (which uses light) is indeed superior due to its enormous bandwidth and lower loss. However, coaxial cable remains vital for the "last mile" connection in many homes (Hybrid Fiber-Coaxial networks) and for connecting devices within homes and buildings. It's cheaper, easier to install and connect, and perfectly suited for the frequency ranges used by many consumer devices. Coaxial and fiber often work together.
Q: What do the numbers like 75 ohm and 50 ohm mean, and why are they important?
A: The impedance is a measure of opposition to the flow of the alternating current signal, similar to resistance but for AC. It is a property of the cable's physical dimensions. It's crucial to match the impedance of the cable, connectors, and devices (e.g., a 75 $\Omega$ TV to a 75 $\Omega$ cable). A mismatch causes signal reflection, where part of the signal bounces back at the connection point. This creates ghosting on old TVs, reduces signal strength, and can cause data errors.
Footnote
[1] Electromagnetic Interference (EMI): Unwanted disturbance caused by an external source that affects an electrical circuit by electromagnetic induction, electrostatic coupling, or conduction. Example: The static you hear on a radio when a microwave oven is running.
[2] Alternating Current (AC): An electric current that periodically reverses direction and changes its magnitude continuously with time, in contrast to direct current (DC) which flows only in one direction. Mains electricity and radio signals are forms of AC.
[3] Characteristic Impedance: The inherent opposition to the flow of an alternating current in a transmission line (like a coaxial cable). It is determined by the physical construction of the cable and is constant along its length for a uniform cable.
[4] Frequency-Division Multiplexing (FDM): A technique by which the total bandwidth available in a communication medium is divided into a series of non-overlapping frequency bands, each of which is used to carry a separate signal.
