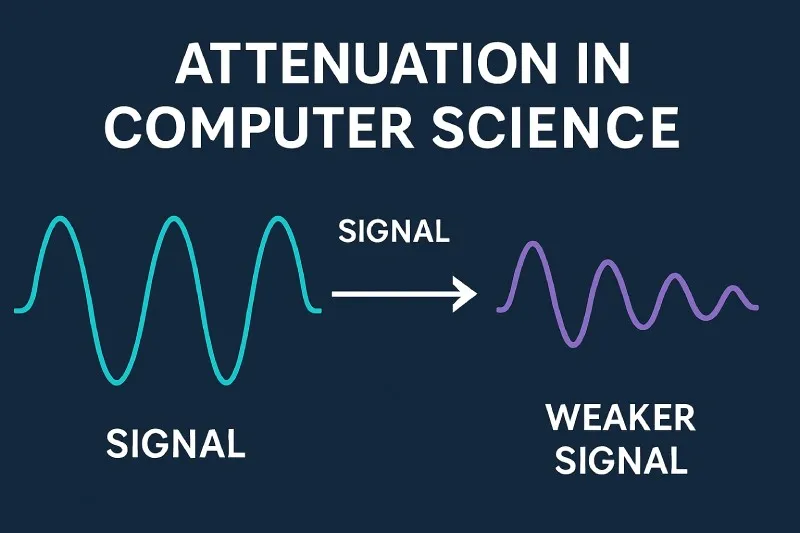

Attenuation: The Fading Signal
What Causes Signals to Fade?
Imagine shouting to a friend across a large, empty field. The farther they are, the harder it is for them to hear you. This is attenuation in action. The energy of your voice spreads out in all directions and some of it is absorbed by the air itself. For all signals, attenuation is caused by several key mechanisms:
| Cause | What Happens | Everyday Example |
|---|---|---|
| Absorption | The medium (like air, water, or glass) converts the signal's energy into another form, usually a tiny amount of heat. | Sunlight warming your skin (light energy absorbed and turned into heat). |
| Scattering | The signal's path is disrupted by particles or impurities in the medium, causing it to bounce off in many directions. | A car's headlights appearing as a diffused glow in thick fog. |
| Reflection & Refraction | The signal bounces off (reflection) or bends (refraction) at the boundary between two different media, diverting energy from the original path. | Seeing your reflection in a window instead of seeing clearly through it. |
| Free-Space Path Loss | The natural spreading of a wave as it travels outward from a source, causing its energy to be distributed over a larger and larger area. | The beam of a flashlight gets wider and dimmer with distance, even in a perfect vacuum. |
Measuring the Loss: The Decibel Scale
Attenuation is measured by comparing the power of a signal at its source (input) to its power at a point further away (output). Because signal power can change by enormous amounts (think of a whisper versus a jet engine), we use a special logarithmic scale called the decibel (dB). It compresses these huge ranges into manageable numbers.
The amount of attenuation in decibels is calculated using this formula:
$ A_{(dB)} = 10 \times \log_{10}\left(\frac{P_{in}}{P_{out}}\right) $
Where:
• $ A_{(dB)} $ is the attenuation in decibels.
• $ P_{in} $ is the input power (signal strength at the start).
• $ P_{out} $ is the output power (signal strength after traveling).
A positive dB value means attenuation (loss). For example, if a signal starts with $ 1 $ watt of power and is measured at $ 0.1 $ watts after traveling through a cable, the attenuation is:
$ A = 10 \times \log_{10}(1 / 0.1) = 10 \times \log_{10}(10) = 10 \times 1 = 10 \text{ dB} $.
A simple rule of thumb: A $ 3 \text{ dB} $ loss means the power is halved. A $ 10 \text{ dB} $ loss means the power is reduced to one-tenth of its original value.
Attenuation in Different Types of Waves
Attenuation affects all waves, but how it happens depends on the wave type and the medium.
Sound Waves: Sound attenuates quickly in air. High-pitched sounds (high frequency[3]) attenuate faster than low-pitched ones. This is why you hear the deep bass from a distant concert before you hear the singer's high notes. Thick curtains and foam panels in recording studios are acoustic absorbers designed to cause maximum sound attenuation.
Light Waves: Clear ocean water has low attenuation for blue-green light, but red light is absorbed within a few meters. That's why underwater photos look blue and why blood appears greenish-black at depth (all the red light is gone!). Fiber optic cables use ultra-pure glass to minimize light attenuation, allowing data to travel hundreds of kilometers with minimal loss.
Radio Waves: FM radio and Wi-Fi signals can be attenuated by walls, trees, and even rain. Higher frequency radio waves (like 5 GHz Wi-Fi) attenuate more when passing through solid objects than lower frequency waves (like 2.4 GHz Wi-Fi), which is why the 2.4 GHz signal often has a longer range in your home.
Fighting Back: How We Overcome Attenuation
Since we can't eliminate attenuation, engineers have developed clever ways to work around it to keep our communications clear and strong.
| Solution | How It Works | Real-World Application |
|---|---|---|
| Amplifiers (Repeaters) | A device that boosts a weak signal back to a stronger level before sending it on its way. | Wi-Fi range extenders in your home, or signal repeaters along long fiber optic cables under the ocean. |
| Using Lower Frequencies | Choosing a signal frequency that is less affected by absorption and scattering in the chosen medium. | Submarine communication uses very low frequency (VLF) radio waves that can penetrate seawater better. |
| Improved Medium | Making the material the signal travels through as pure and transparent as possible. | Fiber optic cables are made of incredibly pure glass to let light pass through with minimal loss. |
| Directional Antennas | Focusing the signal energy into a tight beam instead of letting it spread out in all directions. | Satellite dishes point directly at satellites in space to send and receive focused beams. |
A Journey Through a Fiber Optic Cable
Let's follow a single bit of data—a pulse of light—as it travels through a transatlantic fiber optic cable to see attenuation and its solutions in action.
Step 1: The Launch. A laser diode[4] creates an intense, precise pulse of light representing "1". This light enters the glass fiber, which is only as thick as a human hair.
Step 2: The Long, Dark Journey. As the light pulse travels through $ 100 $ km of glass, attenuation takes its toll. A tiny fraction of the light is absorbed by the glass itself (turned into heat), and another fraction scatters due to microscopic impurities. The pulse becomes slightly weaker and broader.
Step 3: The Rescue (Amplification). Before the signal becomes too weak to detect, it reaches an optical amplifier. This device, powered by electricity, gives the weakened light pulse a boost without converting it back to an electrical signal. It's like giving a tired runner an energy drink mid-race.
Step 4: Arrival. After being amplified several times across the ocean, the recognizable pulse of light reaches the other shore. A photodetector converts it back into an electrical signal, and your video call, message, or website loads seamlessly. This entire process, managing attenuation, happens in milliseconds.
Important Questions
Not always! Sometimes we want attenuation. Earplugs use special foam to attenuate (weaken) dangerous or annoying sounds to protect your hearing. Sunglasses attenuate bright sunlight to make it comfortable for your eyes. In music studios, sound-absorbing panels are used to attenuate echoes for a cleaner recording.
Attenuation is the loss of signal strength. Interference is when an unwanted external signal mixes with your desired signal, corrupting it. Imagine trying to listen to a friend (your signal) in a quiet room (attenuation makes their voice softer). Now imagine trying to listen to them at a loud party (interference from other voices makes it hard to understand them, even if they are shouting).
In the real world, no. Even in a perfect vacuum, light and radio waves still experience free-space path loss—they spread out, so the energy per area decreases with distance. In any physical material like a wire or fiber, some energy will always be lost due to the fundamental properties of matter. Superconductors[5] at extremely low temperatures can carry electrical signals with nearly zero attenuation, but this requires very special conditions.
Footnote
[1] Fiber Optic Cable: A thin, flexible strand of ultra-pure glass that transmits data as pulses of light.
[2] Decibel (dB): A logarithmic unit used to express the ratio of two values, such as signal power. It is one-tenth of a bel.
[3] Frequency: The number of complete waves (or cycles) that pass a point per second, measured in Hertz (Hz). High frequency means more waves per second.
[4] Laser Diode: A semiconductor device that produces a narrow, intense beam of coherent light when electrically charged.
[5] Superconductor: A material that can conduct electricity with zero electrical resistance when cooled below a critical temperature.
