CSMA/CD: Carrier Sense Multiple Access with Collision Detection
What Problem Does CSMA/CD Solve?
Imagine a single, long cable connects all the computers in a classroom. This cable is the shared communication medium. If two or more students (computers) start speaking (sending data) at the exact same time, their words (electrical signals) will overlap, creating a jumbled, unintelligible noise. This event is called a collision. CSMA/CD was designed to manage this exact scenario on a bus topology1 network, where every device is connected to the same backbone cable. Its goal is to minimize collisions and, when they inevitably occur, to recover from them gracefully so that data eventually gets through correctly.
Breaking Down the Acronym: The Core Principles
Let's explore each part of CSMA/CD to understand how it works step-by-step.
1. Carrier Sense (CS): This is the "Listen Before You Talk" rule. Before a computer starts transmitting, it first checks the shared cable (the "carrier") to see if any other device is currently sending data. If the cable is quiet (no electrical signals detected), the computer decides it is safe to begin its own transmission. If the cable is busy, the computer waits and keeps listening until it becomes idle.
2. Multiple Access (MA): This simply means that multiple devices have access to and share the same communication channel. There is no central controller granting permission; all devices follow the same set of rules (the protocol) to coordinate among themselves. It's a democratic, decentralized system.

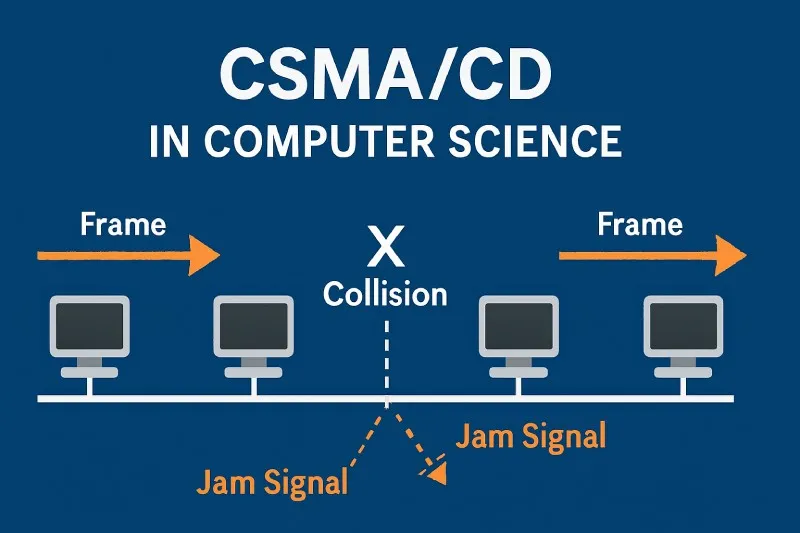

3. Collision Detection (CD): This is the "Listen While You Talk" rule. Even with careful listening first, collisions can still happen. Why? Because there is a tiny, but measurable, time delay for a signal to travel down the cable (propagation delay). Two computers at opposite ends of a long cable might both sense silence and start transmitting at nearly the same instant, causing their signals to collide in the middle of the cable. The Collision Detection mechanism allows a transmitting computer to monitor the cable while it is sending. If it detects that the signal on the cable is different from what it is sending (a garbled mix), it knows a collision has occurred. It immediately stops its transmission, sends out a special "jam signal" to ensure all other devices recognize the collision, and then follows a specific rule to retry later.
The Backoff Algorithm: The "Wait and Try Again" Rule
After a collision, all involved devices can't just try again immediately, or they would collide repeatedly. CSMA/CD uses a clever randomized waiting period called the binary exponential backoff algorithm.
Here's how it works: After the first collision, each device waits for a random amount of time chosen from a small window (0 or 1 time slots). If they collide a second time, the waiting window doubles (0, 1, 2, 3 slots). This doubling continues after each subsequent collision (0 to 7, then 0 to 15, and so on), up to a maximum limit. This algorithm is elegant because it spreads out retransmission attempts over an increasingly wider time range, drastically reducing the chance of another collision. It's like a group of people who keep bumping into each other in a doorway; each time it happens, they wait a random, and increasingly longer, time before attempting to go through again, which quickly resolves the traffic jam.
The Step-by-Step Lifecycle of a CSMA/CD Transmission
Putting it all together, here is the complete sequence a device follows when it has data to send:
- Ready: The device has a frame of data ready for transmission.
- Carrier Sense: Is the medium idle? If NO, wait and continue sensing. If YES, proceed to step 3 after a brief inter-frame gap.
- Transmit & Detect: Begin transmitting the frame while simultaneously monitoring the line for collisions.
- Collision Check: Is a collision detected during transmission?
- If NO: Complete the transmission successfully. Process finished.
- If YES: Immediately stop transmitting. Send a jam signal. Proceed to step 5.
- Backoff Calculation: Increment the collision counter. Calculate a random backoff wait time using the binary exponential backoff algorithm.
- Wait: Wait for the calculated amount of time.
- Retry: Return to step 2 (Carrier Sense) to attempt retransmission. If the collision counter exceeds 16 attempts, abort the transmission and report an error.
| Device Action | Network Condition | Result & Next Step |
|---|---|---|
| Listens (Carrier Sense) | Cable is busy | Defers. Waits and continues listening. |
| Listens (Carrier Sense) | Cable is idle | Begins transmission immediately. |
| Transmits & Listens (CD) | No collision detected | Transmission succeeds. Process ends. |
| Transmits & Listens (CD) | Collision detected | Stops, sends jam signal, starts backoff timer, then retries. |
A Real-World Analogy: The Polite Classroom Discussion
Let's translate CSMA/CD into a scenario everyone knows: a classroom where the teacher has asked an open question, and students raise their hands to answer.
- Carrier Sense = Looking & Listening: Before you start speaking, you look around to see if another student is already talking (the "carrier" is busy). If someone is speaking, you wait.
- Multiple Access = Many Students: Everyone in the class shares the same "airtime" to give an answer.
- Collision = Two Students Start at Once: Despite looking, you and another student might both think it's clear and start saying "I think the answer is..." at the exact same moment. Your voices collide.
- Collision Detection = Hearing the Overlap: You hear the other student's voice overlapping with yours. You immediately recognize this collision.
- Jam Signal = Saying "Oops!": Both of you stop and might say a quick "oh, sorry" (the jam signal) to acknowledge the collision to the whole class.
- Binary Exponential Backoff = Randomized Waiting: Now, how do you decide who goes next? You don't just start again instantly. You both wait a random, short amount of time. The first one to feel the wait is over and sees the room is quiet will start speaking. If by rare chance you collide again, next time you'll each wait a bit longer (maybe 0, 1, 2, or 3 seconds randomly). This system ensures the discussion proceeds smoothly.
This analogy perfectly illustrates the decentralized, polite, and self-regulating nature of the CSMA/CD protocol.
Where Was CSMA/CD Used and Why Is It Less Common Today?
CSMA/CD was the defining protocol for Ethernet in its original form (10BASE5 and 10BASE2), which used a long coaxial cable in a bus topology. It was brilliantly simple and effective for its time, allowing cheap and scalable network connections without complex hardware.
However, CSMA/CD has largely been phased out in modern networks for two main reasons:
- The Shift to Switches & Star Topology: Modern networks use switches and a star topology2. Each device has a dedicated cable to a switch port. The switch acts like a smart traffic director, forwarding data only to the specific destination port. This eliminates the shared medium—the fundamental condition for collisions. If there is no shared medium, collisions cannot happen, making collision detection unnecessary.
- Full-Duplex Communication: Modern Ethernet connections (100BASE-TX, Gigabit Ethernet) operate in full-duplex mode. This means a device can send and receive data simultaneously on separate wire pairs, like a two-lane highway. Again, with a dedicated path to a switch, there is no contention and no need for CSMA/CD.
Today, the principles of Carrier Sense and Multiple Access live on in wireless protocols like Wi-Fi (which uses CSMA/CA, Collision Avoidance), but classic CSMA/CD is a foundational technology we have built upon and moved beyond.
Important Questions Answered
A: No. CSMA/CD does not prevent collisions; it detects and manages them. The "Carrier Sense" step reduces the chance, but due to signal propagation delay, collisions are still a normal part of the protocol's operation. The system is designed to recover from them efficiently.
A: Wi-Fi uses a very similar but modified protocol called CSMA/CA (Collision Avoidance). The key difference is that in wireless, a device cannot reliably detect a collision while transmitting because its own powerful outgoing signal drowns out any incoming signals. So, Wi-Fi uses a system of acknowledgments and reservations (like RTS/CTS)3 to try to avoid collisions in the first place, rather than detecting them after they happen.
A: The slot time is a fundamental time unit in CSMA/CD, typically 512 bit-times for classic Ethernet. It is defined as the maximum time needed for a signal to travel to the far end of the network and back, plus time for other electronics. It's crucial because it determines the maximum network diameter. The entire collision detection process must be able to complete within this window. If the network is too large, a device might finish sending its entire frame before the colliding signal makes it back, breaking the collision detection mechanism.
CSMA/CD is more than a historical footnote; it is a masterpiece of distributed system design. It solved a complex coordination problem—how to share a single resource fairly and efficiently among many independent parties—using elegantly simple rules: listen first, talk while listening for trouble, and if trouble occurs, back off with a smart, randomized waiting period. While modern, switched Ethernet networks have moved beyond the need for collision management, the legacy of CSMA/CD is immense. It provided the robust, scalable foundation upon which the entire Ethernet standard was built, enabling the explosive growth of local area networks. Understanding it gives us a deep appreciation for the clever engineering that operates silently in the background of our connected world.
