The Domain Name System (DNS): The Internet's Phonebook
How DNS Works: The Lookup Journey
Imagine you want to call a friend, but you only know their name, not their phone number. You'd look them up in a phonebook. DNS works in a similar, but more dynamic, way. When you type a web address into your browser, your computer doesn't immediately know where that site is located on the vast internet. It must perform a DNS lookup to find the correct IP address. This process involves several steps and different types of servers working together.

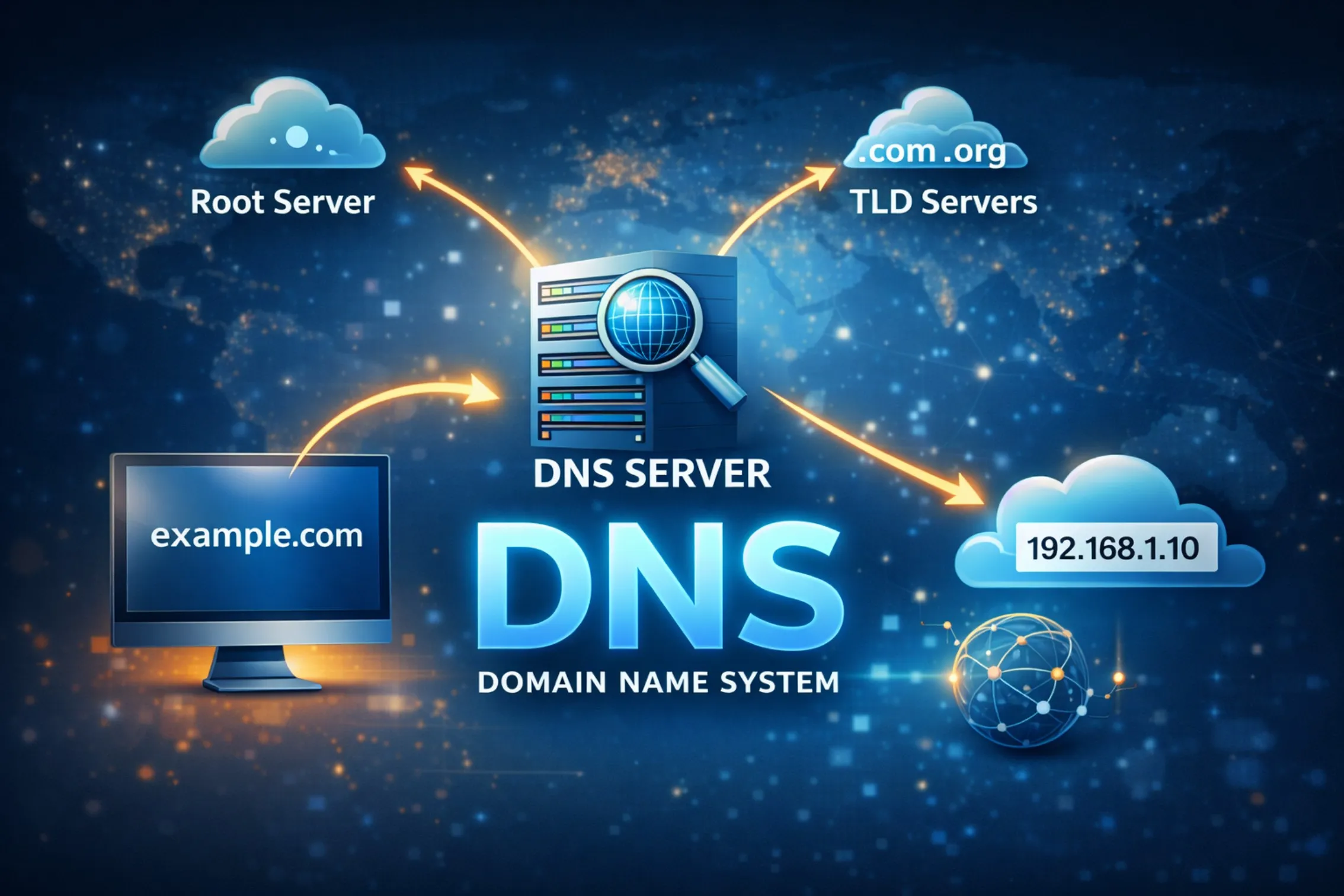

The Step-by-Step DNS Resolution Process
Let's follow the journey for "www.wikipedia.org". The steps are sequential, with each server passing the request along if it doesn't have the answer.
- The User's Request: You type "www.wikipedia.org" and press Enter.
- Querying the Recursive Resolver: Your computer first asks a DNS recursive resolver. This is usually operated by your Internet Service Provider (ISP) or a public service like Google (8.8.8.8). Think of this as the librarian you first ask for a book.
- Asking the Root Nameserver: If the resolver doesn't have the answer cached, it asks one of the 13 root nameservers. These servers don't know the exact IP but can direct the query to the right place for the ".org" part of the address.
- Asking the TLD Nameserver: The root server points the resolver to the Top-Level Domain (TLD) nameserver for ".org". This server manages information for all domains ending in ".org".
- Asking the Authoritative Nameserver: The TLD nameserver then directs the resolver to the authoritative nameserver for "wikipedia.org". This is the final authority that holds the actual DNS records for that domain.
- Returning the IP Address: The authoritative nameserver responds with the A Record (Address Record) containing the IP address for "www.wikipedia.org", for example, 208.80.154.224.
- Delivering the Answer: The recursive resolver receives this IP address, stores it in its cache for a short time (to speed up future requests), and sends it back to your computer.
- Connecting to the Website: Your browser now has the IP address and can initiate a direct connection to Wikipedia's web server to load the page.
This entire process, involving multiple servers across the globe, typically happens in a fraction of a second.
Key Components of the DNS Hierarchy
The DNS is organized in a hierarchical, tree-like structure. This decentralization makes it robust and scalable. The main components are:
| Component | Analogy | Function | Example |
|---|---|---|---|
| Root Nameserver | Index of all country/region phone codes | Directs queries to the correct TLD server. | Manages the root zone (".") |
| Top-Level Domain (TLD) Server | Phonebook for a specific country or region | Manages domain extensions like .com, .org, .net, .uk. | The .org nameserver knows where to find "wikipedia.org". |
| Authoritative Nameserver | A specific business's contact info page | Holds the actual DNS records for a specific domain. The final source of truth. | ns0.wikimedia.org holds the IP for www.wikipedia.org. |
| Recursive Resolver | A helpful librarian | Does the legwork of querying the hierarchy on behalf of the user. Caches results. | Your ISP's resolver or Google Public DNS. |
Common DNS Record Types: More Than Just Addresses
While the A Record is the most famous, DNS stores various types of records, each serving a different purpose. Think of these as different entries in a contact card: phone number, email address, physical address, etc.
| Record Type | Name | Primary Function | Example Use |
|---|---|---|---|
| A | Address Record | Maps a domain name to an IPv4 address. | www.example.com -> 93.184.216.34 |
| AAAA | IPv6 Address Record | Maps a domain name to an IPv6 address (newer, longer format). | www.example.com -> 2606:2800:220:1:248:1893:25c8:1946 |
| CNAME | Canonical Name Record | Creates an alias from one domain name to another. It points to the name, not the IP. | shop.example.com -> store.example.com |
| MX | Mail Exchange Record | Directs email for a domain to the correct mail server. | example.com -> mailserver.example.com |
| TXT | Text Record | Holds text information for various purposes, like email security (SPF, DKIM) or domain verification. | "v=spf1 include:_spf.google.com ~all" |
A Real-World DNS Scenario: School Library Website
Let's apply DNS concepts to a school scenario. Imagine your school's website is "library.myschooldistrict.edu".
- Registration: The school's IT administrator first registers the domain "myschooldistrict.edu" with a domain registrar. They set the authoritative nameservers (e.g., ns1.schoolhost.com).
- Record Creation: On the authoritative nameserver, they create an A record: library.myschooldistrict.edu -> 10.20.30.40 (the school web server's IP). They might also create an MX record to handle email like office@myschooldistrict.edu.
- Student Access: When a student types the library URL, their laptop queries the school's recursive resolver. The resolver follows the hierarchy (root -> .edu TLD -> myschooldistrict.edu authoritative server) to get the IP.
- Caching for Speed: The school's resolver caches this IP. For the next student who asks for the same site 5 minutes later, the resolver can provide the IP directly from its cache, skipping most steps and making the site load faster for everyone.
- Moving Servers: If the school upgrades its web server to a new machine with IP 10.20.30.99, the IT admin only needs to update the single A record on the authoritative nameserver. All future lookups will get the new IP. This demonstrates the flexibility DNS provides—changing a website's location without changing its public name.
Important Questions
IP addresses are hard for humans to remember and look like random numbers (e.g., 142.250.185.78 vs. "google.com"). They can also change if a service moves to a different server. Domain names provide a stable, memorable, and human-friendly layer of abstraction. They also allow one IP address to host multiple websites (a feature called virtual hosting).
DNS caching is the temporary storage of DNS query results on your local computer, your router, or your ISP's resolver. It is crucial for speed and efficiency. By storing the IP address for a short period (defined by a Time to Live or TTL value), subsequent requests for the same website can be answered instantly without repeating the full lookup journey across the internet. This reduces traffic and load on DNS servers and makes your browsing experience much faster.
A DNS outage occurs when DNS servers (especially large public resolvers or authoritative servers for a popular site) become unavailable due to technical problems, attacks, or misconfiguration. When this happens, even though the target website's servers are running perfectly, users cannot reach it because the "translation" from name to IP fails. Your browser would display an error like "DNS_PROBE_FINISHED_NXDOMAIN" or "Server not found." This shows how critical yet invisible DNS infrastructure is for everyday internet use.
DNS Security and the Future
DNS was designed in a more trusting era of the internet, which makes it vulnerable. Two key advancements help protect it:
- DNSSEC (DNS Security Extensions): This is like adding a tamper-proof seal to DNS data. It uses digital signatures to ensure that the DNS response you receive is authentic and has not been altered by an attacker. It prevents DNS spoofing or cache poisoning attacks.
- DNS over HTTPS (DoH) and DNS over TLS (DoT): Traditional DNS queries are sent in plain text, like a postcard anyone can read. DoH and DoT encrypt the DNS query between your device and the resolver. This protects your privacy by preventing others on your network from seeing which websites you are looking up.
The future of DNS also includes adapting to the ever-growing internet. The newer IPv6 protocol, with its vastly larger address space, relies on AAAA records in DNS. As more devices connect, DNS will continue to be the essential directory service that holds it all together.
The Domain Name System is a masterpiece of decentralized engineering that forms a core pillar of the internet. By seamlessly translating memorable domain names into numerical IP addresses, it hides the complex underpinnings of network routing from everyday users. From its hierarchical structure of root, TLD, and authoritative servers to the various record types that manage web, email, and security, DNS is a dynamic and critical database. Understanding its basic principles—the lookup journey, caching, and its components—provides a clearer picture of how the digital world stays connected. As the internet evolves with greater security and privacy needs, so too does DNS, ensuring it remains the reliable phonebook for the global network.
Footnote
1 IP (Internet Protocol) Address: A unique numerical label assigned to each device connected to a computer network that uses the Internet Protocol for communication. Example: 192.168.1.1.
2 ISP (Internet Service Provider): A company that provides customers with access to the internet.
3 TLD (Top-Level Domain): The last segment of a domain name, following the final dot, such as .com, .org, .edu, or country codes like .uk.
4 Cache: A hardware or software component that stores data so that future requests for that data can be served faster.
5 DNSSEC (DNS Security Extensions): A suite of specifications designed to secure information provided by the DNS.
6 DoH (DNS over HTTPS) / DoT (DNS over TLS): Protocols for encrypting DNS queries to increase user privacy and security.
