The Magic Behind the Web: How Your Computer Finds Websites
The Address Book of the Internet: What Are Domain Names and IPs?
Every device connected to the internet—your phone, a game console, or a giant server hosting YouTube—has a unique address called an Internet Protocol Address (IP Address). Think of it like the GPS coordinates for your house. An IP version 4 (IPv4) address looks like four numbers separated by dots, such as 192.0.2.1. Each number can range from 0 to 255. With so many devices online, we now also use longer IPv6 addresses, like 2001:0db8:85a3::8a2e:0370:7334.

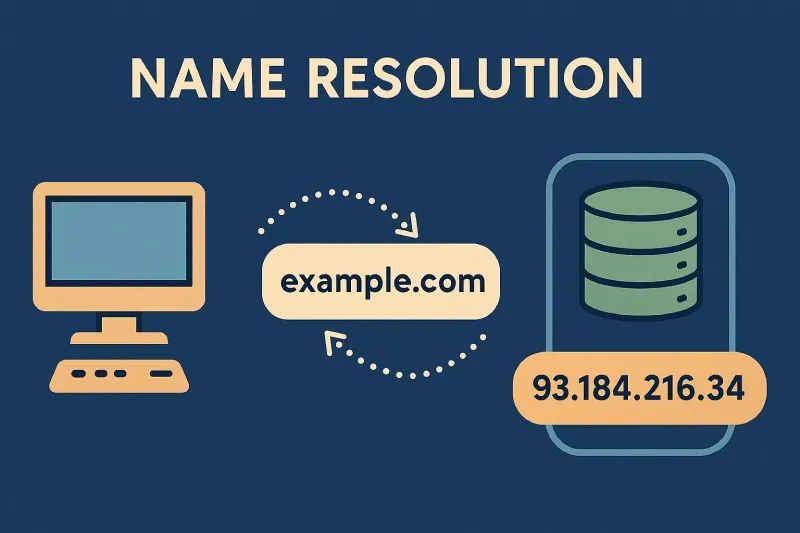

Remembering these number sequences for every website would be impossible for humans. That's why we have Domain Names. These are the friendly, easy-to-remember names like "google.com," "netflix.com," or "your school's website." The system that manages the link between these two worlds—the human-friendly name and the machine-friendly number—is called the Domain Name System (DNS)1. The act of converting the name to the number is called Name Resolution or DNS Lookup.
| Human-Friendly System | Computer-Friendly System | Analogy |
|---|---|---|
| Domain Name (e.g., www.nasa.gov) | IP Address (e.g., 52.0.14.116) | A person's name vs. their Social Security Number. |
| Easy to read, remember, and share. | Difficult for humans to memorize. | Like calling a friend by name instead of their phone number. |
| Can point to different IPs if a website moves servers. | Directly identifies a specific machine on the network. | Your mailing address can stay the same even if you move to a new house. |
The Step-by-Step Journey of a DNS Query
When you type a web address and press Enter, your device doesn't immediately know where that website lives. It must ask for directions. This process involves several different servers working together like a team of librarians.
1. The Local Check: Your Computer's Cache and Hosts File
First, your computer checks its own short-term memory, called the DNS cache. If you recently visited the site, the IP address might still be there, saving time. It also checks a small local file called the hosts file. This is like a personal address book you can write in yourself, but it's usually empty unless configured for a specific purpose.
2. Asking the Recursive Resolver: The Local Librarian
If your computer doesn't have the answer, it asks a Recursive DNS Resolver. This server is usually provided by your Internet Service Provider (ISP) (like Comcast or Verizon) or a public service (like Google's 8.8.8.8). The resolver's job is to do the hard work of finding the IP address for you. It acts like a librarian who runs around the entire library to find the book you requested.
3. Consulting the Root Nameservers: The Master Index
If the resolver doesn't have the answer cached, its journey begins at the top. It contacts one of the 13 logical Root Nameserver clusters2 scattered around the world. These servers don't know the final IP address, but they know who to ask next. For a domain like "www.example.com," the root server looks at the last part (".com") and directs the resolver to the Top-Level Domain (TLD)3 nameservers responsible for ".com".
4. The TLD Nameservers: The Section Managers
The resolver then asks the ".com" TLD nameserver. This server manages information for all domains ending in ".com". It doesn't have the IP either, but it knows which specific Authoritative Nameserver is responsible for "example.com." It gives that address to the resolver.
5. The Authoritative Nameserver: The Final Authority
Finally, the resolver queries the authoritative nameserver for "example.com." This server holds the official, definitive DNS records for that domain. It looks up "www" in its records and returns the corresponding IP address (e.g., 93.184.215.14) back to the recursive resolver.
6. Delivering the Answer and Caching
The recursive resolver receives the IP address. It first saves (caches) a copy in its memory for a set amount of time (defined by the TTL4, or Time to Live) so future requests can be faster. Then, it sends the answer back to your computer. Your computer also caches it and finally uses the IP address to establish a direct connection to the web server hosting the site.
Anatomy of a Domain Name
A domain name is read from right to left, moving from the most general to the most specific. It's like a postal address: Country → City → Street → House Number, but in reverse order.
Let's break down news.yale.edu:
- . (Root): The invisible dot at the very end. It represents the root of the DNS hierarchy.
- edu: The Top-Level Domain (TLD). This indicates the type or category of the domain (educational institution). Other TLDs include .com, .org, .gov, .net, and country codes like .uk or .jp.
- yale: The Second-Level Domain (SLD). This is the unique name registered by an organization (Yale University).
- news: The Subdomain or Host. This specifies a particular section or server within the yale.edu domain (in this case, the news server). "www" is the most common subdomain for websites.
In a simple formula, a full domain name can be represented as: $(subdomain).(second-level-domain).(top-level-domain).(root)$ where the root dot is implied. So, news.yale.edu. (with the final dot) is the fully qualified domain name (FQDN)5.
| Record Type | Abbreviation | Primary Function | Example |
|---|---|---|---|
| Address Record | A | Maps a domain name to an IPv4 address. | www.example.com → 93.184.215.14 |
| AAAA Record | AAAA | Maps a domain name to an IPv6 address. | example.com → 2606:2800:220:1:248:1893:25c8:1946 |
| Canonical Name Record | CNAME | Aliases one domain name to another. It's like a redirect. | shop.example.com → store.thirdparty.com |
| Mail Exchanger Record | MX | Directs email for a domain to the correct mail server. | example.com → mailserver.example.com |
| Text Record | TXT | Holds text information for various purposes, like email security (SPF, DKIM). | "v=spf1 include:_spf.google.com ~all" |
Following a Real-World Lookup: Visiting a Science Website
Let's trace the journey when you want to visit the NASA website to see the latest Mars rover images. You type "www.nasa.gov" and press Enter.
- Your Computer: Checks its cache. If you haven't visited NASA today, it finds nothing.
- Recursive Resolver (e.g., from your ISP): Your computer sends the question "What is the IP address for www.nasa.gov?" to the resolver.
- Root Server: The resolver asks a root server. The root server says, "I don't know the IP, but I know who handles '.gov'. Go ask a '.gov' TLD server." It provides the address of one.
- .gov TLD Server: The resolver asks the ".gov" server. This server replies, "I don't have the IP, but I know the authoritative nameservers for 'nasa.gov'. Here are their addresses."
- Authoritative Server for nasa.gov: The resolver asks one of NASA's own authoritative DNS servers, "What is the IP for 'www'?" The server looks in its records and finds the A record: www.nasa.gov points to IP address 52.0.14.116. It sends this answer back.
- Back to You: The resolver caches the IP, sends it to your computer, which also caches it. Your browser now can initiate a connection to the server at 52.0.14.116 and load the NASA homepage.
This entire process, involving multiple servers across the globe, typically happens in less than a second!
Important Questions
Q1: What happens if a DNS server is down? Will the whole internet stop working?
No, the internet is designed with redundancy. There are multiple copies (instances) of root servers and TLD servers worldwide. If one fails, your request is simply routed to another one. Furthermore, your recursive resolver caches answers, so frequently visited sites will still load even if an upstream server is temporarily unavailable. It's a very resilient system.
Q2: Can someone see what websites I visit by looking at my DNS queries?
Potentially, yes. Your recursive resolver (usually your ISP) sees all the domain names you look up unless you use a different service. This is why some people choose to use encrypted DNS services (like DNS over HTTPS, or DoH). These services encrypt the DNS query between your device and the resolver, preventing others on your network from easily seeing which sites you are trying to access.
Q3: What is a DNS cache poisoning attack?
This is a type of cyber attack where a hacker tricks a DNS resolver into storing a fake IP address in its cache. For example, they might make the resolver believe that "yourbank.com" points to a malicious server they control instead of the real bank's server. When users try to visit "yourbank.com," they are sent to the fake site without knowing it. To prevent this, modern DNS uses security extensions like DNSSEC (DNS Security Extensions) that digitally sign records to verify their authenticity.
Footnote
1 DNS (Domain Name System): The hierarchical and decentralized naming system for computers, services, and other resources connected to the Internet. It translates domain names to IP addresses.
2 Root Nameserver: The top level of the DNS hierarchy. There are 13 logical root server identifiers (from a.root-servers.net to m.root-servers.net), but each is implemented with many redundant servers around the world.
3 Top-Level Domain (TLD): The last segment of a domain name, located after the final dot (e.g., .com, .org, .edu, .uk).
4 TTL (Time to Live): A value in a DNS record that tells resolvers how long (in seconds) to cache the record before they should discard it and query for a new copy.
5 FQDN (Fully Qualified Domain Name): The complete domain name for a specific computer or host on the internet, including all levels, ending with a trailing dot to signify the root (e.g., mail.google.com.).
