The Bus: The Invisible Highway Inside Your Computer
āļø The Three Musketeers: Data, Address, and Control Bus

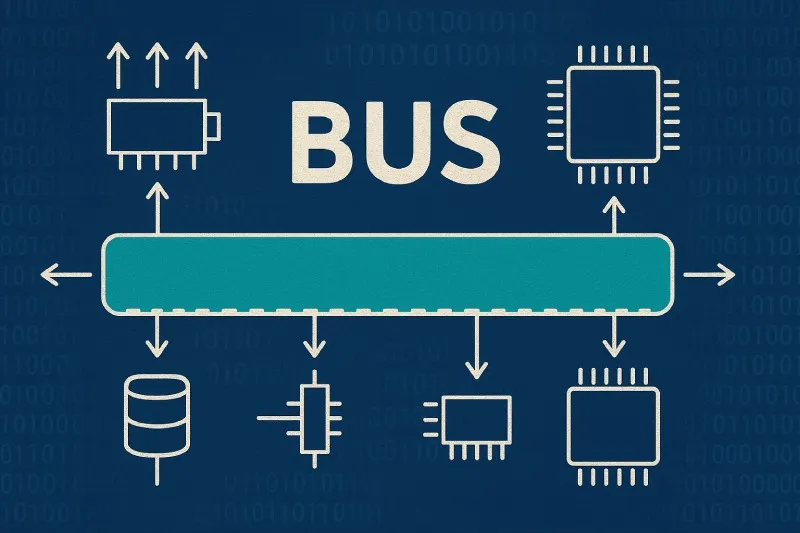

A computer bus is not just one single wire. It is a set of parallel wires grouped by the type of message they carry. Imagine a big city. To keep traffic flowing, we need separate lanes for cars, for signs, and for police instructions. In a computer, these three "lanes" are called the Data Bus, the Address Bus, and the Control Bus.
š¹ Data Bus This is the actual cargo lane. It carries the data itselfāthe numbers, letters, or pictures you are working with. It is bidirectional, meaning data can flow from CPU to memory (when saving a file) and from memory to CPU (when opening a file).
š¹ Address Bus This lane carries only the addressālike a postal code telling where the data should go or come from. It is unidirectional. The CPU is the only one that writes the address; memory or other parts just read it.
š¹ Control Bus This is the traffic police. It sends control signals like āreadā, āwriteā, or āinterruptā. These signals tell the other components what to do with the data and address. Without the control bus, the computer would be a mess of random data going nowhere.
š¦ How Wide is Your Highway? Bus Width and Speed
A bus is a set of parallel wires. The number of wires determines the width of the bus. For the address bus, more wires mean the CPU can talk to more memory locations. For the data bus, more wires mean more data can be moved in one trip.
If a data bus has 8 wires, it can send 8 bits (one byte) at a time. If it has 64 wires, it can send 64 bits (8 bytes) at once. This is like the difference between a single-lane road and an eight-lane superhighway. The bus width directly affects how fast your computer feels.
The bus speed (measured in Hertz, Hz) tells us how many packets of information can be sent per second. A 100 MHz bus sends 100 million cycles per second. Combine width and speed, and you get the bandwidthāthe total amount of data the bus can carry in one second. The formula is simple:
$ \text{Bandwidth} = \text{Bus Width (bytes)} \times \text{Bus Speed (Hz)} $
For example: a 32-bit (4-byte) bus at 33 MHz:
$ 4 \text{ bytes} \times 33,000,000 \text{ Hz} = 132,000,000 \text{ bytes/sec} \approx 126 \text{ MB/s} $
| Feature | Data Bus | Address Bus | Control Bus |
|---|---|---|---|
| Direction | Bidirectional | Unidirectional (CPU ā) | Bidirectional |
| Content carried | Actual data (instructions, numbers, text) | Memory address or I/O device number | Commands (Read, Write, Interrupt, Clock) |
| Width determines | How many bits per transfer | Maximum memory size | Number of control lines (signals) |
š® Real-Life Adventure: How a Game Cartridge Talks to the Console
Letās look inside an old video game console, like the classic Nintendo (NES) or a Sega Genesis. When you plug in a game cartridge, you are actually connecting the consoleās bus directly to the chips inside the cartridge. The cartridge contains the game program (data) stored in ROM[1]. The consoleās CPU needs to read that program.
Step 1 ā Set the Address: The CPU places the specific memory address of the first instruction onto the Address Bus. This address tells the cartridge, āHey, I want the byte stored at location 0x8000ā.
Step 2 ā Control Signal: The CPU activates the Control Bus signal called āReadā. This tells the cartridgeās ROM to prepare the data.
Step 3 ā Data Transfer: The ROM places the requested byte onto the Data Bus. The CPU grabs the data and executes the instruction (like drawing Mario on the screen).
This cycle happens millions of times per second. Without the three buses working together, the console would not know which part of the game to load, when to load it, or where to put the data. This example is not just for old consoles; modern computers use the exact same principle, just much faster.
ā Important Questions
A: With 32 wires, the address bus can represent 2^{32} unique addresses. 2^{32} = 4,294,967,296 bytes, which is exactly 4 GB. Thatās why older 32-bit computers could not use more than 4 GB of RAM, even if you installed more.
A: The CPU must make multiple trips. For example, if the CPU wants to load a 64-bit integer but the Data Bus is only 16-bits wide, it needs 4 separate transfers. This slows down the computer. Modern CPUs use wide buses (like 64-bit) to move more data in one clock cycle.
A: The concept is the same, but the physical implementation is different. Smartphones use SoC[2] design where components are packed tightly together. Instead of visible parallel wires on a motherboard, the bus is inside the chip. However, it still carries data, addresses, and control signals.
šÆ Conclusion: The Unseen Conductor
š Footnote
[1] ROM: Read-Only Memory. Memory that retains its data even when the power is off and can normally only be read, not written to.
[2] SoC: System on a Chip. An integrated circuit that contains all components of a computer (CPU, memory, buses, etc.) on a single chip.
[3] I/O: Input/Output. The communication between a computer and the outside world (keyboard, mouse, printer).
