Charge-Coupled Device (CCD): The Science of Digital Eyes
1. The Magic Carpet of Light: What is a CCD?
Imagine a large chessboard made of millions of tiny solar panels. Each square is called a pixel (picture element). When you take a photo, light lands on these squares. The brighter the light, the more energy the square collects. A CCD is this chessboard, but instead of playing chess, it plays with electrons. Each square holds its electrons carefully until we count them. This is how a digital camera sees the world — not with film, but with electricity.
2. Electron Buckets: How Pixels Store Light
Each pixel is like a tiny bucket placed under a rain shower. The rain is photons (particles of light). When photons hit the silicon surface of the CCD, they knock electrons loose. This is called the photoelectric effect. The bucket collects these electrons. The longer the rain (light) falls, the fuller the bucket becomes. The CCD counts how full each bucket is and turns that fullness into a shade of gray. To make color images, tiny color filters (red, green, blue) are placed over each bucket — just like colored cellophane over a flashlight.
| Layout Type | Arrangement | Common Use |
|---|---|---|
| Full-Frame | Entire chip exposed; mechanical shutter needed | Astronomy, professional cameras |
| Frame-Transfer | Half masked storage area; fast readout | High-speed video, industrial |
| Interline | Pixel and storage column side-by-side | Camcorders, consumer cameras |

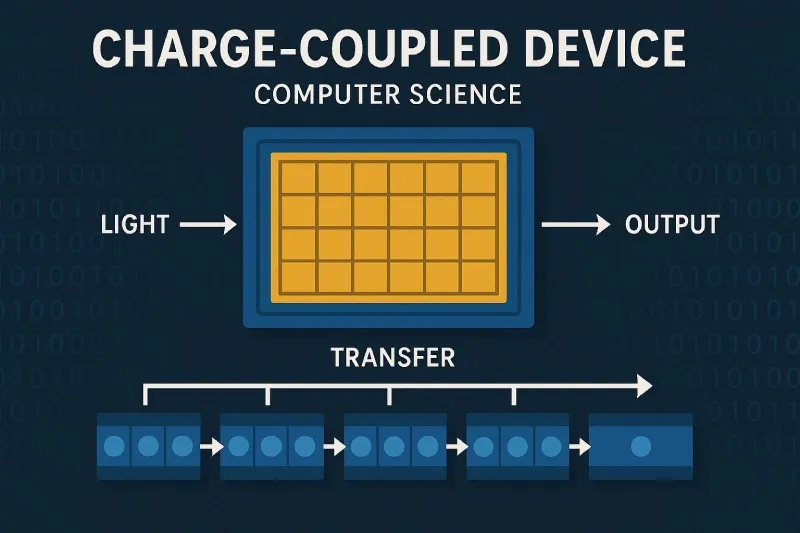

3. The Bucket Brigade: Moving Electrons without Spilling
Once the buckets are full, we need to count them. But the counting machine is at the corner of the chip, not under each pixel. How do we move millions of electron packages without losing a single one? CCDs use a brilliant trick: coupled clock voltages. By raising and lowering the voltage of electrodes, we pass the electron package from one pixel to its neighbour — like a bucket brigade passing water to a fire. This is why it is called a "charge-coupled" device. The transfer efficiency is astonishing: more than 99.999% per step. After thousands of transfers, almost no signal is lost.
$Q = Q_0 \times \epsilon^n$
where $\epsilon$ is the transfer efficiency per stage. For $\epsilon = 0.99995$ and $n = 1000$, $Q/Q_0 \approx 0.95$ — 95% of the original charge remains!
⚙️ From Hubble to Home Scanner: CCDs in Action
The Hubble Space Telescope orbits Earth with several CCD cameras. Its Wide Field Camera 3 contains four CCDs, each with 16 megapixels. These CCDs are so sensitive they can detect a single photon. When Hubble looked at the "Ultra Deep Field", it collected light for over 11 days — buckets filling slowly with ancient photons that left their galaxies 13 billion years ago.
Now look at your home scanner. A flatbed scanner has a single line of CCD pixels, not a full rectangle. The scan head moves down the page, taking thousands of "line photos" and stitching them together. That is why you hear a whirring sound — the CCD is reading one row of electrons at a time, like reading a book line by line. The resolution of a scanner is measured in dots per inch (DPI). A 1200 DPI scanner has 1200 pixels per inch, each one a tiny CCD bucket.
❓ Important Questions About CCDs
CCDs have quantum efficiency (QE) of 40–95%, meaning they convert 40 to 95 out of 100 photons into electrons. Film converts only about 5%. CCDs also don't suffer reciprocity failure (film loses sensitivity on long exposures). Hubble can photograph galaxies that would be invisible to film even after a week.
Most modern consumer cameras use CMOS sensors, not CCDs. CMOS sensors are cheaper and use less battery. However, CCDs are still preferred in astronomy, medical imaging, and industrial scanners because they produce less noise and have uniform sensitivity across all pixels.
When a pixel's bucket overflows because the light is too bright (like the Sun in the frame), excess electrons spill into neighboring pixels. This creates bright vertical streaks in the image. Modern CCDs include anti-blooming drains that vacuum away the extra charge.
🔬 Conclusion: The Legacy of the Electron Chessboard
📘 Footnote: Abbreviations & Key Terms
[1] Photoelectric effect: Phenomenon where light shining on a metal (or silicon) surface ejects electrons. [2] Pixel: Short for "picture element"; the smallest addressable element in a sensor. [3] QE (Quantum Efficiency): The percentage of incident photons that produce an electron. [4] CMOS: Complementary Metal-Oxide-Semiconductor; an alternative image sensor technology. [5] DPI: Dots Per Inch; measure of scanning/detail resolution.
