Network Interface Card (NIC): The Gateway to Digital Communication
1. The Physical Identity: Wired vs. Wireless NICs

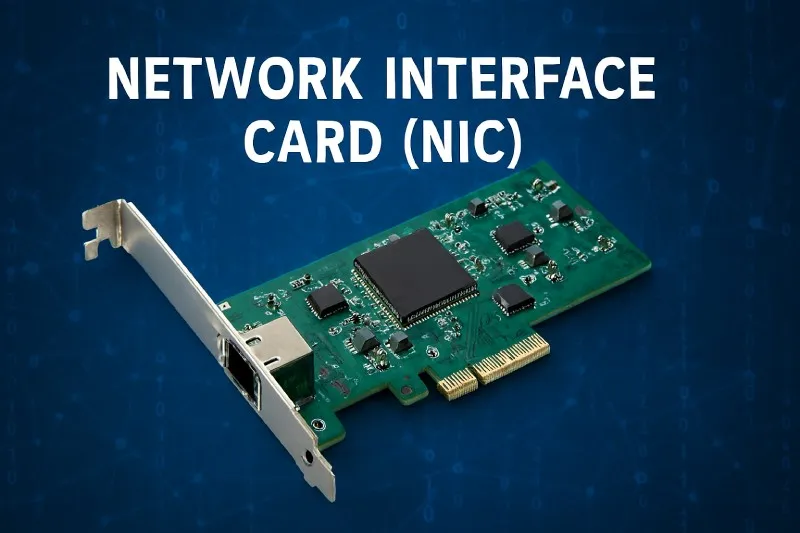

Imagine a NIC as a special language translator for your computer. Just as we need a telephone to speak over a landline or a radio to hear broadcast signals, a computer needs a NIC to speak the language of a network. There are two main ways a NIC can look and function. Some NICs are physical cards you can see, often plugged into a slot inside a desktop computer. Others are tiny circuits built directly onto the computer's main board, especially in laptops and smartphones. This physical form is just the beginning; the real difference lies in how they connect.
| Feature | Wired NIC (Ethernet) | Wireless NIC (Wi-Fi) |
|---|---|---|
| Connection Medium | Ethernet cable (Cat5e, Cat6) | Radio waves (2.4 GHz or 5 GHz) |
| Port/Connector | RJ45 port (looks like a thick phone jack) | Antenna (internal or external) |
| Typical Speed | 1 Gbps, 10 Gbps, up to 400 Gbps | 600 Mbps to several Gbps (Wi-Fi 6/7) |
| Security | More secure (requires physical access) | Uses encryption like WPA2/WPA3 |
| Mobility | None (device stays in one place) | High (roam with your device) |
For a long time, the Ethernet NIC has been the standard for wired connections. It uses a protocol to manage data packets and avoid collisions on the network. The wireless NIC, on the other hand, includes a radio transmitter and receiver. When you connect to Wi-Fi at a coffee shop, you are using the wireless NIC in your phone or laptop to communicate with the shop's wireless router.
2. The Digital Fingerprint: MAC Address and Data Framing
Every NIC in the world comes with a unique, built-in identifier called a Media Access Control address, or MAC address[1]. Think of it as the device's fingerprint. While your IP address can change depending on where you are, the MAC address is permanently burned into the NIC's hardware during manufacturing. It is a 48-bit number, usually shown as 12 hexadecimal characters, like 00:1A:2B:3C:4D:5E.
When your computer sends information, the NIC packages the data. It wraps the data from your application (like an email or a web page) with special headers and footers, creating a "frame." This frame includes the destination MAC address, the source MAC address (its own fingerprint), and the actual data payload, plus a trailer for error checking. It's like putting a letter in an envelope, writing the recipient's address and your return address on it, and sealing it before sending it out.
$D = F - (H + T)$
3. How the NIC Manages Traffic: CSMA/CD and Full-Duplex
In the early days of networking, all devices on a wired network segment shared the same communication line. This was like a group of people having a conversation in a dark room—if two people spoke at the same time, the messages would get mixed up (a "collision"). To handle this, the NIC used a set of rules called Carrier Sense Multiple Access with Collision Detection (CSMA/CD)[2].
Here’s how it worked, step-by-step:
1. Listen: The NIC would "listen" to the network cable to see if any other device was talking.
2. Send: If the line was quiet, it would start sending its data.
3. Detect: While sending, it would also listen. If it detected another signal interfering with its own, it knew a collision had occurred.
4. Jam and Wait: It would send a special "jam" signal to tell all other devices that a collision happened, then wait a random amount of time before trying to send again. This random wait helps prevent another immediate collision.
Modern networks have evolved. With the widespread use of switches, each NIC now typically has a dedicated connection. This allows for full-duplex communication, meaning the NIC can send and receive data at the exact same time, like a two-lane highway where traffic flows in both directions simultaneously. This eliminates collisions and doubles the potential throughput.
Real-World Example: The NIC in a Smart Home Device
Imagine you have a smart light bulb that you control with your phone. Inside that tiny bulb, there is a very small, low-power wireless NIC. This NIC doesn't have the same power or speed as the one in your laptop, but it's perfect for its job. When you tap a button on your phone to turn the light on, your phone sends a signal.
1. Reception: The smart bulb's NIC is constantly "listening" for signals on its specific frequency. Its antenna picks up the radio waves sent from your phone via the Wi-Fi router.
2. Decoding: The NIC receives the signal, strips away the networking headers (checking the MAC address to ensure the message is for itself), and extracts the command, which is a simple string of binary data (e.g., $1010$ for 'on', $0101$ for 'off').
3. Action: It then sends this command to the bulb's main microcontroller, which switches the light on.
This entire process, from your tap to the light turning on, happens in milliseconds, all thanks to the specialized NIC inside the bulb. This example shows that NICs aren't just for computers; they are everywhere, connecting the devices in the Internet of Things (IoT)[3].
Important Questions About Network Interface Cards
Yes, absolutely. A computer can have multiple NICs. For example, a server might have two wired Ethernet ports for redundancy—if one port or cable fails, the other takes over. A laptop has both a wired Ethernet NIC (for the RJ45 port) and a wireless NIC (for Wi-Fi). High-performance computers used for video editing or gaming might even have multiple high-speed NICs to handle massive amounts of data.
No, they are different devices. The NIC is inside your computer and prepares data for the network. A modem (modulator-demodulator) connects your home network to your Internet Service Provider (ISP), converting signals from your home cables to internet signals. A router directs traffic between different networks (like your home network and the internet). Often, these functions are combined into a single box provided by your ISP, but they are separate technological tasks.
While the MAC address is physically burned onto the NIC (and thus permanent), most modern operating systems allow you to "spoof" or change the MAC address in software. This means you can tell the network a different MAC address than the real one. People do this for privacy on public Wi-Fi networks or to bypass network filters, but it's a software-level change, not a hardware one.
Footnote
[1] MAC address (Media Access Control address): A unique identifier assigned to a network interface controller for use as a network address in communications within a network segment.
[2] CSMA/CD (Carrier Sense Multiple Access with Collision Detection): A media access control method used most notably in early Ethernet technology for local area networking. It uses the scheme of "listen before talk" and "listen while talking."
[3] IoT (Internet of Things): The network of physical objects—"things"—that are embedded with sensors, software, and other technologies for the purpose of connecting and exchanging data with other devices and systems over the Internet.
