Inside the CPU: The Mighty Register
1. The CPU's Scratchpad: What Exactly Is a Register?

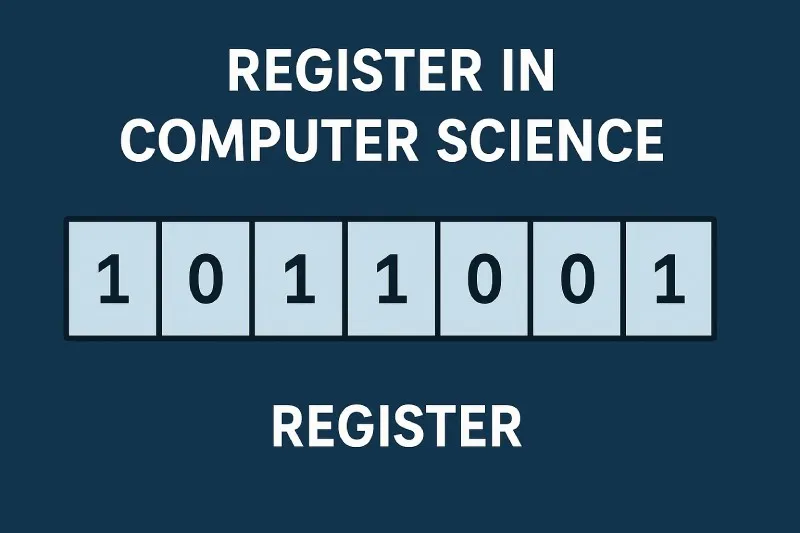

Imagine you're doing a complicated math problem. You have a big textbook (the hard drive), a desk where you spread out your work (the RAM), but you also need a tiny piece of paper right next to your pencil to jot down the number you're currently adding. That tiny piece of paper is the register. It's the absolute fastest memory the computer has because it's built directly into the CPU.
Registers are made from a few dozen transistors and are measured in bits (like 8-bit, 16-bit, 32-bit, or 64-bit registers). A 64-bit register can hold 64 bits of data at once. While your computer's RAM might hold 16 Gigabytes (billions of bytes), a register might hold only 8 or 16 bytes. But the CPU can access a register in one clock cycle, whereas accessing RAM takes many cycles.
2. The Family of Registers: Different Tools for Different Jobs
Just like you have different tools for different tasks—a hammer for nails, a screwdriver for screws—the CPU has different types of registers, each with a specialized role. They work together to keep your programs running smoothly. Let's meet the main members of the register family.
| Register Type | Nickname | Primary Job |
|---|---|---|
| Data Register | The Worker | Holds numeric values (like numbers for addition) or characters. Example: Adding 5 and 3, one number is stored here. |
| Address Register | The Pointer | Holds a memory address that points to where data lives in RAM. |
| Instruction Register (IR) | The Decoder | Holds the current instruction (like "ADD") that the CPU is executing. |
| Program Counter (PC) | The Navigator | Holds the memory address of the next instruction to be executed. |
| Accumulator (ACC) | The Collector | Stores the results of arithmetic and logic operations (like a running total). |
3. The Heartbeat of Computing: The Fetch-Decode-Execute Cycle
Registers are the stars of the show in the CPU's most fundamental rhythm: the Fetch-Decode-Execute cycle. This is how the computer carries out a single instruction in a program. Let's trace it with a simple instruction: "ADD the number 7 to the number 5."
- Fetch: The Program Counter (PC) holds the address in RAM where the instruction "ADD 7,5" is located. The CPU goes to that address and grabs the instruction. This instruction is then placed into the Instruction Register (IR).
- Decode: The CPU's control unit looks at the instruction in the IR and figures out what needs to be done. "Aha," it says, "this is an ADD operation, and I need two numbers: 7 and 5."
- Execute: The CPU loads the numbers 7 and 5 into two Data Registers. The Arithmetic Logic Unit (ALU) then performs the addition. The result, 12, is stored in the Accumulator (ACC). Finally, the Program Counter is updated to point to the next instruction in memory, and the whole cycle starts again.
4. From a 2nd Grader's Math to High School Coding
For Elementary Students: Imagine you're adding 2 + 3. You look at the 2 (like loading a data register), then the 3 (loading another), and you think "equals 5" (storing in the accumulator). You didn't need a textbook or a piece of paper—you did it in your head. That's the register level!
For Middle School: In Scratch programming, when you create a variable like score and set it to 0, that variable lives in RAM. But when your game runs and you "change score by 10," the CPU loads the current score value into a register, adds 10 inside the ALU, and then stores the new value back to RAM from the accumulator.
For High School: In a C++ loop like for(int i = 0; i < 10; i++), the variable i is likely to be stored in a register for the loop's duration. Every time you see i++, the CPU is performing this operation entirely within its registers—incrementing the value without touching RAM, which is what makes loops so fast.
ADD R1, R2, R3. This is the human-readable version of the binary instruction that was fetched, decoded, and executed.5. Real-World Example: Running a Simple Game
Let's apply this to a practical scenario: moving a character in a video game. You press the right arrow key. The game code needs to update the player's x-position.
- The game's instruction, stored in RAM, is fetched. The PC points to it. The instruction goes to the IR.
- The CPU decodes this as "LOAD the current x-position from memory address 0xA1 into a data register."
- The current x-position, say 50, is moved from RAM into Data Register D1.
- The next instruction is fetched: "ADD the number 5 to the value in D1." The ALU does the math: 50 + 5 = 55. The result, 55, is placed in the Accumulator.
- A final instruction stores this new value (55) from the accumulator back into the RAM at address 0xA1.
This entire series of register operations happens millions of times per second, making your character's movement look smooth and instant.
6. Important Questions About Registers
Registers are incredibly fast but also incredibly expensive and consume a lot of power and physical space on the CPU chip. A modern CPU can only fit a few hundred registers (often less than 1000 bytes total), whereas a RAM stick can hold billions of bytes cheaply. It's a trade-off between speed, cost, and size.
This is called a register spill. The CPU has to temporarily move the contents of some registers into a special part of RAM called the stack. This is much slower, which is why compiler[1] optimization is often about keeping the most frequently used data in registers.
No. While both are faster than RAM, registers are the absolute fastest and are managed directly by instructions (the programmer or compiler tells the CPU which register to use). Cache is a larger, slightly slower memory that automatically copies data from RAM that the CPU might need soon. Think of registers as your desk drawer and cache as a small bookshelf next to your desk.
Conclusion: The Unsung Heroes of Speed
Footnote
[2] CPU (Central Processing Unit): The "brain" of the computer that carries out instructions of a computer program by performing basic arithmetic, logical, control, and input/output operations.
[3] RAM (Random Access Memory): The computer's main memory, used to store data and machine code currently being used. It is much larger but slower than registers.
