The Magical OR Gate: When One True Thing Makes Everything True
1. The Magic Rule of "At Least One"
Imagine you are playing a treasure hunt game with your friends. Your mom says, "You can have a scoop of ice cream if you clean your room OR finish your homework." What happens if you only clean your room, but the homework is not done? You still get the ice cream! What if you only finish your homework? You still get the ice cream! And, of course, if you do both, you definitely get the ice cream. The only time you don't get the treat is if you do neither chore. This is the magic rule of OR: it requires at least one condition to be true.

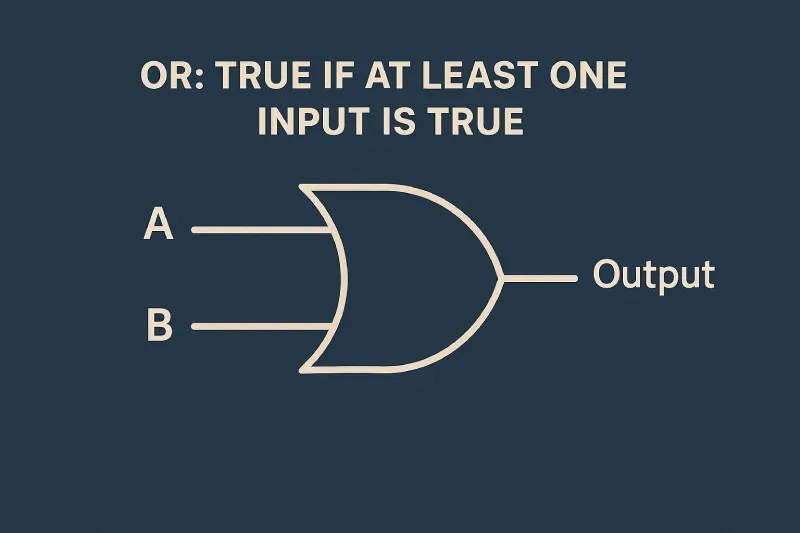

In the world of computers and logic, we call this an OR Gate[1]. Think of it as a little machine with two or more input pipes and one output pipe. It's constantly checking: "Is there any truth coming in? If yes, I will send truth out!"
2. The Truth Table: The OR Gate's Report Card
Mathematicians and engineers use a special chart called a truth table to show how logic gates work. It lists every possible combination of inputs and shows you the output. For a two-input OR gate, there are only four possibilities. Let's call our inputs A and B. We use 1 to represent TRUE and 0 for FALSE.
| Input A | Input B | Output (A OR B) |
|---|---|---|
| 0 (FALSE) | 0 (FALSE) | 0 (FALSE) |
| 0 (FALSE) | 1 (TRUE) | 1 (TRUE) |
| 1 (TRUE) | 0 (FALSE) | 1 (TRUE) |
| 1 (TRUE) | 1 (TRUE) | 1 (TRUE) |
We can even write this as a simple math-like formula. In Boolean algebra[2], we often use a plus sign (+) to represent OR. So, the function of an OR gate is:
$X = A + B$
Where $X$ is the output. If either $A$ or $B$ is $1$, then $X$ equals $1$. It only equals $0$ when both are $0$.
3. From Snacks to Search Engines: OR in Action
The OR operation is everywhere, hiding in plain sight. Let's look at a few scenarios that range from elementary to high school level.
🍕 The Pizza Topping Problem (Elementary): You and your sibling are ordering a pizza. You like pepperoni, and your sibling likes mushrooms. The rule is: "We will order a pizza if it has pepperoni OR mushrooms." A pepperoni-only pizza? Yes! A mushroom-only pizza? Yes! A pizza with both? Even better! A plain cheese pizza with neither? No pizza tonight. This is a perfect OR scenario.
🔎 The Super Search Engine (Middle School): When you type words into a search engine like Google, it often uses an inclusive OR[3] by default. If you search for "astronaut OR spacewalk", the engine will show you web pages that contain the word "astronaut", pages that contain "spacewalk", and pages that contain both. It just needs at least one of your keywords to be present. This gives you a much wider set of results than searching for pages that must have both words.
⚙️ Industrial Safety Systems (High School): Factories use complex control systems with many sensors. Imagine a conveyor belt that has a sensor at the start ($A$) and a sensor at the end ($B$) to detect if a box is present. An alarm system might be designed to sound if a box is detected at $A$ OR $B$ for too long, indicating a jam. The logic here is: if any sensor is blocked, there's a potential problem.
4. The Cousins: Inclusive OR vs. Exclusive OR (XOR)
The OR we've been discussing is technically called the inclusive OR. "Inclusive" means it includes the case where both inputs are true. But there's a close relative called the Exclusive OR (XOR)[4]. The XOR gate outputs TRUE only if the inputs are different. Think of it like a "one or the other, but not both" rule.
🍽️ The Restaurant Dilemma: A waiter asks, "Would you like soup OR salad with your meal?" In many restaurants, this is an XOR. You can have soup, or you can have salad, but you usually cannot have both (unless you pay extra). This is the key difference from the inclusive OR we saw with the pizza toppings.
Let's compare their truth tables side-by-side:
| Input A | Input B | Inclusive OR (A OR B) | Exclusive OR (A XOR B) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 1 | 0 |
The formula for XOR is a bit different. It can be written as:
$X = A \oplus B$
5. Important Questions About the OR Gate
Answer: Absolutely! The "at least one" rule works for any number of inputs. A three-input OR gate outputs TRUE if input 1 OR input 2 OR input 3 is TRUE. It only outputs FALSE if all three are FALSE. You can find chips with 4, 8, or even more inputs.
Answer: Engineers use a specific, standardized symbol. It looks like a curved shield or a crescent shape on the input side, with a point at the output. It is distinct from the AND gate, which has a flat input side. The shape helps anyone reading the schematic instantly recognize the logic function.
Answer: It's fundamental for controlling the flow of a program. For example, in a video game, you might have code that says: if (lives == 0 OR health <= 0) : game_over(). This checks if either condition for losing is met. It allows programs to make complex decisions based on multiple criteria.
📝 Footnote
[1] OR Gate: A basic digital logic gate that implements logical disjunction. Its output is HIGH (TRUE) if at least one of its inputs is HIGH.
[2] Boolean Algebra: A branch of algebra invented by George Boole in which the values of variables are the truth values true and false, usually denoted 1 and 0.
[3] Inclusive OR: The standard logical OR that returns true if either or both of its operands are true. It "includes" the case where both are true.
[4] Exclusive OR (XOR): A logical operation that outputs true only when the two inputs differ (one is true, the other is false). It "excludes" the case where both are true.
