Logic Gates: The Brain Cells of Digital Devices
1. The Building Blocks: Basic Logic Gates (AND, OR, NOT)
Imagine a light that only turns on if two specific switches are both flipped to the "on" position. This is exactly how an AND gate works. In the world of digital electronics, we don't use light switches; we use voltage levels. A high voltage (usually around 5 volts or 3.3 volts) represents a binary "1" (or "true"), and a low voltage (near 0 volts) represents a binary "0" (or "false").

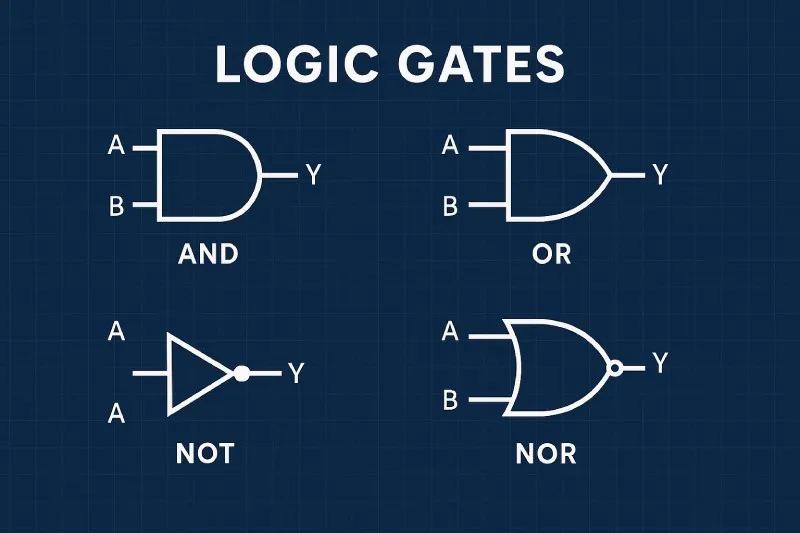

Let's explore the three most fundamental logic gates:
| Gate Name | Boolean Operation | Simple Analogy |
|---|---|---|
| AND Gate | Output is 1 only if all inputs are 1. | Two keys are needed to open a safe; both must be turned. |
| OR Gate | Output is 1 if at least one input is 1. | A car alarm goes off if the door is opened OR the trunk is opened. |
| NOT Gate (Inverter) | Output is the opposite of the input. 1 becomes 0, and 0 becomes 1. | A circuit that turns a light ON when it is dark (NOT day). |
2. Truth Tables: The Report Card of a Logic Gate
A truth table is a simple way to show how a logic gate behaves. It lists all the possible combinations of inputs (like a report card for every scenario) and shows the corresponding output. For gates with two inputs, A and B, there are four possible combinations:
| Input A | Input B | AND Output (A·B) | OR Output (A+B) | NOT Output (A̅) |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 1 |
| 0 | 1 | 0 | 1 | 1 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 1 | 1 | 1 | 0 |
This table is like a cheat sheet for a logic gate. If you know the inputs, you can instantly find the output.
3. Combined Operations: NAND, NOR, and XOR Gates
By combining basic gates, we create new, very useful ones. These are like "super gates" that perform more complex operations.
- NAND Gate (NOT + AND): This gate does the opposite of an AND gate. The output is 0 only if both inputs are 1; otherwise, it's 1. It's famous because you can build any other logic gate using only NAND gates! It's a "universal gate."
- NOR Gate (NOT + OR): The opposite of an OR gate. The output is 1 only if both inputs are 0. Like NAND, NOR is also a universal gate.
- XOR Gate (Exclusive OR): This gate is like an OR gate, but with one exception. The output is 1 if the inputs are different. If both inputs are the same (both 0 or both 1), the output is 0. Think of it as a "difference detector."
4. Real-World Example: The Automatic Night Light
Let's build a simple automatic night light. We want a light to turn on when it's dark AND there is someone moving nearby (to save energy). This circuit uses two sensors:
- A light sensor: Outputs 1 when it's DARK.
- A motion sensor: Outputs 1 when it detects MOTION.
We feed these two signals into an AND gate. The light will only turn on when both conditions are true (Dark = 1 AND Motion = 1). Now, what if we want the light to be on during the day as well, just for safety? We could connect the light sensor to a NOT gate first, so it outputs 1 when it's LIGHT, and then feed that into an OR gate with the motion sensor. This small example shows how we combine gates to make decisions based on our environment.
Important Questions
A: Addition is done by a special circuit called an adder. For adding two bits (A and B), we need two outputs: the Sum (S) and the Carry (C). A Half Adder uses an XOR gate for the Sum (A ⊕ B) and an AND gate for the Carry (A · B). For example, if A=1 and B=1, the Sum is 0 and the Carry is 1, which is exactly how we add 1+1 in binary (10). This is the foundation of all arithmetic in a CPU.
A: A logic family is the technology used to build the gates, like TTL (Transistor-Transistor Logic) or CMOS (Complementary Metal-Oxide-Semiconductor). They differ in speed, power consumption, and voltage levels. CMOS, used in almost all modern processors, is great because it uses very little power when not switching. It's why your phone battery can last all day.
A: Individually, no. But if you connect the output of a NOR or NAND gate back to its own input, you create a flip-flop. This simple circuit can "remember" a single bit (0 or 1) until it is told to change. By combining thousands of flip-flops, we create memory chips (RAM) that store your data and the programs you're running.
Footnote
[1] Boolean Operation: A mathematical operation based on Boolean algebra, where values are either true or false (1 or 0).
[2] Transistor: A tiny electronic switch that can be turned on or off by an electric signal. Millions of them are etched onto a chip to form logic gates.
[3] Binary Digits (Bits): The most basic unit of data in computing, represented as a 0 or a 1.
[4] Truth Table: A table showing the output of a logic circuit for all possible combinations of its inputs.
[5] CMOS (Complementary Metal-Oxide-Semiconductor): A technology for constructing integrated circuits, known for its low power consumption.
