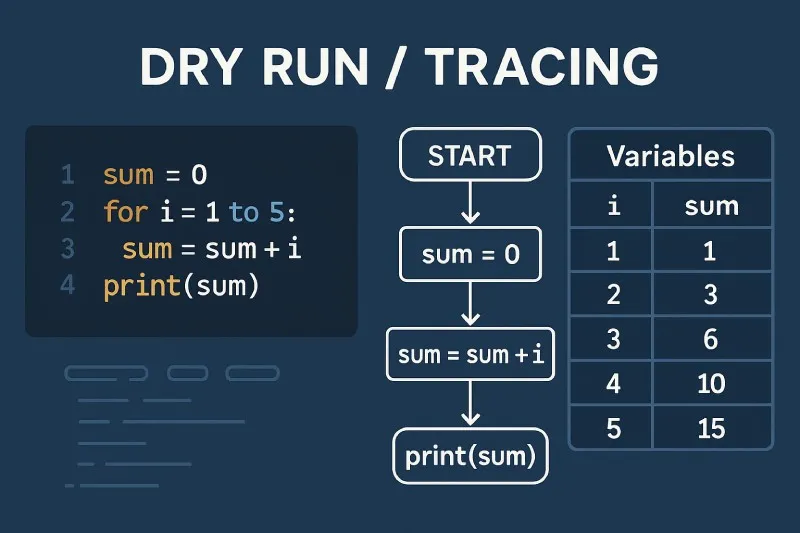

Dry Run / Tracing: The Process of Manually Checking a Logic Circuit or Program
1. What Is a Dry Run? – The Detective Work Before Execution
Imagine you are a detective trying to solve a mystery without leaving your chair. A dry run is exactly that: you act as the computer or the circuit, following every instruction or signal change on paper. You write down the current values of all variables (in a program) or the voltage levels (in a circuit) after each step. This slow, deliberate process reveals hidden bugs and deepens your understanding of how things work.
For a young student, a dry run can be as simple as following a recipe. For example, if a recipe says “add 2 cups of flour, then add 1 cup of sugar,” you mentally note: flour = 2, sugar = 1. If later it says “mix flour and sugar,” you already have the values. In programming, you do the same with variables like x and y.
2. Dry Running a Simple Program – Tracking Variables
Let’s start with a tiny piece of code written in pseudo‑code (similar to many programming languages). We will manually trace its execution.
Pseudo‑code example:
1 a = 5 2 b = 3 3 a = a + b 4 b = a - b 5 a = a - b 6 output a, b
We will dry run this with a variable trace table. We list each line, the operation performed, and the new values of a and b.
| Line | Operation | a value | b value |
|---|---|---|---|
| 1 | a = 5 | 5 | ? |
| 2 | b = 3 | 5 | 3 |
| 3 | a = a + b (5+3) | 8 | 3 |
| 4 | b = a - b (8-3) | 8 | 5 |
| 5 | a = a - b (8-5) | 3 | 5 |
| 6 | output a, b | 3 | 5 |
Notice how the values of a and b changed at each step. This small program actually swaps the values of two numbers without using a temporary variable – a classic trick! By dry running it, we verified that after line 6, a becomes 3 (original b) and b becomes 5 (original a).
3. Dry Running a Logic Circuit – Truth Tables & Gate States
In electronics, dry running means following the signals through logic gates (AND, OR, NOT, etc.). We create a truth table that lists all possible input combinations and then manually compute the output at each gate.
Example circuit: A simple combination of two AND gates feeding into an OR gate. Let the inputs be A, B, and C. The output is $Y = (A \cdot B) + (B \cdot C)$ (using $\cdot$ for AND and $+$ for OR).
We dry run by checking every combination of A, B, and C. For example, when A=0, B=1, C=1:
- First AND ($A \cdot B$) = 0·1 = 0.
- Second AND ($B \cdot C$) = 1·1 = 1.
- OR gate ($0 + 1 = 1$).
We repeat this for all 8 possible input combinations. The result is a truth table:
| A | B | C | A·B | B·C | Y = (A·B)+(B·C) |
|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 | 1 | 1 |
| 1 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 1 | 0 | 0 | 0 |
| 1 | 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 | 1 |
By dry running the circuit, we have produced its complete behaviour description. This is exactly how engineers verify small parts of a microchip before building it.
4. Practical Application – Finding a Bug in a Loop
Now let’s apply dry running to a more advanced concept: a loop. Consider a program that should add numbers from 1 to 4 but contains a common off‑by‑one error.
1 sum = 0 2 i = 1 3 while i < 4 4 sum = sum + i 5 i = i + 1 6 end while 7 output sum
Let’s dry run it:
| Line | Condition / Op | i | sum |
|---|---|---|---|
| 1 | sum = 0 | ? | 0 |
| 2 | i = 1 | 1 | 0 |
| 3 | while i < 4? (1<4 true) | 1 | 0 |
| 4 | sum = 0+1 | 1 | 1 |
| 5 | i = 1+1 | 2 | 1 |
| 3 | while i < 4? (2<4 true) | 2 | 1 |
| 4 | sum = 1+2 | 2 | 3 |
| 5 | i = 2+1 | 3 | 3 |
| 3 | while i < 4? (3<4 true) | 3 | 3 |
| 4 | sum = 3+3 | 3 | 6 |
| 5 | i = 3+1 | 4 | 6 |
| 3 | while i < 4? (4<4 false) | 4 | 6 |
| 7 | output sum | 4 | 6 |
The output is 6, but the sum of 1+2+3+4 should be 10. The dry run shows that the loop stopped when i = 4, so it never added 4. The condition should be <= 4. Without a dry run, this bug might go unnoticed.
5. Important Questions About Dry Running
A1: Dry running forces you to understand every step. When you run the code, you only see the final result. If there is a mistake, you have to debug; but a dry run shows you the exact moment a variable takes a wrong value. It builds strong problem‑solving skills and is essential in exams where no computer is available.
A2: For large programs, we don’t dry run every line. Instead, we focus on small parts like loops, conditionals, or newly written functions. In professional settings, dry running is used for critical sections or when a bug is suspected. It’s a precision tool, not a sledgehammer.
A3: A truth table is a complete listing of all input‑output combinations for a logic circuit. A dry run is the process of manually computing one row of that table – or following a sequence of steps in a program. For circuits, dry running helps build the truth table. So they are closely related but not identical.
Conclusion – The Power of Mental Simulation
Footnote
[1] Dry run – manual simulation of a program or circuit without actual execution. Also called tracing or desk checking.
[2] Variable trace table – a table that records the values of variables at each step of a program.
[3] Truth table – a table showing all possible input combinations and the corresponding outputs for a logic circuit.
[4] Logic gate – an electronic component (AND, OR, NOT) that performs a basic Boolean function.
