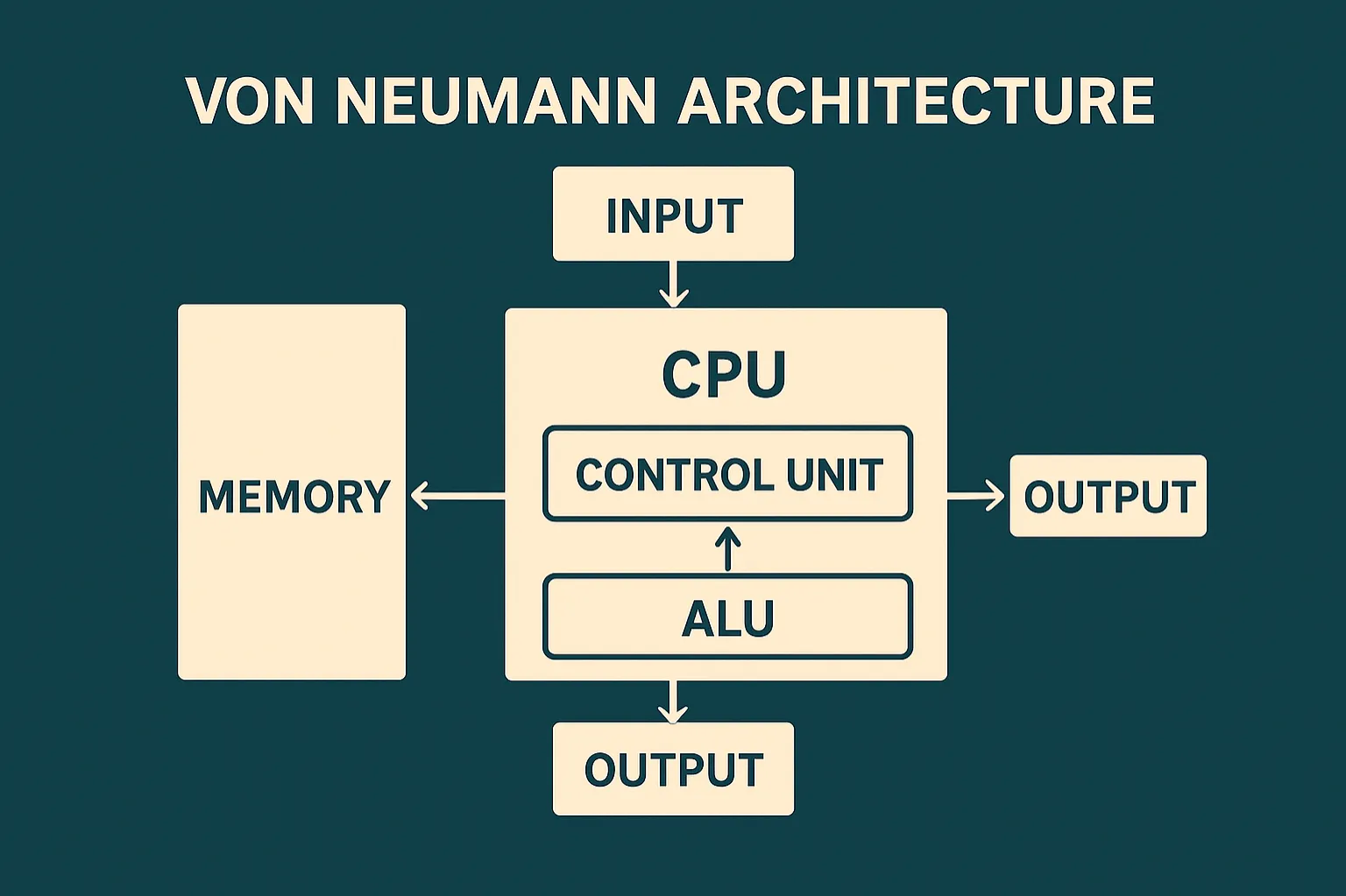

Von Neumann Architecture

The Blueprint That Built Modern Computing: Where Data and Instructions Share a Home

Summary: The Von Neumann Architecture is a foundational computer design where both program instructions and data live in the same memory space. Proposed by mathematician John von Neumann in 1945, this "stored-program" concept revolutionized computing by allowing machines to be easily reprogrammed. The architecture relies on a Central Processing Unit (CPU), a single shared memory, and sequential execution of instructions. This model creates the famous "Von Neumann bottleneck" but remains the basis for most general-purpose computers today, from smartphones to supercomputers.

1. The Core Components: The Building Blocks of the Machine

The Von Neumann model isn't a single physical object but a logical design composed of five distinct parts. Think of it like a classic office: you have a desk to work on, filing cabinets for storage, and a manager to coordinate tasks. In a Von Neumann machine, these elements are:

Memory Unit: The large filing cabinet. It stores both the data (numbers, letters, pictures) and the instructions (the recipe the computer follows).
Control Unit (CU): The manager. It reads instructions from memory and tells the other parts what to do (e.g., "fetch that number," "add these two numbers").
Arithmetic Logic Unit (ALU): The calculator on the desk. It performs all the mathematical operations (addition, subtraction) and logical comparisons (is 5 greater than 3?).
Input/Output (I/O): The mailroom and reception area. It handles communication with the outside world—keyboards, monitors, printers, and internet cables.
Registers: Small, super-fast scratchpads inside the CPU that hold data currently being worked on.

What makes this design special is that the instructions (like "LOAD" or "ADD") are stored in the same format and the same place as the data they act upon. Before this, computers had to be physically rewired for each new task—a tedious and error-prone process.

Component	Function	Real-World Analogy
Memory Unit (RAM)	Holds programs and data temporarily.	A notebook with a recipe and ingredients.
Control Unit (CU)	Decodes instructions and directs traffic.	The chef reading the recipe and giving orders.
ALU	Performs calculations and logic.	The chef's knife and measuring cups.
Registers	Ultra-fast, temporary storage inside CPU.	The chef's countertop within arm's reach.
I/O System	Communicates with user and devices.	The waiter bringing orders and serving food.

2. The Instruction Cycle: How the Computer Thinks Step-by-Step

A Von Neumann machine operates in a continuous, predictable loop. It doesn't think in human terms; it follows a rigid cycle often called the fetch-decode-execute cycle. Imagine a student following a worksheet with simple commands. The computer does the same thing billions of times per second.

Fetch: The Control Unit asks the Memory Unit for the next instruction. It uses a special register called the Program Counter (PC) to know which address in memory to look at. The instruction is then copied from memory into the Instruction Register (IR).
Decode: The Control Unit examines the fetched instruction. It figures out what needs to be done (e.g., "add two numbers") and which data is required.
Execute: The Control Unit sends signals to the ALU or memory to carry out the instruction. If it's an addition, the ALU calculates the sum. If it's a save command, the result is written back to memory.

This cycle repeats endlessly. Because the next instruction is always fetched from the next memory address (unless a jump or branch occurs), the process is called sequential execution. This predictability made programming much simpler.

📝 Tip for Understanding: The speed of a computer is often measured by its clock speed (e.g., 3.0 GHz). This clock ticks like a metronome, and with each tick, the CPU can complete one small part of the fetch-decode-execute cycle. A 3.0 GHz processor can do roughly 3 billion of these tiny steps per second!

3. Real-World Application: Baking a Virtual Cake

Let's see how this plays out in a practical example. Suppose you want your computer to add 5 and 3. You write a simple program. Before execution, both the program's instructions and the numbers are stored in the computer's memory (RAM). Let's simulate a tiny slice of that process:

Memory Address 100: Contains the instruction "LOAD the number from address 200 into Register A."
Memory Address 101: Contains the instruction "LOAD the number from address 201 into Register B."
Memory Address 102: Contains the instruction "ADD Register A and Register B, store result in Register C."
Memory Address 200: Contains the data 5.
Memory Address 201: Contains the data 3.

The CPU, using its Program Counter (PC), starts at address 100. It fetches the LOAD instruction, decodes it, and executes it by moving the 5 from memory address 200 into Register A. The PC then increments to 101. It repeats the cycle to load 3 into Register B. Finally, at address 102, it fetches the ADD instruction. The ALU performs the operation: 5 + 3 = 8. The result, 8, is placed in Register C. This simple sequence is how every calculation, from a spreadsheet to a video game graphic, is built.

4. Important Questions About the Von Neumann Model

Q: What is the "Von Neumann Bottleneck" and why is it a problem?
A: Because both instructions and data share the same bus (pathway) to the CPU, they cannot be fetched at the same time. The CPU can be incredibly fast, but it often has to wait for data to arrive from the slower memory. This single lane of traffic between the CPU and memory is the bottleneck, limiting the overall speed of the computer. It's like a super-fast chef waiting for a single, slow conveyor belt to bring both the recipe and the ingredients.

Q: Is my modern smartphone still a Von Neumann machine?
A: Yes, the core principle of a single, shared memory space for instructions and data is still the foundation of nearly all general-purpose processors (CPUs) in phones, laptops, and desktops. However, modern computers have many modifications to speed things up, like multiple CPU cores and several levels of cache memory (small, fast memory close to the CPU) to help bypass the bottleneck. They are still Von Neumann machines at heart, just with many performance-enhancing tricks.

Q: What is the difference between Von Neumann and Harvard Architecture?
A: The main difference is how memory is organized. Von Neumann uses a single memory space for both instructions and data. Harvard Architecture uses physically separate memory and pathways for instructions and data. This allows the CPU to fetch an instruction and data at the same time, which can be faster. Harvard Architecture is often used in smaller, dedicated systems like microcontrollers (e.g., in a microwave or a digital signal processor), while Von Neumann (or a modified hybrid) dominates general-purpose computing.

Conclusion: The Von Neumann Architecture, with its elegant concept of a stored program, laid the groundwork for the entire digital age. By treating instructions as just another type of data, it gave us the flexibility to transform a simple electronic calculator into a machine that can write documents, play movies, and connect people across the globe. Despite its famous bottleneck, its logical simplicity has proven so powerful that it has endured for over seven decades. Understanding this architecture is the first step to understanding how every piece of software, from a video game to a complex simulation, ultimately becomes a sequence of simple steps executed by the hardware.

Footnote

[1] Stored-Program Concept: The revolutionary idea that program instructions can be represented in digital form and stored in memory just like data, allowing a computer to be easily reprogrammed for different tasks without changing its hardware.

[2] Central Processing Unit (CPU): The "brain" of the computer, composed of the Control Unit (CU) and the Arithmetic Logic Unit (ALU), responsible for executing instructions.

[3] Sequential Execution: The process where the CPU fetches and executes instructions one after another in the order they are stored in memory, unless a jump or branch instruction explicitly changes this flow.

[4] Program Counter (PC): A special register in the CPU that holds the memory address of the next instruction to be executed.
