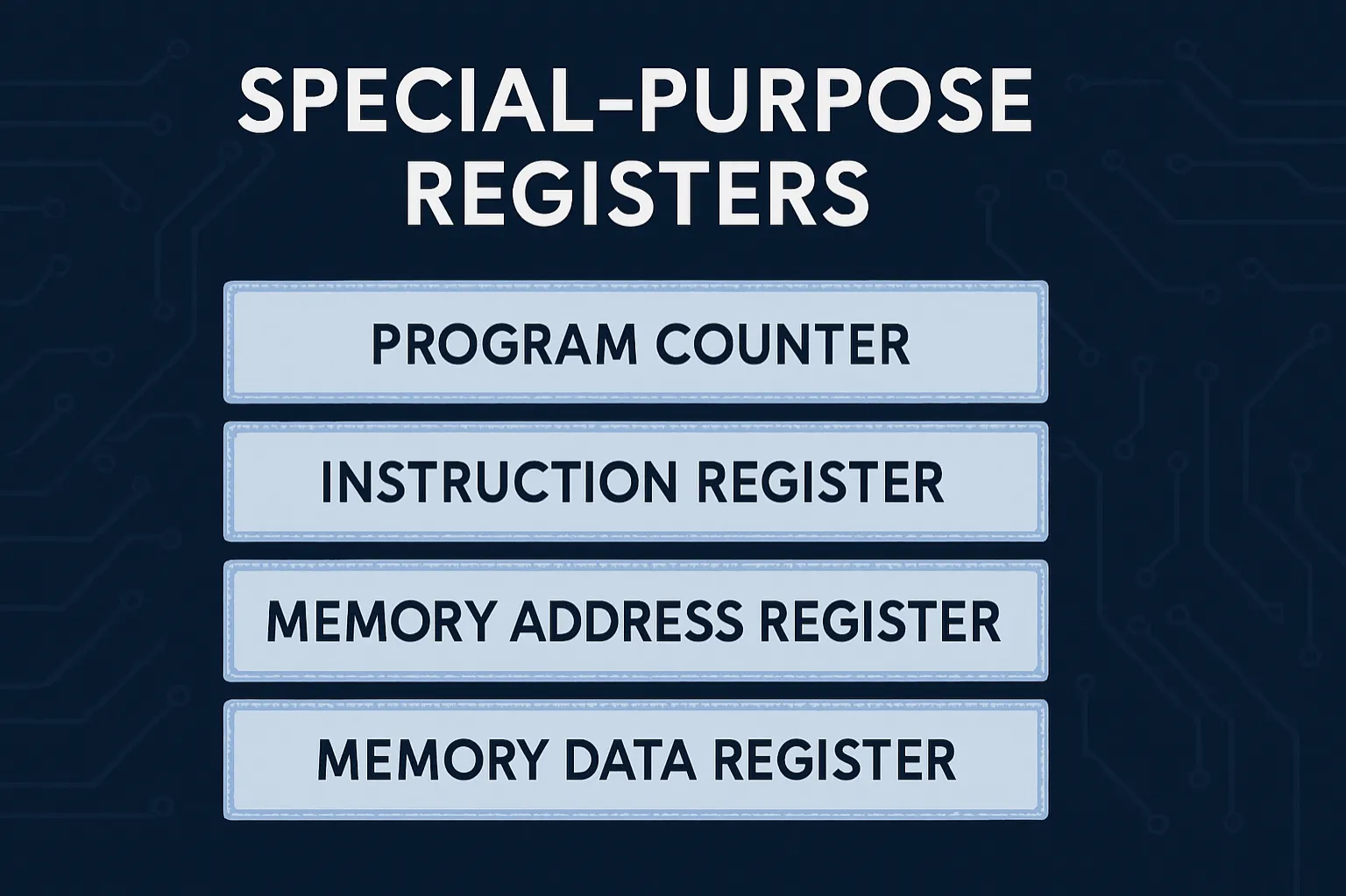

Special-Purpose Registers: The CPU's Dedicated Assistants

Understanding how the brain of a computer uses tiny, high-speed memory locations for specific tasks

📋 Summary: This article explores Special-Purpose Registers, the tiny but crucial storage areas inside a computer's Central Processing Unit (CPU). Unlike general-purpose registers that can hold any data, these registers have dedicated roles. We will learn about their functions, such as holding the next instruction's memory address (Program Counter), storing the current instruction (Instruction Register), and keeping track of the CPU's state (Status Register). We will also look at how they work together during the fetch-execute cycle, making the computer fast and efficient. Key terms: Program Counter (PC), Instruction Register (IR), Status Register (SR), Memory Address Register (MAR).

🧠 The CPU's Internal Mailroom: What Are Registers?

Imagine the Central Processing Unit (CPU) as the bustling headquarters of a computer. To do its job—calculating, moving data, making decisions—it needs a place to temporarily keep the information it's working on right now. This is where registers come in. Registers are tiny, super-fast memory locations built directly inside the CPU. Think of them as the CPU's personal desk or notepad. They hold small amounts of data that the CPU needs immediately, like the numbers for a quick calculation or the address of the next task.

We can split these registers into two main teams: General-Purpose Registers (GPRs) and Special-Purpose Registers (SPRs). General-purpose registers are the flexible workers—they can hold any kind of data, like a number, a memory address, or a character, depending on what the programmer or program needs. They are the multi-tools of the CPU.

Special-Purpose Registers, the focus of our article, are the specialists. Each one has a very specific, predefined job that is critical for the computer's operation. They don't hold just any data; they hold vital control information, like the location of the next instruction or the result of a comparison. They are the dedicated experts that keep the entire system running smoothly and in order.

🗺️ The Program Counter (PC): The Instruction Pointer

One of the most important special-purpose registers is the Program Counter (PC). Sometimes it's called the Instruction Pointer (IP). Its job is simple but absolutely essential: it holds the memory address of the next instruction that the CPU needs to execute.

Think of the CPU following a recipe (the program). The PC is like a bookmark that always shows the line number of the next step. After the CPU reads (fetches) an instruction from that address, the PC is automatically updated to point to the following instruction. This ensures the program runs in the correct sequence.

Real-world example: Imagine a list of chores written on a whiteboard, each with a number (its address). A robot (the CPU) has a sticky note (the PC) that says "Do chore #3." It goes to #3, reads "Wash dishes," and starts washing. While washing, the robot updates its sticky note to say "Do chore #4." This simple process of pointing to the next task is exactly how the PC works. If a program needs to jump to a different part (like a loop or a decision), a special instruction can directly change the value in the PC, making the bookmark jump to a new address.

📜 The Instruction Register (IR): Holding the Current Command

While the Program Counter holds the address of the next instruction, the Instruction Register (IR) holds the actual instruction that is currently being executed. Once the CPU fetches an instruction from the memory address pointed to by the PC, it places that instruction into the IR.

This instruction is a binary code that tells the CPU what to do. It might be a command like "add two numbers," "load data from memory," or "store this result." The Control Unit of the CPU then decodes the instruction sitting in the IR to figure out what actions need to be taken. It's like having a command center where the current order is displayed and analyzed before the workers carry it out.

💡 Tip: The Fetch-Decode-Execute Cycle
The PC and IR work in perfect harmony during the fundamental fetch-decode-execute cycle:

Fetch: The CPU uses the address in the Program Counter (PC) to get the next instruction from memory and loads it into the Instruction Register (IR). Then, the PC increments to point to the next instruction.
Decode: The Control Unit interprets the instruction now held in the IR to determine what operation is required.
Execute: The CPU carries out the decoded instruction, which may involve other registers or the Arithmetic Logic Unit (ALU).

🚦 The Status Register (SR): The CPU's Condition Flags

The Status Register (SR), also known as the Flags Register or Condition Code Register, doesn't hold data or addresses. Instead, it holds information about the state of the CPU, particularly the result of the most recent arithmetic or logical operation. It's a collection of individual bits, where each bit (called a flag) is a tiny signal that can be either 0 (off/false) or 1 (on/true).

These flags are crucial for decision-making in programs. For example, after comparing two numbers, the Status Register will set a specific flag. The next instruction can then check this flag to decide which path to take (e.g., "if they are equal, jump to this part of the code").

Flag Name	Symbol	Description (What it signals)
Zero Flag	Z	Set to 1 if the result of an operation is zero.
Carry Flag	C	Set to 1 if an arithmetic operation generates a carry out of the most significant bit (like adding two numbers that get too big).
Sign Flag	S	Set to 1 if the result of an operation is negative (for signed numbers).
Overflow Flag	O	Set to 1 when the result of an operation is too large or too small for the destination register to hold correctly.

🔗 Memory Interface Registers: MAR and MDR

To communicate with the computer's main memory (RAM), the CPU uses two dedicated special-purpose registers: the Memory Address Register (MAR) and the Memory Data Register (MDR). They act as the dedicated pick-up and drop-off point for all memory traffic.

Memory Address Register (MAR): This register holds the address of the memory location that the CPU wants to read from or write to. It's like writing the specific street address on an envelope before sending it.
Memory Data Register (MDR): This register holds the actual data that is being transferred to or from the memory location specified by the MAR. If the CPU is reading, the data from memory is placed into the MDR. If it's writing, the data to be stored is first placed into the MDR. It's the contents of the envelope.

When the CPU needs data, it places the desired address in the MAR and sends a "read" signal. The memory system fetches the data from that address and places it in the MDR for the CPU to use.

🔬 Practical Example: Baking a Cake with the CPU

Let's imagine a simple program that adds two numbers, say 5 and 3. We'll see how our special-purpose registers manage this tiny task.

Initial State: The Program Counter (PC) is set to the starting address of our program, let's say address 100.
Fetch Instruction 1:
- The CPU puts address 100 (from PC) into the MAR.
- It sends a read signal. The data at address 100 (the instruction "LOAD R1, 5") is retrieved into the MDR.
- This instruction is moved from the MDR to the IR for decoding.
- The PC is automatically incremented to 101.
Execute Instruction 1: The Control Unit decodes the instruction in the IR ("LOAD R1, 5") and executes it, placing the value 5 into a general-purpose register called R1.
Fetch Instruction 2:
- The address 101 (from PC) is put into the MAR.
- The instruction at that address ("LOAD R2, 3") is fetched into the MDR and then moved to the IR.
- The PC increments to 102.
Execute Instruction 2: The CPU executes the instruction, loading the value 3 into general-purpose register R2.
Fetch Instruction 3:
- Address 102 (from PC) goes into MAR.
- Instruction "ADD R1, R2" is fetched into MDR and then IR.
- PC increments to 103.
Execute Instruction 3: The Arithmetic Logic Unit (ALU) adds the contents of R1 (5) and R2 (3) to get 8. The result is stored back in R1. The Status Register (SR) is updated:
- The Zero Flag (Z) is set to 0 because the result (8) is not zero.
- The Sign Flag (S) is set to 0 because the result is positive.
- Carry and Overflow flags are set based on the specific operation, likely 0 in this simple case.

❓ Important Questions About Special-Purpose Registers

Q1: Why can't we just use general-purpose registers for everything? Why do we need special ones?
Great question! While general-purpose registers are flexible, they lack the dedicated hardware connections that special-purpose registers have. For example, the Program Counter (PC) is directly wired to the memory system so that its value can be automatically sent to the MAR to fetch the next instruction. The Instruction Register (IR) is directly connected to the Control Unit for immediate decoding. Using a general-purpose register for these tasks would require extra, slower steps to move the data to the right place. Special-purpose registers are hard-wired for their specific jobs, making the fetch-execute cycle incredibly fast.

Q2: What happens to the Program Counter when a function is called in a program?
This is where the magic of function calls happens. When a program calls a function, it needs to jump to the function's code and then come back to the exact point where it left off. To do this, the current value in the Program Counter (the return address) is temporarily saved, usually onto a special area in memory called the stack. The PC is then loaded with the address of the function's first instruction. When the function finishes, the saved return address is retrieved from the stack and put back into the PC, so the program continues right where it stopped.

Q3: How does the Status Register help in making decisions like "if-else"?
An "if-else" statement in a high-level language (like C++ or Python) is translated into a conditional jump instruction in machine code. First, a comparison instruction (like CMP) is executed. This instruction subtracts two numbers and, instead of storing the result, it updates the flags in the Status Register (e.g., Zero Flag, Sign Flag). The very next instruction is a conditional jump, such as "Jump if Equal (JE)". This instruction checks the Zero Flag in the Status Register. If the Zero Flag is 1 (meaning the numbers were equal), the JE instruction changes the Program Counter to a new address (the "else" part). If the Zero Flag is 0, the jump is ignored, and the program continues to the next instruction (the "if" part). The Status Register holds the condition that determines which path the program takes.

✅ Conclusion

Special-Purpose Registers are the hidden specialists that make a computer run efficiently and correctly. While they are tiny and often overlooked, their dedicated roles are fundamental. The Program Counter guides the CPU through a program step-by-step. The Instruction Register holds the current command for execution. The Status Register acts as the CPU's memory of recent results, enabling logical decisions. And the MAR and MDR manage the critical communication with main memory. Together, they form an invisible but perfectly organized team that allows everything from simple calculations to complex video games to function. Understanding them gives us a peek into the elegant choreography happening billions of times per second inside our devices.

📝 Footnote

^[1] CPU: Central Processing Unit, the primary component of a computer that performs most of the processing.
^[2] PC: Program Counter, a register holding the address of the next instruction to be executed.
^[3] IR: Instruction Register, a register holding the current instruction being decoded and executed.
^[4] SR: Status Register, a collection of flag bits that indicate the state of the CPU after an operation.
^[5] ALU: Arithmetic Logic Unit, the part of the CPU that performs arithmetic and logical operations.
^[6] MAR: Memory Address Register, holds the address of memory to access.
^[7] MDR: Memory Data Register, holds the data being transferred to or from memory.
