The Current Instruction Register (CIR)

The tiny memory inside the CPU that holds the active command
📌 Summary: The Current Instruction Register (CIR) is a special high-speed storage location inside the Central Processing Unit (CPU). It holds the exact instruction that is currently being decoded and executed. Without the CIR, the CPU would not know what operation to perform next. This article explores the CIR’s role in the fetch-execute cycle, its relationship with other CPU components like the Program Counter (PC) and Memory Data Register (MDR), and how it handles different types of instructions. We’ll look at simple examples, from loading data to performing arithmetic, to understand why this tiny register is the heart of every running program.

1. What Exactly Is the CIR? A Simple Analogy

Imagine you are following a recipe to bake a cake. The recipe book has many steps (the program). You read one step, for example, “add 2 eggs” (the instruction). While you are actually adding the eggs, you hold that single step in your mind. You don’t think about the next step until you finish the current one. The Current Instruction Register (CIR) is exactly like your short-term memory for that single step. It is a small, very fast memory circuit inside the CPU that stores the instruction being executed right now. In technical terms, the CIR is a register, meaning a tiny amount of memory located directly on the processor chip. It is not part of the main RAM (Random Access Memory). Its only job is to hold the binary code of the current instruction so that the Control Unit (CU) can decode it and send the necessary signals to other parts of the computer.

🔬 Scientific Example: Consider a simple instruction: LOAD R1, 5 (load the number 5 into register R1). When this instruction is fetched from memory, its binary representation (e.g., 0010 0001 0000 0101) is placed into the CIR. The Control Unit then looks at this binary pattern in the CIR, decodes the 0010 part as "LOAD", and activates the circuits to move the number 5 into R1.

2. The CIR in the Fetch-Execute Cycle: A Step-by-Step Journey

To understand the CIR, we must see it in action during the Fetch-Execute Cycle, the fundamental operation of every CPU. This cycle repeats billions of times per second.

  1. Fetch: The CPU uses the Program Counter (PC) to find the address of the next instruction in RAM. It sends this address to the Memory Address Register (MAR). The instruction at that address is then retrieved from RAM and placed into the Memory Data Register (MDR). This instruction is then copied from the MDR into the Current Instruction Register (CIR).
  2. Decode: Once the instruction is safely stored in the CIR, the Control Unit (CU) examines it. The instruction is a binary number. Part of it (the opcode) tells the CPU what to do (e.g., add, subtract, load from memory). Another part (the operand) tells it where to find the data or where to store the result. The CU decodes this information using the CIR's content.
  3. Execute: Based on the decoded information from the CIR, the CU sends control signals to the Arithmetic Logic Unit (ALU) or other parts of the CPU to perform the actual operation. For example, if the instruction is ADD R1, R2, the ALU will add the values in registers R1 and R2.
  4. Store (Write-back): The result of the execution is written back to a register or memory location. Then, the cycle begins again for the next instruction.

The CIR is only active during the "Decode" and "Execute" phases, holding the current instruction steady while the CU works on it.

Register NameAbbreviationPrimary Role
Current Instruction RegisterCIRHolds the instruction currently being decoded/executed.
Program CounterPCHolds the memory address of the next instruction to be fetched.
Memory Data RegisterMDRHolds data or instructions just read from memory, or data to be written to memory.
Memory Address RegisterMARHolds the address of a memory location to be read from or written to.

3. What Does an Instruction in the CIR Look Like? (Decoding Binary)

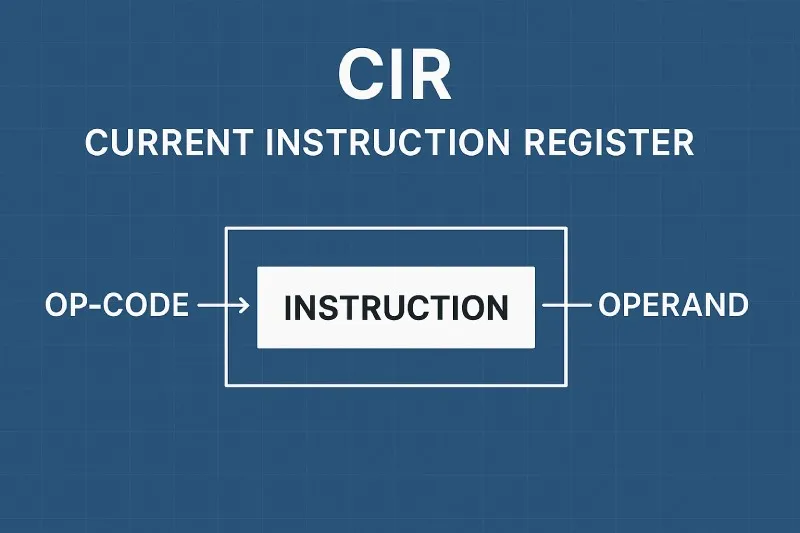

An instruction stored in the CIR is just a sequence of bits (0s and 1s). The length of this sequence (e.g., 8-bit, 16-bit, 32-bit) depends on the computer’s architecture. For the CPU to make sense of it, the instruction is divided into fields. The two most common fields are:

  • Opcode (Operation Code): This part specifies the operation to be performed, like ADD, SUB, LOAD, or JUMP.
  • Operand(s): This part specifies the data to be operated on or the address where the data is located. This could be a register number, a memory address, or a constant value.

Let's look at two simple examples for a hypothetical 8-bit CPU with a 4-bit opcode and a 4-bit operand:

  • Example A: 0001 0011
    • Opcode (0001): Let's say this means LOAD.
    • Operand (0011): This is binary for 3. It might mean "load the value from memory address 3" or "load the constant value 3".
  • Example B: 0010 0101
    • Opcode (0010): Let's say this means ADD.
    • Operand (0101): This is binary for 5. It might mean "add the number 5 to the accumulator".

The Control Unit continuously reads the pattern in the CIR and uses its internal logic to generate the correct sequence of control signals for the rest of the CPU.

4. Practical Application: Running a Short Program with the CIR

Let’s simulate a tiny program that adds two numbers. The CPU has a few general-purpose registers: R1 and R2. The program in memory looks like this:

Memory AddressInstruction (Mnemonic)Meaning
100LOAD R1, 10Put the number 10 into register R1
101LOAD R2, 20Put the number 20 into register R2
102ADD R1, R2Add the values in R1 and R2, store result in R1
103STORE R1, 200Save the result from R1 to memory address 200

Step 1 (Address 100): The instruction LOAD R1, 10 is fetched from memory address 100. Its binary form is placed into the CIR. The Control Unit decodes it and sends signals to set register R1 to 10.

Step 2 (Address 101): The next instruction is fetched. The LOAD R2, 20 instruction now lives in the CIR. It is decoded, and R2 becomes 20.

Step 3 (Address 102): The ADD R1, R2 instruction enters the CIR. The Control Unit sees the "ADD" opcode and tells the ALU to take the values from R1 (10) and R2 (20). The ALU calculates 30. This result is then written back to R1.

Step 4 (Address 103): The final STORE instruction is loaded into the CIR. It is decoded, and the value 30 from R1 is copied to memory address 200.

Throughout this process, the CIR acted as the CPU's "focus," holding each command steady so it could be understood and carried out without confusion.

5. Important Questions About the CIR

Q1: Is the CIR the same as the Program Counter (PC)?

No, they are completely different. The PC (Program Counter) holds the address of the next instruction to be executed, like a bookmark in a book. The CIR holds the actual instruction that is currently being worked on, like the sentence you are reading right now. They work together in a sequence.

Q2: What happens to the CIR when the CPU is idle?

If the CPU is truly idle and running a special "halt" or "idle" instruction, that instruction will be in the CIR. Modern CPUs, however, are rarely fully idle; they often run a "null process" that just loops. In that case, the CIR is constantly being updated with the instructions from that loop.

Q3: How does the CIR handle very complex instructions, like those in a CISC processor?

In Complex Instruction Set Computers (CISC)[1], some instructions can be very long and complicated. The CIR still holds the instruction, but the Control Unit might be a microprogrammed unit. This means the instruction in the CIR triggers a whole series of tiny, internal "micro-instructions" to execute it, rather than a single hardwired action.

Conclusion: The Conductor of the Orchestra

The Current Instruction Register may be small, but its role is monumental. It acts as the conductor of the digital orchestra, holding the current command steady so that every other part of the CPU—the ALU, the registers, the data buses—knows exactly what to do and when to do it. By holding the instruction stable during the decode and execute phases, it prevents chaos and ensures that each operation is completed correctly before moving on to the next. From simple arithmetic to complex graphics rendering, every action a computer takes is guided by the content of this tiny, high-speed memory cell. It is the true "spotlight" of the CPU, illuminating the single task that matters at any given moment.

Footnote

[1] CISC (Complex Instruction Set Computer): A CPU design where single instructions can perform multiple low-level operations (like loading, calculating, and storing) or handle complex addressing modes. This makes the instruction set "richer" but often requires multiple clock cycles to execute a single instruction.

[2] RISC (Reduced Instruction Set Computer): A CPU design that uses a small, highly optimized set of instructions, generally executing one instruction per clock cycle.
